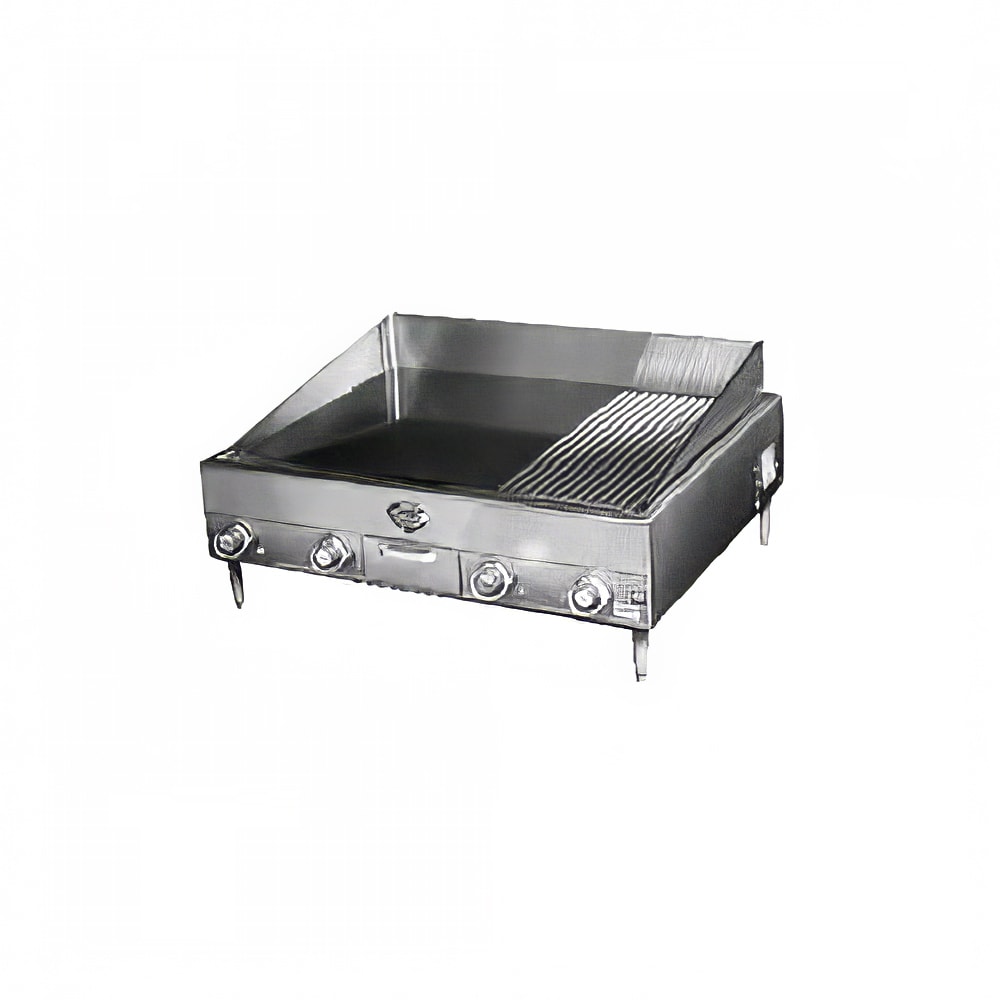

Wells G-23 36" Electric Griddle w/ Thermostatic Controls - 1" Steel Plate, 240v
$6,251.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Wells G-23 Description
Lifted by 4-inch legs to fit on top of a counter or equipment stand, the Wells G-23 G-Series electric countertop griddle can adjust to uneven surfaces for a rigid cooking surface. At 361/2 inches wide, 299/10 inches deep, and 16 inches high, the unit won’t interfere with overhead storage. Its front, sides, and splash guards are resilient stainless steel that resists dents and scratches. Beneath the griddle, a removable 4-quart-capacity grease drawer collects oily runoff for simplified cleanup.
So multiple foods can be cooked simultaneously without interruption, the Wells G-23 commercial electric griddle has four designated cook zones on its 341/4-inch-wide by 243/10-inch-deep cooking surface. Clamped beneath the gridle plate, enclosed tubular elements can heat the 1⁄2-inch-thick griddle plate from 200 to 450 degrees Fahrenheit. The heating elements are controlled by a correlating thermostat, which has a positive-off design to notify the operator when a section of the surface is not in use. Each thermostat is protected by a guard ring to prevent accidental temperature adjustment.
Product Details
- For countertop use
- Stainless steel front, sides, and splash guards
- 1⁄2-in.-thick polished steel griddle plate
- Heating elements are clamped beneath plate
- 4 thermostats with protective guard rings
- Temperature range: 200-450 degrees F
- 4-qt. removable grease drawer
- 4-in. adjustable legs
- Removable rear and side splash guards
- Back clearance: 1 in.
- Side clearances: 1 in.
- Bottom clearance: 4 in.
Dimensions & Utilities
- Legs: (4) 211/2 in. W x 201/2 in. D
- Griddle surface: 341/4 in. W x 183/10 in. D
- Overall: 361/5 in. W x 233/5 in. D x 73/4 in. H
- 66.6 A, 16 kW
- 240 V/60 Hz/3 ph (convertible to 1 ph)
*Free shipping on Wells G-23 within the 48 contiguous states.
From The Manufacturer
Griddle, countertop, electric, smooth polished steel griddle plate, 34-1/4" W x 24-5/16" D cooking surface, stainless steel construction, zoned thermostatic heat control, removable splashguard and 4" adjustable legs, UL, NSF 4, CE, CSA, 240v/60/1ph/3ph
*Image may not depict product color, inclusions or accessories.
Wells G-23 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Application | Medium Duty |
| Controls | Thermostatic |
| Heat | Electric |
| Hertz | 60 |
| kW | 16 |
| Overall Width (in) | 36.5 |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36.5 |
| Series | G Series |
| Plate Material | Steel |
| Cooking Area Depth (in) | 24 |
| Plate Thickness (in) | 1 |
| Control Spacing (in) | 12 |
| Phase | 3 |
| Phase | 1 |
| Rating | Better |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Cooking Area Width (in) | 34.25 |
| Weight | 260.00 |
