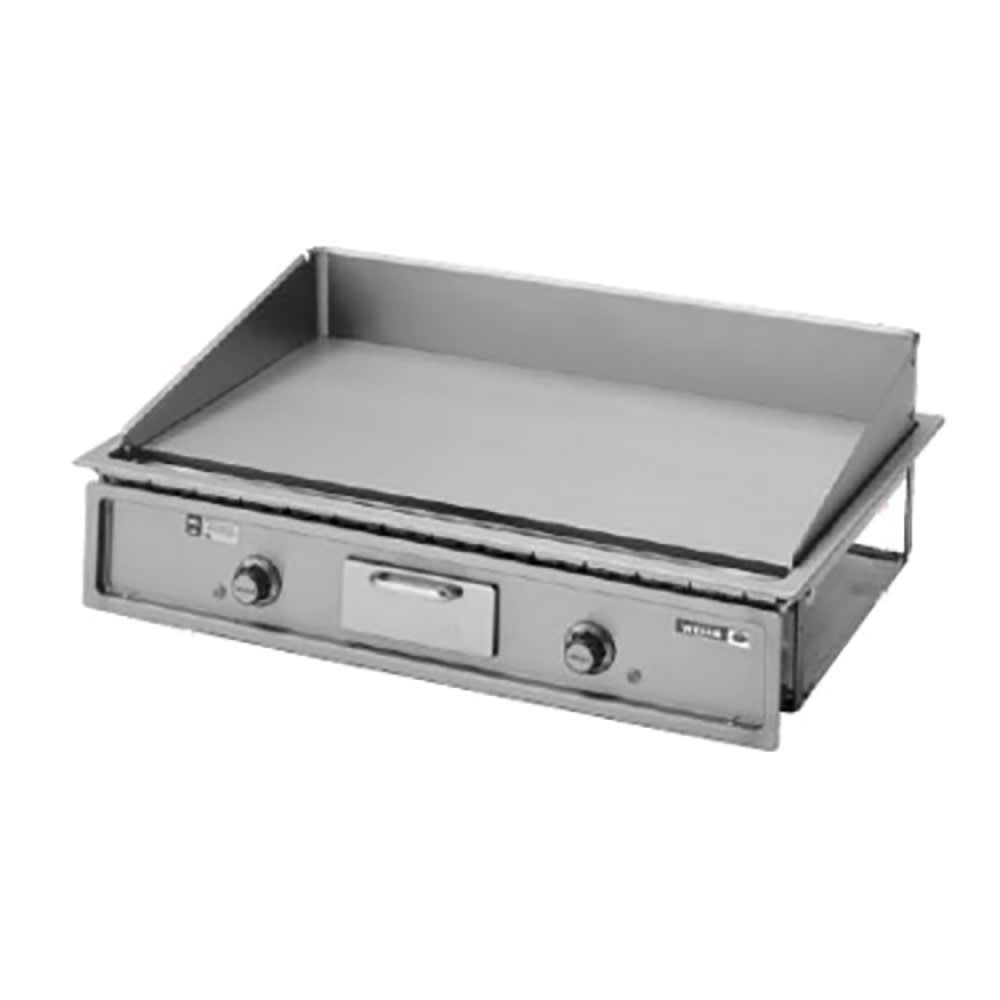

Wells G-196 36" Electric Griddle w/ Thermostatic Controls - 1" Steel Plate, 240v
$4,833.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Wells G-196 Description
This Wells G-196 G-Series electric built-in griddle can cook as many as 45 eggs per load, or 675 eggs per hour. Featuring a 1⁄2-inch-thick griddle plate for quick pre-heating, solid heat distribution, and good recovery, the griddle is controlled with positive-off thermostats that manage 12-inch sections of the 341/4-inch-wide by 183/10-inch-deep cooking surface. Guard rings protect the control knobs to help prevent accidental adjustment. Enclosed tubular heating elements are attached to the underside of the griddle plate and have a 200-to-450-degrees-Fahrenheit temperature range that heats two separate sections to cook multiple foods on the same surface.
To withstand high-volume use, the Wells G-196 commercial griddle’s top, control panel, and splash guards are made of stainless steel. The side and rear splash guards, which help keep nearby surfaces clean, are removable to meet kitchen needs. Beneath the unit, a removable 4-quart-capacity grease drawer contains leftover runoff for streamlined cleanup. For installation into a metal countertop, the overall dimensions for the unit are 36.50 inches wide by 233/5 inches deep by 73/4 inches high.
Product Details
- Installs into a metal countertop
- Temperature range: 200-450 degrees F
- 1⁄2-in.-thick griddle plate is polished steel
- Smooth plate surface eases cleaning
- Stainless steel top, control panel, and splash guards
- Enclosed tubular heating elements
- Positive-off thermostats with protective guard rings
- (2) 12-in.-wide cook zones
- Removable splash guards
- 4-qt. removable grease pan
- Back clearance: 1 in.
- Side clearances: 2 in.
- Bottom clearance: 9 in.
- Front clearance: 2 in.
Dimensions & Utilities
- Griddle surface: 341/4 in. W x 183/10 in. D
- Overall: 361/2 in. W x 233/5 in. D x 73/4 in. H
- 50 A, 12 kW
- 240 V/60 Hz/3 ph (convertible to 1 ph)
*Free shipping on Wells G-196 within the 48 contiguous states.
From The Manufacturer
Griddle, built-in, electric, smooth polished steel griddle plate, 34"W x 18"D cooking surface stainless steel construction, zoned thermostatic heat control, RU, CE, 240v/60/1ph/3ph
*Image may not depict product color, inclusions or accessories.
Wells G-196 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Application | Medium Duty |
| Controls | Thermostatic |
| Heat | Electric |
| Hertz | 60 |
| kW | 12 |
| Overall Width (in) | 36.5 |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36.5 |
| Series | G Series |
| Plate Material | Steel |
| Cooking Area Depth (in) | 18 |
| Plate Thickness (in) | 1 inch |
| Control Spacing (in) | 12 |
| Phase | 3 |
| Phase | 1 |
| Rating | Better |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Cooking Area Width (in) | 34 |
| Weight | 180.00 |
