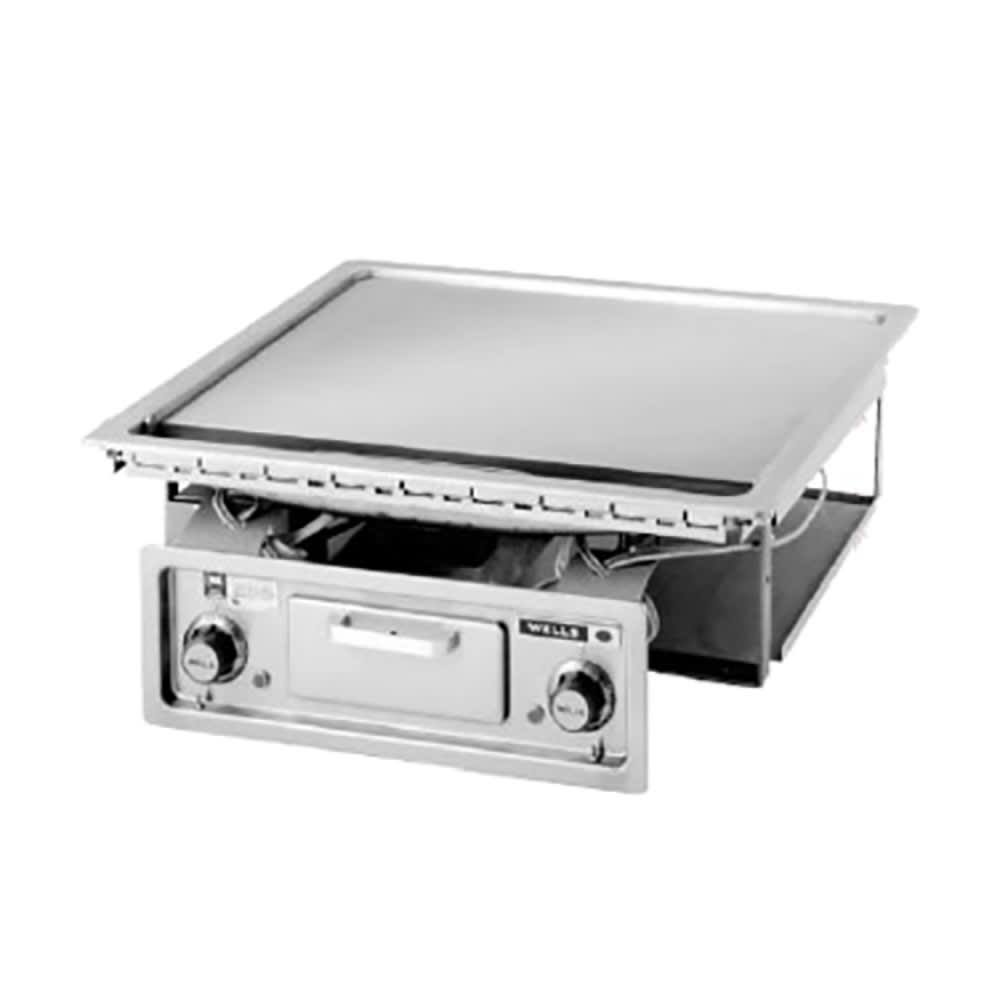

Wells G-136 25" Electric Griddle w/ Thermostatic Controls - 3/4" Steel Plate, 208-240v
$4,082.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Wells G-136 Description
Designed to cook as many as 34 hamburgers per load, the Wells G-136 G-Series electric drop-in griddle increases production. Its 221/2-inch-wide by 183/10 -inch-deep griddle surface is heated by enclosed tubular elements that are clamped underneath the griddle plate to evenly heat the 1⁄2-inch-thick steel griddle plate. To support a variety of cooking needs, the operator-controlled thermostats heat from 200 to 450 degrees Fahrenheit. Ensuring safety, the thermostats have a positive-off feature that alerts the operator when the surface is not heated. So multiple foods can be cooked on the same surface simultaneously, this mechanism also permits individual use. Furthermore, ring guards protect the controls from accidental temperature changes.
To keep hot, popping oil and grease under control, the Wells G-136 commercial griddle’s plate is surrounded by stainless steel splash guards to reduce cleanup requirements on nearby surfaces. Operators can scrape runoff into the 4-quart-capacity grease drawer, which is removable for streamlined use, and the griddle should be installed into a metal countertop for optimal performance.
Product Details
- For metal countertops
- Heated by tubular elements clamped beneath griddle plate
- Thermostats heat from 200- 450 degrees F
- Positive-off feature and ring guards for controls
- 1⁄2-in.-thick polished steel griddle plate
- Stainless steel construction
- Built-in splash guards
- 4-qt. capacity grease drawer
- Back clearance: 1 in.
- Side clearances: 2 in.
- Bottom clearance: 9 in.
- Front clearance: 2 in.
Dimensions & Utilities
- Griddle surface: 221/2 in. W x 183/10 in. D
- Overall: 244/5 in. W x 233/5 in. D x 73/4 in. H
- 14-28.1 A, 6.8 kW
- 208-240 V/60 Hz/3 ph (convertible to 1 ph)
*Free shipping on Wells G-136 within the 48 contiguous states.
From The Manufacturer
Griddle, built-in, electric, smooth polished steel griddle plate, 22"W x 18"D cooking surface, stainless steel construction, zoned thermostatic heat control, RU, CE, 208v/60/1ph/3ph
*Image may not depict product color, inclusions or accessories.
Wells G-136 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Application | Medium Duty |
| Controls | Thermostatic |
| Heat | Electric |
| Hertz | 60 |
| kW | 9 |
| Overall Width (in) | 24.81 |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24.81 |
| Series | G Series |
| Plate Material | Steel |
| Cooking Area Depth (in) | 18 |
| Plate Thickness (in) | 3/4 inch |
| Control Spacing (in) | 12 |
| Phase | 3 |
| Phase | 1 |
| Rating | Better |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Cooking Area Width (in) | 22 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
