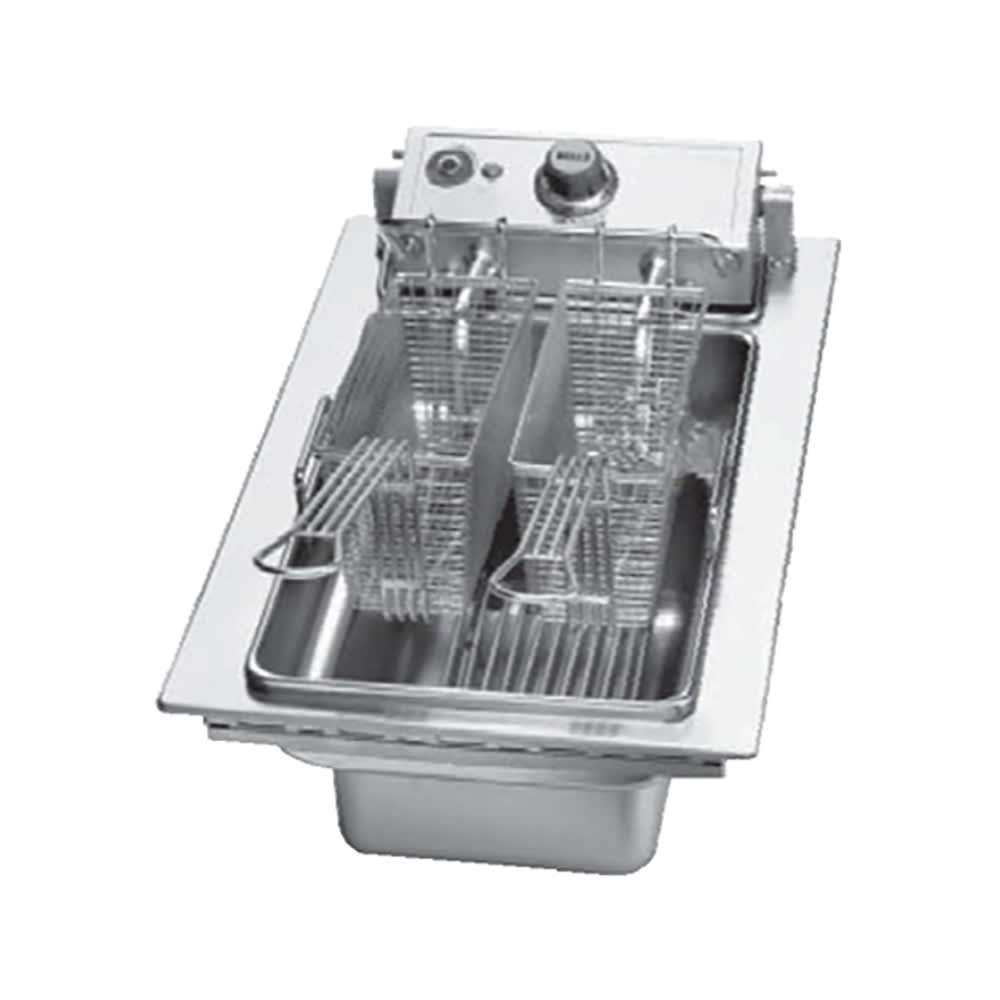

Wells F-556 Drop-In Electric Fryer - (1) 15 lb Drop-In Vat, 240v

Durable to support heavy use, the Wells F-556 electric fryer's top, flange, and control housing are constructed of rugged stainless steel. Its 15-pound frypot is made of deep-drawn stainless steel for additional durability, and it's removable to facilitate thorough cleaning. To ensure fast recovery and performance, it features flat-blade, low-watt density heating elements. This drop-in unit measures 14³⁄₄ inches wide by 23¹⁄₂ inches deep by 8⁷⁄₁₆ inches high.

Using positive-off thermostatic controls, operators can adjust the temperature of the Wells F-556 drop-in fryer between 275 and 375 degrees Fahrenheit. If the temperature exceeds the upper limit, a red signal light will alert users. This unit comes with two half-size fry baskets and includes a WellsLok™ for streamlined installation.

Product Details

• Drop-in model
• Single 15-lb. frypot made of deep-drawn stainless steel
• Pot can be removed for thorough cleaning
• Stainless steel top, flange, and control housing
• 2 half-size fry baskets
• WellsLok simplifies installation
• Positive-off thermostatic controls
• Temperature range: 275-375 degrees F
• Red signal light indicates overheating
• Flat-blade, swing-up, low-watt density elements ensure fast recovery and durability

Dimensions & Utilities

• 14³⁄₄ in. W x 23¹⁄₂ in. D x 8⁷⁄₁₆ in. H
• 24 A, 5750 W
• 240 V/60 Hz/1 ph (convertible to 3ph)

*Free shipping on Wells F-556 within the 48 contiguous states.

From The Manufacturer

Fryer, electric, drop-in, single pot, 15 lb. capacity, thermostatic controls, (2) half size baskets, WellsLok™, stainless steel fry pot, top, flange & control housing, NSF, RU, 208/240v/60/1ph/3ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Wells F-556 Specifications
