U-Star USCB-36 36 1/4" Chef Base w/ (2) Drawers - 115v
Estimated Backorder Until 7/23/2026
Retail Price: $4,489.00
$2,273.07 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

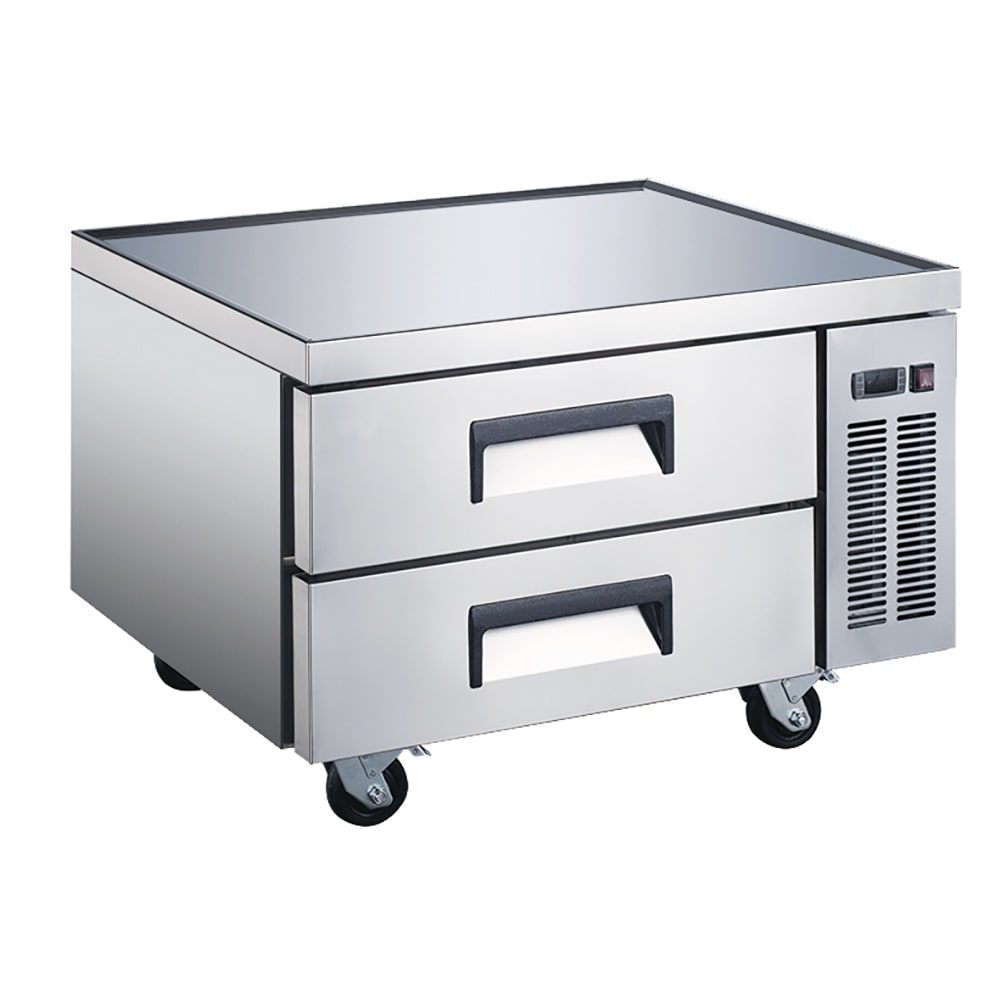

U-Star USCB-36 Description
Holding temperatures between 33 and 41 degrees Fahrenheit, the U-Star USCB-36 refrigerated stainless steel chef base distributes R290 refrigerant to create a balanced environment for backup ingredients. Inside the 5.9-cubic-foot base, two drawers accommodate two full-size and six sixth-size pans, while polyurethane insulation enhances cooling consistency. The compressor slides out for quick troubleshooting, and its 730-pound-capacity top features a V-edge that contains debris to the surface to promote a clean workspace. Measuring 36 1⁄4 inches wide by 32 inches deep by 25 3⁄4 inches high, this self-contained unit moves on four 4-inch locking casters for convenient relocation.
- 5.9-cu. ft. capacity
- 730-lb. weight capacity
- Holds 2 full-size and 6 sixth-size pans
- Stainless steel construction
- Polyurethane insulation
- V-edge top
- 2 removable drawers
- (4) 4-in. locking casters
- Self-contained, side-mounted refrigeration
- Slide-out compressor
- Temperature range: 33 to 41 degrees F
- Uses R290 refrigerant
- 36 1⁄4 in. W x 32 in. D x 25 3⁄4 in. H
- 2.5 A, 1⁄6 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on U-Star USCB-36 within the 48 contiguous states.
From The Manufacturer
U-STAR Refrigerated Chef Base, 36-1/4"W x 32"D x 25-3/4"H, 5.9 cu.ft. capacity, stainless steel top with V-edge, side mounted self-contained refrigeration with slide out compressor, (2) removable stainless steel drawers, slides and rollers, each drawer accommodates (1) full size pan & (3) 1/6 pans (not included), stainless steel floor and cabinet liner, heavy duty stainless steel front and sides, 730 lb. weight capacity, 33°F- 41°F temperature range, (4) 4" locking casters, 115v/60/1-ph, R290, 4 amps, 1/6 HP, 7' cord, NEMA 5-15P, cETLus, ETL-Sanitation
U-Star USCB-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | U-Star |
| Depth (in) | 32 |
| Height (in) | 25.75 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Drawers | 2 |
| Phase | 1 |
| Product | Chef Bases |
| Product Type | Commercial Refrigeration |
| Rating | Good |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Type | Refrigerator |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor; 5-year Compressor |
| Width (in) | 36.25 |
| Weight | 198.00 |
