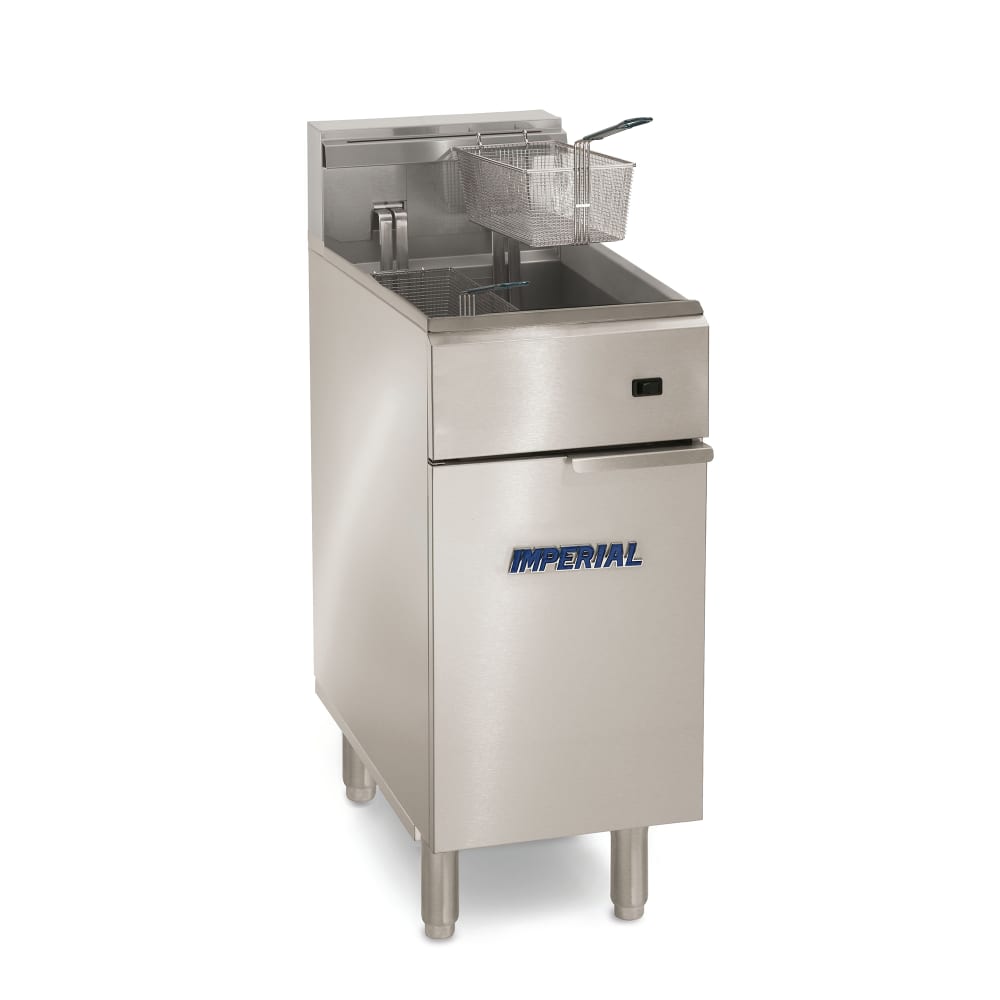

Imperial IFS-40-EU Electric Fryer - (1) 40 lb Vat, Floor Model, 208v/3ph

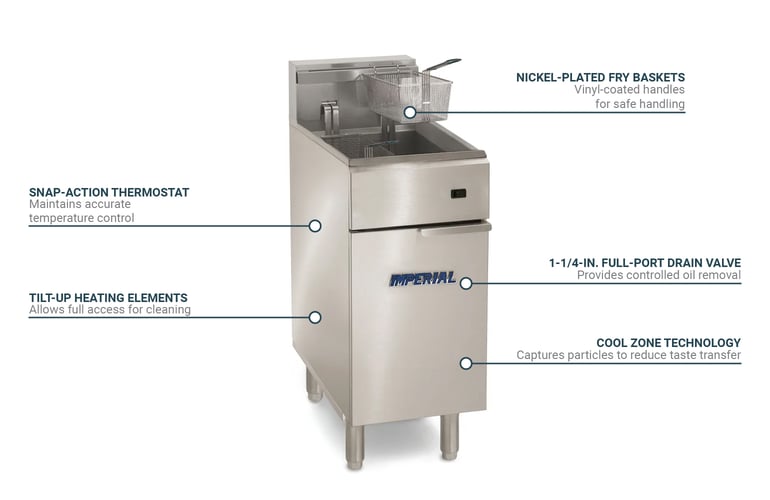

The Imperial IFS-40-EU electric fryer holds up to 40 pounds of oil and features a stainless steel frypot, front, and sides for durability in commercial kitchens. The tilt-up heating elements are positioned inside the frypot, ensuring direct heat transfer for rapid oil heating, reduced absorption, and improved food quality. A snap-action thermostat maintains temperatures between 200 and 400 degrees Fahrenheit, delivering consistent frying performance. Its 14-inch by 14-inch frying area provides adequate space for preparing a variety of fried foods.

For improved oil filtration and fryer longevity, the IFS-40-EU floor model fryer features a deep-drawn frypot bottom sloped toward a 1¹/₄-inch full-port drain valve for controlled oil removal. A cool zone beneath the fry zone captures food particles, reducing flavor transfer. Stainless steel basket hangers provide a stable resting place for baskets, while welded and polished seams reinforce the unit’s structure. Two nickel-plated fry baskets with heat-resistant vinyl-coated handles enhance user safety. The fryer is supported by plate-mounted 6-inch stainless steel legs for stability and ventilation.

Product Details

• 40-lb. oil capacity
• Tilt-up heating elements
• Stainless steel front, sides, door, basket hanger, and frypot
• Welded and polished stainless steel seams
• 2 nickel-plated fry baskets with vinyl-coated handles
• Fine mesh wire crumb screen
• Robotically welded stainless steel frypot
• Deep-drawn slanted frypot bottom
• 1¹/₄-in. full-port drain valve
• Snap-action thermostat
• Temperature holding range: 200-400 degrees F
• Cool zone
• Full heat shield
• Full bottom chassis
• Plate-mounted 6-in. stainless steel legs

Dimensions & Utilities

• Frying area: 14-in. x 14-in.
• Working area: 15¹/₂ in. W x 30¹/₂ in. D
• Overall dimensions: 15¹/₂ in. W x 30¹/₂ in. D x 44¹/₈ in. H
• 39 A, 14 kW
• 208 V/60 Hz/3 ph

Product Features

*Free shipping on Imperial IFS-40-EU within the 48 contiguous states.

From The Manufacturer

Fryer, electric, floor model, 40lb. capacity, tilt-up electrical elements, snap action thermostat, includes: wire mesh crumb screen & (2) nickel-plated baskets, stainless steel front, door, sides, basket hanger & frypot, 6" legs, 14.0 kW, cETLus, CSA-Sanitation, CE, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Tank

Imperial IFS-40-EU Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual
