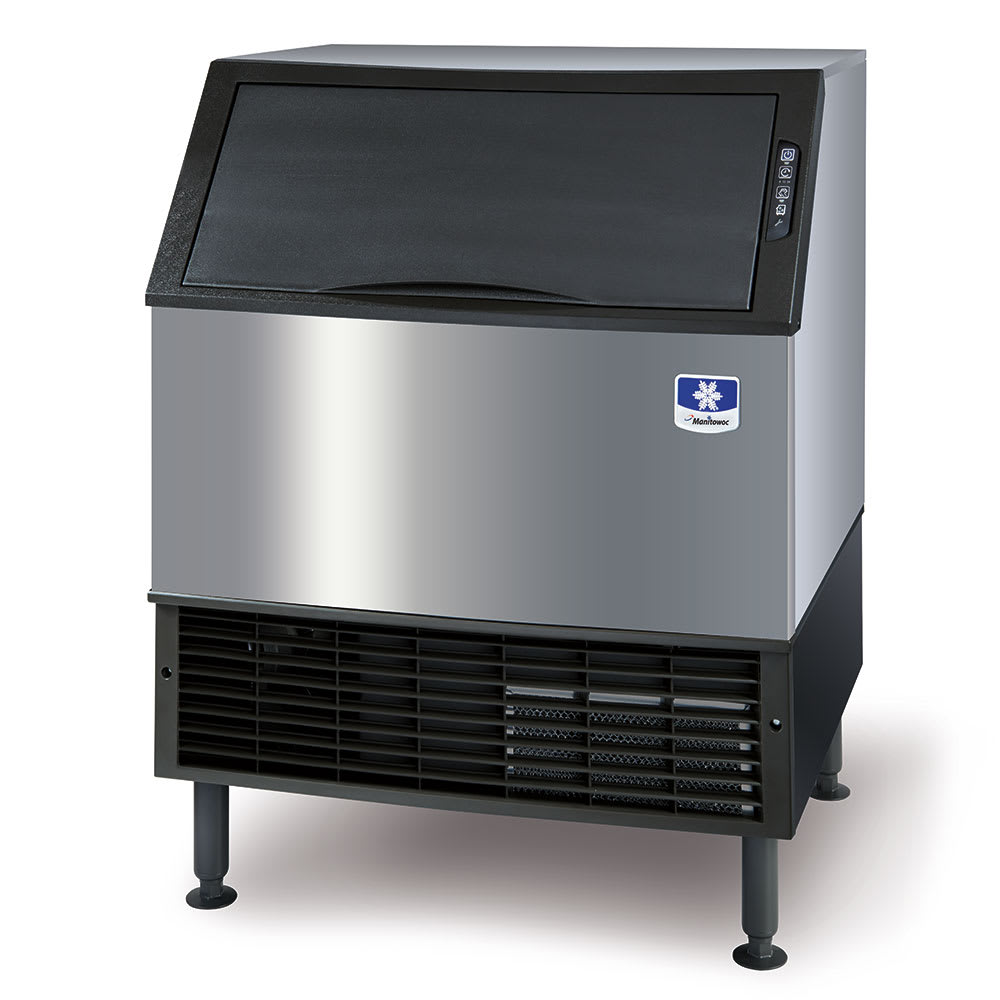

Manitowoc Ice UYF0310W 30"W Half Cube NEO Undercounter Ice Machine - 293 lbs/day, Water Cooled
Manitowoc Ice UYF0310W Description

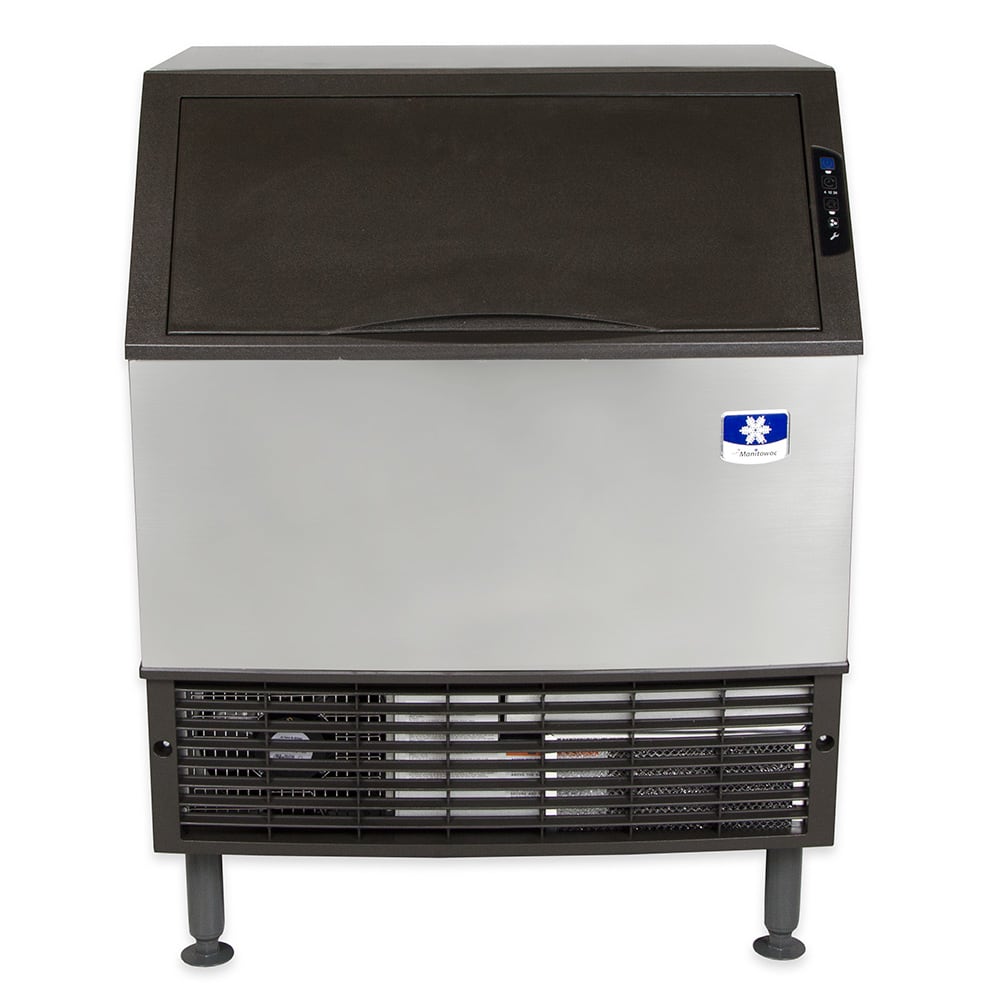

The Manitowoc UYF-0310W NEO™ undercounter ice maker is suitable for installation under counters and next to other equipment due to its compact design and lack of clearance requirements. Depending on ambient air and incoming water conditions, it can produce as much as 293 pounds of half-dice ice cubes—often used in soft drinks—daily.
The storage bin in this Manitowoc UYF-0310W ice machine can hold 100 pounds of ice at a time. Its food zone is sealed to prevent contamination and made accessible by the slide-up door. Bacterial growth is slowed because the internal components are made with an antimicrobial agent. The unit includes an intuitive control panel with a delay function and service button.
Product Details
- 293-lb. maximum daily ice production
- 252-lb. AHRI-certified daily ice production

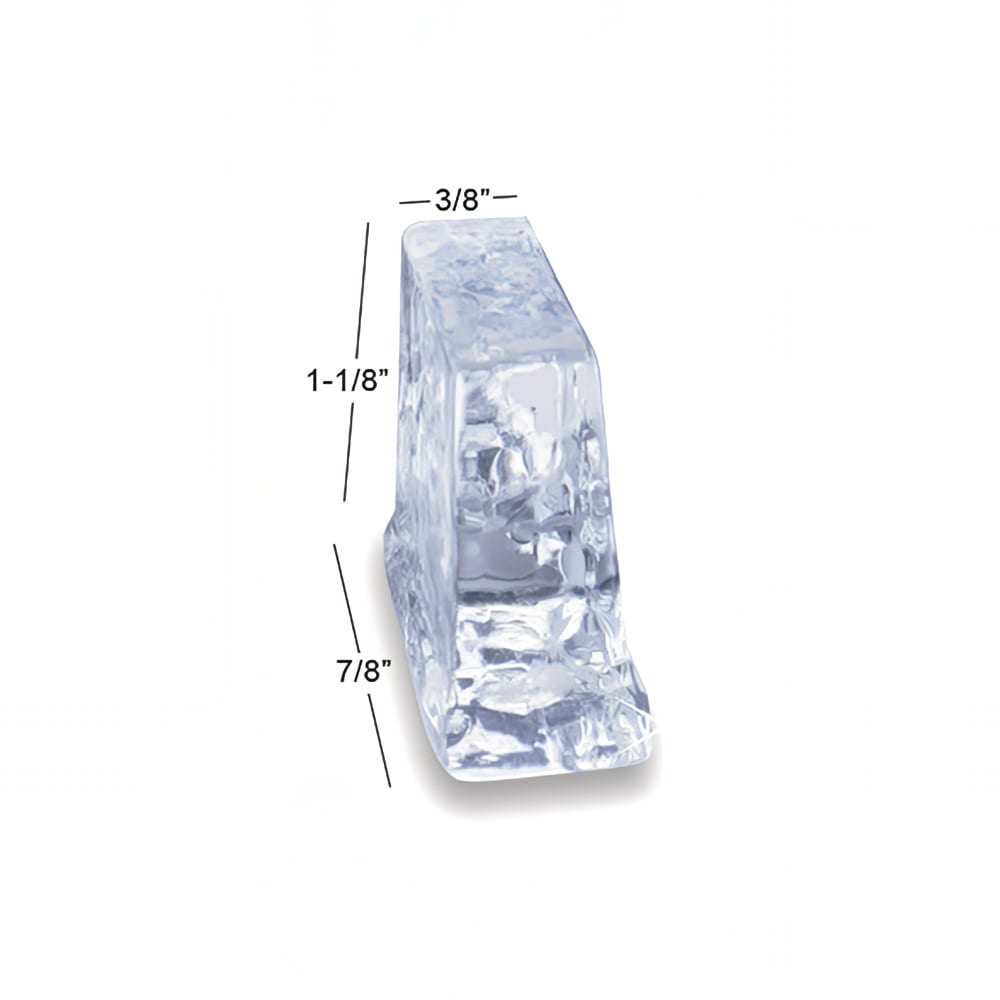

- Half-dice ice size: 3⁄8 in. x 7⁄8 in. x 1 1⁄8 in.
- 100-lb. storage capacity

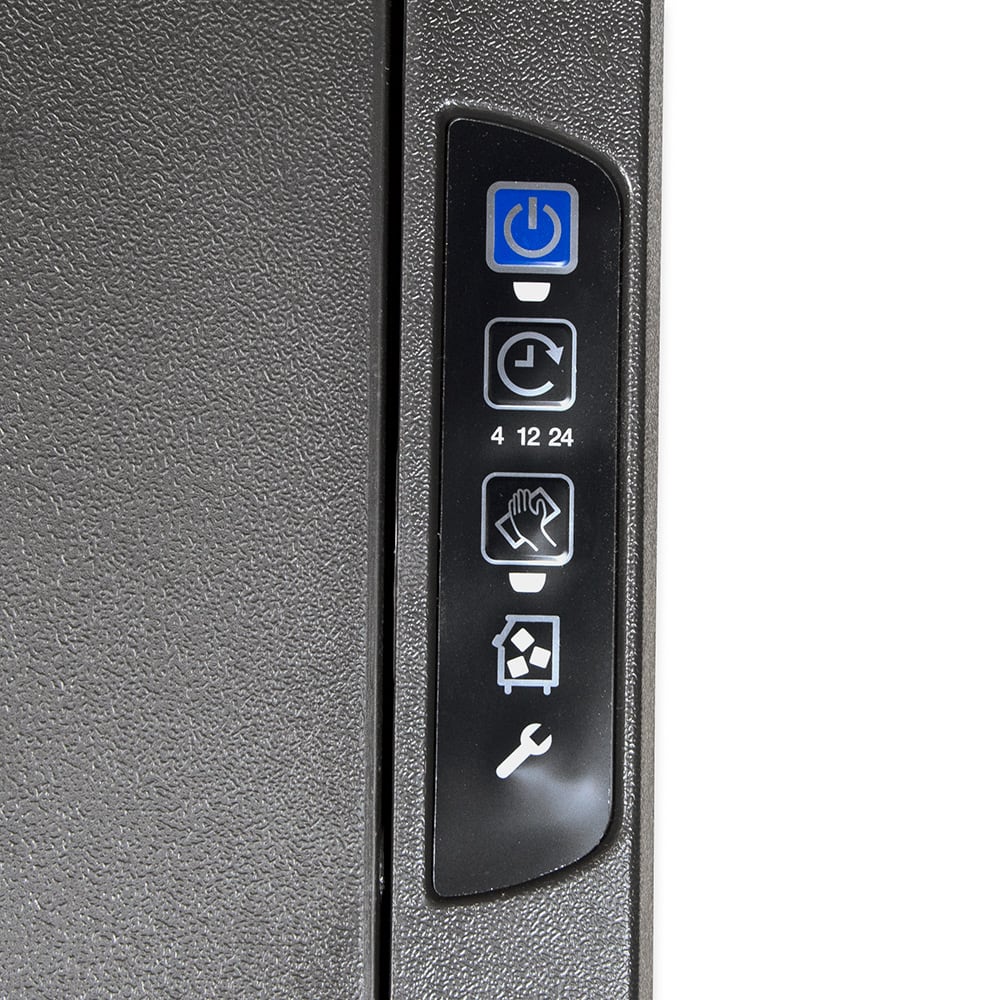

- Indicator panel includes full bin, power, clean, delay, and service icons
- Delayed ice production during slow hours

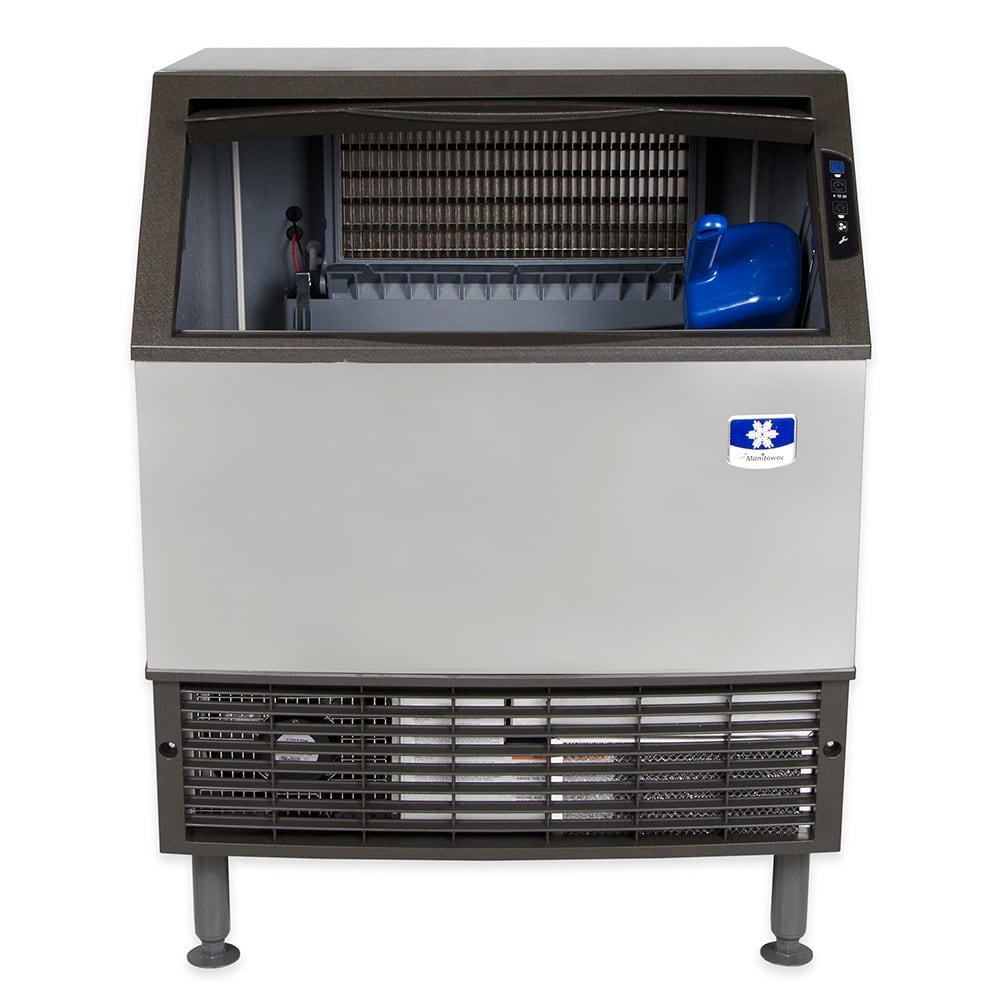

- Slide-up bin door for ice access
- Storage bin slides out for component access
- Water trough, distribution tube, and damper door can be removed for cleaning
- Cupronickel condenser protects the unit from corrosive water
- AlphaSan® antimicrobial agent on the parts slows bacteria growth
- Water-cooled condenser
- Ideal ambient temperature: 40-110 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure for ice maker: 20-80 PSI
- Ideal incoming water pressure for condenser: 20-150 PSI
Dimensions & Utilities
- 30 in. W x 28.5 in. D x 38.5 in. H
- 5.5 kW, 10 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UYF0310W within the 48 contiguous states.
From The Manufacturer

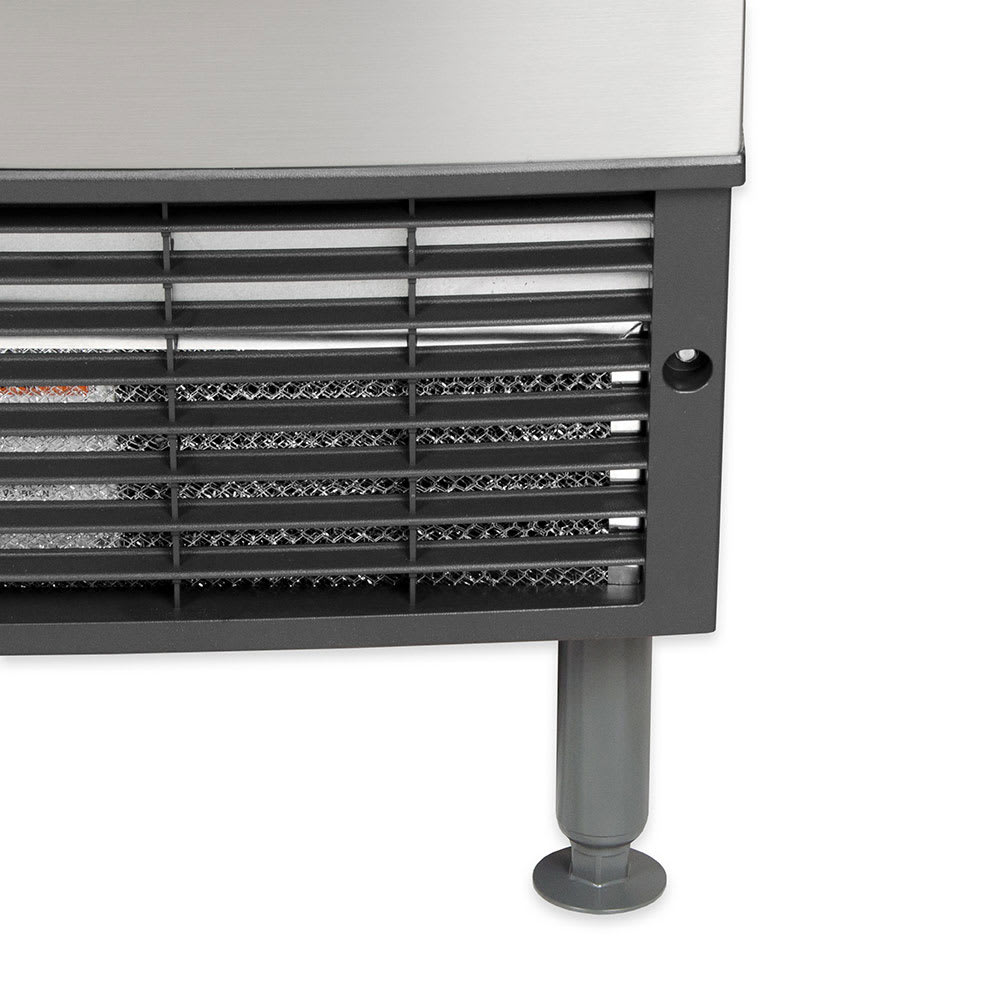

NEO® Undercounter Ice Maker, cube-style, water-cooled, self contained, 30"W x 28"D x 38-1/2"H, production capacity up to 293 lb/24 hours at 70°/50° (267 lb AHRI certified at 90°70°), 119 lb ice storage capacity, electronic controls, half dice size cubes, 6" adjustable legs with flanged feet (painted gray), 3/4 HP, NSF, cULus, CE, 115v/60/1ph
Manitowoc Ice UYF0310W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 293 |
| Also Known As | UY-0310W |
| Bin Capacity (lb) | 119 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 211.00 |
