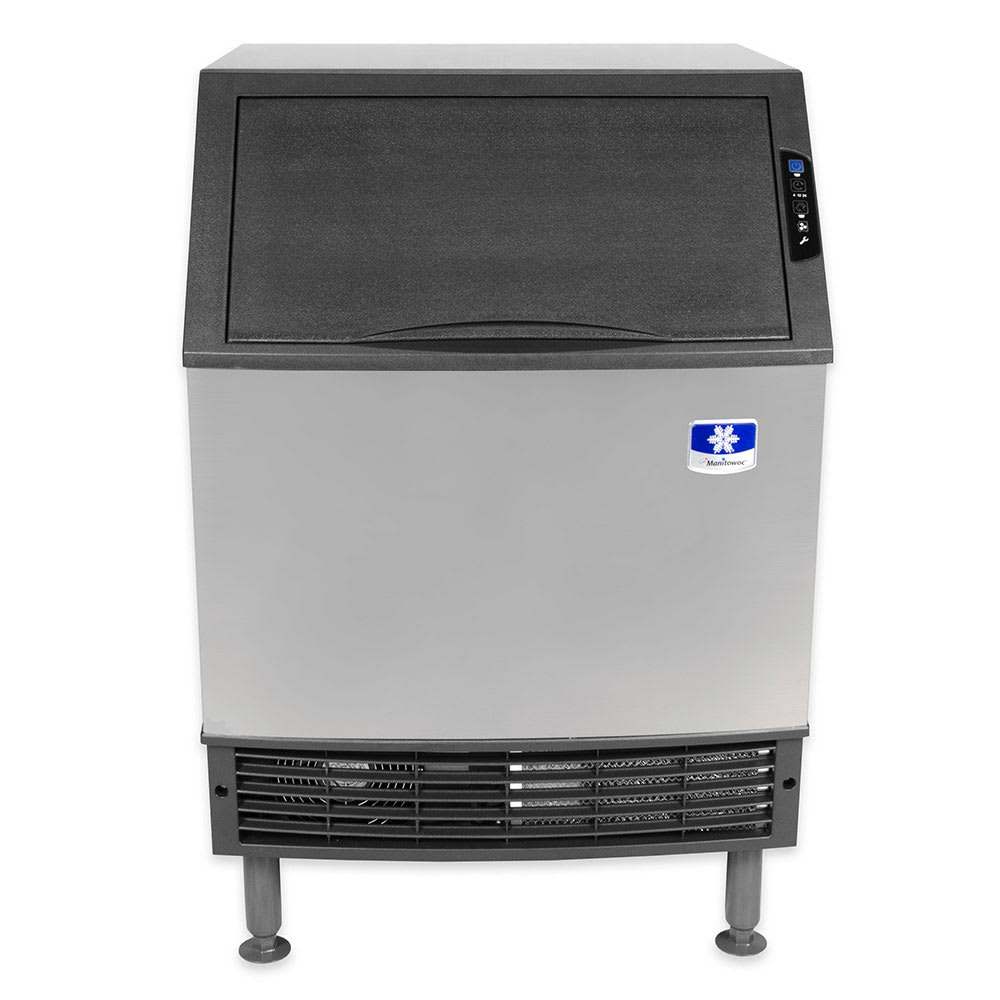

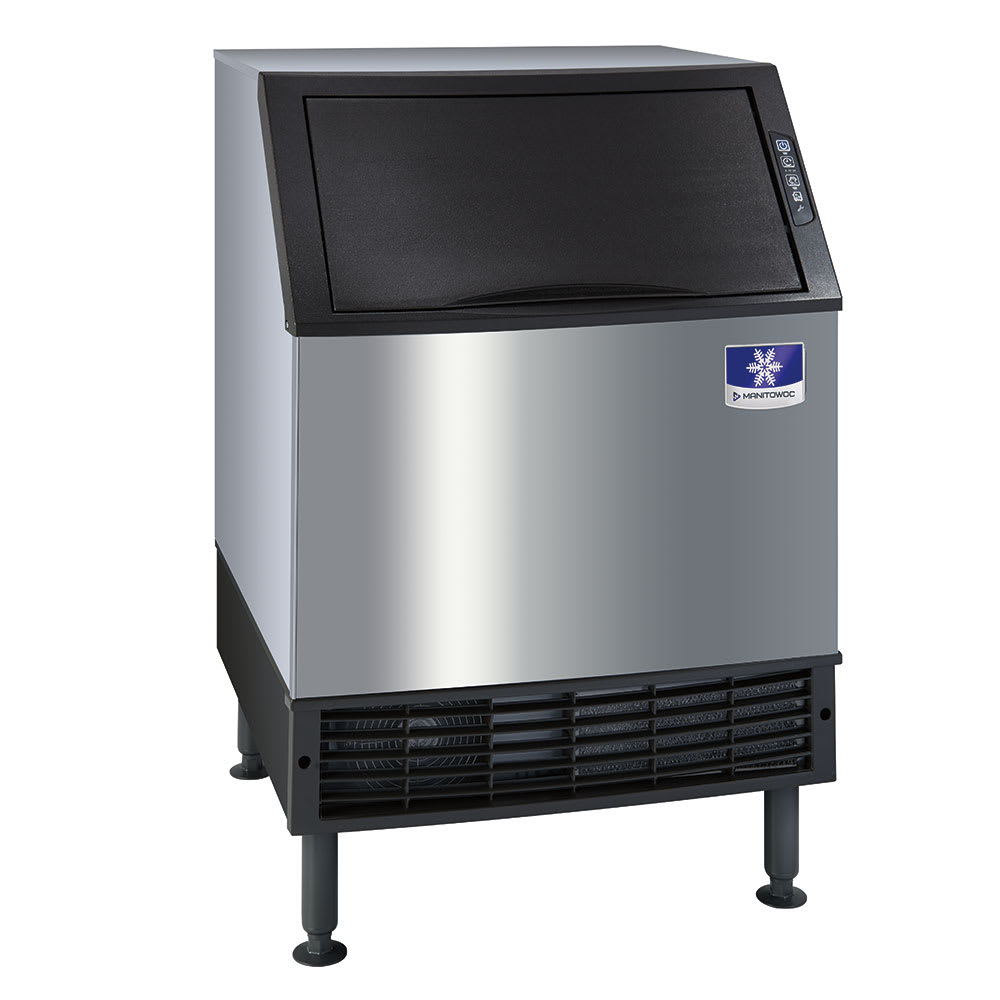

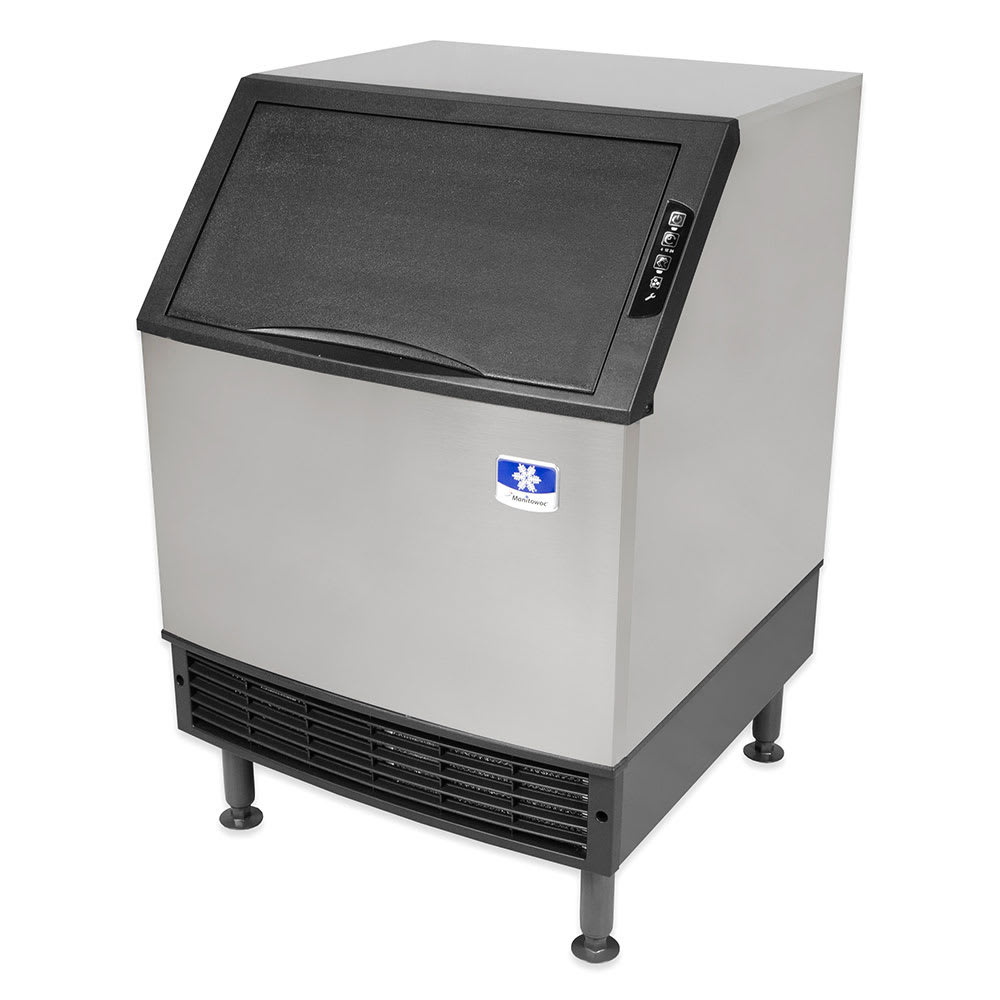

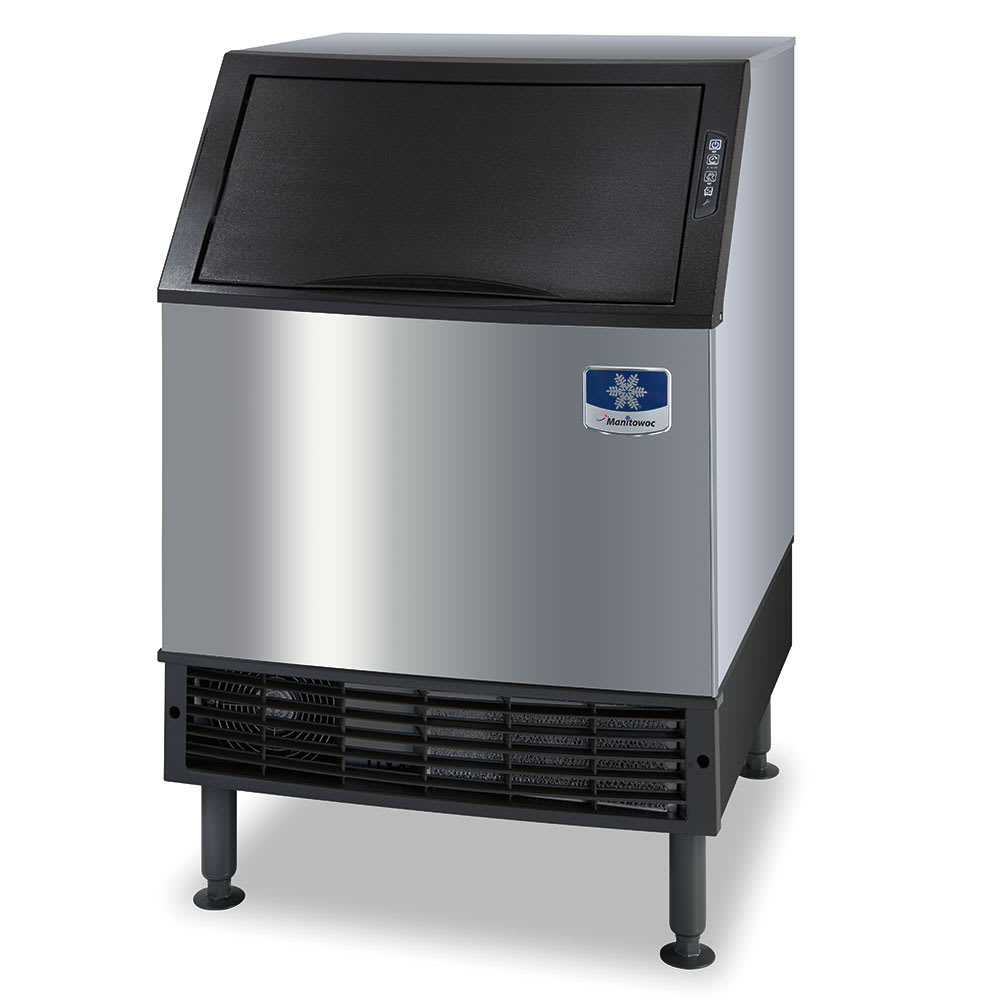

Manitowoc Ice UYF0240W 26"W Half Cube NEO Undercounter Ice Machine - 207 lbs/day, Water Cooled
Manitowoc Ice UYF0240W Description
The Manitowoc UYF-0240W undercounter ice maker can produce 207 pounds of ice in 24 hours, hold 90 pounds, and makes half-dice ice—also called half-cube ice—often used in beverages. Its condenser is cooled by water, meaning water is pumped over the condenser coils to chill the refrigerant so it can remove heat from the evaporator plate. Through this process, ice freezes and then falls off the plate and into the bin. Water-cooled units require a potable water supply because it needs hundreds of gallons of water per hour.

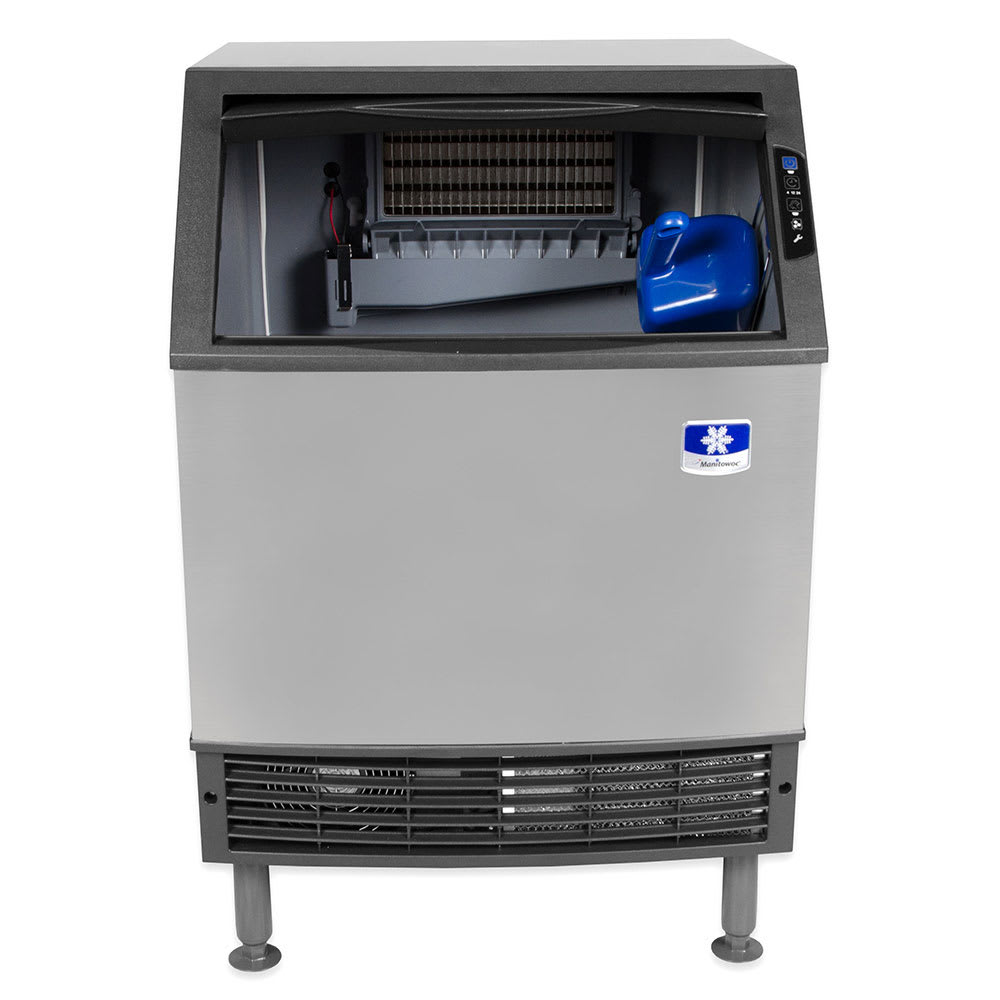

This ice machine has components that are built with an antimicrobial agent to slow bacteria growth and lessen overall cleaning time. Staff members can access ice in the bin through the slide-up door. The Manitowoc UYF-0240W ice machine has a removable air filter that supports cleaning in a dishwasher.
Product Details
- 207-lb. maximum daily ice production
- 180-lb. AHRI-certified daily ice production
- 90-lb. bin storage capacity
- Makes half-dice ice

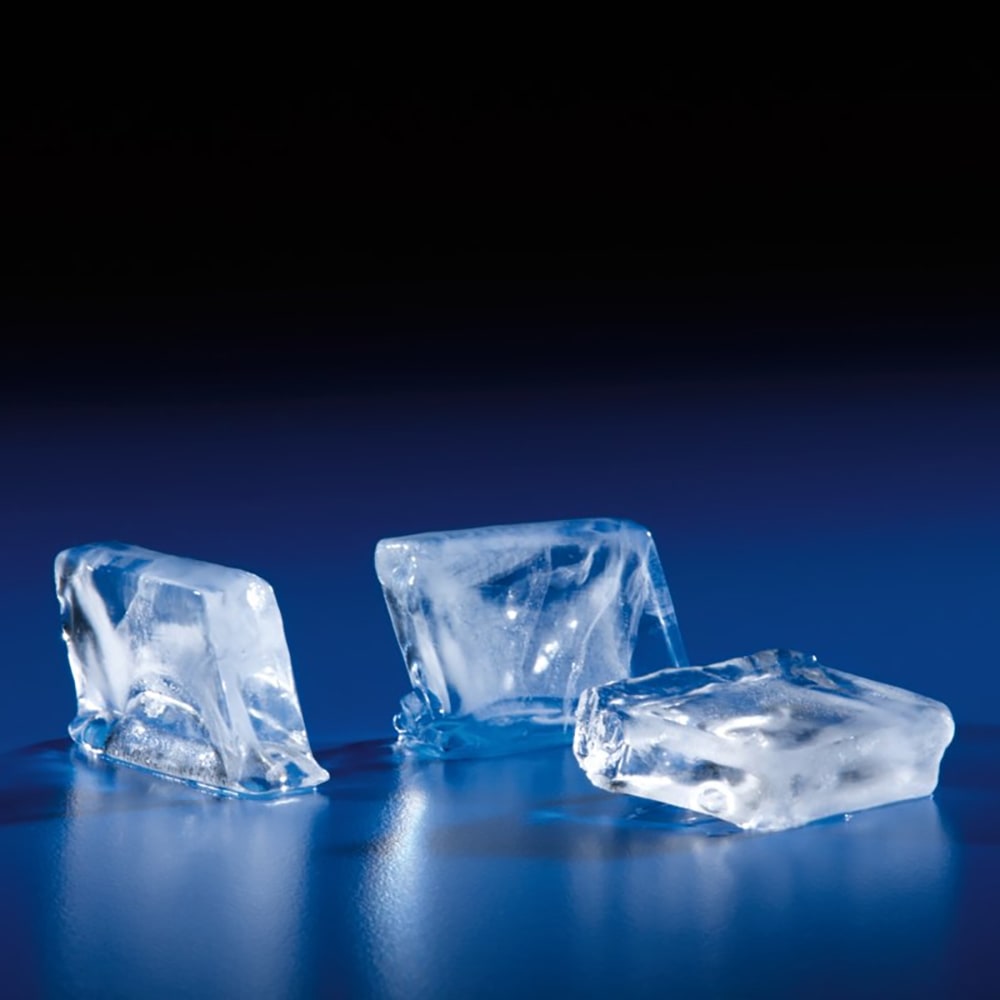

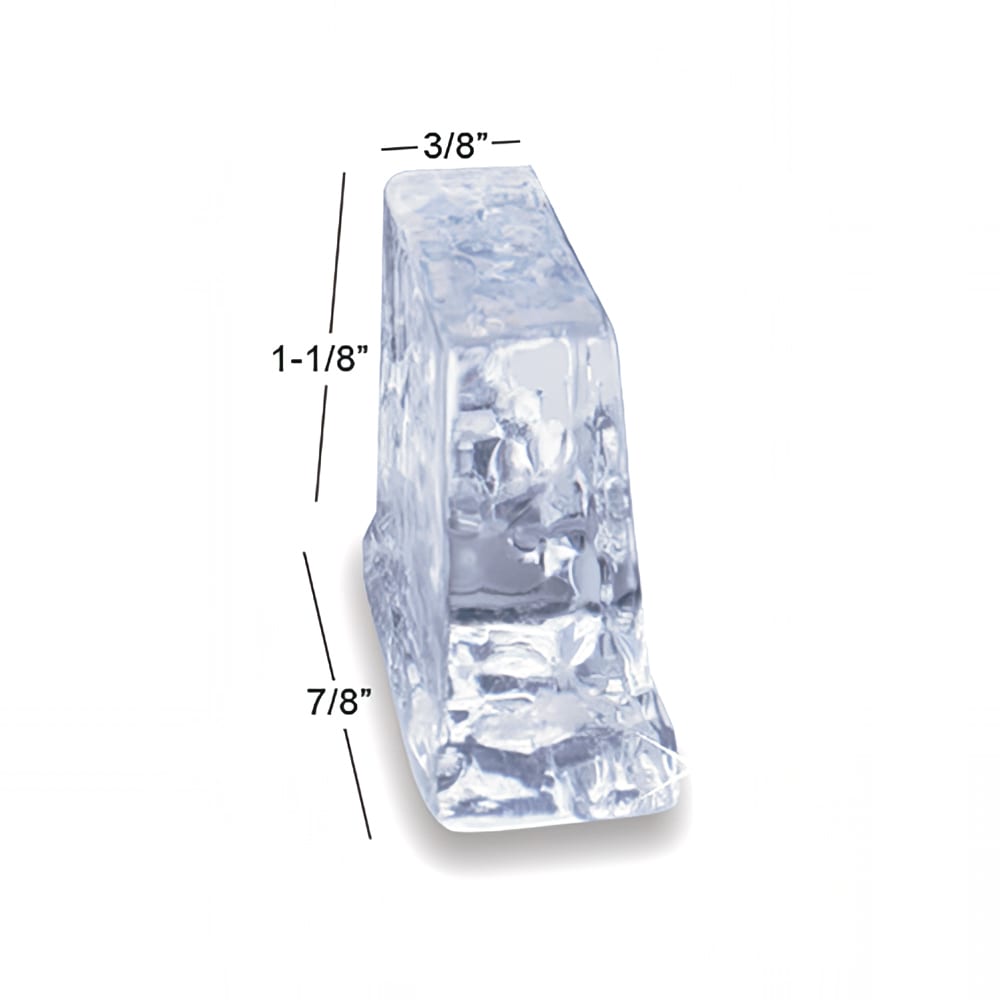

- Half-dice ice size: 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.
- Water-cooled condensing unit
- Cupronickel-protected condenser resists hard water damage
- Corrosion-resistant DuraTech™ exterior is smudge resistant
- AlphaSan antimicrobial agent on the internal components slows growth of bacteria
- Food zone's rounded corners prevent debris from getting trapped

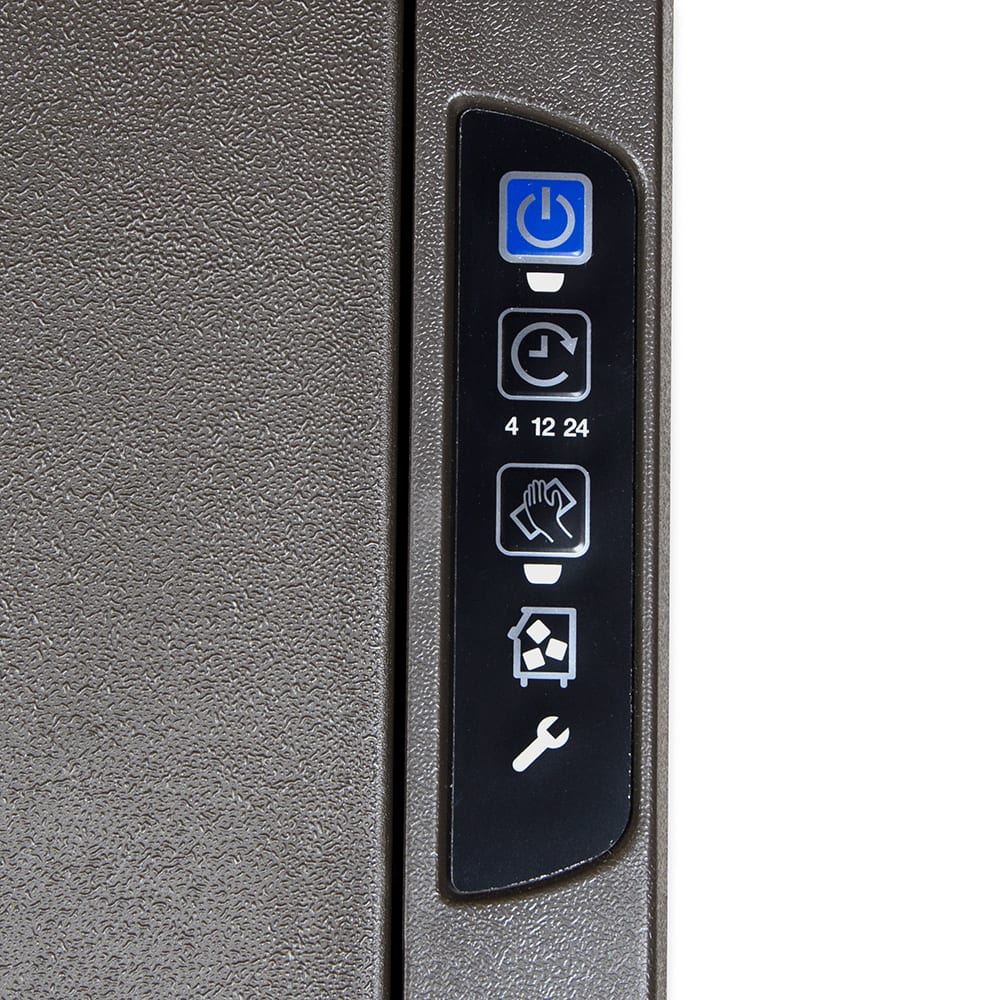

- Control panel has indicator lights that alert the operator when the bin is full or servicing is required

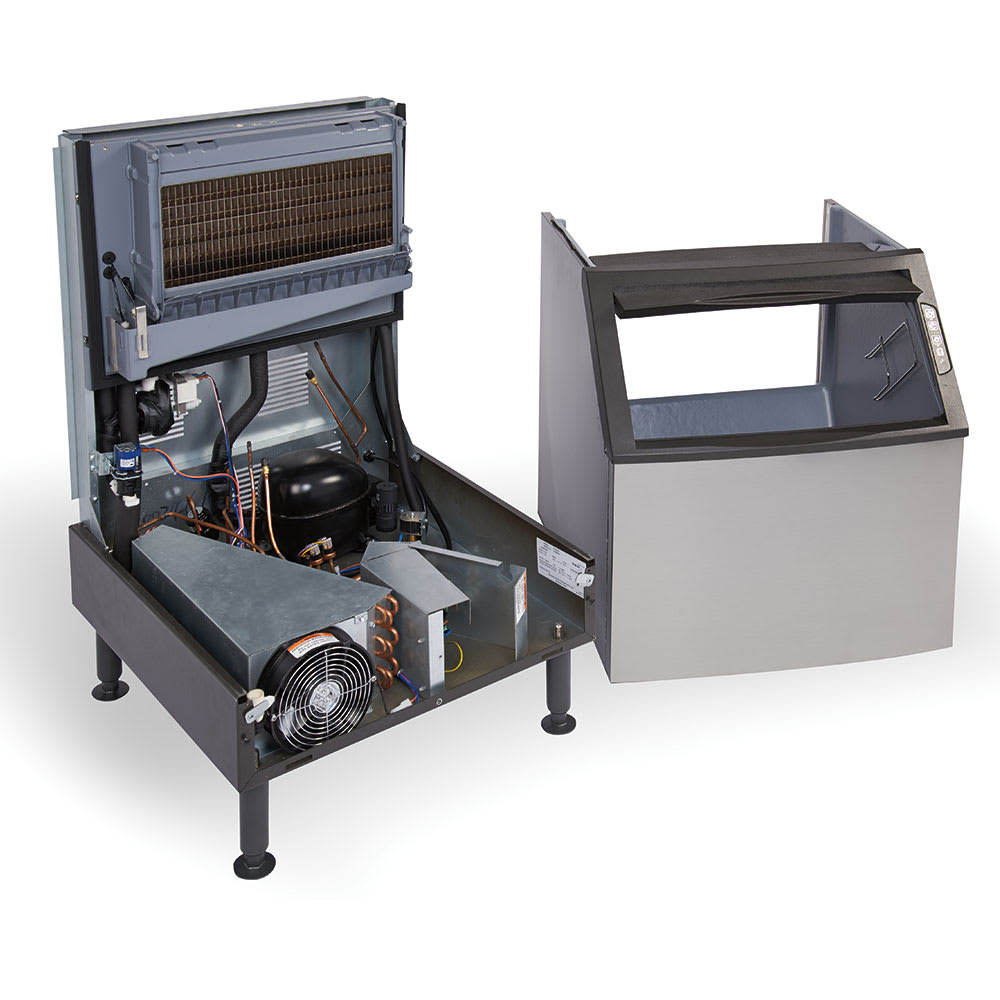

- Slide-out bin provides access to the refrigeration components

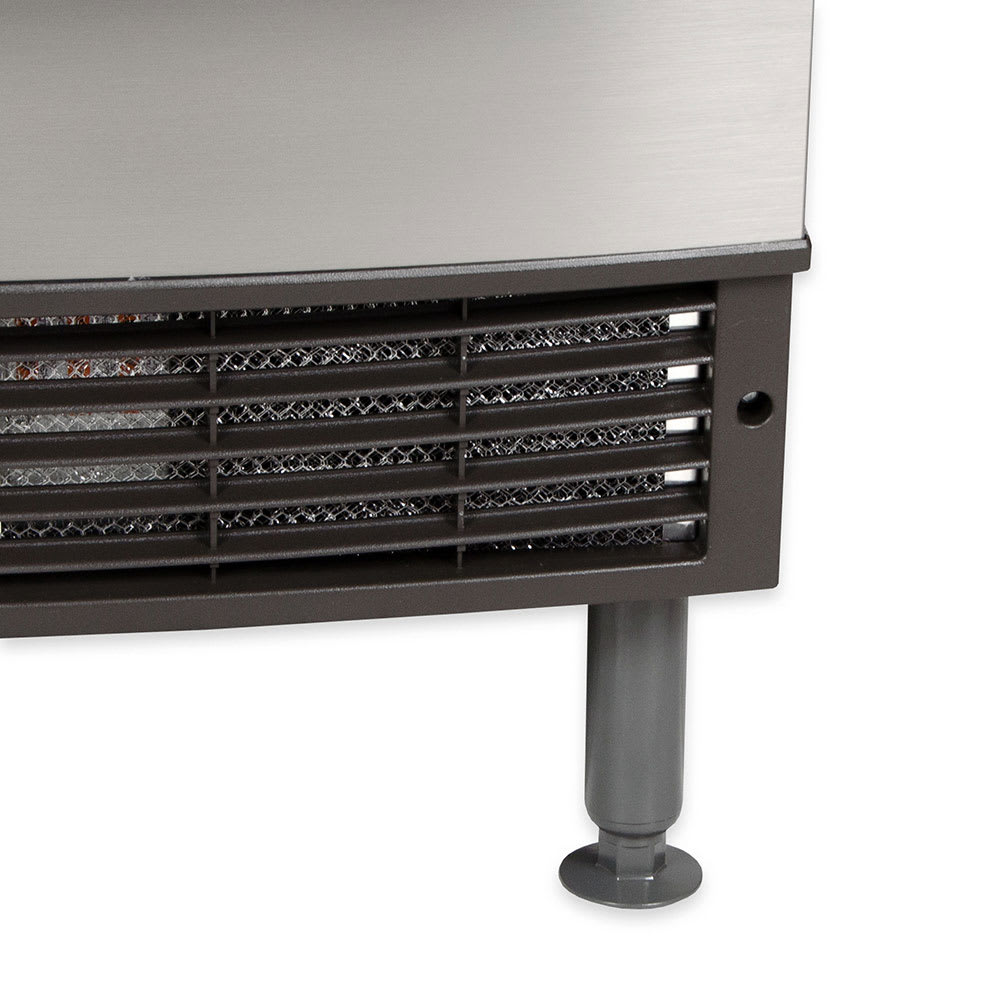

- Front-accessible, dishwasher-safe air filter is removable without tools
- Adjustable ice scoop holder
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure for ice maker: 20-80 PSI
- Ideal incoming water pressure for condenser: 20-150 PSI
Dimensions & Utilities
- 26 in. W x 28.5 in. D x 38.5 in. H
- 7 A, 5.8 kW, 1⁄3 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UYF0240W within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, water-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 207 lb/24 hours at 70°/50° (180 lb AHRI certified at 90°70°), 90 lbs ice storage capacity, electronic controls, half dice size cubes, 6" adjustable legs with flanged feet (painted gray), 1/3 HP, NSF, cULus, 115v/60/1ph
Manitowoc Ice UYF0240W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 207 |
| Also Known As | UY-0240W |
| Bin Capacity (lb) | 90 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 159.00 |
