Manitowoc Ice UNP0200A 19"W Nugget Undercounter Ice Machine - 213 lbs/day, Air Cooled
QUICK SHIP: Ships in 1 Business Day
$4,818.00 /Each
Contact us for details!

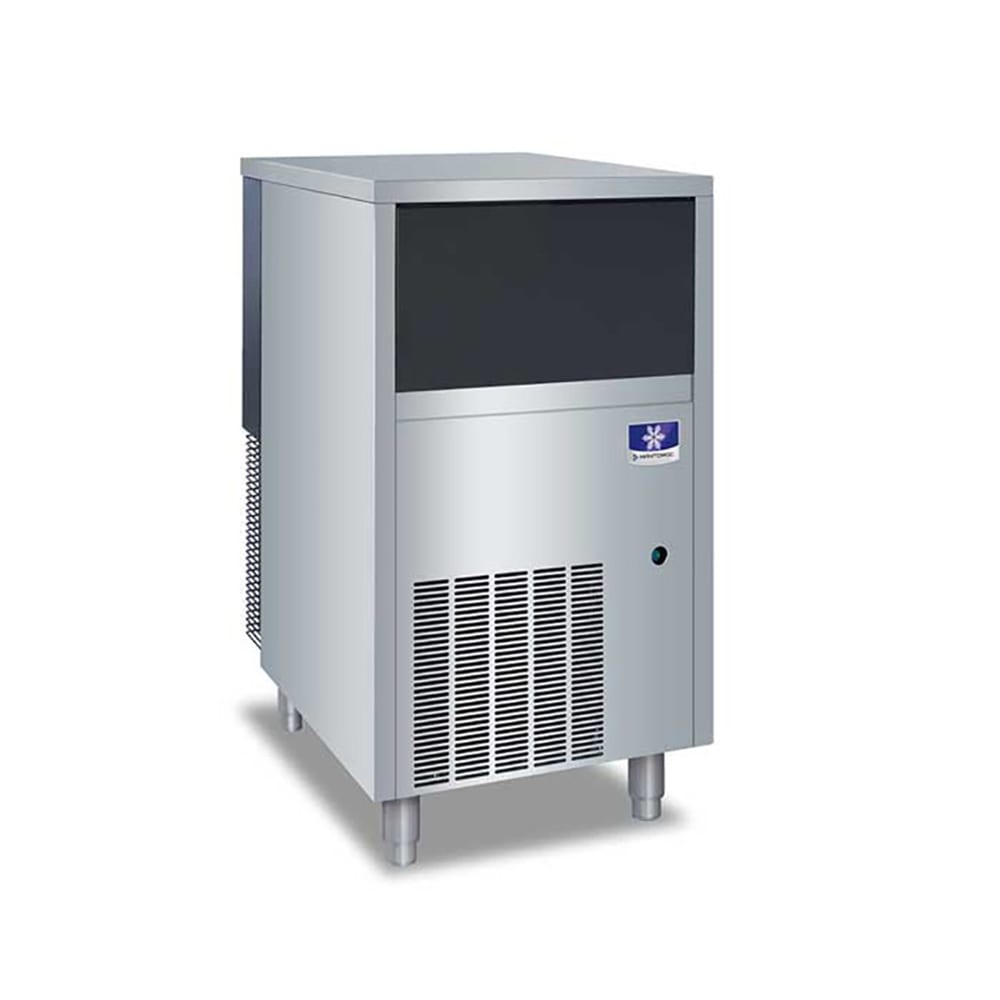

Manitowoc Ice UNP0200A Description
With its 19.69-inch-wide by 25.98-inch-deep by 33.17-inch-high structure, the Manitowoc Ice UNP0200A nugget ice machine can be installed beneath a counter to save kitchen space. It's finished with stainless steel—a heavy-duty, durable metal that resists rust and corrosion to preserve its original look over time. To minimize wobbling on irregular surfaces, the bin is fitted with legs that can be adjusted between 4.5 and 6 inches.
The Manitowoc Ice UNP0200A nugget ice maker is air cooled and uses a self-contained condenser to produce as much as 220 pounds of bite-size nugget ice daily when stored in ambient air of 70 degrees Fahrenheit and when incoming water is 50 degrees Fahrenheit. By cooling beverages without diluting them, this soft, chewable ice saves on product cost and reduces waste. The bin holds as much as 20 pounds of ice, which can be accessed through its slide-up door. For sanitation, this unit comes with an ice scoop.
- Daily ice production: 220 lbs.
- AHRI-certified daily ice production: 164 lbs.
- Produces bite-size nugget ice
- Ice measures between 3⁄8 and 1⁄2 in. (long and wide)
- Self-contained condenser
- Air cooled
- R290A refrigerant
- High-load stainless steel bearings
- Stainless steel finish
- Ideal for undercounter installation
- Operating ambient air temperature range: 50-110 degrees F
- Operating water temperature range: 37-90 degrees F
- Ice maker water pressure: 14-80 PSI
- 3,038-BTU transfer capacity
- 20-lb. capacity
- Corrosion-resistant stainless steel finish
- Easy-access, slide-up door
- Adjustable, 6-in. legs
- Overall: 19.69 in. W x 25.98 in. D x 33.17 in. H
- 7.5 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UNP0200A within the 48 contiguous states.
From The Manufacturer
Ice Maker with Bin, nugget-style, air-cooled, self-contained condenser, 19-11/16"W x 25-31/32"D x 33-11/64"H, production capacity up to 213 lb/24 hours at 70°/50° (164 lb AHRI certified at 90°/70°), 20 lb bin storage capacity, bite size nugget, high-load stainless steel bearings, stainless steel finish, 6" bin legs, 1/4 HP, ETL-Sanitation, cETLus
Manitowoc Ice UNP0200A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 213 |
| Bin Capacity (lb) | 20 |
| Compressor Type | Air Cooled |
| Depth (in) | 25.98 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 33.17 |
| Hertz | 60 |
| Ice Type | Nugget |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 19.69 |
| Weight | 157.00 |
