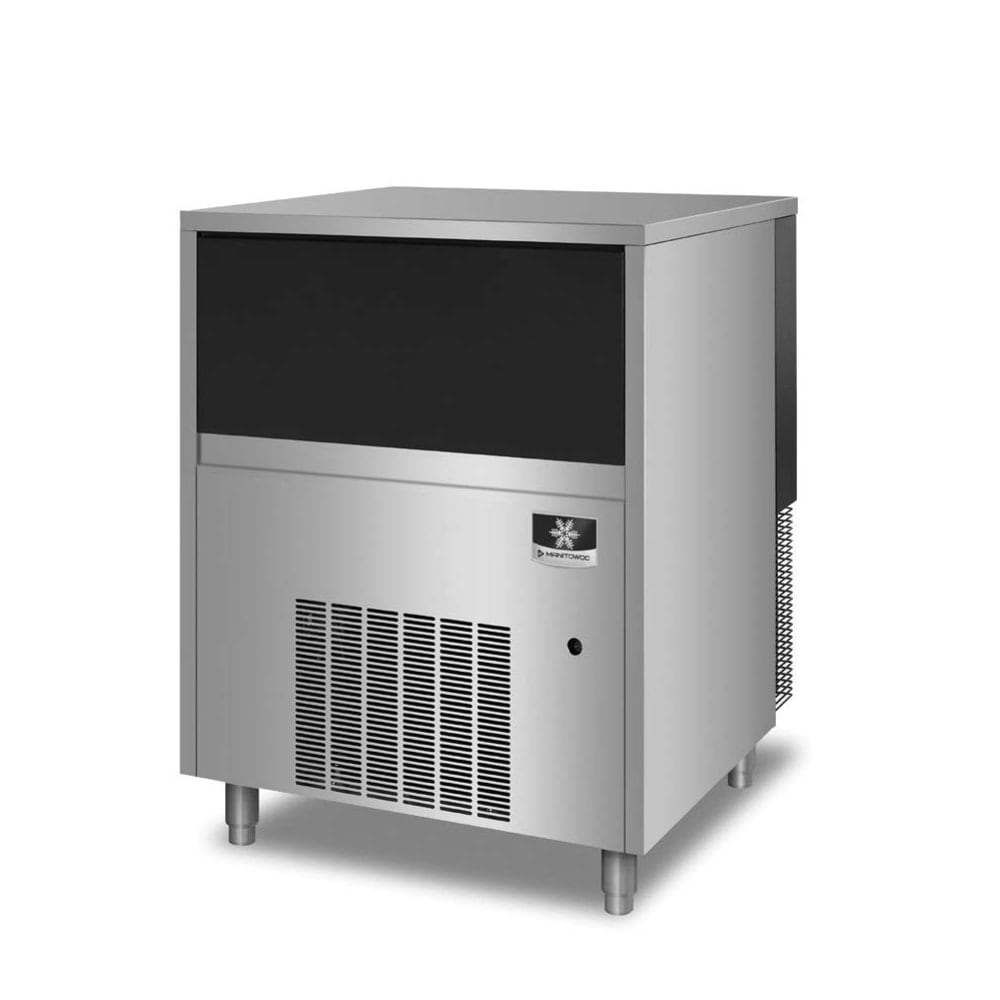

Manitowoc Ice UFP0350A 19"W Flake Undercounter Ice Machine - 400 lbs/day, Air Cooled

The Manitowoc Ice UFP0350A ice machine with bin generates flake ice—irregularly shaped ice that can be packed around product and chill items while they're presented in display cases. When ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, this machine produces approximately 400 pounds of ice every 24 hours. For versatility, it can operate if air is between 50 and 110 degrees Fahrenheit and if incoming water ranges from 37 to 90 degrees Fahrenheit.

To streamline operation, the Manitowoc Ice UFP0350A ice maker's stainless steel bearings accommodate a large volume of ice and are low maintenance to prevent operational lag. Ice is dispensed into the bin, which holds 60 pounds of flake ice. Operators can access ice directly by sliding up the bin door. Because it's a self-contained, air-cooled unit, it's simple to install and is ideal for rooms that have ambient temperature less than 80 degrees Fahrenheit. To withstand high-volume use, the exterior is finished with stainless steel. Overall, this unit measures 29.06 inches wide by 27.17 inches deep by 39.52 inches high.

Ice Maker Head Details

• Approx. 400-lb. daily ice production
• AHRI-certified ice production: 321 lbs.
• Generates flake ice
• Air-cooled system with self-contained condenser
• R290A hydrocarbon refrigerant
• Low-maintenance stainless steel bearings accommodate large ice volume
• Stainless steel finish
• Undercounter
• Operating ambient temperature range: 50-110 degrees F
• Operating water temperature range: 37-90 degrees F
• Ice maker water pressure: 14-80 PSI
• Minimum installation clearance for sides: 2 in.
• Minimum installation clearance for back: 8 in.
• 5,121-BTU heat transfer hourly average

Ice Bin Details

• Capacity: 60 lbs.
• AHRI-certified interior capacity: 2.04 cu. ft.
• Legs adjustable between 4.5 and 6 in. H
• Slide-up door
• Stainless steel finish on exterior
• Includes ice scoop

Dimensions & Utilities

• 29.06 in. W x 27.17 in. D x 39.52 in. H
• 7.5 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
• ³⁄₈-in. NPT ice-making water inlet
• ¹⁄₂-in. NPT ice-making water outlet

Product Features

*Free shipping on Manitowoc Ice UFP0350A within the 48 contiguous states.

From The Manufacturer

Ice Maker with Bin, flake-style, air-cooled, self-contained condenser, 29-1/16"W x 27-11/64"D x 39-33/64"H, production capacity up to 400 lb/24 hours at 70°/50° (328 lb AHRI certified at 90°/70°), 60 lb bin storage capacity, high-load stainless steel bearings, stainless steel finish, 6" bin legs, ETL, cETLus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor Parts
