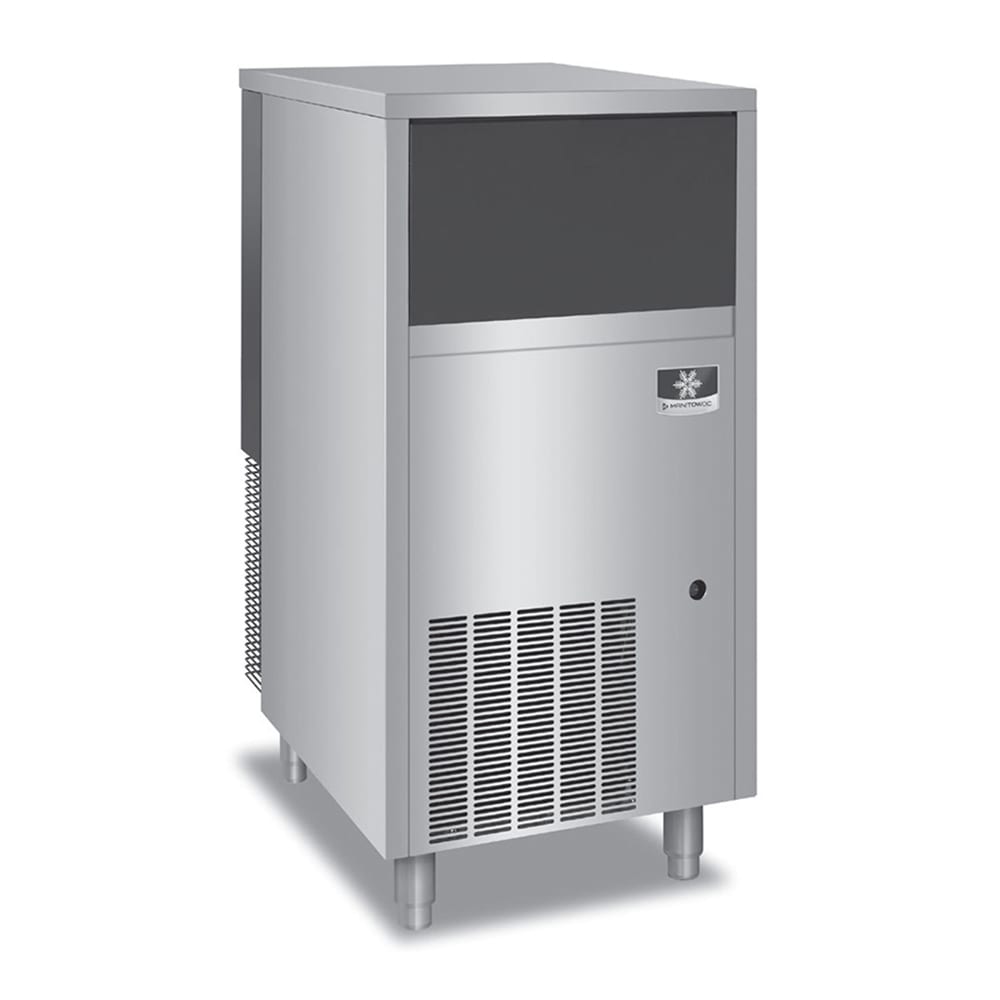

Manitowoc Ice UFP0200A 19" Flake Undercounter Ice Machine - 272 lbs/day, Air Cooled
QUICK SHIP: Ships in 1 Business Day
$5,048.00 /Each
Contact us for details!
Manitowoc Ice UFP0200A Description
When ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, the Manitowoc Ice UFP0200A ice maker with bin produces 272 pounds of flaked ice in 24 hours. Flaked ice's irregular shape can be packed around fish and produce, securing it in place while cooling it. To accommodate large volumes of ice, its bearings have a high-load design that requires little maintenance to prevent operational lag. Ice can be stored in the 50-pound ice bin located beneath the unit. For direct access, its door can slide open.
Because it's an air-cooled unit with a self-contained condenser, the Manitowoc Ice UFP0200A ice machine is simple to install. This machine measures 19.69 inches wide by 25.98 inches deep by 37.50 inches high—compact enough to save space in cramped areas. The bin's legs can be adjusted between 4.5 and 6 inches to account for irregular flooring and reduce wobbling. Finished with stainless steel, this unit resists rust and corrosion and preserves its original look over time to provide a long service life.
- Daily ice production: 272 lbs.
- AHRI-certified ice production: 201 lbs.
- Produces flake ice
- Air cooled
- Self-contained condenser
- R290A hydrocarbon refrigerant
- High-load, low-maintenance stainless steel bearings
- Stainless steel finish
- Undercounter
- Operating ambient temperature range: 50-110 degrees F
- Operating water temperature range: 37-90 degrees F
- Ice maker water pressure: 14-80 PSI
- Minimum installation clearance for sides: 2 in.
- Minimum installation clearance for front and back: 8 in.
- 3,038-BTU heat transfer averaged hourly
- 50-lb. capacity
- AHRI-certified interior capacity: 1.7 cu. ft.
- Legs adjust from 4.5-6 in. H
- Accessible, slide-up door
- Stainless steel finish
- Ice scoop included
- 19.69 in. W x 25.98 in. D x 37.50 in. H
- 5.5 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
- 3⁄8-in. NPT ice-making water inlet
- 1⁄2-in. NPT ice-making water outlet
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UFP0200A within the 48 contiguous states.
From The Manufacturer
Ice Maker with Bin, flake-style, air-cooled, self-contained condenser, 19-3/16"W x 25-63/64"D x 37-1/2"H, production capacity up to 272 lb/24 hours at 70°/50° (198 lb AHRI certified at 90°/70°), 50 lb bin storage capacity, high-load stainless steel bearings, stainless steel finish, 6" bin legs, 1/4 HP, ETL, cETLus, ENERGY STAR®
Manitowoc Ice UFP0200A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 272 |
| Bin Capacity (lb) | 50 |
| Compressor Type | Air Cooled |
| Depth (in) | 25.98 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 37.5 |
| Hertz | 60 |
| Ice Type | Flake |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 19.69 |
| Weight | 168.00 |
