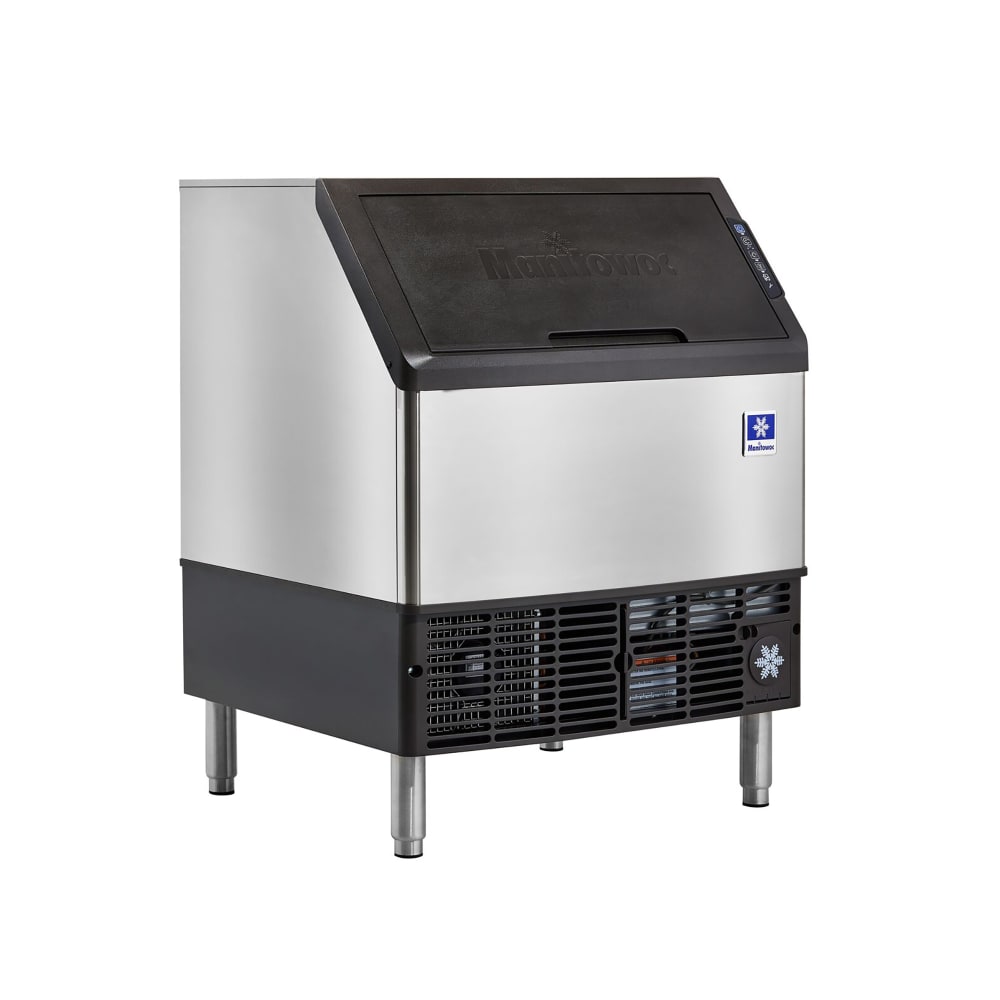

Manitowoc Ice UDP0310W 30"W NEO® Full Cube Undercounter Ice Machine - 300 lbs/day, Water Cooled, Integrated Water Filter
Typically ships in 4 - 8 Business Days
$4,349.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Selected Compressor Type: Water Cooled
Manitowoc Ice UDP0310W Description

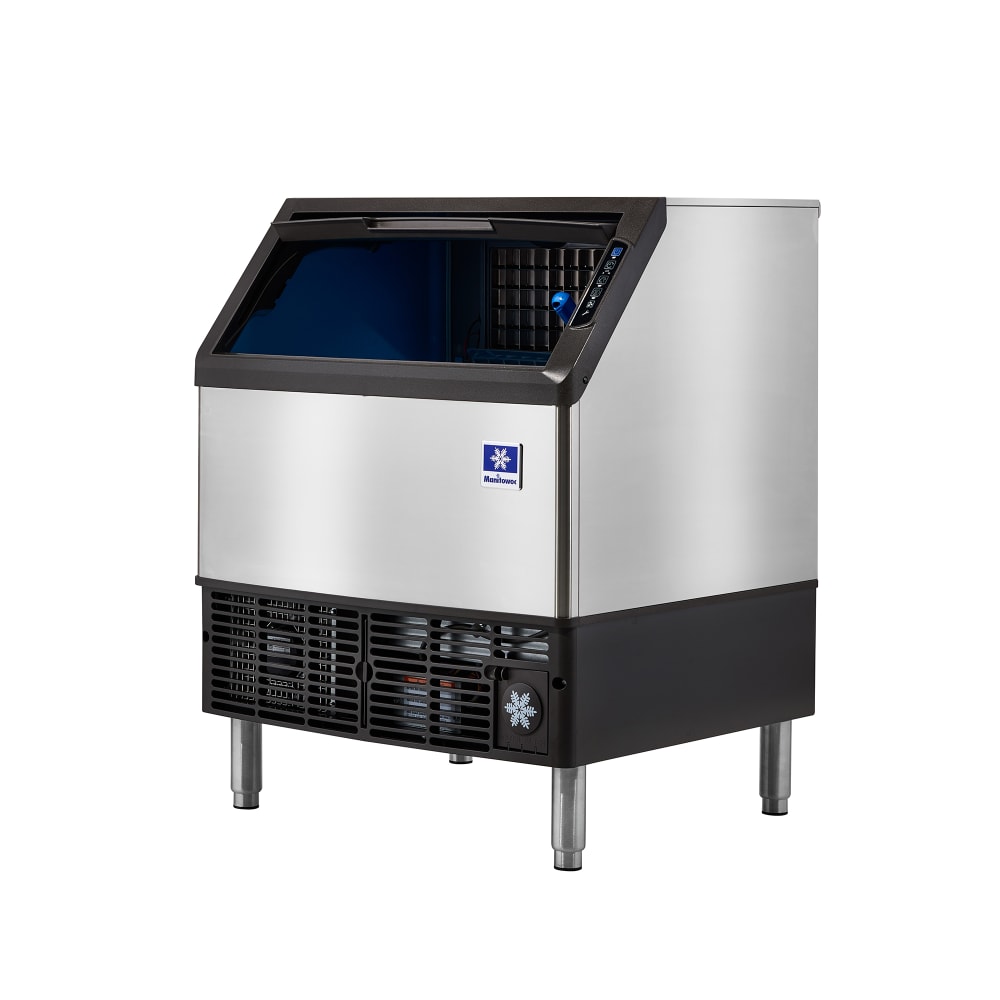

With its angled lift-up door, staff using the Manitowoc Ice UDP0310W NEO® undercounter ice machine can spot full-cube ice clearly before scooping. This wide opening improves visibility, helps reduce spills, and streamlines service in fast-paced bars. A smooth bin interior wipes clean quickly, keeping things running smoothly from early prep through the evening crowd. The forward-sliding ice bin provides smooth access to important components when servicing or cleaning is necessary.
The Manitowoc Ice UDP0310W NEO undercounter ice machine uses a front-breathing design so it fits neatly under the counter or between other kitchen equipment without extra clearance. It pulls in cool air through the front grill and exhausts heat forward to protect its internal components. This water-cooled setup reduces ambient heat, supporting comfort and performance in compact workspaces. To ensure clean-tasting ice, this unit has an integrated 5-micron filtration system.
- NEO series
- 300-lb. daily production capacity
- 119-lb. storage bin capacity
- Undercounter configuration
- Creates full-cube ice

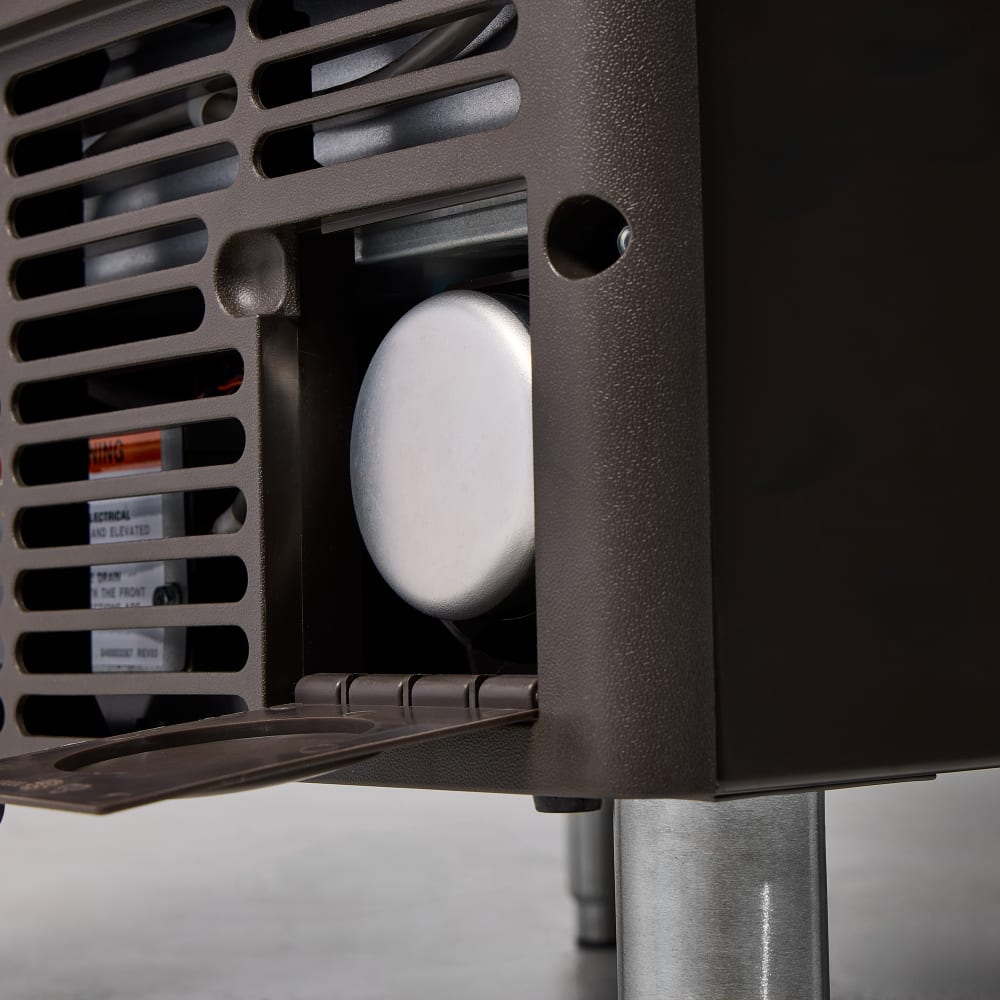

- Forward-sliding insulated storage
- Front-ventilated design
- Integrated 5-micron onboard water filtration system

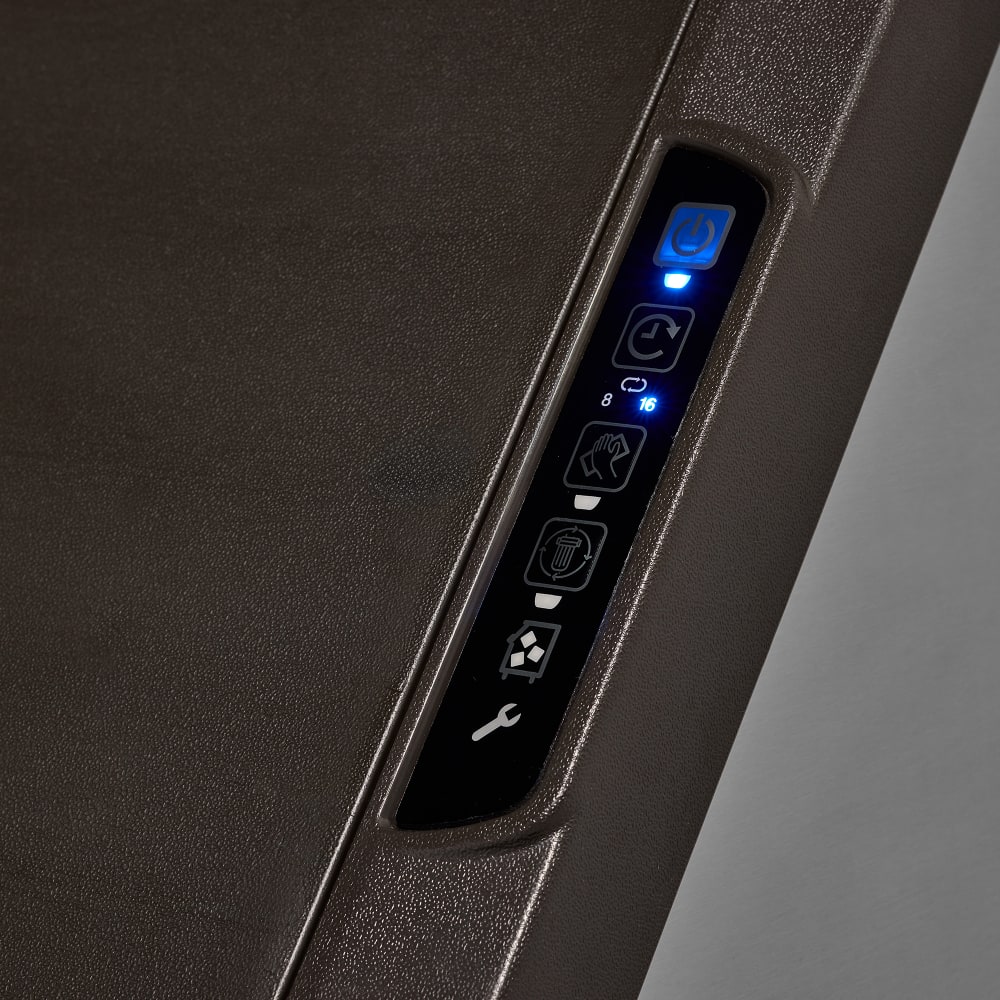

- Touchpad controls
- 6-in. adjustable leveling legs
- R290 hydrocarbon refrigerant
- Water-cooled, self-contained condenser
- Cupra-nickel condenser
- Average heat rejection: 5,500 BTU/hr
- Peak heat rejection: 6,500 BTU/hr
- Ambient temperature range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- Water inlet pressure range: 20-80 psi
- Condenser inlet pressure: 20-150 psi
- 30 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 7 A
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UDP0310W within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, water-cooled, self-contained, 30"W x 28-1/2"D x 38-1/2"H, production capacity up to 300 lbs./24 hours at 70/50 (280 lbs. AHRI certified at 90/70), 119 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI
Watch a video about this product
Manitowoc Ice UDP0310W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 300 |
| Also Known As | UDF0310W |
| Bin Capacity (lb) | 119 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2025 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 220.00 |
