Manitowoc Ice UDF0310A 30"W Full Cube NEO Undercounter Ice Machine - 286 lbs/day, Air Cooled
Manitowoc Ice UDF0310A Description

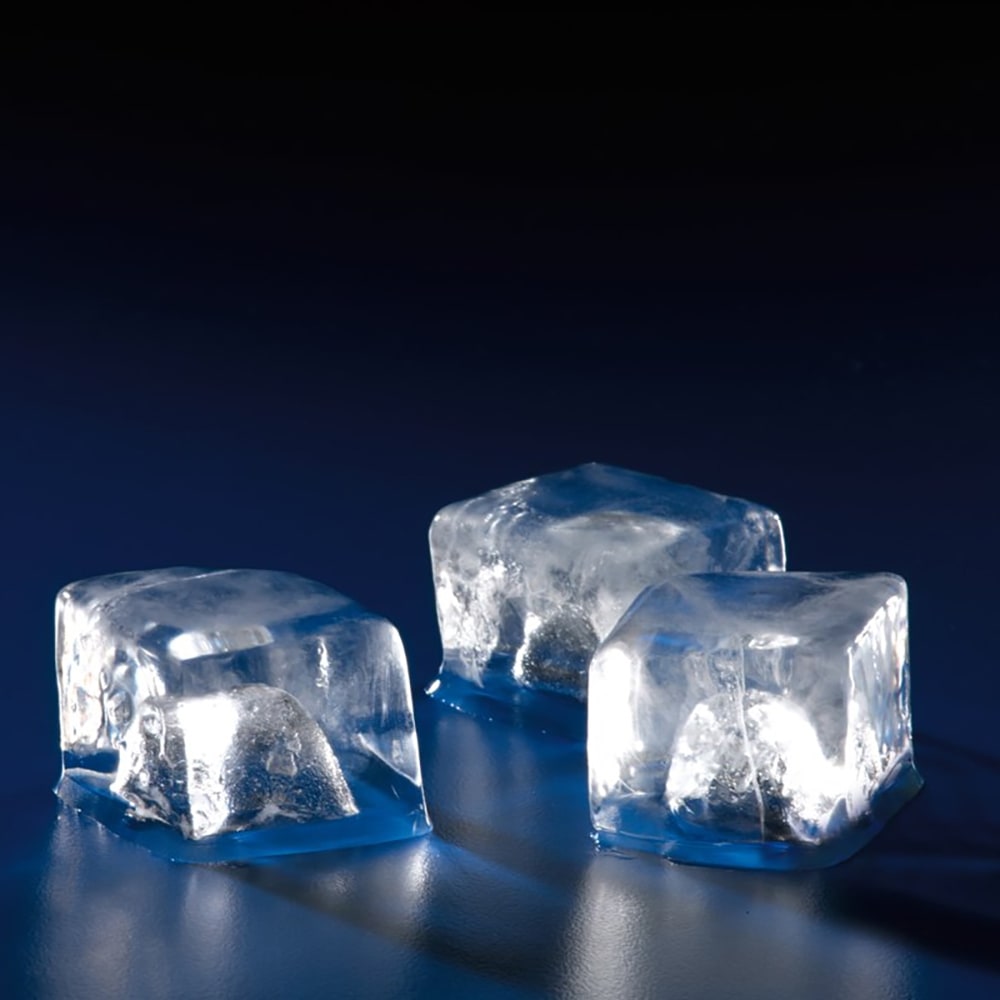

In a day, the Manitowoc Ice UDF0310A NEO® ice maker produces as much as 286 pounds of dice ice, depending on the ambient air temperature and incoming water temperature. The lower these levels are, the more ice the unit will produce. Ideal for cocktails and beverages, the dice ice cubes are 7⁄8 inches by 7⁄8 inches by 7⁄8 inches, melt slowly, and can be stored in the 100-pound capacity, insulated bin. Ice is accessible through the slide-up door, and the operator can delay ice production during slow periods.
For cleaning access, employees can slide the bin off the base, while its food zone is sealed and has removable parts for thorough cleanup. Additionally, AlphaSan® antimicrobial agents slow bacteria growth on components that touch water. Enabling installation next to equipment or against a wall, this Manitowoc UDF-0310A Neo undercounter ice machine intakes and releases air from the front.
Product Details
- Part of the NEO ice maker series
- 286-lb. maximum daily ice production
- 223-lb. AHRI-certified daily ice production
- 100-lb. storage capacity
- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Front-mounted indicator buttons have a blue LED backlight to alert operators of issues
- Delay function pauses ice production
- Slide-out storage bin provides access to refrigeration components
- Sealed food zone has removable water trough, distribution tube, and damper door for quick cleanup
- AlphaSan is built into internal components to prevent microbial growth
- Air flows through front vents, enabling the unit to sit next to other equipment or walls
- Air filter can be removed without tools
- 6-in. legs elevate the unit
- 4,600 average BTU; 5,450 peak BTU
Product Features
Ideal Operating Conditions
- Ambient air temperature: 40-110 degrees F
- Water temperature: 45-90 degrees F
- Incoming water pressure: 20-80 PSI
Dimensions & Utilities
- 30 in. W x 28.5 in. D x 38.5 in. H
- 10 A, 7 kW, 3⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UDF0310A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 30"W x 28"D x 38-1/2"H, production capacity up to 286 lb/24 hours at 70°/50° (233 lb AHRI certified at 90°/70°), 119 lb ice storage capacity, electronic controls, dice size cubes, 6" adjustable legs with flanged feet (painted gray), 3/4 HP, NSF, cULus, 115v/60/1ph
Manitowoc Ice UDF0310A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 286 |
| Also Known As | UD-0310A |
| Bin Capacity (lb) | 119 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 208.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice UDP0310A (Replacement)
- Scotsman CU3030MAX-1
Compare to Similar Items
| Attributes |
Manitowoc Ice UDF0310A Manitowoc Ice UDF0310A 30"W Full Cube NEO Undercounter Ice Machine - 286 lbs/day, Air Cooled Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,100.00 / Each | $3,659.00 / Each | |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | Typically ships in 1 - 3 Business Days | |
| Ice Type | Full Cube | Full Cube | Full Cube |
| 24 Hr. Production (lb) | 286 | 315 | 329 |
| Bin Capacity (lb) | 119 | 119 | 110 |
| Width (in) | 30 | 30 | 30 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | Gravity |
| Rating | Best | Best | Best |
| Special Features | Antimicrobial | Adjustable Leveling Feet | Alert System |
| Series | NEO® | NEO® | Prodigy® |
| Suggested Use | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | Lift Door |
| Depth (in) | 28.5 | 28.5 | 30 |
| Height (in) | 38.5 | 38.5 | 39.5 |
| Design | Standard Height | Standard Height | Standard Height |
| Refrigerant | R404A | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 | 115 |
| Warranty | 3-year; 5-year Compressor Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
Looks and Runs great
Product is used for small gatherings at our Church
Needs to be larger - rep recommendation was to small
EXCELLENT UNIT.... But, talking with the rep it was not clear the unit would not hold enough ice. Making 295#/day is great. A 120lb bin is to small especially when the last few bricks slide off and lay on the "full flipper switch"... great unit, needs more bin or offer a spacer to get the evaporator 4" above the 120lb bin full mark.... Don't get me wrong, LOVE THE UNIT !!!!!
