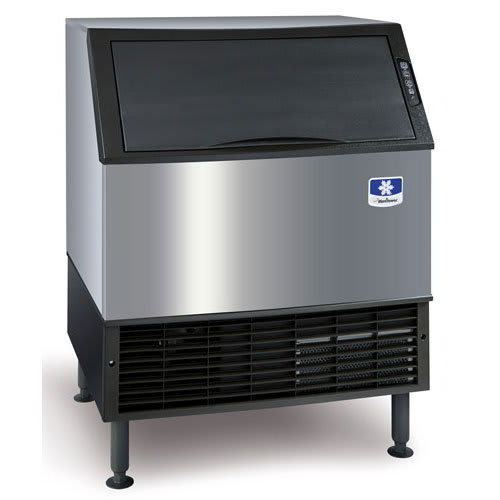

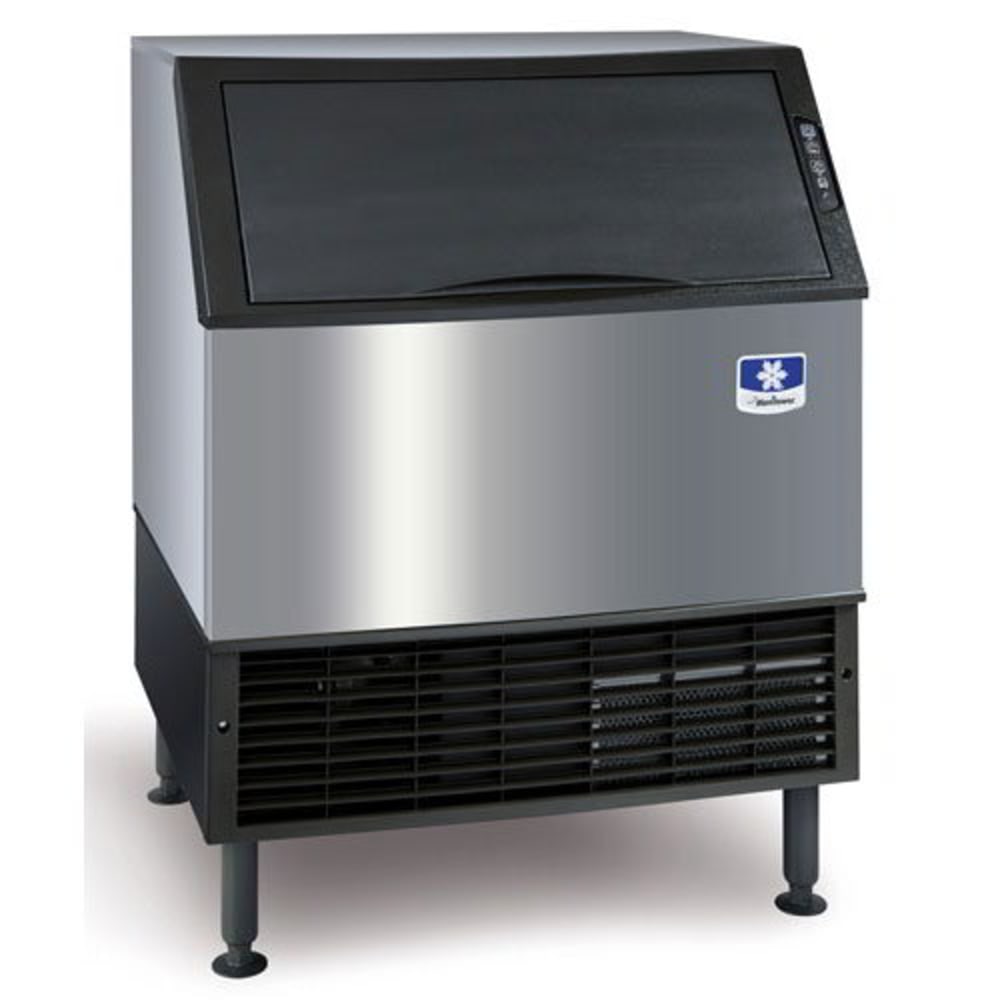

Manitowoc Ice UD-0310A Undercounter Full Cube Ice Maker - 304-lbs/day, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-UD0310A • MPN: UD-0310A 161 (115/60/1)

Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review

Image may not depict product color, inclusions or accessories.

Manitowoc Ice UD-0310A Description

Manitowoc Ice

This Manitowoc Ice Neo™ undercounter ice maker produces 304 pounds of dice-style ice every 24 hours and can hold 100 pounds of ice in the storage bin. It has a forward-sliding storage bin for easy access to the refrigeration components without the need to move the whole ice machine. AlphaSan® is added to key internal components to slow microbial growth, and removable parts in the foodzone make it easy to clean. This undercounter ice maker is air-cooled and has a self-contained refrigeration system.

Product Details

  • Replaces QD0272A
  • Air-cooled system
  • Produces dice-style ice: 7/8-in. W x 7/8-in. D x 7/8-in. H
  • Up to 304-lbs. ice production per day
  • 100-lbs. ice storage capacity in bin
  • Uses up to 10% less energy and at least 25% less water than comparable ice makers
  • Front-mounted Power, Delay, Clean, Full Bin, and Service indicator buttons with blue LED backlight
  • Delay function pauses ice production for 4, 12, or 24-hr.
  • Angled door provides easy access to ice with a wide opening
  • Forward-sliding storage bin allows easy access to refrigeration components
  • Food-zone is sealed with a removable water trough, distribution tube, and damper door for fast cleaning
  • AlphaSan® is used on key internal components to prevent microbial growth
  • Air flows through front vents and there are no side or rear vents on the unit, making it suitable for under counter use
  • Tool-free removal of air filter which is dishwasher-safe and easy to clean
  • 115 V/60 Hz/1-ph; NEMA 5-15P plug with 6-ft. power cord
  • Total Dimensions: 30-in. W x 28-in. D x 38-1/2 in. H (includes 6-in. legs)
  • California Low Lead Qualified; cULus and CE Listed; AHRI, ISO 9001:2008, NSF, and ENERGY STAR Certified

Intelligent and Convenient Design

  • Full Bin button lights up when ice harvest reaches the top of the storage bin for at-a-glance monitoring of ice levels
  • Buttons are mounted on slated top of machine for easy access without stooping
  • Ergonomic ice scoop has a comfort grip handle and can be stored in holders on either side of the bin

Saves Money and Maintenance Time

  • Service icon will light up to warn of potential service and maintenance issues
  • AlphaSan® plastic, removable components in the foodzone, and rounded corners make routine cleaning easy
  • Pause button stops ice production when it is not needed

NEO™ Undercounter Ice Maker, cube-style, air-cooled, self contained, 30"W x 28"D x 38-1/2"H, production capacity up to 304 lb/24 hours at 70°/50° (235 lb AHRI certified at 90°/70°), 100 lb ice storage capacity, electronic controls, dice size cubes, NSF, cETLus, ENERGY STAR®, 115v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Manitowoc Ice UD-0310A Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 304
Also Known As UD-0240A, QD-0212A, QD-0272A
Height (in) 38.5
Ice Type Full Cube
Specialty Options Digital Controls
Width (in) 30
Bin Capacity 100 lbs
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Compressor Type Air Cooled
Capacity Range 70-119 lb
Production Range 260-329 lb
Width (in) Range 26 -35 in
Hertz 60
Voltage 115
Phase 1
Weight 208.00
Manitowoc Ice UD-0310A Certifications
  • NSF
  • Energy Star
