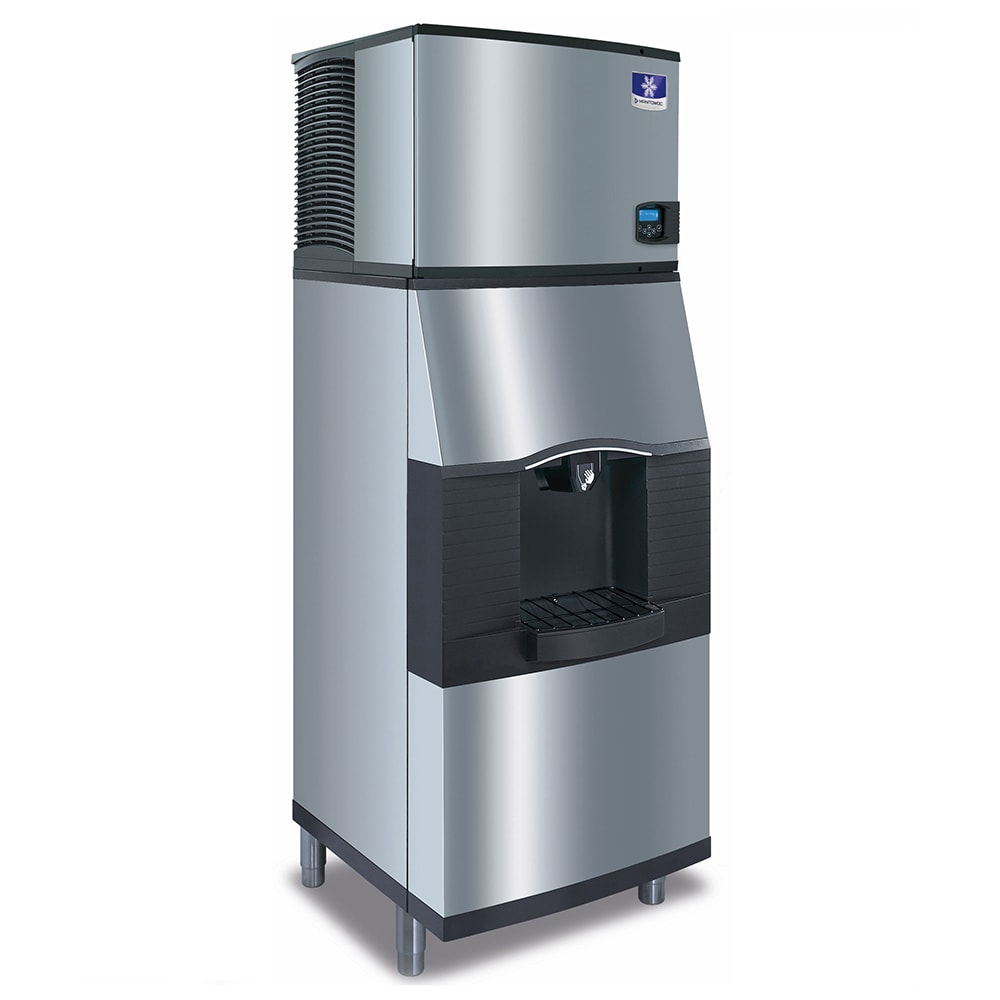

Manitowoc Ice IYP0500W/SFA292 509 lb Half Cube Ice Machine w/ Water & Ice Dispenser - 180 lb Storage, Bucket Fill, 115v
QUICK SHIP: Ships in 1 Business Day
$10,259.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Manitowoc Ice IYP0500W/SFA292 Description
The Manitowoc IYP0500W/SFA292 Indigo NXT™ ice maker with dispenser has a water-cooled motor and self-contained condenser. A hinged front panel on the head removes for access to interior components. These components are removable for cleaning, and some are built with AlphaSan® technology to reduce bacteria growth. It can make 509 pounds of ice within 24 hours, and the touch screen control panel has icons that simplify use.
This dispenser can hold 180 pounds of ice and has a built-in water dispenser. A chute dispense mechanism prevents ice overflow, and its drain pan collects excess ice. The exterior of the Manitowoc IYP0500W/SFA292 ice maker with dispenser is made of stainless steel and has a clear coat to resist smudges.
- 509-lb. ice production capacity
- 455-lb. AHRI-certified production capacity
- Touch icons on the easyTouch control panel ease use
- Ice production is adjustable by time of day or volume
- Hinged front door
- Removable parts simplify cleaning
- AlphaSan antimicrobial technology slows scale growth
- 24-hr. diagnostics find operating issues
- Acoustical probe measures ice thickness
- DuraTech clear coat maintains a clean appearance
- Produces half dice ice
- Water-cooled motor
- Uses R290 refrigerant
- Part of the Indigo NXT series
- Required ambient temperature range: 40-110 degrees F
- Required incoming water temperature range: 40-90 degrees F
- Required water pressure: 20-80 PSI
- Average BTU per hour: 3,800
- Peak BTU per hour: 6,000
- 10.8 A, 3.9 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
- Overall dimensions: 30 in. W x 32 in. D x 82 in. H
- Built-in water valve
- 180-lb. ice storage capacity
- Chute dispense mechanism prevents ice from spilling
- Built-in agitator
- Drain pan collects ice overflow
- Clear coat over the stainless steel exterior reduces fingerprints
- 1.6 A
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0500W/SFA292 within the 48 contiguous states.
From The Manufacturer
IYT-0500W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 509 lb/24 hours at 70°/50° (455 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
SFA-292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant
Watch a video about this product
Manitowoc Ice IYP0500W/SFA292 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 509 |
| Also Known As | IYT0500W, IYT0500W-161 |
| Amps | 10.8, 1.6 |
| Bin Capacity (lb) | 180 |
| Compressor Type | Water Cooled |
| Depth (in) | 32 |
| Dispenser Type | Lever |
| Dispenses | Ice & Water |
| Height (in) | 82 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Serving Vessel | Bucket |
| Special Features | Duratech™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 375.00 |
