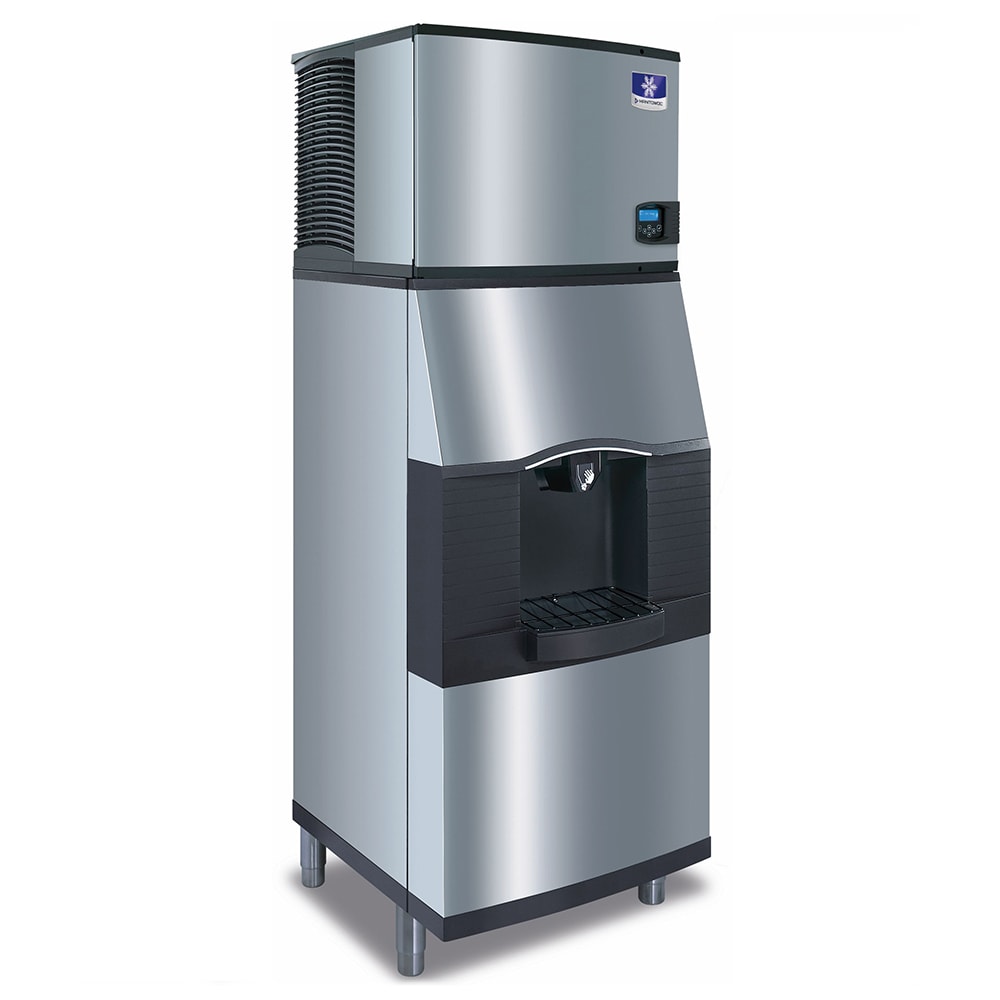

Manitowoc Ice IYT0420W/SFA191 490 lb Half Cube Ice Maker w/ Ice & Water Dispenser - 120 lb Storage, Bucket Fill, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IYT0420W161SFA19 • MPN: IYT0420W-161/SFA-191
Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Price: $6,091.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IYT0420W/SFA191 Description

Manitowoc Ice

The Manitowoc Ice IYT-0420W-161/SFA-191 ice maker with dispenser produces as much as 490 pounds of ice in 24 hours, though operators can program this amount to best fit their application. It makes half-dice ice, measuring each batch to ensure a consistent thickness. A touchscreen display simplifies operation, while preventive maintenance and diagnostic feedback run 24 hours to keep operators informed about the unit. Made for use with large containers, the dispenser accommodates vessels as tall as 10.5 inches.

Ice Maker Details

  • 490-lb. ice production capacity
  • 425-lb. AHRI-certified ice production capacity
  • Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
  • Programmable ice production
  • Acoustical sensing probe checks ice thickness
  • easyTouch® touchscreen display
  • 24-hr. preventive maintenance and diagnostic feedback
  • Hinged front door for access to the food zone
  • Some parts are removable for cleaning
  • AlphaSan® antimicrobial agent slows bacteria growth
  • DuraTech exterior resists corrosion and hides smudges
  • CE approved; cULus listed; California Low Lead qualified; AHRI, and NSF certified

Product Features

Turbo Air IYT0420W161SFA19 Features

Ice Dispenser Details

  • 120-lb. storage capacity
  • Compatible with containers as tall as 10.5 in.
  • Rocking chute dispenser contains ice to prevent spills
  • Oversized drain pan catches overflowing ice
  • Built-in agitator
  • DuraTech clear coat reduces fingerprint visibility
  • CE approved; cULus listed; ISO 9001:2008 and NSF certified

Dimensions & Utilities

  • Ice Maker
    • 22 in. W x 24.5 in. D x 21.5 in. H
    • 10.6 A, 4.24 kW
    • 208-230 V/60 Hz/1 ph
  • Dispenser
    • 22 in. W x 31 in. D x 54 in. H
    • 1.6 A
    • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

Check out the ice makers buying guide to learn more.

IYT-0420W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, R410A, NSF, cULus, CE

SFA-191: Vending Ice Dispenser with Built-In Water Valve, push button, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half dice ice type, fills containers up to 10-1/2" high, stainless steel exterior with vinyl trim, accepts 22" dice or half dice machines, NSF, cULus, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Manitowoc Ice IYT0420W/SFA191 Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
24 Hr. Production (lbs) 490
Bin Capacity (lb) 120
Compressor Type Water Cooled
Depth (in) 31.19
Height (in) 75.5
Hertz 60
Ice Type Half Cube
Operation Self Contained
Phase 1
Product Ice Maker with Dispenser
Series Indigo NXT™
Serving Vessel Bucket
Voltage 115
Width (in) 22
Warranty 3-year Parts & Labor; 5-year Evaporator & Compressor
Product Type Ice Makers & Bins
NEMA 5-15P
Amps 10.6, 1.6
Dispenser Type Push Button
Special Features Duratech™
Installation Type Freestanding
Dispenses Ice & Water
Bin Capacity Range (lbs) 100 - 199
Weight 303.00
Manitowoc Ice IYT0420W/SFA191 Certifications
  • UL
  • NSF
  • Energy Star
