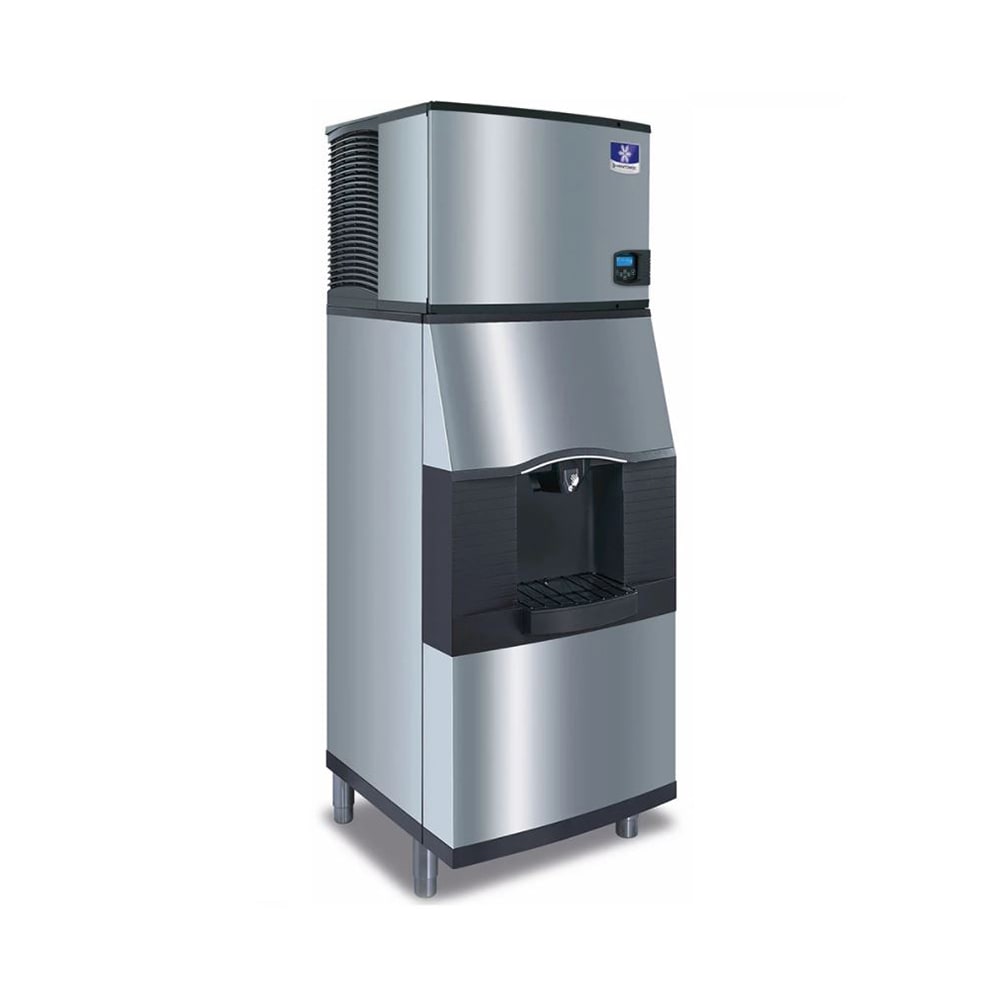

Manitowoc Ice IYT0300A/SFA292 310 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

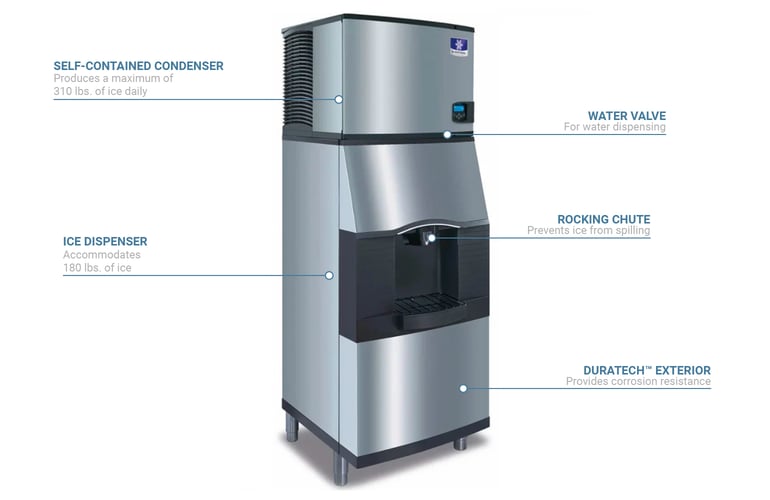

The Manitowoc Ice IYT0300A-161/SFA292-161 half-cube ice machine with dispenser has programmable ice control to keep up with the business or restaurant's needs. It harvests ice using active sense and an acoustic probe moves ice from the head to the dispenser for access. With maintenance and diagnostics running 24 hours daily, employees can be assured the system operates efficiently. The easyTouch® display screen is icon based to facilitate use.

Producing half-size cubes of ice, the Manitowoc Ice IYT0300A-161/SFA292-161 ice maker with dispenser has an air-cooled, self-contained condenser that uses R404a refrigerant. It makes 230 to 310 pounds of ice daily, and the dispenser can hold as much as 180 pounds of ice. The dispenser can be used to distribute water as well as half- and full-size ice cubes, and it can fill a container as high as 11 inches. To reduce waste, its rocking chute prevents spills.

Ice Maker Details

• Part of the Indigo NXT™ series
• 310-lb. maximum daily ice production
• 230-lb. AHRI-certified daily ice production
• Produces half-dice ice cubes
• Ice dimensions: ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.
• Ice control can be programmed
• Acoustic ice probe senses when ice should be harvested
• Active sense harvesting
• Includes 24-hour maintenance and diagnostics
• Foodzone has AlphaSan® antimicrobial and removable components
• Durable DuraTech exterior
• easyTouch screen controlled with touch icons
• Air-cooled, self-contained refrigeration system
• Cools with R404a refrigerant
• Ideal ambient temperature range: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 4,600-BTU heat transfer capacity

Ice Dispenser Details

• 180-lb. AHRI-certified application capacity
• For use with half-size or full-size cubes of ice
• Floor model
• Prevents spillage with a rocking chute
• Push-button dispensing with a water valve
• Can fill containers as tall as 11 in.
• Corrosion-resistant stainless steel exterior with a vinyl trim

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24.5 in. D x 16.5 in. H
• 8.8 A
• 115 V/60 Hz/1 ph
• Ice Dispenser
• 30 in. W x 32 in. D x 60.5 in. H
• 1.6 A
• 115 V/60 Hz/1 ph with a NEMA 5-15P plug

Product Features

*Free shipping on Manitowoc Ice IYT0300A/SFA292 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker w/ Vending Ice Dispenser, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 310 lb/24 hours at 70°/50° (230 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, R404a refrigerant, NSF, cULus, CE, ENERGY STAR®; Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0300A/SFA292 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
