Manitowoc Ice IDT0750A/SFA292 680 lb Indigo NXT™ Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208-230v/1p

The Manitowoc Ice IDT0750A-261/SFA292 Indigo NXT™ ice maker and dispenser creates large, slow-melting dice ice that measures ⁷/₈ of an inch by ⁷/₈ of an inch by ⁷/₈ of an inch. The production amount is programmable, and under ideal conditions, it can make a maximum of 680 pounds daily. This unit has touchscreen controls with an icon-driven interface for ease of operation, and it automatically provides preventive maintenance alerts and self-diagnoses any problems during operation.

With a 180-pound storage capacity, this Manitowoc Ice IDT0750A-261/SFA292 ice machine and dispenser can hold large volumes of ice until needed. The dispensing area can fill ice and water into bags and large containers. Its dispenser lever responds quickly to prevent ice from overflowing, and to catch any dribbles, it has a large drain pan, keeping floors clean and dry.

The unit creates ice by spraying water onto the evaporator plate, reducing the amount of dirt and sediment. In the food zone, antimicrobial AlphaSan® protection is built into key components; it slows slime and mold, reducing growth that can change the taste of ice.

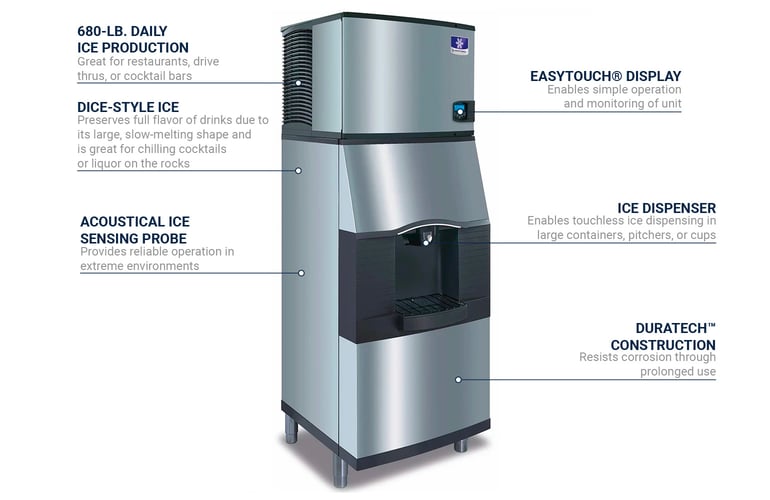

Ice Maker Details

• Dice-style ice
• Dice cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Ice-sensing probe accounts for water conditions
• AlphaSan protection slows the growth of bacteria on key components
• Removable water trough, distribution tube, curtain, and sensing probes enable thorough cleaning
• Front door swings out for quick service access
• Air-cooled compressor
• easyTouch® icon-based display screen
• Provides automatic feedback and diagnostics
• Programmable daily production
• Delay option temporarily stops ice production
• Self-contained condenser
• 680-lb. maximum daily production
• 540-lb. AHRI-certified daily production
• Corrosion-resistant DuraTech exterior

Ice Dispenser Details

• 180-lb. AHRI-certified storage capacity
• Designed for filling ice buckets and glasses
• Built-in water valve
• Touchless-lever-activated ice chute uses glass or bucket to dispense ice instead of hand
• 9¹/₂-in. clearance from grate to bottom of chute
• Built-in agitator assures 100% dispensing
• Oversized drain pan collects larger quantity of ice overflow
• DuraTech™ exterior withstands corrosion
• Stainless finish with clear coat resists fingerprint smudges and dirt

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24 in. D x 21¹/₂ in. H
• 11.1 A, 5.24kW
• 208-230 V/60 Hz/1 ph
• Ice Dispenser
• 30 in. W x 32 in. D x 60¹/₂ in. H
• 1.6 A
• 115 V/50 Hz/1 ph
• Overall: 30 in. W x 32 in. D x 82 in. H

Product Features

*Free shipping on Manitowoc Ice IDT0750A/SFA292 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker w/ Ice Dispenser, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 680 lb/24 hours at 70°/50° (540 lb AHRI certified at 90°/70°), DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®; Vending Ice Dispenser: Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0750A/SFA292 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
