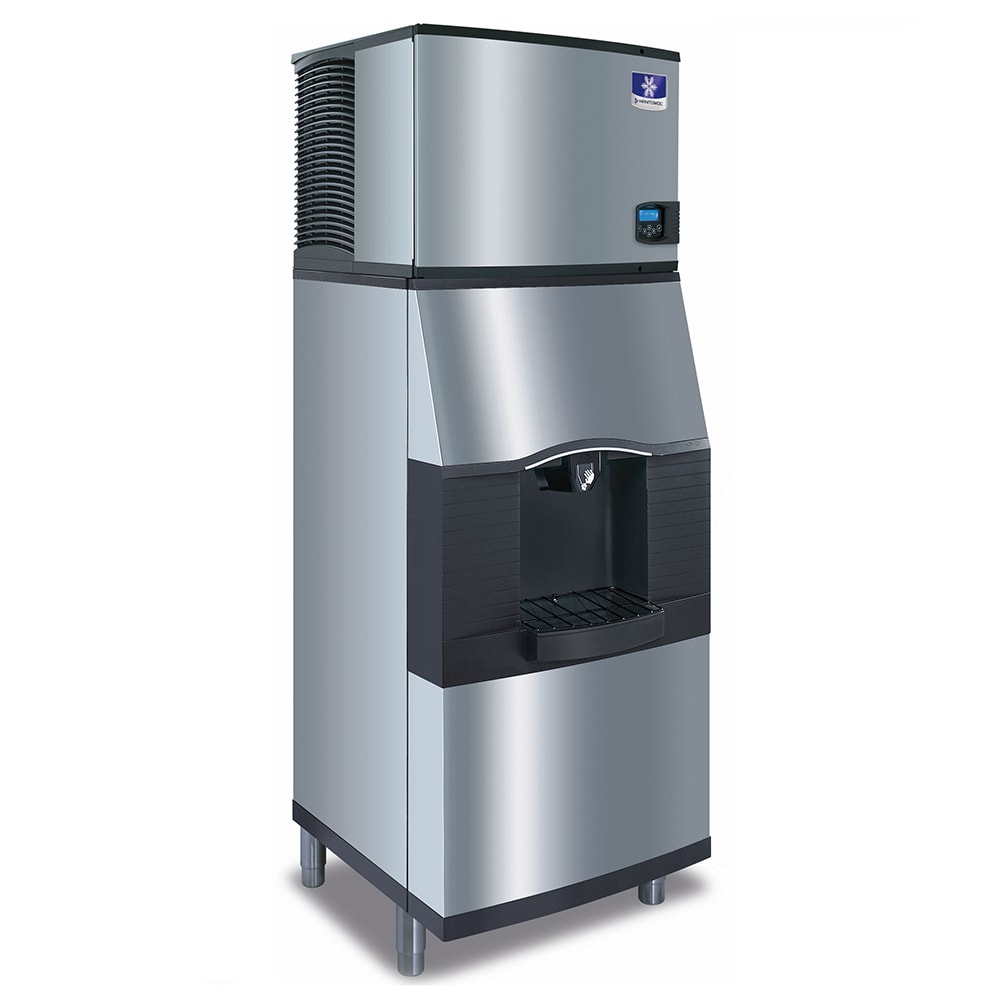

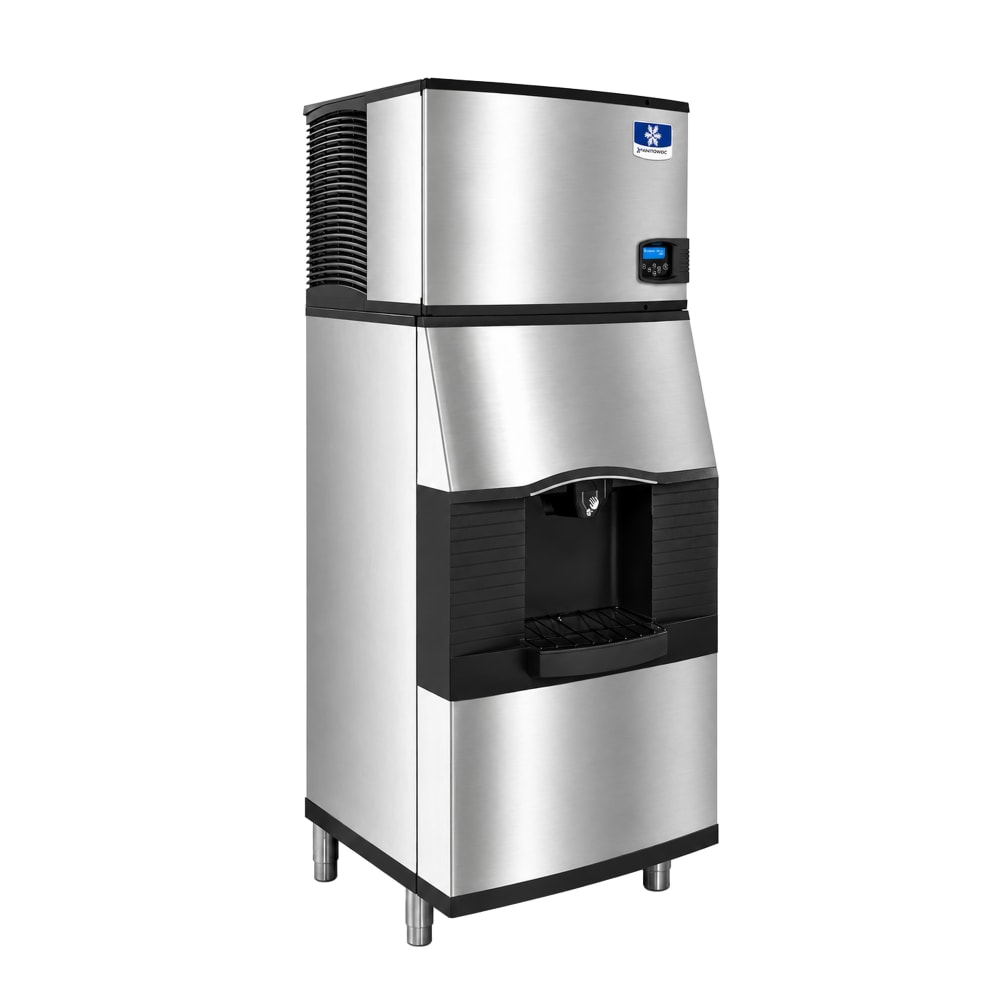

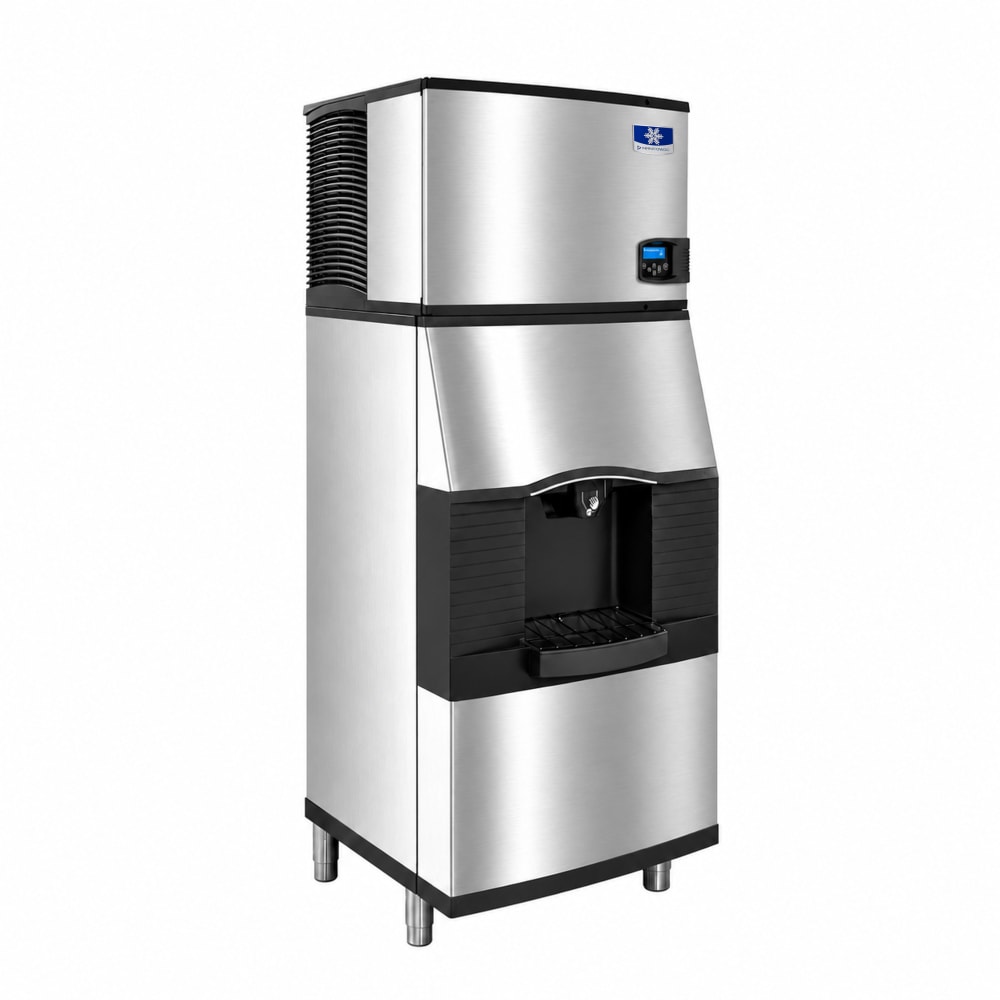

Manitowoc Ice IDT0500A/SFA292 520 lb Full Cube Ice Machine w/ Water & Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

Producing as much as 520 pounds of ice per day, the Manitowoc Ice IDT0500A-161/SFA292 ice maker with dispenser has programmable ice production that is based on volume or time of day. It makes dice ice, which is measured by an acoustical probe to check for consistent thickness. Simple to use, the display has touchscreen controls. The front panel door is hinged with a swing-out design, providing convenient access to the components. An antimicrobial agent on the most important components slow bacteria growth between cleanings.

Ice Maker Details

• 520-lb. ice production capacity
• 400-lb. AHRI-certified ice production capacity
• Dice ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Programmable ice production based on time of day or volume
• Ice thickness is measured by an acoustical probe to ensure consistency
• easyTouch® touchscreen display
• 24-hr. preventive maintenance runs and provide diagnostic feedback
• Swing-out, hinged food zone front panel door
• Removable water pump, water probe, water trough, curtain, and distribution tube
• AlphaSan® antimicrobial slows down bacteria growth
• DuraTech exterior is corrosion and fingerprint resistant
• Air-cooled condenser
• Uses R410A refrigerant
• Ambient air temperature range: 40-110 degrees F
• Incoming water temperature range: 40-90 degrees F
• Incoming water pressure range: 20-80 PSI

Product Features

Ice Dispenser Details

• 180-lb. storage capacity
• Made for filling large containers
• Rocking chute dispenser minimizes spilling
• Large drain pan catches ice that overflows
• Built-in water valve
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 21.5 in. H
  • 11.5 A, 5.25 kW
  • 115 V/60 Hz/1 ph
• Ice Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IDT0500A/SFA292 within the 48 contiguous states.

From The Manufacturer

Ice Machine IDT0500A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 520 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Dispenser SFA292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl tri

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT0500A/SFA292 Specifications
