Krowne KR18-24-10 Ice Bin - 80-lb Capacity, Bottle Racks, 7" Back Splash, 24x19", Cold Plate

KaTom #: 381-KR182410 • MPN: KR18-24-10
special-order-item close Special Order Item Special order items may require additional time to fulfill and may not qualify for returns or cancellations. Your special order item will be shipped once your item is ready and your payment has been processed. Please call us at 800-541-8683 for more information.

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $2,106.00
$1,000.14 / Each

Krowne KR18-24-10 Description

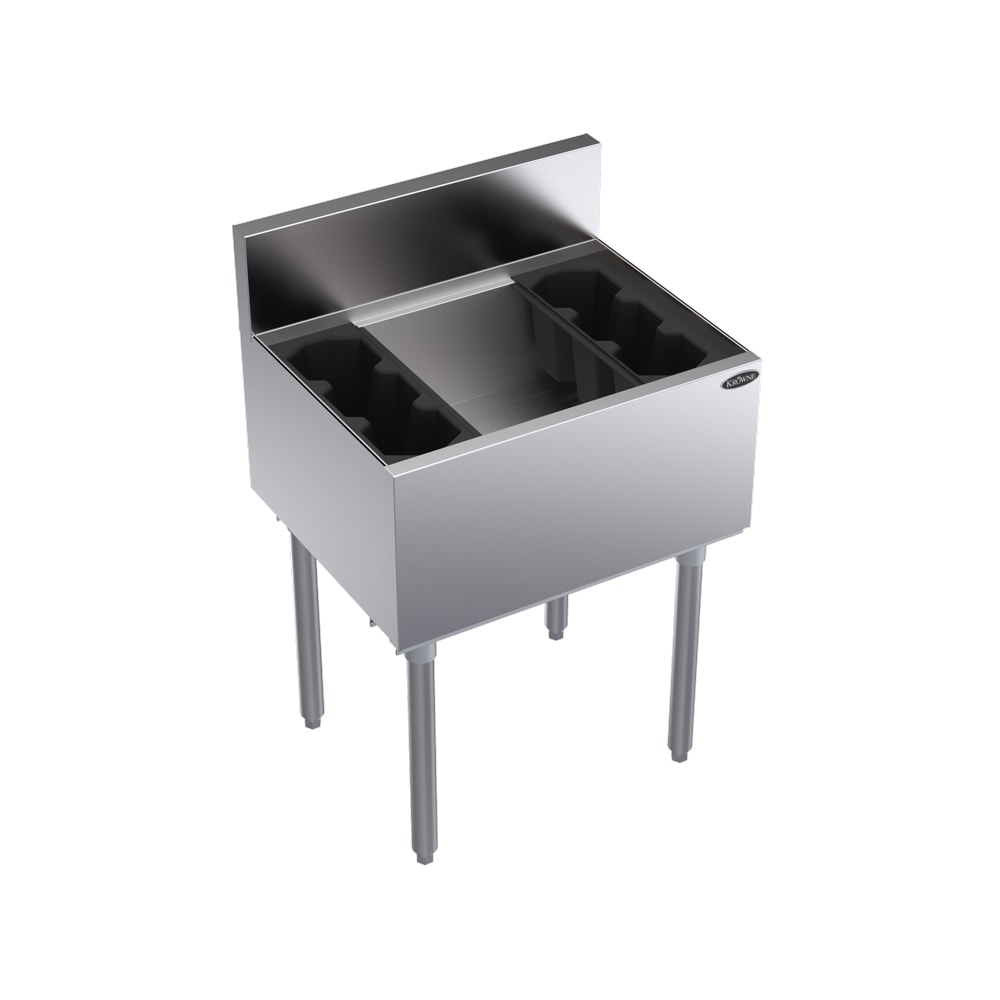

The Krowne KR18-24-10 underbar ice bin is designed to give bartenders and servers convenient access to ice for cocktails and other drinks. This model includes a 12-inch-deep ice bin capable of holding up to 80 pounds of ice and insulated with foamed-in-place polyurethane to keep that ice frozen longer. Six removable bottle wells, arranged in two sets of three and mounted on either side of the ice bin, will speed up the drink-making process by keeping popular flavors and syrups nearby.

The cold plate on this underbar ice bin, which is sealed into the bottom of the unit, offers soda line access with 10 circuits. Designed to be used with post-mix soda, each circuit is made with stainless steel tubing that has a 516-inch OD. Tubing access is provided by a cutout measuring 34-inches by 312-inches, and the cold plate requires a 12-inch IPS drain connection.

The Krowne KR18-24-10 jockey box comes standard with a 7-inch backsplash to prevent water and soda from splashing on the wall behind the unit and 158-inch tubular legs that provide a comfortable working height. Both of those features are constructed from stainless steel, while the rest of the unit is constructed with galvanized steel.

Product Details

  • Underbar ice bin
  • 12-in. deep bin with a capacity for 80 pounds of ice
  • Foamed-in-place polyurethane provides insulation
  • 7-in. backsplash constructed from stainless steel
  • 6 removable bottle wells (3 on each side of bin)
  • Constructed from galvanized steel and stainless steel
  • Mounted on 158-in. tubular legs with adjustable bullet feet
  • Overall Dimensions: 24 in. W x 19 in. D x 3612 in. H
  • NSF Certified

Cold Plate

  • Sealed into bottom of unit
  • For use with post-mix soda
  • 10 circuits with 516-in. OD tubing
  • 34-in. x 312-in. cutout on left side of backsplash for tubing access
  • Plumbing: 12-in. IPS drain connection

Royal 1800 Series - Ice Bin, 24" x 19" OA, 7" Back Splash, 12" Deep Bin, 10 - Circuit Cold Plate w/Soda Line Access, 1/2" Drain, 80 -lb. Capacity, Bottle Racks, Stainless Top, Front, Sides And Legs

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Krowne KR18-24-10 Specifications

PDF Spec Sheet
Manufacturer Krowne
Weight 121.00
