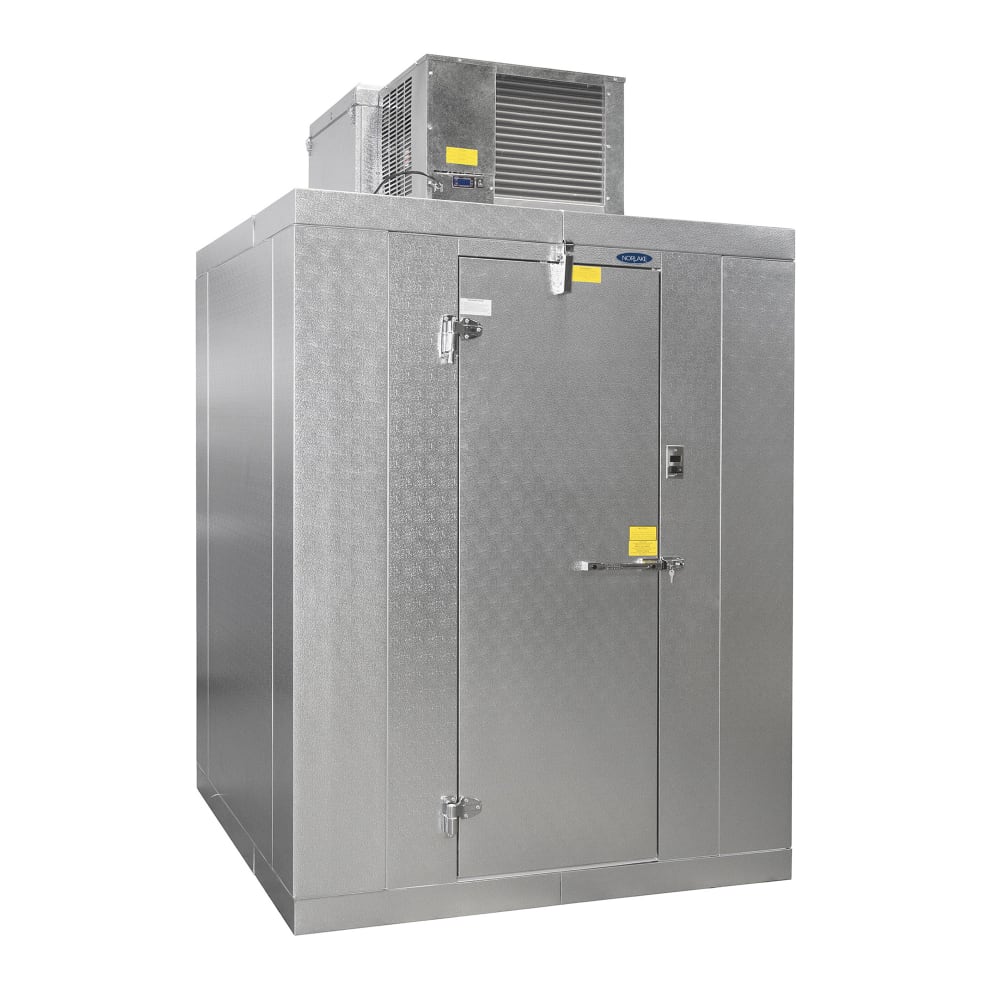

Norlake KODB77612-C 6' x 12' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor

KaTom #: 378-KODB77612CR • MPN: KODB77612-C RH
  • 378-KODB77612CR Primary Thumbnail Image

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

$16,207.01 /Each

Login or enter your email to be instantly sent the price!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove

Selected Hinge: Right Hinge

Left HingeLeft Hinge
Emerald Medina User Image
Ask a Foodservice Equipment Specialist

Norlake KODB77612-C Description

Able to withstand outdoor elements and ambient temperatures as warm as 90 degrees Fahrenheit, the Norlake KODB77612-C Kold Lockerâ„¢ outdoor walk-in cooler can produce and maintain temperatures as low as 35 degrees Fahrenheit. This 6-foot-wide by 12-foot-deep by 7-foot-7-inch-tall unit is comprised of polyurethane-insulated wall, ceiling, and floor panels that can be interlocked with the cam-locking system and properly aligned with the male and female mating rails. Both the interior and exterior panels are finished with 26-gauge coated steel that's stucco embossed and corrosion resistant. To accommodate bulk items, the smooth aluminum flooring can support an evenly distributed load of 800 pounds per square foot. The included weather kit, which comes with a 35-millimeter white roof material and metal flashing, can be placed atop the wall panels without being seamed or glued.

To access the Norlake KODB77612-C walk-in cooler's interior, it's built with a 26-inch-wide by 78-inch-tall right-hinged door. This self-closing door opens and closes smoothly with the field-adjustable cam-lift hinges and spring-actuated door. Its deadbolt handle can be locked after business hours, and to prevent employees from getting locked inside the unit, it's built with a safety release mechanism. A vapor-proof LED light illuminates the unit, and operators can turn the light on or off with the corresponding switch; to prevent unnecessary energy expenditure, an exterior pilot light indicates if the light has been left on. To ensure contents are stored in a safe environment, its digital thermometer provides an accurate temperature readout.

  • Featured in the Kold Locker line and 77 series
  • For outdoor use
  • Modular panels with male and female mating rails and foamed-in-place cam locking fasteners
  • 4-in.-thick foamed-in-place polyurethane insulation
  • Insulation provides R-25 thermal resistance value for ceiling, walls, and door
  • Continuous panel gaskets along outer perimeter
  • Foamed-in-place edge caps for end of floor and ceiling panels
  • 26-ga. coated steel finish on interior and exterior panels is stucco embossed and corrosion resistant
  • Smooth aluminum flooring can support a uniformly distributed 800 lbs. per square foot
  • 26-in.-wide x 78-in.-tall right-hinged, self-closing door
  • Door is centered on box's short side
  • 2 field-adjustable cam-lift hinges with locking set screw
  • Spring-actuated door closer, floor double-sweep gasket, and magnetic gasket for smooth door closure
  • NL 9800 deadbolt locking handle with independent key/padlock feature
  • Inside safety release mechanism
  • Digital thermometer
  • Vapor-proof LED light fixture above door
  • Light switch
  • Exterior pilot indicator light
  • Replaceable perimeter heater wire

  • Ceiling mount
  • Holding temperature: 35 degrees F
  • Pre-charged condensing unit
  • Factory-assembled evaporator coil
  • Flush evaporator coil keeps refrigeration components outside the walk-in box
  • Evaporator enclosure with foamed-in-place polyurethane insulation
  • High-efficiency evaporator fan motors

  • 6 ft. W x 12 ft. D x 7 ft. 7 in. H
  • 120 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Norlake KODB77612-C within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Kold Locker™, Outdoor +35°F Cooler, 6' x 12' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 6' wall (call for long-side door placement), locking deadbolt handle, membrane roof, R449 Capsule Pak Refrigeration CPB100JC-E-4-EV (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

Warranty Icon
18-month Limited Parts & Labor; 15-year Panel
