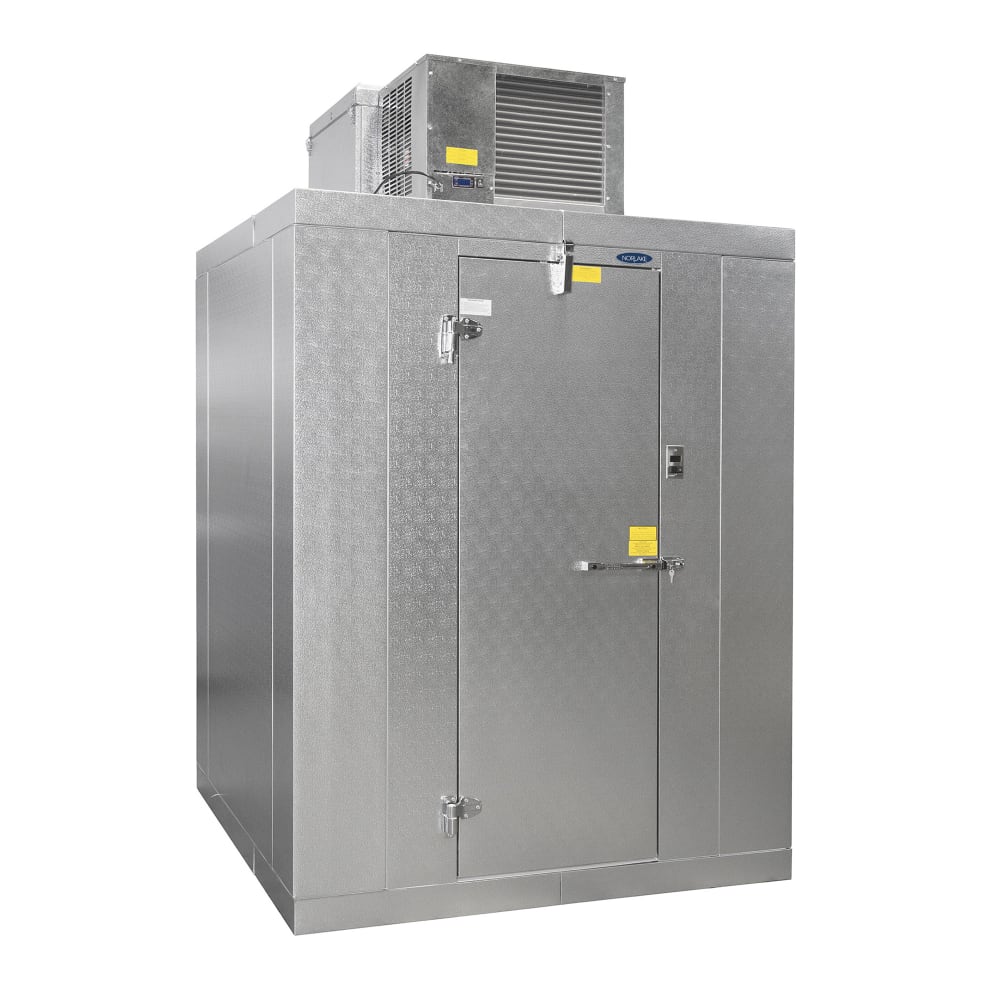

Norlake KLF77812-C 8' x 12' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$19,656.12 /Each
Login or enter your email to be instantly sent the price!
Selected Hinge: Right Hinge
Norlake KLF77812-C Description
With a smooth aluminum construction, the Norlake KLF77812-C walk-in freezer's floor can withstand 800 pounds per square foot. Its 4-inch-thick panels are made of 26-gauge, corrosion-resistant steel, which are foamed in place with moisture-resistant polyurethane insulation to seal in cool air. Its stucco-embossed design enhances durability and hides everyday wear and tear for a pristine appearance. Because this unit doesn't require a drain line, it's simple to install. It comes with a Capsule Pak™ refrigeration system, so operators don't have to purchase separately.
For user safety, the Norlake KLF77812-C indoor walk-in freezer has an inside safety release that reduces the risk of getting trapped inside the unit. It has a deadbolt locking handle with an independent key and padlock to secure the container when not in use. It also features a stepped profile that acts as an airflow barrier for energy efficiency. Because its flush-mounted door is self-closing, operators do not have to worry about the unit being left open. Overall, it measures 8 feet wide by 12 feet deep by 7 feet 7 inches high.
- Part of the Kold Locker™ collection
- For indoor use
- 574-cu.-ft. interior space
- Holding temperature: -10 degrees F
- Ceiling-mount Capsule Pak system
- Pre-charged condensing unit
- Factory-assembled evaporator coil
- Flush evaporator coil keeps refrigeration components outside the walk-in box
- Evaporator enclosure with foamed-in-place polyurethane insulation
- High-efficiency evaporator fan motors
- 26-ga. stucco-embossed, corrosion-resistant coated steel on all surfaces except interior floor
- Full, 4-in. panels foamed in place with polyurethane insulation that resists moisture
- Polyurethane foam enables thinner walls for optimal walk-in storage space
- Includes smooth aluminum interior floor
- Floor can support 800 lbs. per sq. ft.
- Indoor models don't require drain line
- Overall dimensions: 8 ft. W x 12 ft. D x 7 ft. 7 in. H
- Mounted on short side and centered
- NL 9800 deadbolt locking handle with independent key/padlock
- Inside safety release
- NL 2400 adjustable spring-loaded door hinge attached on right side
- Stepped profile serves as airflow barrier for energy efficiency
- Flush-mounted door is self-closing
- Heavy-duty, molded ABS breaker permanently foamed in place
- Magnetic gasket
- 2 field adjustable cam-lift hinges with locking set screw
- Door section is pre-wired with concealed conduit inside of door frame panel
- Hinges and door handle are mounted to 1⁄2-in. synthetic insulated tapping plates
- Each door section complete with a fiberglass-reinforced, plastic, heated threshold
- Frame panel includes:
- Replaceable perimeter heater wire
- Magnetic stainless steel trim
- Digital thermometer
- Vapor-proof LED light fixture
- Switch with exterior pilot indicator light
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake KLF77812-C within the 48 contiguous states.
From The Manufacturer
Kold Locker™, Indoor -10°F Freezer, 8' x 12' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing right hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, R449 Capsule Pak Refrigeration CPF150JC-S-4-EV (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )
Norlake KLF77812-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Right |
| Length (ft) | 12 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Series | Kold Locker™ |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1902.00 |
