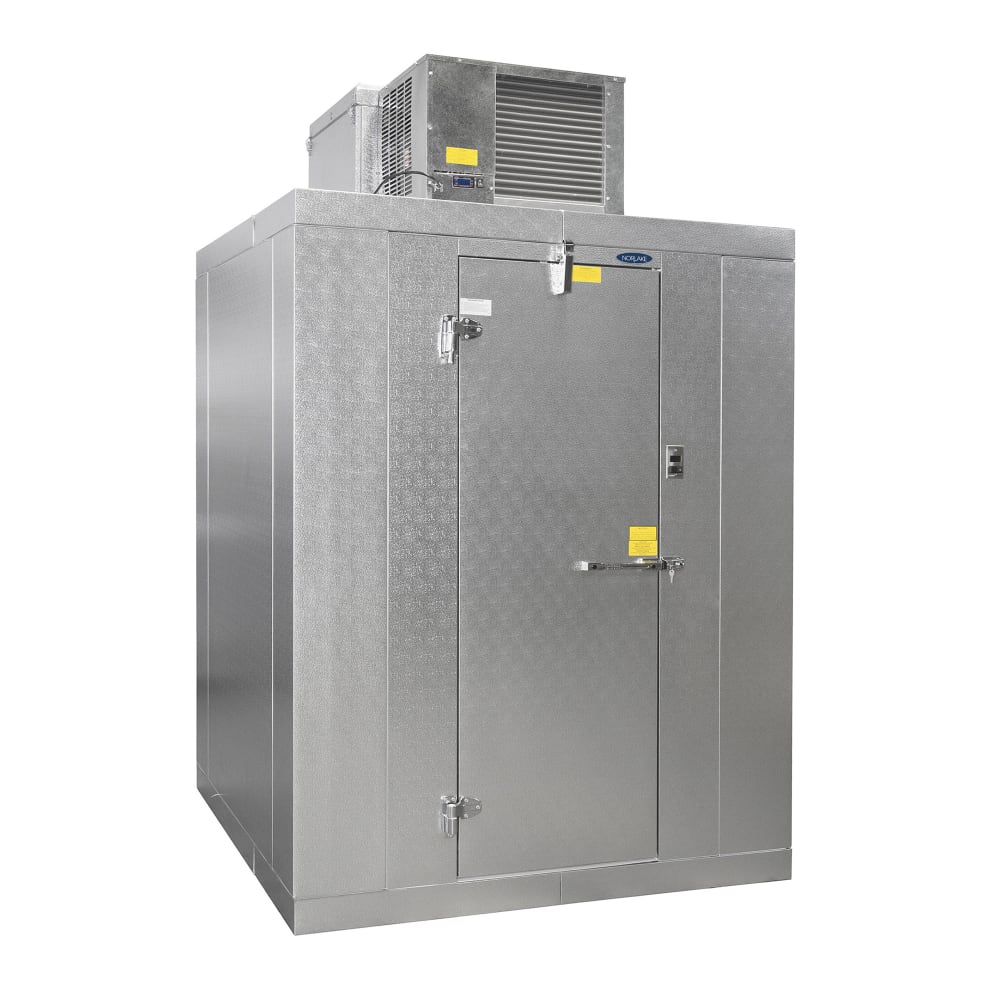

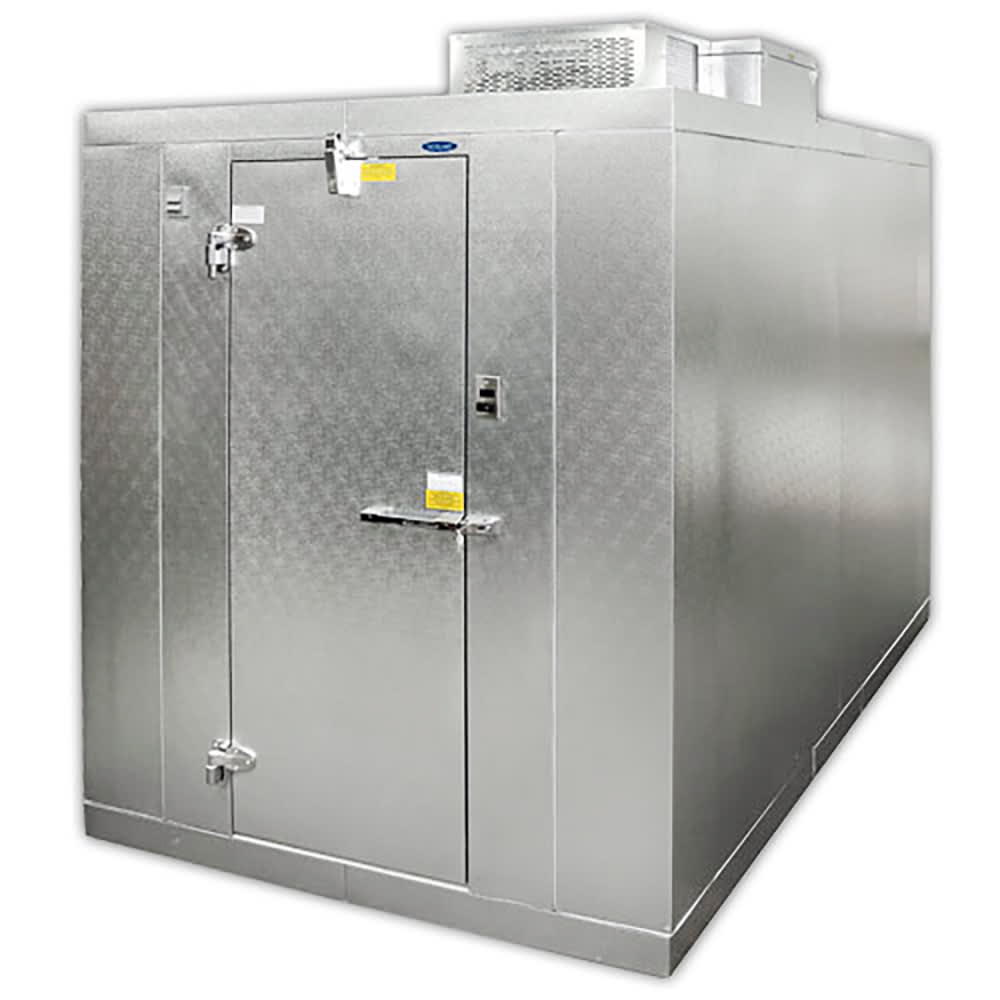

Norlake KLF77812-C 8' x 12' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$19,656.12 /Each
Login or enter your email to be instantly sent the price!
Selected Hinge: Left Hinge
Norlake KLF77812-C Description
The Norlake KLF77812-C indoor walk-in freezer with top-mounted compressor protects frozen goods across a 574-cubic-foot interior. Its 4-inch hydrofluoroolefin polyurethane foam insulation lines metal-clad panels, supported by an R-32 thermal rating. The foamed panel joints reduce thermal bridging, helping maintain stable conditions during repeated door openings and daily stocking activity.
For dependable durability and long-term use, the Norlake KLF77812-C indoor walk-in freezer is built with 26-gauge coated steel exterior panels and corrosion-resistant interior finishes. Its metal-clad ceiling reinforces overhead structure, and sealed cam-lock panel seams limit moisture intrusion that could affect long-term freezer performance over service life. Overall, this unit measures 12 feet long by 8 feet wide by 7 feet 7 inches high.
- Kold Lockerâ„¢ Series
- 574-cu.-ft. interior capacity
- Modular metal-clad panel construction with cam-lock fastening system
- 26-ga. stucco-embossed coated steel interior and exterior
- Insulated floor with smooth aluminum interior surface
- 4-in.-thick HFO polyurethane foam insulation
- Fiberglass-reinforced, plastic-heated threshold
- Factory-assembled insulated door
- Left-hinged door configuration
- Self-closing, flush-mounted infitting door with stepped profile
- NL 9800 deadbolt locking handle with inside safety release
- Magnetic door gasket with perimeter heater wire
- Vapor-proof LED interior light with exterior pilot indicator
- Digital thermometer and light switch integrated into door frame
- Capsule Pak ECOâ„¢ self-contained, top-mounted condenser
- Air-cooled design
- 1-piece enclosure
- R290 hydrocarbon refrigerant
- High-efficiency EC evaporator fan motors
- Automatic electronic defrost control
- LogiTemp® digital controller with temperature readout and diagnostics
- Designed for −10 degrees F freezer operation
- 12 ft. L × 8 ft. W × 7 ft. 7 in. H
- 208-230 V/60 Hz/1 ph, factory-installed 9-ft. power cord with NEMA plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake KLF77812-C within the 48 contiguous states.
From The Manufacturer
Kold Locker™, Indoor -10°F Freezer, 8' x 12' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing left hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, R449 Capsule Pak Refrigeration CPF150JC-S-4-EV (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )
Norlake KLF77812-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Left |
| Length (ft) | 12 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Series | Kold Lockerâ„¢ |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1902.00 |
