MoTak KT-UIH-150 24"W Half Cube Undercounter Ice Machine - 152 lbs/day, Air Cooled

Designed for installation in small back bar footprints, the MoTak KT-UIH-150 undercounter ice machine has a 24-inch width and 24-inch depth. Its 39-inch height seamlessly fits under bar counters, while the 6-inch adjustable legs maintain stability on slightly uneven floors. In 24 hours, it can make 152 pounds of ice; this maximum amount depends on ambient air and incoming water temperatures and can fluctuate if these conditions aren't ideal. A 75-pound-capacity storage bin is integrated into the unit, keeping ice close at hand as bartenders make drinks. Because the bin has a polyethylene liner, it has a smooth, easy-to-clean surface. A blue LED light in the bin ensures clear visibility when scooping, and for sanitary ice retrieval, an ice scoop and scoop holder are included.

Great for soda service and frozen blended drinks, this MoTak KT-UIH-150 commercial undercounter ice maker produces half-cube ice. Smaller than full cubes, this ice melts quicker, yet cools drinks faster than larger cubes. This unit's self-contained condensing unit has an air-cooled design—a system that uses fans to blow cold air over the internal components. Unlike remote-cooled and water-cooled alternatives, this condenser design doesn't require additional water connections or refrigerant lines for simpler installation and service. Programmable digital controls and a digital display screen promote user-friendly operation with access to the ice machine's operating status, and it includes an automatic cleaning function and overload protection for the storage bin.

Product Details

• 152-lb. maximum 24-hour production capacity
• 75-lb. storage bin capacity
• Half-cube ice
• Air-cooled design
• Self-contained condenser
• R-134A refrigerant

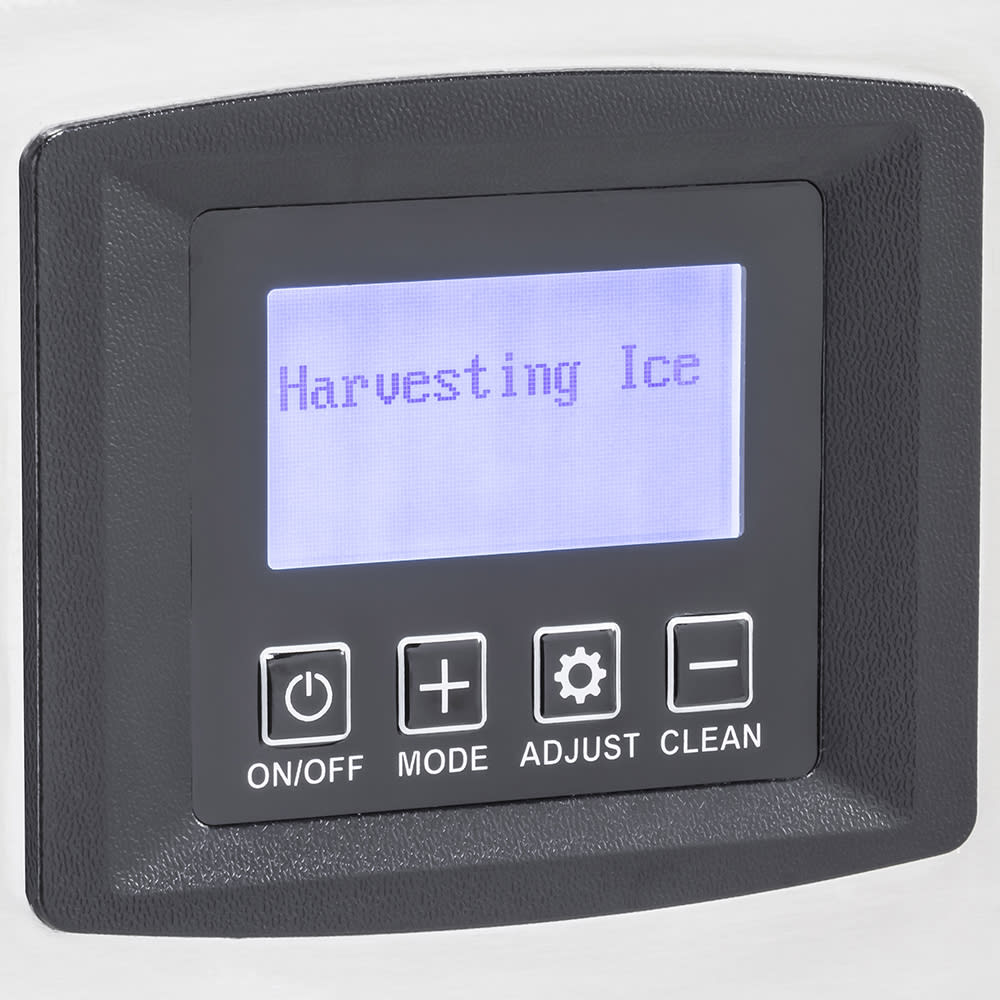

• Programmable digital control panel and display
• Automatic cleaning
• Bin overflow protection
• Corrosion-resistant, easy-to-clean polyethylene bin liner
• Built-in antimicrobial agent
• Blue LED light inside bin
• Gravity drain

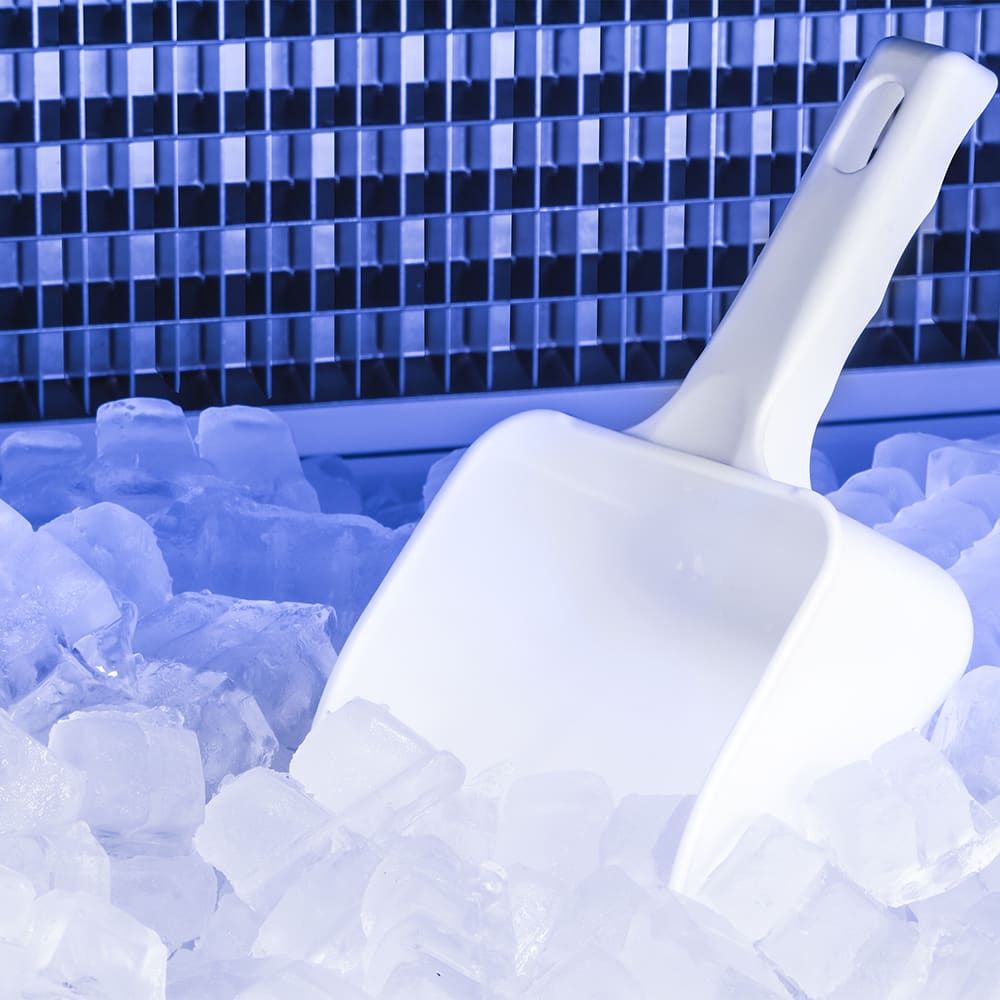

• Ice scoop and scoop holder included
• Stainless steel with black plastic accents

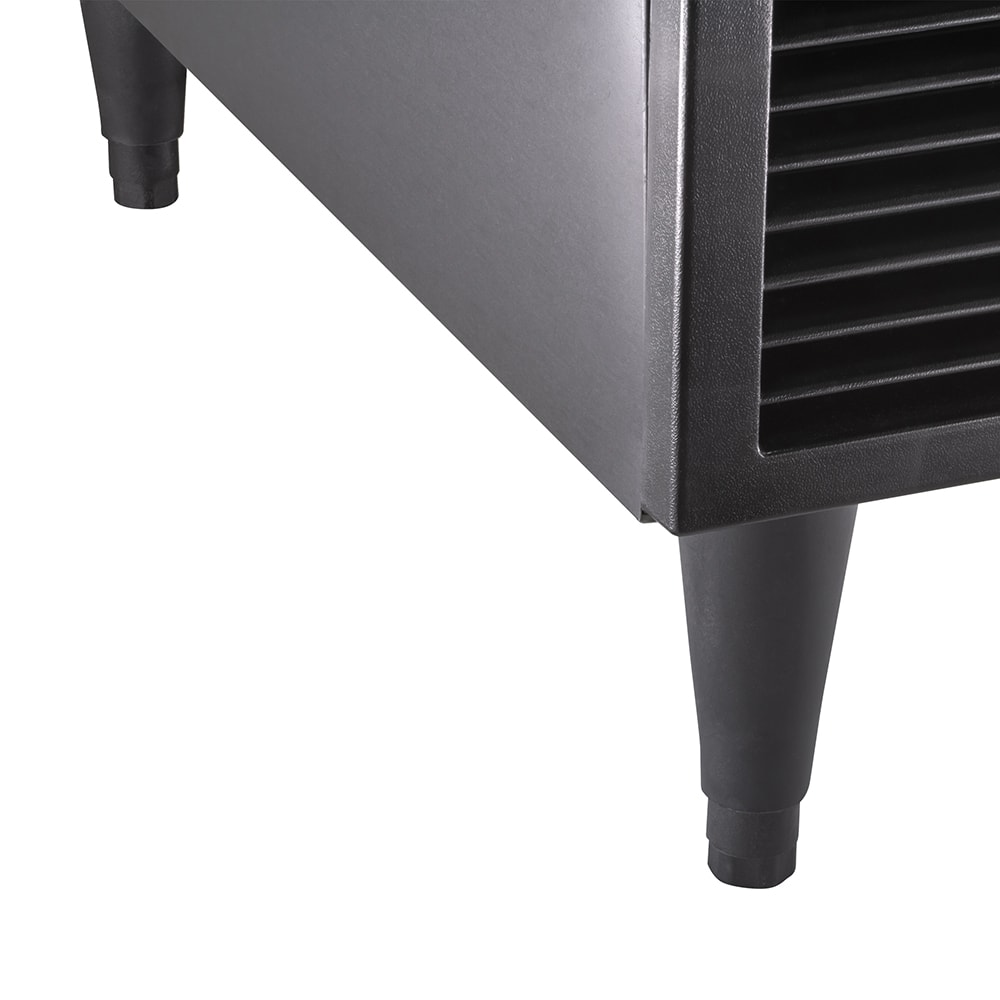

• 6-in. adjustable legs

Dimensions & Utilities

• 24 in. W x 24 in. D x 39 in. H
• 5.2 A (making), 6.4 (harvesting)
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Digital Undercounter Ice Maker With Bin, cube-style (half dice), air-cooled, self-contained condenser, approximately 152 lb. production/24 hours, 75 lb. built-in storage capacity, digital display & controls, automatic cleaning, overflow prevention, internal LED light, stainless steel exterior with black trim, 6" adjustable legs, R134a refrigerant, cULus Classified

*Image may not depict product color, inclusions or accessories.

1 Year Limited Warranty

MoTak KT-UIH-150 Specifications

Documents

Spec Sheet

Certifications
