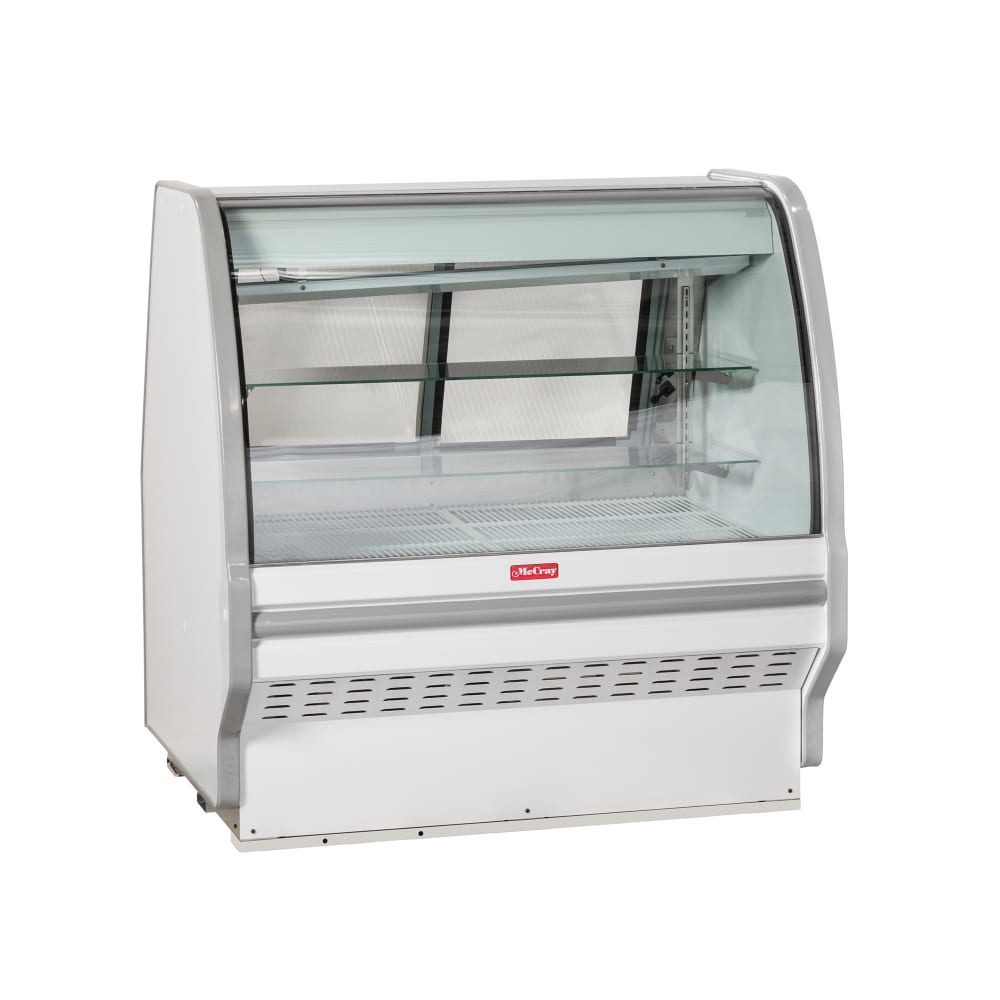

Howard-McCray 51 1/2" Full Service Bakery Case w/ Curved Glass - (3) Levels, 115v (R-CBS40E-4C-S-LED)

KaTom #: 367-RCBS40E4CSLED • MPN: R-CBS40E-4C-S-LED
  • 367-RCBS40E4CSLED Primary Thumbnail Image
  • 367-RCBS40E4CSLED Multiple Thumbnail Image #1
  • 367-RCBS40E4CSLED Multiple Thumbnail Image #2
  • 367-RCBS40E4CSLED Multiple Thumbnail Image #3
  • 367-RCBS40E4CSLED Multiple Thumbnail Image #4
Free Shipping Item

Retail Price: $30,825.00

$15,412.50 /Each

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove
 User Image
Ask a Foodservice Equipment Specialist

Howard-McCray R-CBS40E-4C-S-LED Description

The stainless steel interior and exterior of the Howard-McCray R-CBS40E-4C-S-LED refrigerated bakery display case offer durability and a clean, professional appearance for commercial foodservice environments. Measuring 51 1⁄2 inches wide, this single-duty model uses an extra-wide, double bend curved-glass front to display baked goods across three levels. Two rows of lit tempered-glass shelves sit above a corrosion-resistant epoxy-coated main deck. The 13 3⁄4-inch stainless steel top can be used for plating or merchandising, and the endless design permits this unit to line up with others in continuous installation.

The Howard-McCray R-CBS40E-4C-S-LED bakery case is equipped with a full-length gravity coil at the top of the cabinet for even cold air distribution. An air-insulated baffle helps prevent condensation from forming inside the case, and foamed-in-place CFC-free insulation helps maintain consistent internal temperatures. The rear doors are made of double-pane glass and slide open using the McGlide system for easy access. This model includes 1 1⁄2-inch removable end panels and a rear stainless steel panel with a brushed finish. A built-in drain supports cleaning, while both the front and rear grilles are removable for servicing. It is designed for remote refrigeration and comes with an R448A expansion valve; remote condensing units and hookups are not included.

  • 40E Series
  • 89-cu.-ft. display capacity
  • 1 section with 3 display levels
  • Full front access
  • 51 1⁄2-in. wide footprint
  • Double bend curved glass front
  • 2 rows of tempered-glass shelves
  • Epoxy-coated main deck
  • Stainless steel interior and exterior
  • 13 3⁄4-in. stainless steel top
  • Heavy gauge steel frame
  • Stainless steel mirror trim
  • McGlide double-pane sliding rear doors
  • Removable front and rear grilles
  • 1 1⁄2-in. removable end panels
  • 2-in. gray front bumper
  • Rear panel with stainless steel brushed finish
  • Drain included

  • Top-mounted gravity coil
  • Air-insulated baffle
  • Copevap system
  • R448A expansion valve included
  • Electronically controlled temperature regulation
  • Temperature holding range: 38-41 degrees F
  • Remote condensing units and hookups are not included

  • Overall dimensions: 51 1⁄2 in. W x 40 in. D x 53 in. H
  • 12 A, 1/4 HP
  • 115 V/60 Hz/1 ph
  • Hardwired

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

*Free shipping on Howard-McCray R-CBS40E-4C-S-LED within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Refrigerated Bakery Case, 51-1/2"W, single duty, endless design, double bend curved glass, full length top gravity coil system, (2) rows of lit glass shelving, stainless steel interior & exterior, stainless steel top, rear doors, removable end panels, designed for remote refrigeration, R448A expansion valve included, remote condensing units & other hook ups are not included, 115v, 0.8 amps, cULus, UL EPH Classified, UL-Sanitation

Warranty Icon
1-year Limited Parts & Labor
