Amerikooler QF080877**FBSM 8' x 8' Indoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

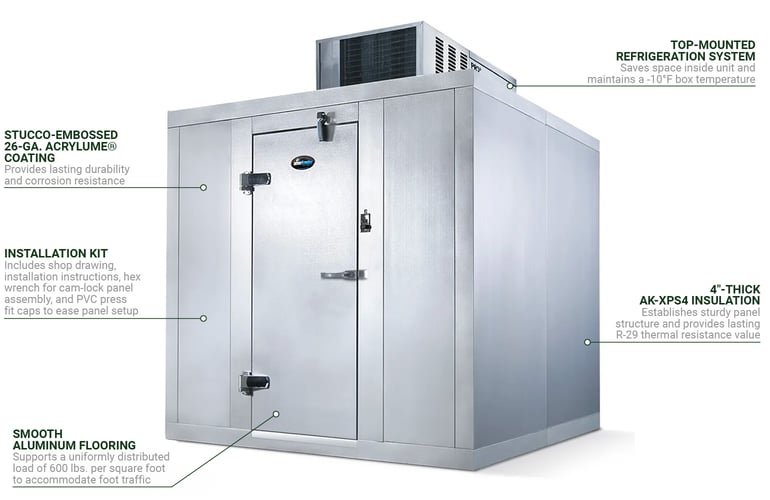

Designed for indoor placement, the Amerikooler QF080877**FBSM indoor walk-in freezer is a quick-ship unit measuring 7 feet 10¹⁄₈ inches wide by 7 feet 10 inches deep by 7 feet 7 inches tall. For simplified setup, it comes with modular tongue-and-groove floor, wall, and ceiling panels and a hardware and installation instruction kit with a shop drawing, detailed installation instructions, a hex wrench, and PVC press fit caps. The panels can be attached with the corrosion-resistant cam-action locking system, while the compression gaskets deliver an airtight seal to minimize temperature fluctuations. To retain generated temperatures and establish a rigid structure, each panel is built with 4-inch-thick, R-32-value AK-XPS4 water-resistant foam insulation. While the wall and ceiling panels are coated with stucco-embossed, corrosion-resistant Acrylume® coating, the floor panels are finished with a thin layer of smooth aluminum.

To hold frozen products at a safe temperature, this walk-in freezer ships with the Heatcraft Bohn PT0062LBNEMSA refrigeration system—a combination unit cooler and condensing unit. This PRO³-series unit features microchannel coil technology to minimize refrigerant and energy usage, and it operates with R-448A refrigerant to achieve a consistent box temperature of -10 degrees Fahrenheit. For efficiency, it features a two-speed evaporator fan motor and an electric defrost mechanism. This 55-inch-wide by 49¹⁄₂-inch-deep by 32²⁄₅-inch-tall unit is rated for 90-degree-Fahrenheit ambient temperatures and can be placed on top of the walk-in to conserve space inside the unit.

An LED light illuminates the Amerikooler QF080877**FBSM walk-in freezer's interior, while a digital thermometer provides an accurate readout so operators can quickly discern the box temperature. To regulate interior pressure as temperatures fluctuate when the door is opened, a heated pressure relief vent is built above the door jamb. Because the floor can support a uniformly distributed load of 600 pounds, it can withstand regular foot traffic, though dollies and carts shouldn't be used on this surface. Users can simply enter and exit the unit using the 76-inch-tall hinged self-closing door, and for smooth movement, it's fitted with super cam-rise spring-assisted hinges. Its three-sided magnetic gasket, door closer, and temperature-controlled heater wire minimize frost buildup and ensure a secure door closure. To deter theft and tampering during non-business hours, the deadbolt keyed handle latch can be locked. For user safety, a release mechanism is built inside the unit.

Product Details

• Quick-ship configuration designed for indoor use
• Includes hardware and installation instruction kit featuring shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
• Modular, tongue-and-groove wall, ceiling, and floor panels
• Corrosion-resistant cam-action locking system with compression gaskets for airtight seal
• 4-in.-thick AK-XPS4 rigid foam insulation with R-32 thermal resistance value is built into panels
• Wall and ceiling panels laminated with stucco-embossed, corrosion-resistant 26-ga. Acrylume coating
• Smooth aluminum floor finish
• Floor can accommodate a uniformly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Inside safety release mechanism
• LED light above door jamb
• Safety pilot light switch
• Digital thermometer with LED temperature readout
• Heated pressure relief vent above door jamb
• Temperature-controlled heater wire built into door
• Conduit between switch box and outlet junction box

Refrigeration System

• Heatcraft Bohn PT0062LBNEMSA top-mounted refrigeration unit
• Produces and maintains temperature of -10 degrees F
• Maximum ambient temperature: 90 degrees F
• R-448A refrigerant
• 2-speed electronically commutated evaporator fan motor
• Electric defrost
• Microchannel coil technology
• Ships fully assembled, evacuated, charged, run tested, and wired

Dimensions & Utilities

• Refrigeration unit: 55 in. W x 49¹⁄₂ in. D x 32²⁄₅ in. H
• Walk-in freezer: 7 ft. 10¹⁄₈ in. W x 7 ft. 10 in. D x 7 ft. 7 in. H
• 16.48 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Amerikooler QF080877**FBSM within the 48 contiguous states.

From The Manufacturer

Quick Ship Indoor Walk-In Freezer, 7'-10" W x 7'-10 1/8" L x 7'-7" H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, self-contained, indoor refrigeration, PT0062LBNEMSA, sized at 90°F ambient temperature, ships in 48 hours - subject to terms & conditions, UL, Made in USA (Note: Customers ordering this unit for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal
