Amerikooler QC101077**FBRC 10' x 10' Indoor Walk-In Cooler w/ Remote Compressor - Floor
Amerikooler QC101077**FBRC Description

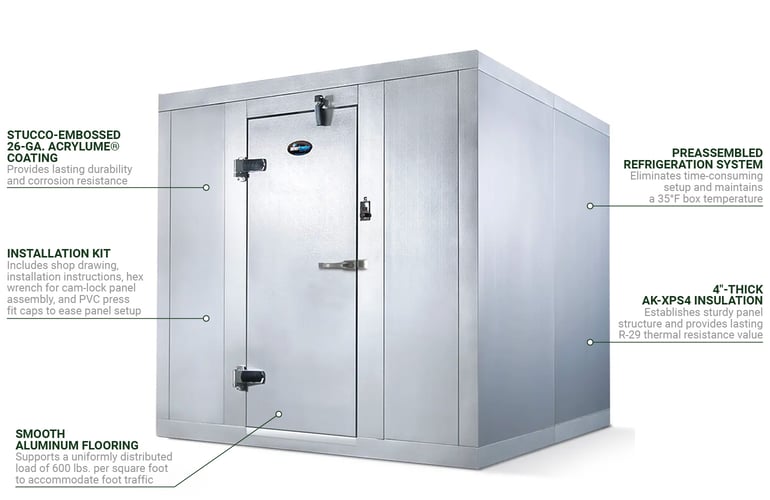

Great for establishments that don't require customized storage spaces, the Amerikooler QC101077**FBRC indoor walk-in cooler is a quick-ship unit, meaning it's designed to pre-engineered dimensions. When fully assembled, it measures 9 feet 9 1⁄4 inches wide by 9 feet 9 3⁄4 inches deep by 7 feet 7 inches tall. This kit ships with a hardware and installation kit including a shop drawing, detailed installation instructions, hex wrench for camlock panel assembly, and PVC press fit caps to ease setup. Its modular wall, ceiling, and floor panels measure 4 inches thick and are made of AK-XPS4 rigid foam providing an R-29 thermal resistance value in 55-degree-Fahrenheit mean temperatures. Operators can secure the panels together with the cam-action locking system, and its compression gaskets create airtight joints. For corrosion-resistant durability, the wall and ceiling panel exteriors and interiors are laminated with stucco-embossed Acrylume®.
Because it's built with two heavy-duty super cam-rise spring-assisted hinges and a door closer, the 76-inch-tall door opens and closes smoothly. For a secure seal that deters pests and minimizes temperature fluctuations, it's built with a three-sided magnetic gasket and flexible double wiper. An LED light above the door jamb highlights the storage area, and staff can simply turn this light on and off with the corresponding pilot switch. The digital LED thermometer provides an accurate, easy-to-read display of interior temperature, and to accommodate foot traffic, the floor panels feature an aluminum finish that can accommodate an evenly distributed load of 600 pounds per square foot. A 1⁄2-inch-radius cove lines the walk-in's perimeter to ease cleaning. Operators can lock the deadbolt keyed handle latch to deter tampering and theft during non-business hours, and to reduce the chance of staff becoming locked inside, the door is built with an inside safety release mechanism.
To hold vegetables, dairy products, meats, and other perishable items at 35 degrees Fahrenheit, the Amerikooler QC101077**FBRC walk-in cooler is equipped with a Heatcraft Bohn BCH0008MBACZA0000-BEL0095AS6AMAB0400 remote condenser with an electronically commutated (EC) motor. This unit should be installed in areas no warmer than 95 degrees Fahrenheit to promote efficiency, and to prolong its service life, it's made of corrosion-resistant painted steel. For reduced refrigerant and energy usage, it's built with microchannel coils.
- Indoor unit
- Modular wall, ceiling, and floor panels made of 4-in.-thick AK-XPS4 rigid foam insulation
- R-29 thermal resistance value at 55-degree-F mean temperature
- Panels can be connected with corrosion-resistant cam-action locking system and compression gaskets
- Interior and exterior wall and ceiling panels finished with stucco-embossed, corrosion-resistant 26-ga. Acrylume zinc aluminum
- Floor panels finished with aluminum
- Floor can accommodate an evenly distributed load of 600 lbs. per square foot
- 30-in.-wide x 76-in.-tall swing-type, flush-mount entrance door
- Door features 2 adjustable spring-assisted hinges, deadbolt key/padlock handle with safety inside release, magnetic gasket, door closer, and double-sweep swiper
- Door jamb with center-mounted LED light, digital thermometer, safety pilot light switch, and conduit between switch box and outlet junction box
- Includes hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
- Includes Heatcraft Bohn BCH0008MBACZA0000-BEL0095AS6AMAB0400 remote condensing unit and EC motor
- Maximum ambient temperature: 95 degrees F
- Produces 35-degree-F interior temperature
- R-404A refrigerant
- Microchannel coil technology
- Head pressure control valve
- Crankcase heater
- Adjustable low-pressure control and fixed high-pressure control
- Sealed liquid-line drier
- Liquid-line sight glass
- Liquid-line and section-line base valves
- Corrosion-resistant painted steel construction with heavy-duty steel base
- Removable, hinged E-box door with captive fasteners
- Ships prewired and preassembled to ease setup
- Refrigeration system: 24 63⁄100 in. W x 28 1⁄4 in. D x 19 3⁄4 in. H
- Walk-in cooler: 9 ft. 9 1⁄4 in. W x 9 ft. 9 3⁄4 in. D x 7 ft. 7 in. H
- 35 A, 3⁄4 HP
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Amerikooler QC101077**FBRC within the 48 contiguous states.
From The Manufacturer
Amerikooler QC101077**FBRC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Amerikooler |
| Base | Floor |
| Compressor Location | Remote |
| Height (ft) | 7.58 |
| Hertz | 60 |
| Length (ft) | 9.77 |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Refrigerant | R448A |
| Type | Indoor |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal |
| Width (ft) | 9.81 |
| Weight | 1950.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The overall dimensions are 9 ft. 9 3⁄4 in. W x 9 ft. 9 1⁄4 in. L x 7 ft. 7 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
It includes a refrigeration system.
It uses outdoor remote refrigeration.
It is designed to maintain 35°F.
It requires 208-230V/60 Hz/1 ph.
It uses R404A refrigerant.
It uses 4-in. thick AK-XPS4 insulation AK-XPS4 insulation, rated R-29 for coolers and R-32 for freezers.
Yes, the door is self-closing.
Staff can monitor the interior temperature with the digital LED thermometer.
Yes, it includes LED interior lighting.
Yes, the door has a keyed lock.
Yes, the door includes an interior safety release.
The refrigeration system is sized for 95°F ambient temperature.
It uses 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume panels on the interior and exterior.
It includes a 3⁄4 HP compressor.
