Amerikooler QC081077**FBSC-O 8' x 10' Outdoor Walk-In Cooler w/ Top-Mounted Compressor - Floor
Amerikooler QC081077**FBSC-O Description

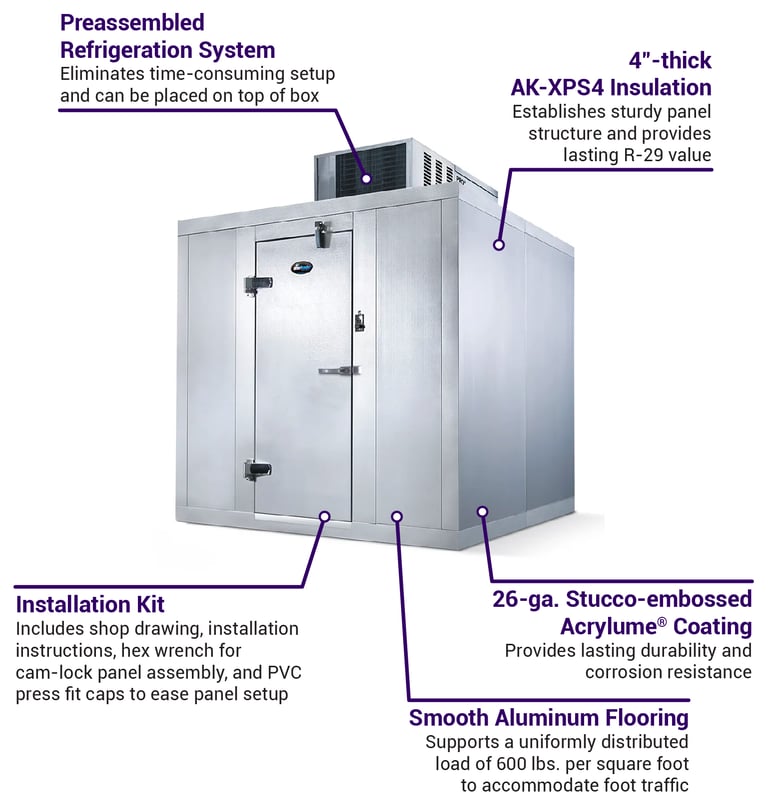

The Amerikooler QC081077**FBSC-O outdoor walk-in cooler measures 7 feet 10 inches wide by 9 feet 9 1⁄4 inches deep by 7 feet 7 inches tall and ships disassembled. To ease setup, it comes with an installation kit that includes a shop drawing, detailed installation instruction, hex wrench, and PVC press fit caps. This quick-ship unit is comprised of tongue-and-groove panels featuring a corrosion-resistant cam-action locking system and a compression gasket to create a rigid structure when attached. Each panel is made of 4-inch-thick AK-XPS4 rigid foam insulation that resists water damage, maintains an R-29 thermal resistance over time, and is permanently bonded to the primed metal surface to create a rigid structure. For lasting durability and corrosion resistance, the wall and ceiling panel interiors and exterior are laminated with 26-gauge Acrylume®—zinc-aluminum coated steel—coated with an acrylic paint.
The swing-type entrance door grants access to the unit's interior, and to ensure it's fully closed, it features a three-sided magnetic gasket and double wiper along the bottom edge. Its heavy pull handle features an inside safety release mechanism that ensures staff members can open the door from the inside. The door jamb is equipped with an LED light that brightens the interior and a digital LED thermometer that provides a large temperature readout. Smooth aluminum floor panels measuring 1⁄20 of an inch thick accommodate an evenly distributed load of 600 pounds per square foot—ideal for foot traffic. To ease cleaning, a 1⁄2-inch radius cove lines the floor's perimeter.
The Amerikooler QC081077**FBSC-O walk-in cooler accommodates the Heatcraft Bohn PT0078MBTAMSA PRO3 packaged top-mount refrigeration system. This 58-inch-wide by 39-inch-deep by 37 3⁄4-inch-tall unit can be installed on top of the cooler so it won't take up storage space inside the unit. To ease setup, it ships fully assembled, evacuated, charged, run-tested, and wired. Able to operate in ambient temperatures as hot as 90 degrees Fahrenheit, it can generate and maintain a 35-degree-Fahrenheit interior using R-448A refrigerant.
- For outdoor use
- Includes hardware and installation instruction kit to expedite setup
- Wall, ceiling, and floor panels made up of 4-in.-thick closed-cell, water-resistant AK-XPS4 rigid foam
- Insulation provides R-29 thermal resistance
- Corrosion-resistant cam-action locking system
- Compression gasket creates airtight joints
- 26-ga. stucco-embossed, corrosion-resistant Acrylume finish on interior and exterior ceiling and wall panels
- Smooth, 1⁄20-in.-thick aluminum floor can support an evenly distributed load of 600 lbs. per square foot
- 76-in.-tall self-closing entrance door
- 2 heavy-duty super cam-rise spring-assisted door hinges
- 3-sided magnetic gasket, door closer, and double wiper ensure secure close
- Heavy pull handle includes key lock and inside safety release
- Center-mounted LED light fixture on door jamb
- Digital LED thermometer with safety pilot light on/off switch
- Conduit between switch box and outlet junction box
- Includes rain roof package
- Requires assembly
- Includes Heatcraft Bohn PT0078MBTAMSA top-mounted refrigeration system
- Ships packaged, fully assembled, evacuated, charged, run-tested, and wired
- For installation on top of cooler
- Self-contained
- R-448A refrigerant
- Can maintain 35-degree-F interior temperature
- Can operate in temperatures as hot as 90 degrees F
- Air defrost system
- Refrigeration system: 58 in. W x 39 in. D x 37 3⁄4 in. H
- Walk-in cooler: 7 ft. 10 in. W x 9 ft. 9 1⁄4 in. D x 7 ft. 7 in. H
- 8.24 A
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Amerikooler QC081077**FBSC-O within the 48 contiguous states.
From The Manufacturer
Amerikooler QC081077**FBSC-O Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Amerikooler |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hertz | 60 |
| Length (ft) | 9.77 |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Refrigerant | R448A |
| Type | Outdoor |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal |
| Width (ft) | 7.83 |
| Weight | 1864.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The 4-in.-thick AK-XPS4 insulation provides R-29 thermal resistance.
Yes. The magnetic gasket and double wiper create a tight seal.
The refrigeration system maintains a 35°F interior temperature.
Yes. The package includes a rain roof system for outdoor installation.
Its keyed handle includes an inside safety release mechanism.
Yes. The digital LED thermometer displays cabinet temperatures.
This aluminum floor supports 600 lbs. per sq. ft. uniformly distributed load.
Yes. The top-mounted system keeps refrigeration components outside the cabinet.
An LED light fixture brightens the interior storage area.
