Amerikooler QC081077**FBSC 8' x 10' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor
Amerikooler QC081077**FBSC Description

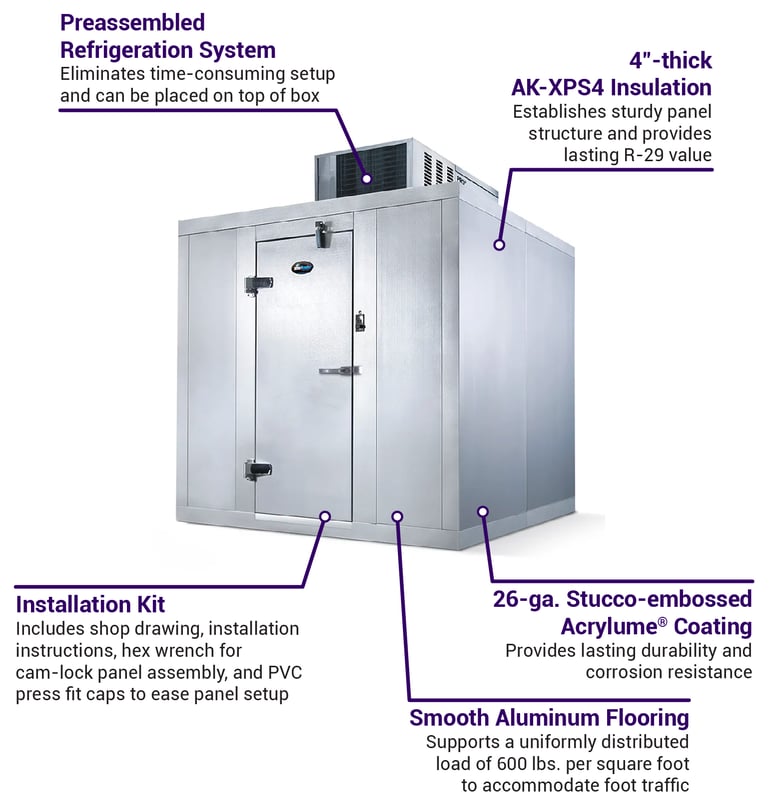

The Amerikooler QC081077**FBSC quick-ship indoor walk-in cooler measures 7 feet 10 inches wide by 9 feet 9 1⁄4 inches deep by 7 feet 7 inches high and can establish a dedicated refrigerated area in grocery stores, restaurants, medical facilities, and other high-traffic businesses for convenience. To maintain a 35-degree-Fahrenheit interior, it uses the included Heatcraft PT0078MBNAMSA PRO3 packaged top-mount refrigeration system. This 55-inch-wide by 36-inch-deep by 32 2⁄5-inch-tall unit can be installed on top of the cooler, and to ease setup, it ships fully assembled, charged, and wired. To prevent overexertion, it shouldn't be used in ambient temperatures hotter than 90 degrees Fahrenheit.
Although this unit requires assembly, its tongue-and-groove wall, ceiling, and floor panels feature a cam-action locking system and compression gaskets to create rigid, airtight joints. For additional assistance, it comes with hardware and an installation instruction kit. These panels are comprised of 4-inch-thick AK-XPS4 rigid foam that resist water to maintain its R-29 value over time. The wall and ceiling panel interiors and exteriors are laminated with stucco-embossed, corrosion-resistant Acrylume® for lasting durability. The floor panels are made of smooth aluminum and can accommodate a uniformly distributed load of 600 pounds per square foot—suitable for general foot traffic.
For quick access to the Amerikooler QC081077**FBSC walk-in cooler's interior, its 76-inch-tall entrance door opens smoothly with its heavy-duty super cam-rise spring-assisted hinges, and its heavy pull handle's key lock can simply be unlocked. To ensure it fully closes, it features a door closer, three-sided magnetic gasket, and a flexible double wiper along its bottom edge. Staff can exit the unit by opening the door from the inside using the handle's inside safety release mechanism, ensuring nobody can be trapped inside. The door jamb's LED light illuminates the cooler, while it digital LED thermometer provides a readout of the interior's temperature so operators can monitor fluctuations.
- Indoor model
- Includes a hardware and installation instruction kit for quick setup
- Wall, ceiling, and floor panels made of 4-in.-thick AK-XPS4 rigid foam
- Insulation provides R-29 thermal resistance value
- Corrosion-resistant cam-action locking system
- Compression gasket creates airtight joints
- 26-ga. stucco-embossed, corrosion-resistant Acrylume laminate
- Smooth aluminum floor can support 600 lbs. of evenly distributed weight per square foot
- 76-in.-tall entrance door
- 2 heavy-duty super cam-rise spring-assisted door hinges
- 3-sided magnetic gasket, door closer, and double wiper
- Heavy pull handle with key lock and inside safety release
- Door jamb built with center-mounted LED light
- Digital LED thermometer with safety pilot light on/off switch
- Conduit between switch box and outlet junction box
- Requires assembly
- Includes Heatcraft PT0078MBNAMSA top-mounted, self-contained refrigeration system
- Combines unit cooler and condensing unit
- Ships packaged, fully assembled, evacuated, charged, run-tested, and wired
- Designed for installation on top of cooler
- R-448A refrigerant
- Can maintain 35-degree-F interior temperature
- Maximum ambient temperature: 90 degrees F
- Air defrost system
- Refrigeration system: 55 in. W x 36 in. D x 32 2⁄5 in. H
- Walk-in cooler: 7 ft. 10 in. W x 9 ft. 9 1⁄4 in. D x 7 ft. 7 in. H
- 8.24 A
- 208-230 V/60 Hz/1 ph, includes NEMA 6-15R plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Amerikooler QC081077**FBSC within the 48 contiguous states.
From The Manufacturer
Amerikooler QC081077**FBSC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Amerikooler |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hertz | 60 |
| Length (ft) | 9.77 |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Refrigerant | R448A |
| Type | Indoor |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor; 5-year Door & Floor; 15-year Panel; 50-year Thermal |
| Width (ft) | 7.83 |
| Weight | 1759.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The overall dimensions are 7 ft. 10 in. W x 9 ft. 9 1⁄4 in. L x 7 ft. 7 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
It includes a refrigeration system.
It uses self-contained, top-mounted refrigeration.
It is designed to maintain 35°F.
It requires 208-230V/60 Hz/1 ph, includes NEMA 6-15R.
It uses R448A refrigerant.
It uses 4-in. thick AK-XPS4 insulation AK-XPS4 insulation, rated R-29 for coolers and R-32 for freezers.
Yes, the door is self-closing.
Staff can monitor the interior temperature with the digital LED thermometer.
Yes, it includes LED interior lighting.
The floor supports 600 lb.
Yes, the door has a keyed lock.
Yes, the door includes an interior safety release.
The refrigeration system is sized for 90°F ambient temperature.
It uses 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume panels on the interior and exterior.
It uses air defrost system.
