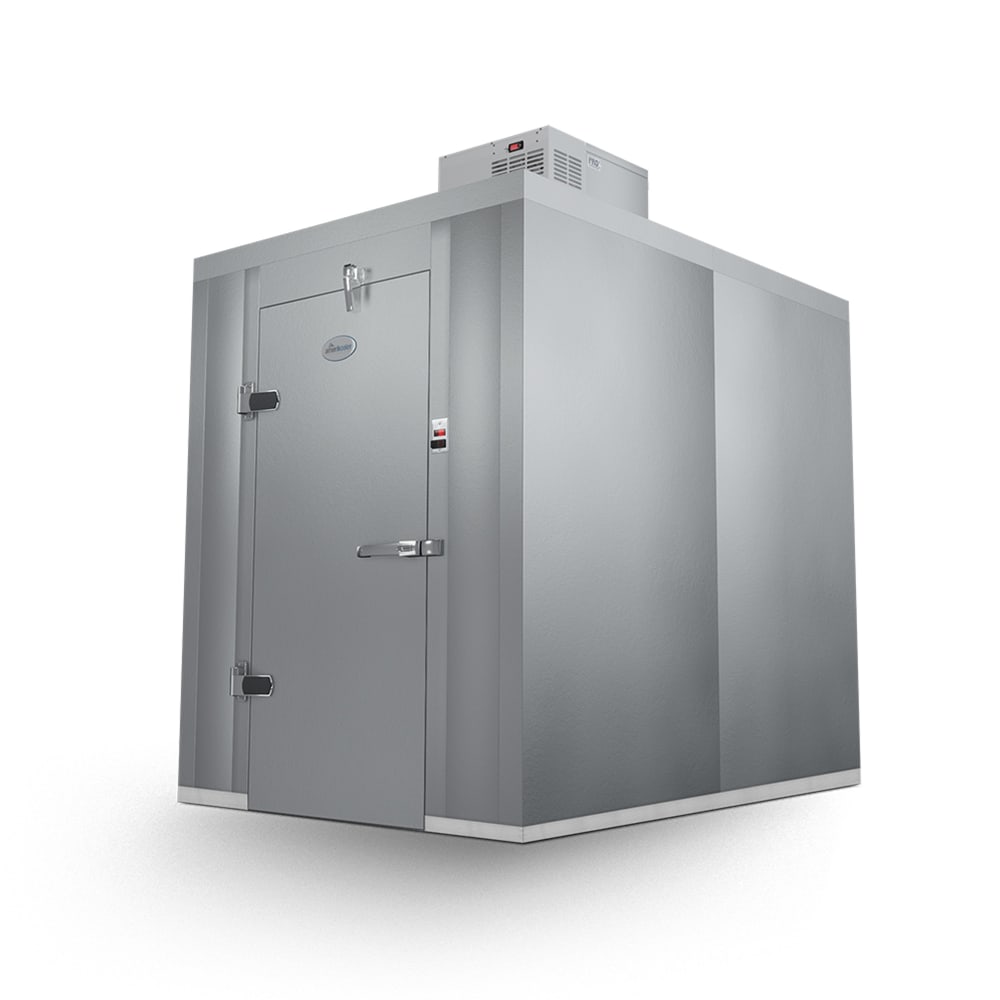

Amerikooler QC060872**NBSC 6' x 8' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$10,387.05 /Each
Amerikooler QC060872**NBSC Description
The Amerikooler QC060872**NBSC indoor walk-in cooler is a quick-ship unit measuring 5 feet 10 5⁄8 inches wide by 7 feet 9 1⁄4 inches deep by 7 feet 2 1⁄4 inches tall. Although it ships unassembled, it can be installed quickly using the included hardware and installation instruction kit. Staff can connect the panels' cam-action locking system to compression gaskets to create an airtight joint. To conserve energy and maintain generated temperatures, each panel is insulated with 4-inch-thick closed-cell, water-resistant AK-XPS4 rigid foam, which is permanently bonded to the interior and exterior metal skin. All interior and exterior surfaces are laminated with a 26-gauge, stucco-embossed, corrosion-resistant Acrylume® protective coating.
This walk-in cooler is built with a 76-inch-tall swing-type entrance door that's flush with the rest of the unit for a seamless appearance. For smooth opening and secure closing, it features two adjustable spring-assisted hinges, a magnetic gasket, a door closer, and a double-sweep wiper at the bottom edge. To prevent users from locking themselves inside the unit, it features a deadbolt keyed padlock handle latch with an inside release. The door jamb is fitted with a center-mounted LED light fixture, digital thermometer, pilot light switch, and a conduit between the switch box and outlet junction box. Because this unit is floorless, it comes with vinyl screed that can be lag fastened to a finished tile or concrete floor.
To ensure meat, vegetables, dairy products, beverages, and other perishables are stored in safe temperatures, the Amerikooler QC060872**NBSC indoor features a Heatcraft Bohn PT0068MBNAMSA refrigeration system with a self-contained, top-mounted condenser, and to expedite installation, this condenser ships fully assembled and wired. It operates with R-448A to maintain a 35-degree-Fahrenheit box temperature and is designed to be operated in a maximum ambient temperature of 90 degrees Fahrenheit.
- For indoor placement
- Modular wall and ceiling panels feature corrosion-resistant cam-action locking system and compression gasket
- Interior and exterior panels finished with 26-ga. stucco-embossed, corrosion-resistant Acrylume
- 4-in.-thick AK-XPS4 rigid foam insulation permanently bonded to interior and exterior metal skin
- Insulation provides R-29 value at 55-degree-F mean temperature
- Floor not included (comes with vinyl screed)
- 76-in.-tall swing-type entrance door
- Door features 2 adjustable spring-assisted hinges, deadbolt key/padlock handle with safety inside release, magnetic gasket, door closer, and double-sweep swiper at door's base
- Door jamb includes center-mounted LED light, digital thermometer, safety pilot light switch, and conduit between switch box and outlet junction box
- Assembly required
- Features the Heatcraft Bohn PT0068MBNAMSA PRO3 top-mounted refrigeration system
- Self-contained
- Air defrost
- Ships packaged, fully assembled, and wired
- For placement on top of walk-in box
- Maximum ambient temperature: 90 degrees F
- Can generate and maintain 35 degrees F inside cooler
- R-448A refrigerant
- Refrigeration system: 55 in. W x 36 in. D x 32 2⁄5 in. H
- Walk-in cooler: 5 ft. 10 5⁄10 in. W x 7 ft. 9 1⁄4 in. D x 7 ft. 2 1⁄4 in. H
- 7.98 A
- 208-230 V/60 Hz/1 ph, NEMA 6-15R plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Amerikooler QC060872**NBSC within the 48 contiguous states.
From The Manufacturer
Amerikooler QC060872**NBSC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Amerikooler |
| Base | No Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.19 |
| Hertz | 60 |
| Length (ft) | 7.77 |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Refrigerant | R448A |
| Type | Indoor |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor; 5-year Door; 15-year Panel; 50-year Thermal |
| Width (ft) | 5.89 |
| Weight | 1301.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The overall dimensions are 5 ft. 10 5⁄8 in. W x 7 ft. 9 1⁄4 in. L x 7 ft. 2 1⁄4 in. H.
It is designed for indoor installation.
No, it has a floorless design.
It includes a refrigeration system.
It uses self-contained, top-mounted refrigeration.
It is designed to maintain 35 °F.
It requires 208-230V/60 Hz/1 ph, NEMA 6-15R.
It uses R448A refrigerant.
It uses 4-in. thick AK-XPS4 insulation AK-XPS4 insulation, rated R-29 for coolers and R-32 for freezers.
Yes, the door is self-closing.
Staff can monitor the interior temperature with the digital LED thermometer.
Yes, it includes LED interior lighting.
Yes, the door has a keyed lock.
The refrigeration system is sized for 90°F ambient temperature.
It uses 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume panels on the interior and exterior.
Yes, it includes an NSF vinyl screed as its base treatment.
It uses air defrost.
