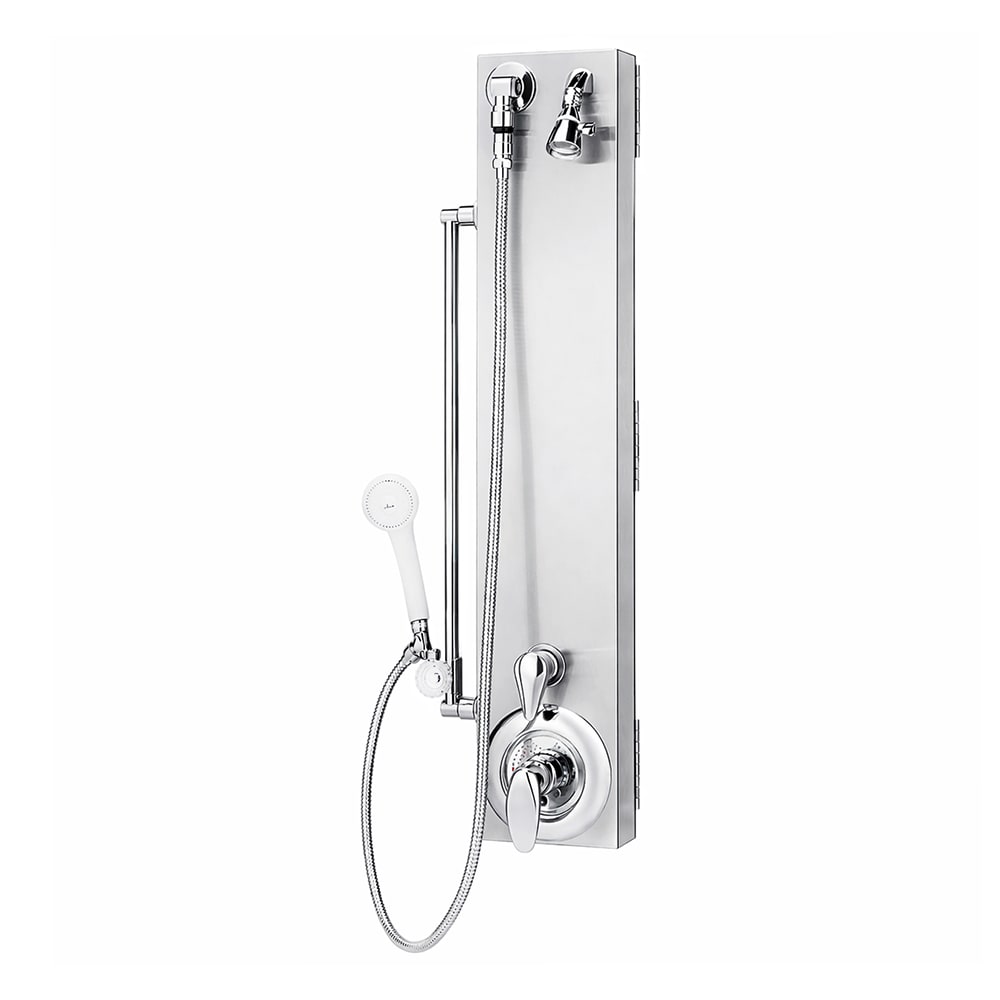

Bradley S23-1061 Commercial Fixed/Handheld Shower Head - Chrome
Typically ships in 3 - 4 weeks
$1,827.00 /Each
Login or add to cart for more information!
Bradley S23-1061 Description
The Bradley S23-1061 commercial shower head combines fixed and handheld spray functions in a pre-fabricated surface-mounted assembly designed for barrier-free shower applications. Constructed of 18-gauge type 304 stainless steel, the unit incorporates a pivoting hinge mounting system that simplifies installation and maintenance access. A chrome-plated brass showerhead with a T-handle adjustable spray pattern delivers up to 1 1⁄2 GPM, while a lever-operated diverter valve transfers water flow between the fixed showerhead and the handheld spray assembly. The handheld unit includes an on-off control, elevated in-line vacuum breaker, quick disconnect fitting, wall hooks, and a 60-inch stainless steel flexible hose for extended reach during operation.
Built with flexible stainless steel braided supply connections, the Bradley S23-1061 shower head includes a single-handle ceramic disc pressure-balancing valve for hot and cold water control in commercial washroom environments. Its stainless steel barrel hinge mounting assembly enables the shower panel to pivot outward for service access, while riveted top and bottom covers support long-term durability. Supply inlets can be accessed through the rear of the panel or through knockouts in the top and bottom covers to simplify installation flexibility.
- Surface-mounted pivoting wall shower assembly
- Fixed and handheld shower configuration
- 18-gauge type 304 stainless steel shower panel
- Chrome-plated brass showerhead
- T-handle adjustable spray pattern control
- Diverter valve transfers water between fixed and handheld shower outlets
- Hand shower with on-off control
- 60-in. stainless steel flexible hose
- Elevated in-line vacuum breaker
- Quick disconnect fitting and wall hooks included
- Single-handle hot and cold ceramic disc pressure-balancing valve
- Flexible 1⁄2-in. stainless steel braided hose supply connections
- Stainless steel barrel hinge mounting system
- Preassembled construction for wall mounting
- 1 1⁄2-GPM maximum flow rate
- Overall dimensions: 3 1⁄8 in. W x 6 3⁄4 in. D x 37 5⁄8 in. H
- Type 300 series stainless steel shower panel
- Riveted top and bottom covers
- Satin-finish stainless steel exposed surfaces
- Supply connections accessible through rear or panel knockouts
- Wall-mounted hinge system simplifies servicing access
- Post-style mounting bracket secures handheld shower assembly
*Image may not depict product color, inclusions or accessories.
*Bradley S23-1061 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Pre-Fabricated Surface Mounted Pivoting Wall Shower, with hinge mounting system, shower constructed from 18 gauge type 304 stainless steel, 1/2in, flexible stainless steel braided hose supply connections, accommodates 1 users at a time, durable, single handle, hot and cold, ceramic disc pressure balancing valve, asse, cupc certified, chrome plated brass showerhead with t-handle adjustable spray pattern, hand shower with 60in. hose, in-line vacuum breaker, quick disconnect and wall hooks, 2.5 gpm max flow rate , diverter valve to transfer water from fixed showerhead to hand shower, fixture complies with ADA standards for reach and accessibility
Bradley S23-1061 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Bradley |
| Color | Silver |
| Finish | Chrome |
| Flow Rate | 1.5 GPM |
| Height (in) | 37.63 |
| Length (in) | 6.75 |
| Product | Shower Heads |
| Product Type | Bathroom Supplies |
| Type | Fixed/Handheld |
| Warranty | 1-year Limited Repair or Replacement |
| Width (in) | 3.13 |
| Weight | 21.00 |
