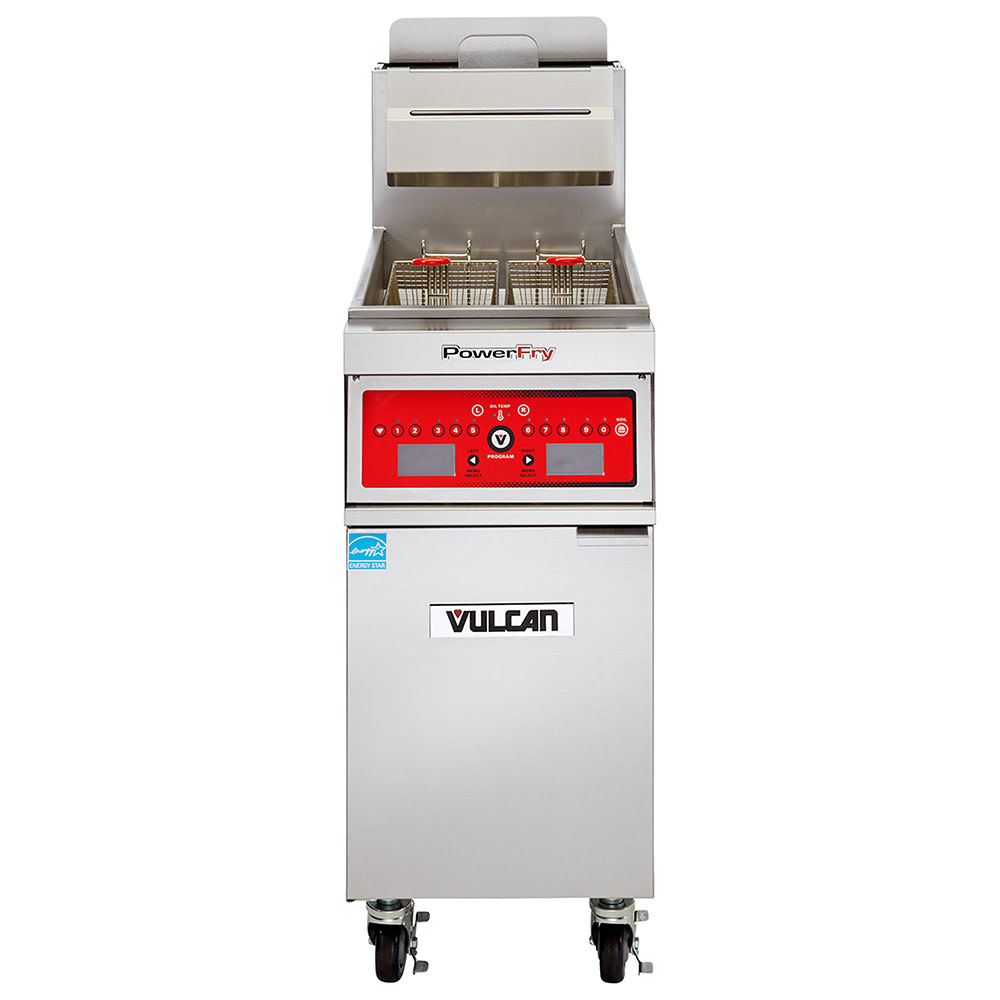

Vulcan VFRY18 Gas Fryer - (1) 50 lb Vat, Floor Model, Liquid Propane

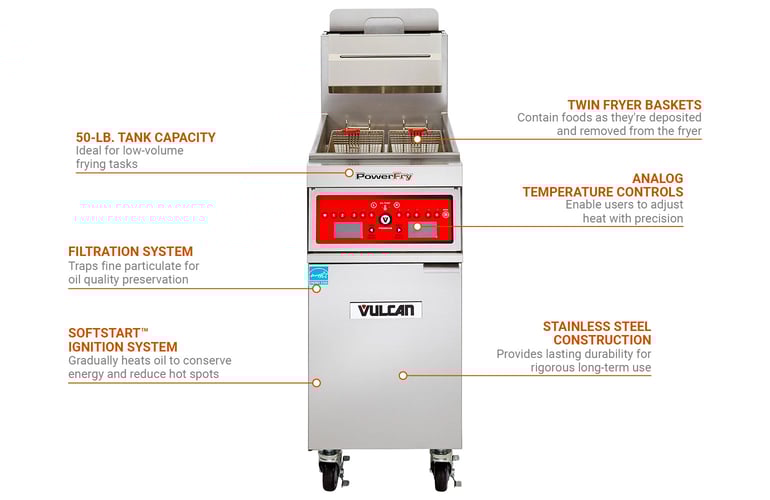

For small kitchens with few frying requirements, the Vulcan VFRY18 V-Series fryer measures 18 inches wide by 40 inches deep by 48³/₈ inches high and has one fry tank with a 50-pound oil capacity. Its front, front top ledge, sides, tank, base, and stub back are constructed of stainless steel for durability and rust resistance, and to elevate its base from the floor, it's mounted on 6-inch legs. So users can access the vat comfortably, it has a 36-inch working height. Users can transport product to and from the frying compound using the twin set of fry baskets, which have plastic-coated handles to ease carrying and reduce burn risk.

To provide even heating while conserving energy, the Vulcan VFRY18 LP gas fryer operates with a ThreePass™ heat transfer system. Its electronic, SoftStart™ ignition heats oil gradually at startup while reducing BTU usage. Operators can adjust heat output with the solid-state analog control knob6 located inside the cabinet, and to prevent overheating, this system has a hi-limit shutoff feature that disables the unit when temperatures reach 465 degrees Fahrenheit. For efficient cleaning after service, the unit is equipped with a Boil Out Bypass™ setting and a 1¹⁄₄-inch port ball-type drain valve. Before beginning the draining process, users should engage the drain valve interlock switch to disconnect the gas channel from the burner.

Product Details

• Part of the V Series
• 45-50-lb. capacity
• Single fry tank
• Stainless steel front, front top ledge, sides, fry tank, base, and stub back
• Twin fry baskets have plastic-coated handles to minimize burn risk
• 36-in. working height
• Solid-state analog control knob accessed through cabinet door
• Electronic ignition
• SoftStart technology reduces BTU output for energy conservation
• Hi-limit shutoff system
• ThreePass heat transfer system yields 60.9 percent cooking and 72 percent thermal efficiency
• Drain valve interlock switch
• 1¹⁄₄-in. port ball-type drain valve
• Boil Out Bypass streamlines boil-out solution removal
• 6-in. legs
• 70,000 BTU per hour

Dimensions and Utilities

• 18 in. W x 40 in. D x 48³⁄₈ in. H
• 120V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• ³⁄₄-in. rear gas connection
• 1¹⁄₄-in.-dia. front gas manifold

Product Features

*Free shipping on Vulcan VFRY18 within the 48 contiguous states.

From The Manufacturer

V Series Heavy Duty Range Match Fryer, gas, 18", 45-50 lb. fat capacity, electronic ignition, 3/4" regulator, stainless steel exterior finish, 6" adjustable legs, 70,000 BTU, CSA, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan VFRY18 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
