Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

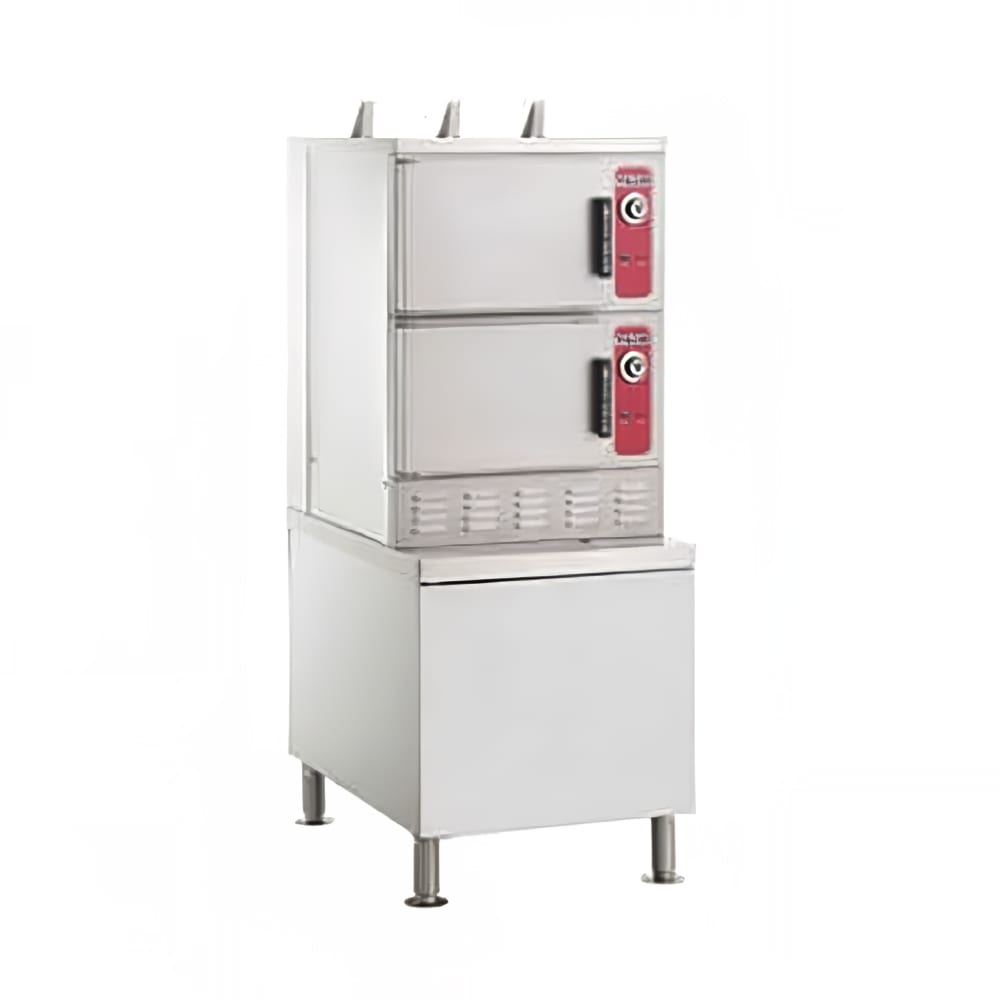

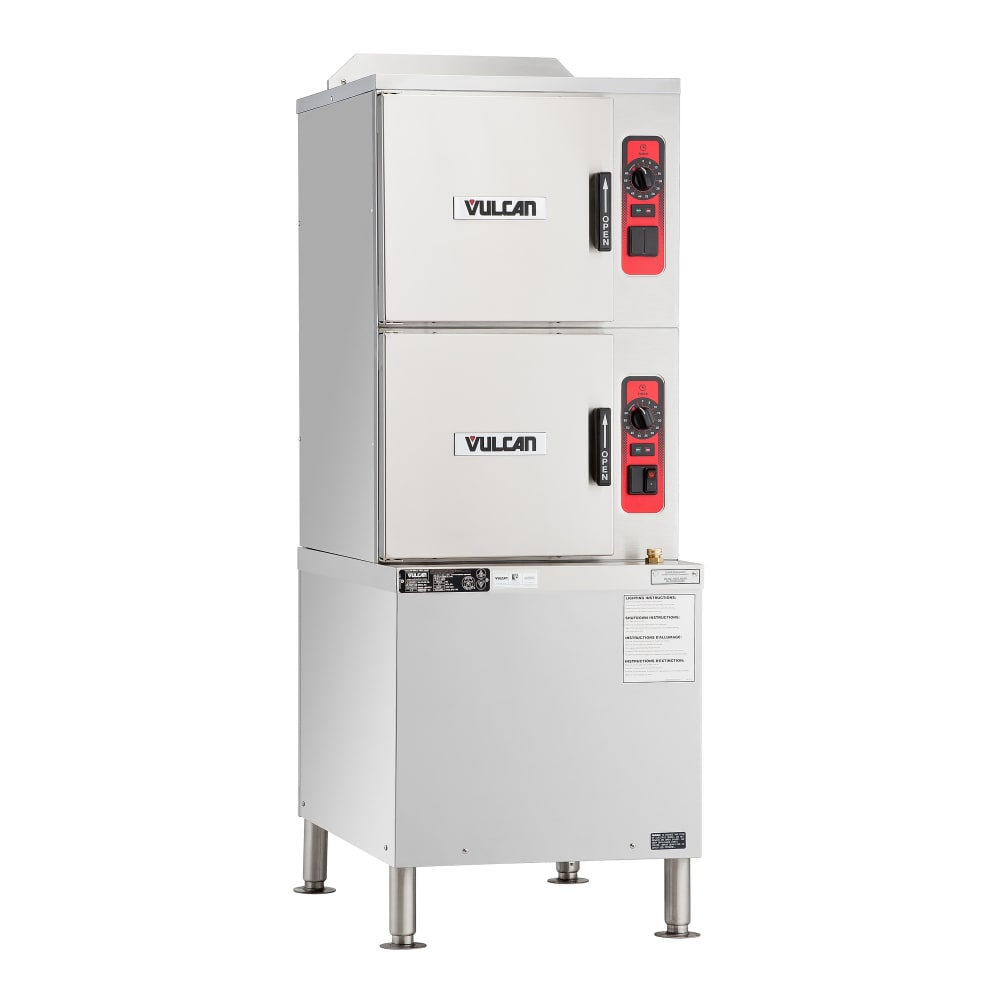

Vulcan C24GA6 (6) Pan Convection Steamer - Cabinet, Liquid Propane
Typically ships in 4 - 8 Business Days
Free Shipping Item
Retail Price: $62,095.00
$25,561.00 /Each
Selected Gas Type: Liquid Propane
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan C24GA6 Description
The Vulcan C24GA6 floor model steamer has two compartments stacked on top of a water-resistant, enclosed cabinet base. The compartments and base are made of durable stainless steel for smooth cleaning operations. Each of the compartments can accommodate three 12-inch by 20-inch by 21⁄2-inch pans. The interior of the compartments has coved corners, eliminating crevices that trap dirt and debris. The two heavy-duty doors come with door latch mechanisms to keep them sealed closed. The unit is stabilized by 6-inch, adjustable legs with stainless steel, flanged feet that ensure operators can secure the unit to the floor.
To produce steam, the Vulcan C24GA6 gas steamer is equipped with a stainless steel steam generator. It has a staged two-speed water fill that enables fast initial fill and slow refill to ensure steam production is maintained when cooking. The compartments have their own individual controls, including power switches that illuminate when turned on and 60-minute timers with constant steam features. The unit has split water connections for treated and untreated water.
Product Details
- 2 steaming compartments on a water-resistant, enclosed cabinet base
- Holds (6) 12-in. x 20-in. x 21⁄2-in. pans
- Coved corners in the compartments simplify cleaning
- Constructed of durable, rust-resistant stainless steel
- Heavy-duty doors with door latch mechanisms
- Steam generator is made of stainless steel with an automatic SmartDrain and PowerFlush™
- Staged 2-speed water fill provides slow refill and fast initial fill to maintain steam production
- 6-in. legs are adjustable and fitted with stainless steel, flanged feet

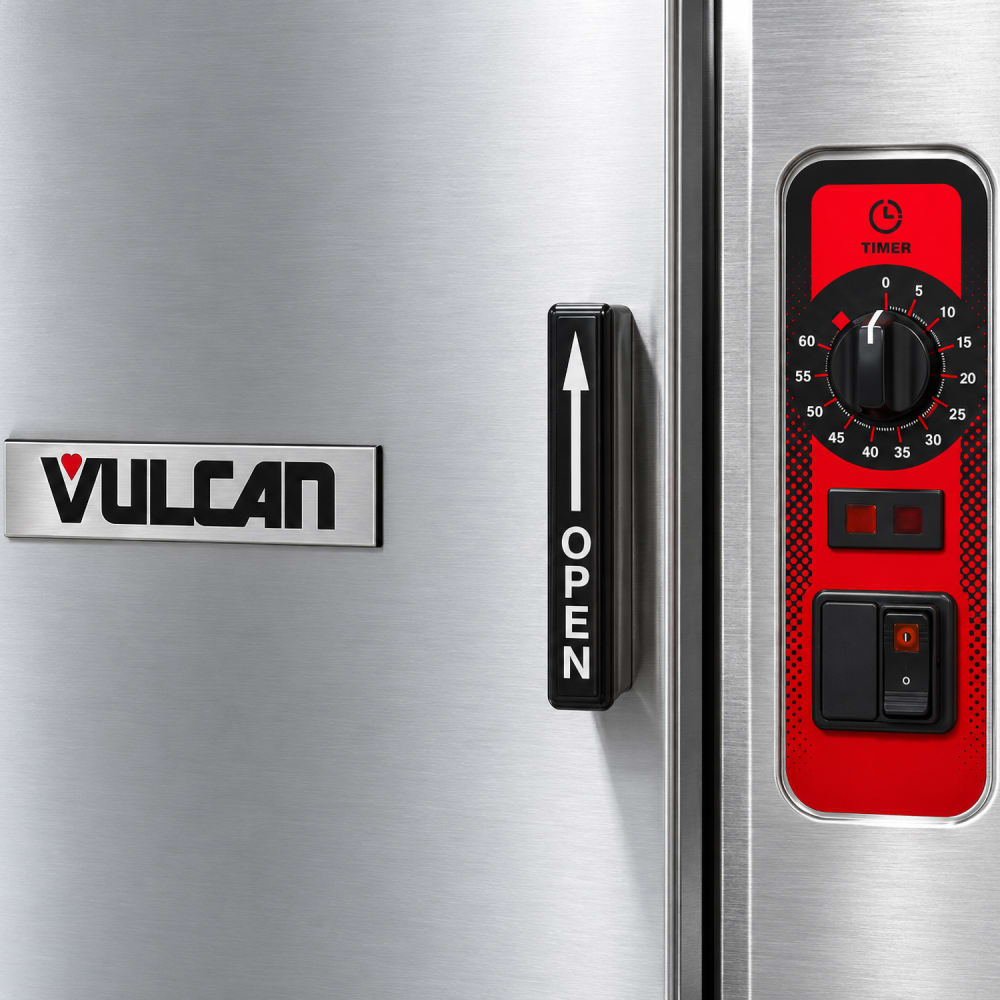

- Separate controls for each compartment
- 60-min. timers with constant steam features
- Power switches light up when the unit is on
- Split water connections for treated and untreated water
- 3⁄4-in. gas connection and pressure regulator at the rear
- 11⁄2-in. NPT drain connection
- 125,000 BTU
Dimensions & Utilities
- 24 in. W x 351/2 in. D x 59 in. H
- Uses LP gas
- 2 A, 300 W
- 120 V/60 Hz/1 ph, 6-ft. cord with a 3-prong plug
*Free shipping on Vulcan C24GA6 within the 48 contiguous states.
From The Manufacturer
Convection Steamer, Gas, 2 compartments on 24" cabinet base, (6) 12" x 20" x 2-1/2" deep total pan capacity, high output stainless steel steam generator with Timed Smart Drain & PowerFlush, staged water fill, professional controls with 60 minute timer, buzzer for each compartment, and constant steam feature, split water line, stainless steel interior, exterior, frame & flanged feet, 125,000 BTU
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan C24GA6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 35.4 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 59 |
| Hertz | 60 |
| No. of Compartments | 2 |
| Pan Capacity | 3 to 9 Pans |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Series | C24 Series |
| Steam Generator | External Source |
| Steamer Type | Convection |
| Total BTU | 125000 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 24 |
| Weight | 625.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
