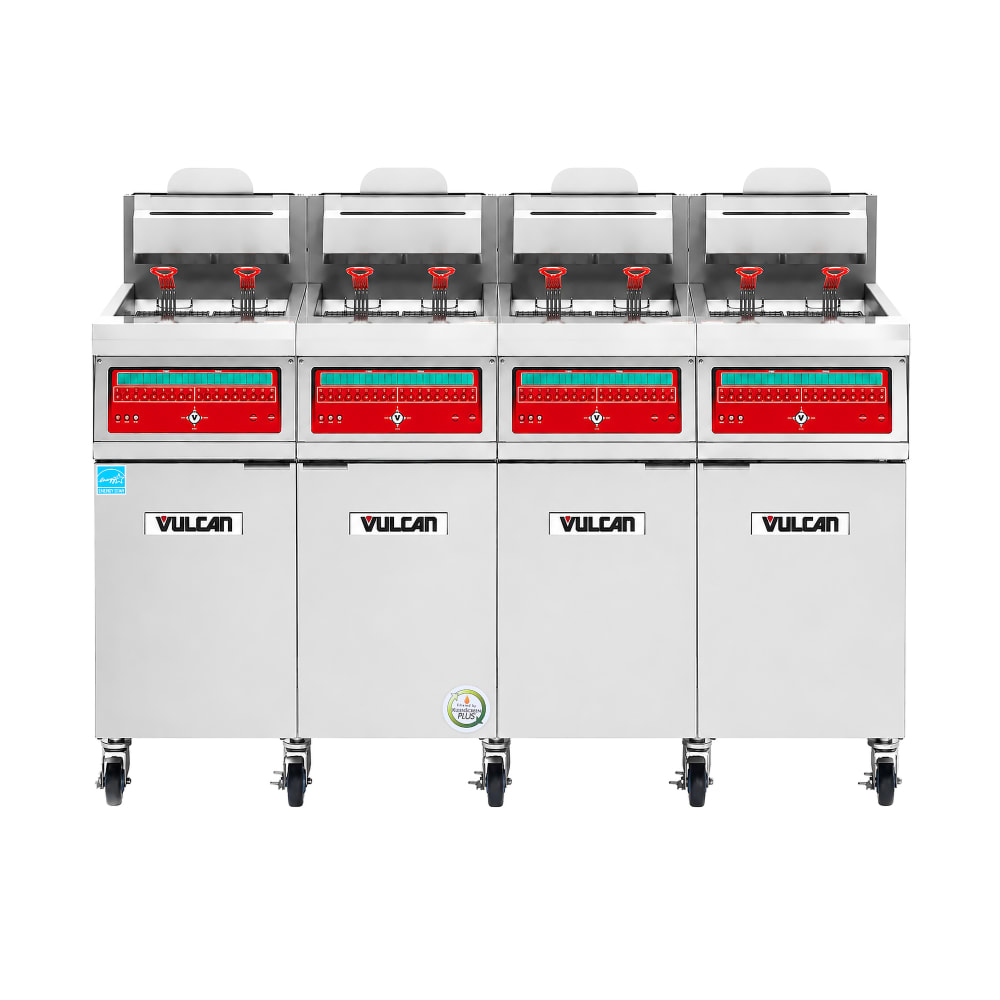

Vulcan 4VHG50CF QuickFry™ Gas Fryer - Four 50 lb Vats, Floor Model, Liquid Propane
Retail Price: $137,000.00
$56,396.00 /Each
Selected Gas Type: Liquid Propane
Vulcan 4VHG50CF Description
The Vulcan 4VHG50CF QuickFry™ gas fryer combines four 50-pound frypots with programmable computer controls to support high-volume production of breaded foods in restaurants, cafeterias, and other commercial kitchens. Four independently controlled frypots provide a combined 200-pound oil capacity and 280,000-BTU total input, while the programmable control system stores up to 18 menu timers and supports USB uploads and downloads for menu management. Operators can also select three melt modes, automatic or manual boil-out functions, electronic ignition, and temperatures from 150 to 390 degrees Fahrenheit.
To keep oil ready for continued use, the Vulcan 4VHG50CF gas fryer integrates the KleenScreen PLUS filtration system with a one-touch pump that circulates hot oil through a stainless steel mesh filter at 8 gallons per minute. The drain valve interlock automatically shuts off the burners whenever the drain valve opens, and the dry-fire prevention sequence supports reliable day-to-day operation. The unit's stainless steel fry tanks and a stainless steel cabinet stand up to commercial use.
- Part of the QuickFry series
- 50-lb. oil capacity per frypot
- 200-lb. total oil capacity
- 4 tube-type frypots
- Stainless steel cabinet and fry tanks
- 8 fry baskets with plastic-coated handles
- Electronic ignition
- 3 melt modes
- Automatic and manual boil-out modes
- 6-ft. high-temperature discard hose
- Tank brush and cleanout rod
- (4) 6-in. adjustable casters (2 locking)
- 280,000-BTU total input
- Programmable computer controls with digital character display
- Stores 18 programmable menu timers
- USB menu upload and download capability
- Fahrenheit or Celsius temperature display
- Temperature range: 150-390 degrees F
- KleenScreen PLUS built-in filtration
- 1-touch filtration pump activation
- Oil circulation rate: 8 gal./min.
- 16-ga. stainless steel filter pan
- 90-lb. filter pan oil capacity
- Hands-free oil return connection
- 62 1⁄4 in. W x 33 1⁄2 in. D x 47 3⁄4 in. H
- 7.2 A, 1⁄3 HP
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 4VHG50CF within the 48 contiguous states.
From The Manufacturer
QuickFry™ Fryer, gas, high efficiency, 62-1/4"W, (4) battery, 50 lbs. capacity per vat, computer control with melt cycles, electronic ignition, KleenScreen PLUS filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR
Watch a video about this product
Vulcan 4VHG50CF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 8 |
| BTU per Fryer | 70000 |
| Depth (in) | 33.5 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 47.75 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Phase | 1 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | QuickFry™ |
| Special Features | Built In Filter |
| Special Features | Casters Included - Uninstalled |
| Special Features | High Efficiency |
| Special Features | Melt Cycle |
| Special Features | Programmable |
| Type | Floor Model |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 62.25 |
| Weight | 871.00 |
