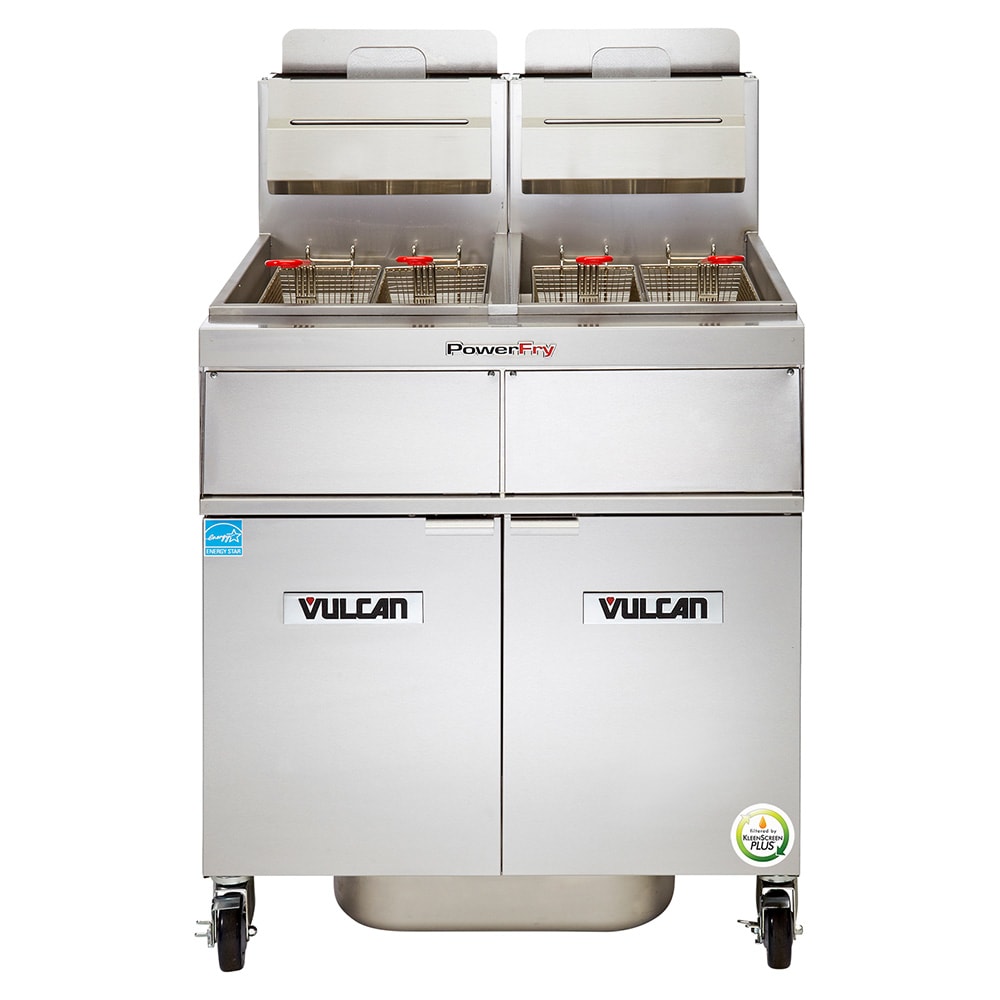

Vulcan 2TR85DF Gas Fryer - (2) 90 lb Vats, Floor Model, Liquid Propane

The Vulcan 2TR85DF high-efficiency freestanding gas fryer measures 42 inches wide by 34¹⁹⁄₅₀ inches deep by 47¹⁄₄ inches tall and is built with dual 90-pound-capacity frypots. So different foods can be cooked simultaneously, each frypot has corresponding solid-state digital controls that enable employees to set the temperature between 200 and 390 degrees Fahrenheit, choose to cook with compensating time or actual time, select one of three melt modes, set two countdown timers, and initiate an automatic boil-out mode. Operators can lower fish filets, chicken tenders, mozzarella sticks, and okra into the vats using the four fryer baskets, which feature plastic-coated handles to minimize heat transfer. Designed to withstand high-volume use, the cabinet and frypots are made of rigid stainless steel that resists rusting and corroding. Because it's fitted with four 6-inch casters, maneuvering is smooth when cleaning or maintenance is required.

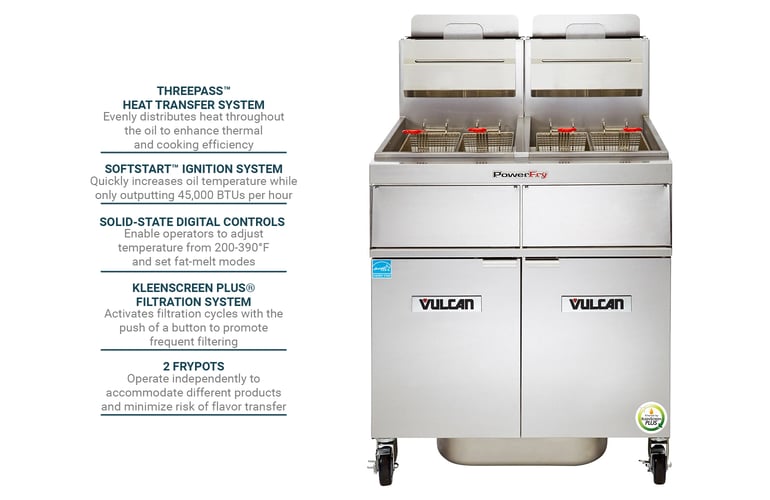

Designed to prolong oil's service life while enhancing efficiency, the Vulcan 2TR85DF commercial gas fryer is part of the PowerFry3™ collection, which features a ThreePass™ heat transfer system that evenly disperses heat throughout oil to yield 60 percent cooking efficiency and 72 percent thermal efficiency. Its SoftStart™ ignition system quickly warms the oil by outputting 45,000 BTUs per hour—half of the unit's hourly BTU capability. The idle temperature mode outputs 5,575 BTUs per hour to maintain the set temperature once it's reached. At the base of the fryer, the KleenScreen PLUS® filtration unit is integrated into a pull-out drawer. Because operators can initiate a filtration cycle with the push of a button, this system encourages frequent filtration to extend oil life. The motor and pump circulate oil at an 8-gallon-per-minute rate, while the stainless steel filter pan can hold 110 pounds of oil. The oil-return line automatically adds filtered oil back to the frypot once the filter drawer is closed.

Product Details

• Part of the PowerFry3 TR85 series
• Freestanding floor model with 2 batteries
• (2) 90-lb. frypots
• Stainless steel cabinet and frypots
• Each frypot includes twin fryer baskets with plastic-coated handles
• Creates 36¹⁄₄-in. working height
• (4) 6-in. adjustable casters (2 with locks)
• ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
• SoftStart ignition mechanism causes unit to output 45,000 BTUs per hour
• Idle temperature mode only outputs 5,575 BTUs per hour to maintain heat
• Flue temperature doesn't exceed 750 degrees F at maximum production rate
• Hi-limit shutoff
• 1¹⁄₄-in. port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• (2) 90,000 BTU

Solid-state Digital Controls

• Independent controls per frypot
• Electronic matchless ignition
• Digital character display in Fahrenheit or Celsius
• Operating temperature range: 200-390 degrees F
• 3 melt modes
• 2 countdown timers
• Automatic boil-out mode
• Can use compensating time or actual time to cook

Filtration System Details

• Pull-out drawer assembly located in the base of the fryer
• 110-lb.-capacity stainless steel filter pan
• Stainless steel mesh filter screen with 270-sq.-in. filter area
• Filtration cycle activated with push of a button
• Pump and motor circulate oil at 8 GPM
• Drain valve interlock switch automatically turns off burners as oil is drained
• Hands-free oil-return tube adds oil back to the tanks when filter drawer is closed
• Tank brushes and clean-out rods included for cleaning

Dimensions & Utilities

• 42 in. W x 34¹⁹⁄₅₀ in. D (54¹⁄₂ in. D when doors are opened) x 47¹⁄₄ in. H
• 6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
• Powered by LP gas
• 1¹⁄₄-in. NPT common rear gas connection

Product Features

*Free shipping on Vulcan 2TR85DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, LP gas, high efficiency, 42" W, (2) battery, 85-90 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 180,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 2TR85DF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
