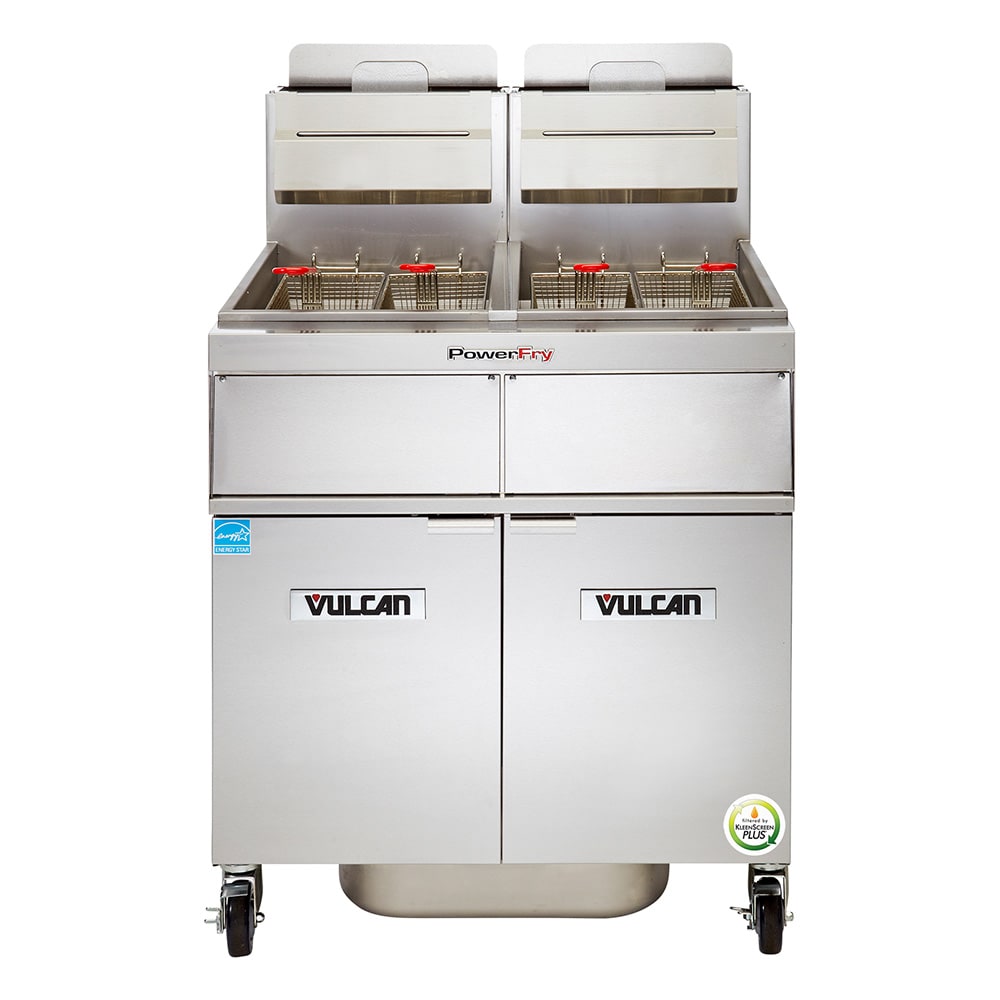

Vulcan 2TR45DF Gas Fryer - (2) 50 lb Vats, Floor Model, Natural Gas

Designed with a ThreePass™ heat system, the Vulcan 2TR45DF natural gas fryer evenly distributes heat between 200 and 390 degrees Fahrenheit. Users can adjust and monitor these temperatures using the digital thermostat. To reduce heat lag between frying, it has a fast heat recovery system. A high-limit shut off reduces the risk of food or oil burning, while an idle temperature setting conserves energy during slow periods. Staff can monitor cook times in real or compensating time using the two countdown timers. To preserve oil quality, taste, and color, this unit is equipped with a Kleenscreen PLUS® filtration system and a stainless steel mesh screen filter, while its push-button-activated motor and pump circulate oil at 8 gallons per-minute. Waste is gathered in the filter pan, which boasts a 70-pound capacity. Cleaning is simplified with the fryer's Boil Out Bypass™ system, 1¹⁄₄-inch full-port, ball-type drain valve, and included tank brush and clean-out rod.

For enhanced durability, the Vulcan 2TR45DF LP gas fryer's two fry tanks, two vats, and base cabinet are constructed of sturdy stainless steel. The tanks boast a 45- to 50-pound oil capacity, and this unit comes with two sets of twin fryer baskets, which ease submersion and retrieval of fried products; to protect users from burns, these baskets have plastic-coated handles. Overall, this freestanding unit measures 31 inches wide by 30¹⁄₄ inches deep by 47¹⁄₄ inches high and is attached to two locking and two non-locking, 6-inch casters.

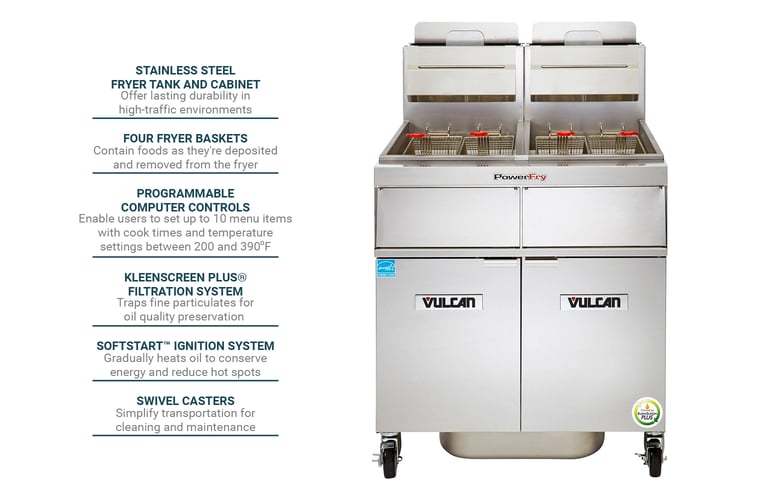

Product Details

• Part of the PowerFry3™ TR45 series
• 45-50-lb. individual fry tank capacity
• Stainless steel cabinet with 2 stainless steel fry tanks
• 4 fry baskets with plastic-coated basket handles
• Digital thermostat with Celsius or Fahrenheit
• Solid-state digital controls
• Temperature range: 200-390 degrees F
• 3 melt modes for solid compounds
• Idle temperature setting
• Fast heat recovery minimizes lag time
• Users can cook with actual time or compensating time
• Two countdown timers
• High-limit shut-off system
• Combination gas and pilot shut-off valve
• SoftStart ignition system heats oil gradually
• Auto boil-out mode with Boil Out Bypass™ system simplifies boil-out solution removal
• ThreePass heat transfer system yields 60.9% thermal and 72% cooking efficiency
• 1¹⁄₄-in. full-port, ball-type drain valve
• (4) 6-in. casters (2 locking)
• Included tank brush and clean-out rod ease cleaning tasks
• 70,000 BTU per hour

Filtration System

• 70-lb. filter pan capacity
• Stainless steel filter pan
• Stainless steel mesh filter screen
• Drain valve interlock switch turns off burners when draining oil
• ¹⁄₃-HP motor and pump circulates oil at 8 GPM
• Pump and motor triggered by one-touch push button

Dimensions and Utilities

• Overall: 31 in. W x 30¹⁄₄ in. D x 47¹⁄₄ in. H
• Powered by natural gas
• 6.0 A
• 115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 2TR45DF within the 48 contiguous states.

From The Manufacturer

PowerFry3™ Fryer, natural gas, high efficiency, 31" W, (2) battery, 45-50 lbs. capacity per vat, solid state digital control with melt cycles, ThreePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 140,000 BTU, CSA, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Vulcan 2TR45DF Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Baskets	2
BTU per Fryer	70000
Capacity (lbs)	100
Food Type	Breaded
Frypot Style	Tube Type
Gas Type	NG
NEMA	5-15P
Number of Fry Pots	2
Oil Capacity (lb)	100
Oil Capacity/Fryer (lb)	50
Product	Gas Fryers
Product Type	Cooking Equipment
Rating	Best
Series	PowerFry3™
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)	31
Weight	530.00
