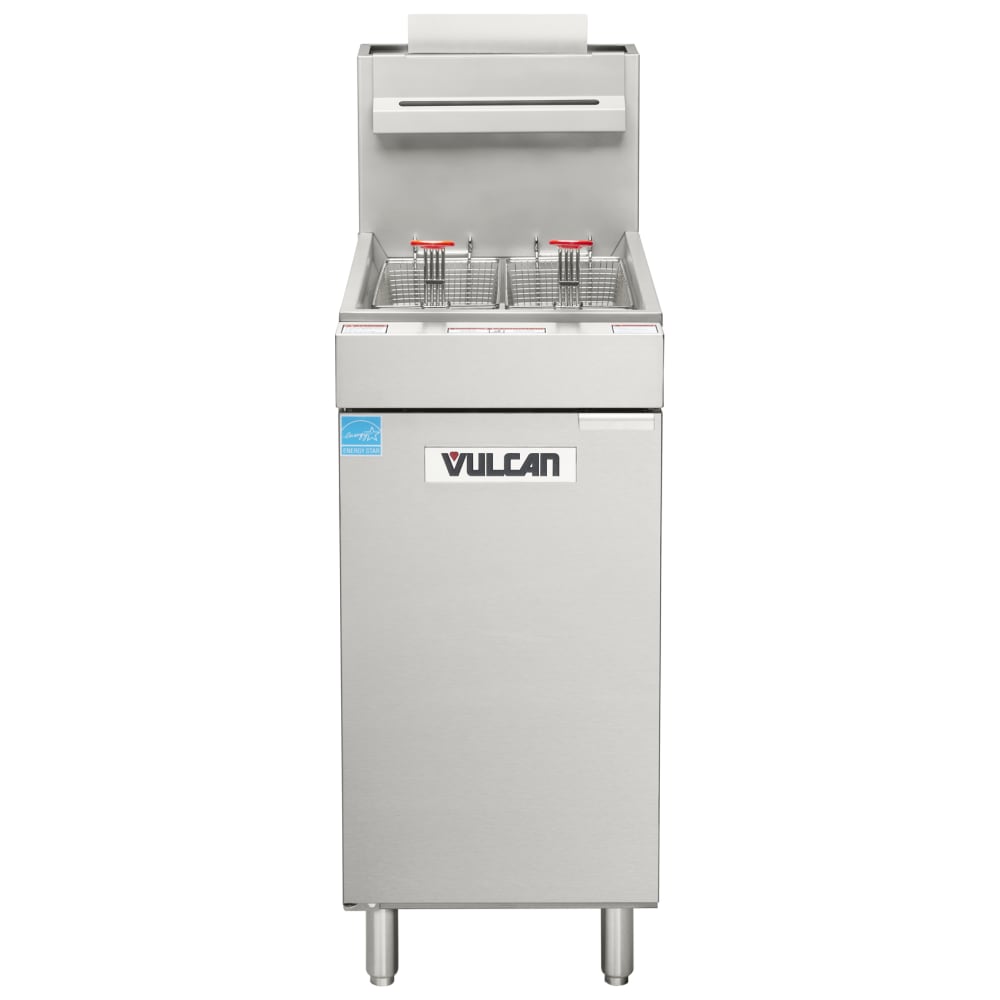

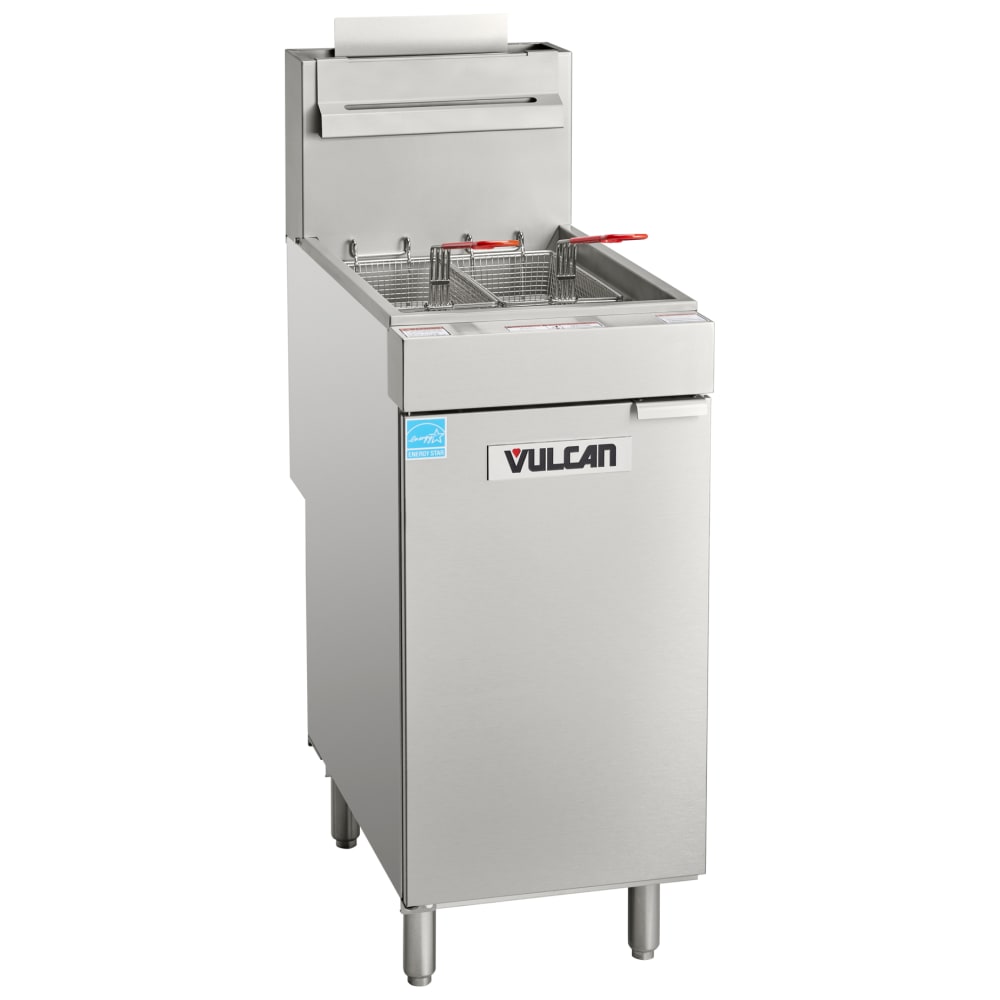

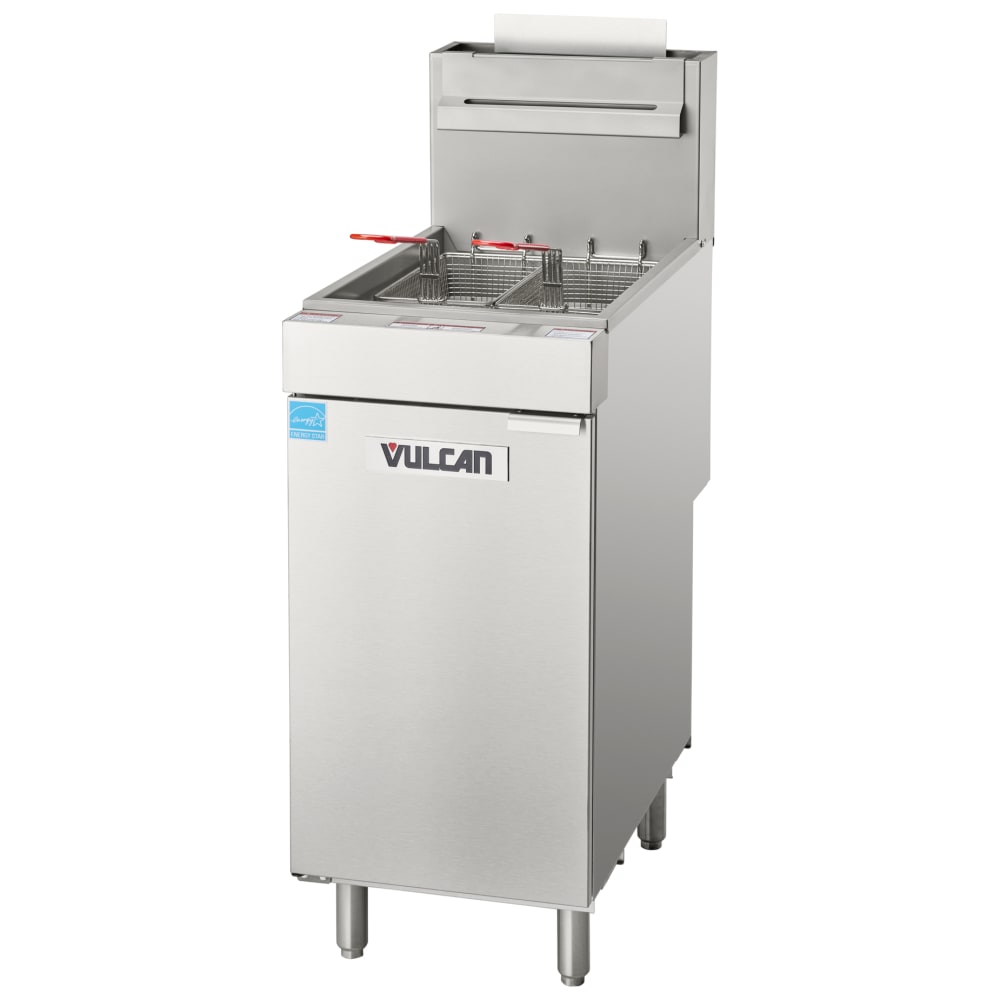

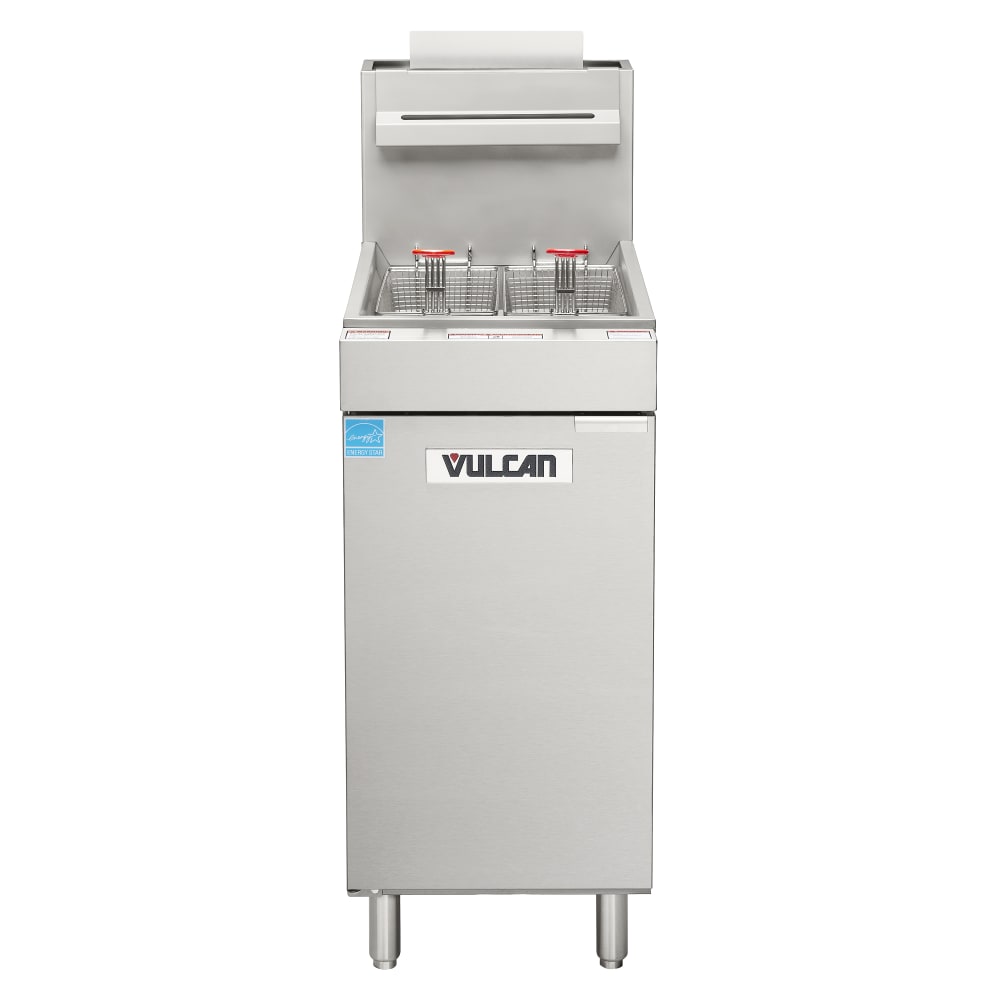

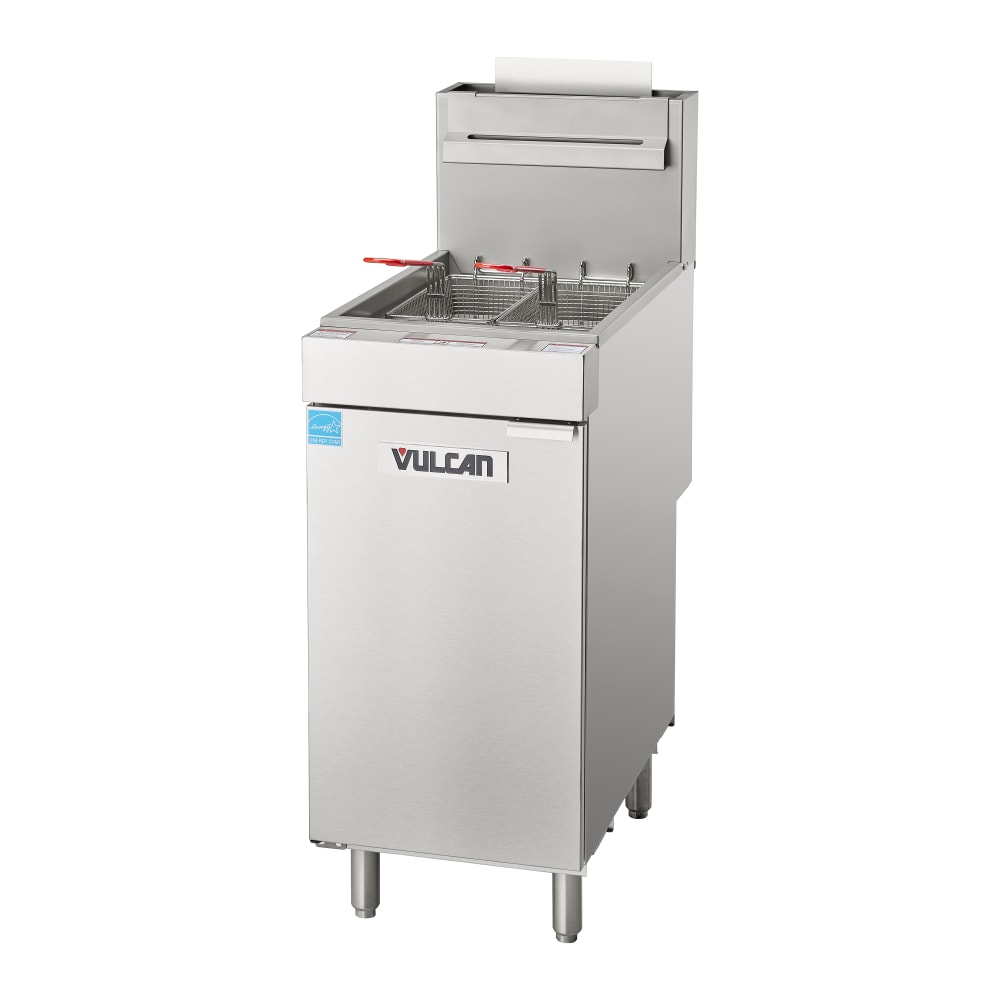

Vulcan 1VEG35M Gas Fryer - (1) 40 lb Vat, Floor Model, Natural Gas

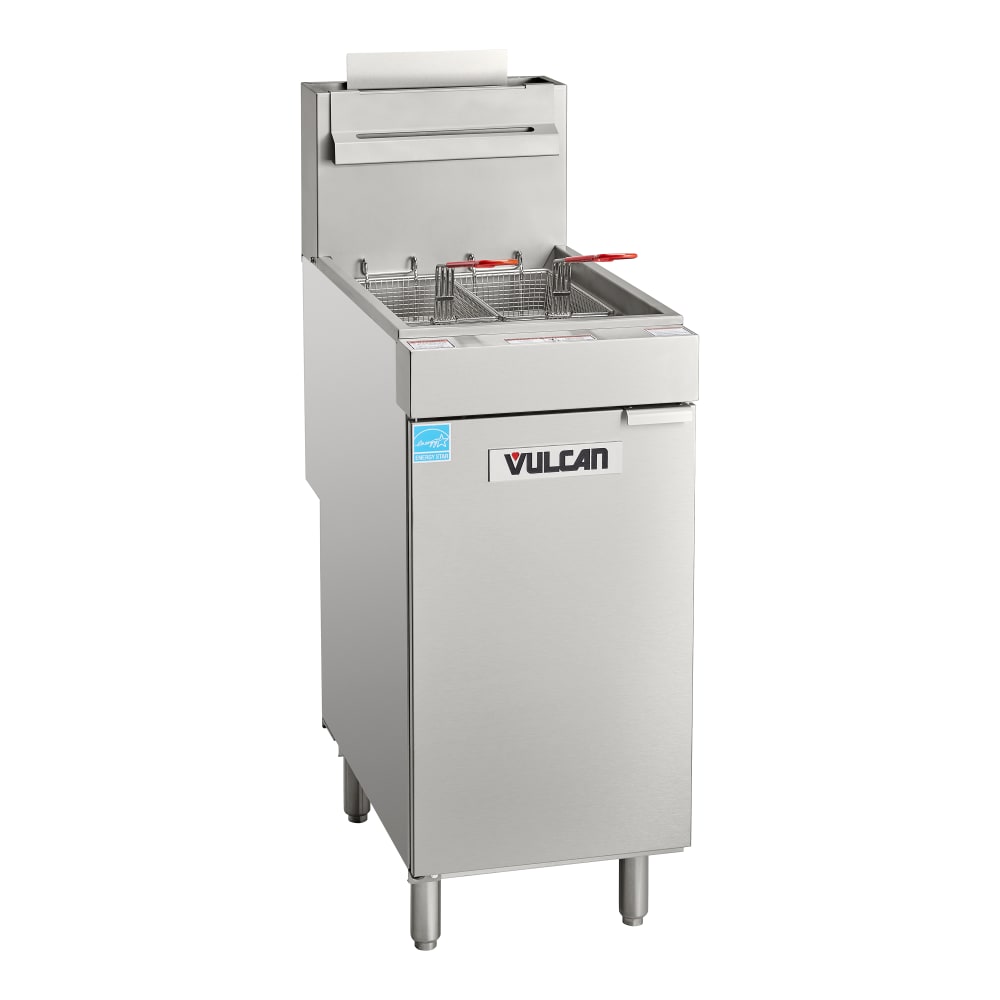

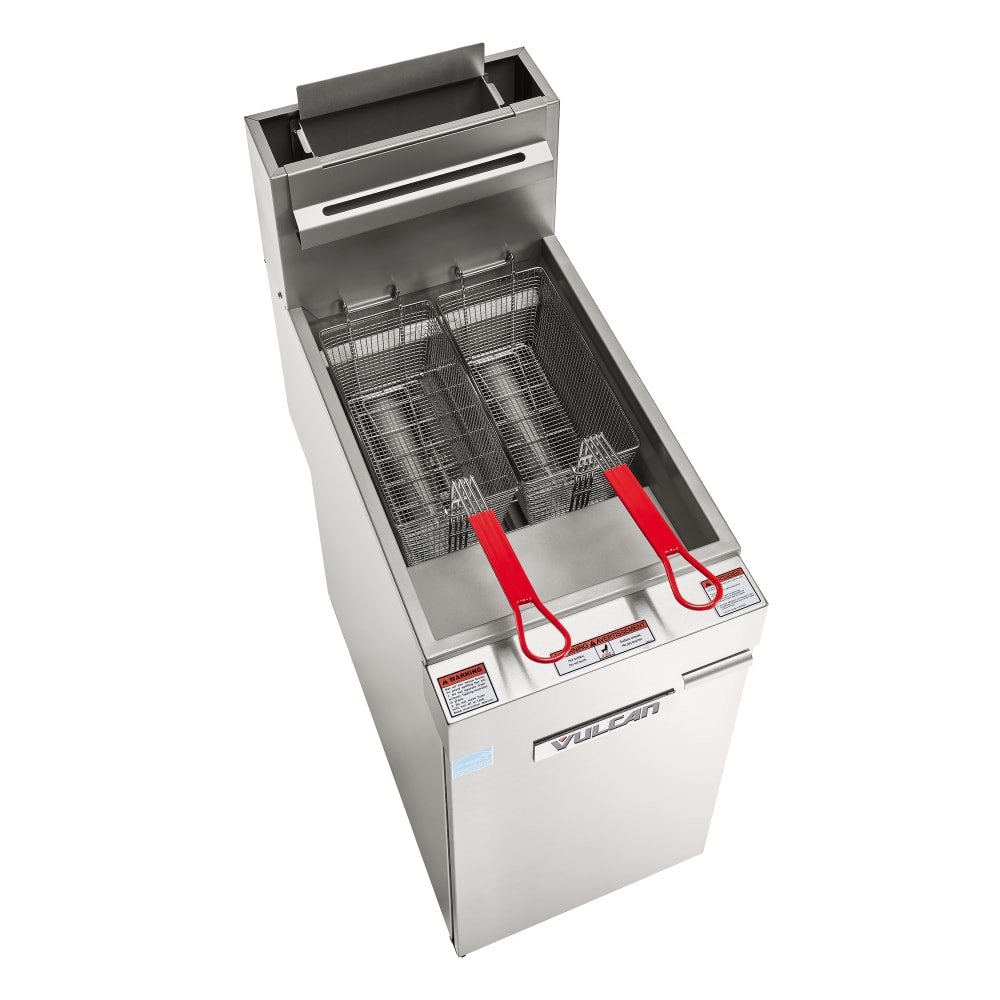

The Vulcan 1VEG35M freestanding entry-level gas fryer features a 14-inch-wide by 14-inch-deep tank that accommodates 35 to 40 pounds of shortening so staff can fry shrimp, fish, chicken, tofu, and vegetables. The included twin fry baskets ensure foods remain in place as they're fried, and their plastic-coated handles ease basket transportation while protecting users from burns. Operators can set the unit's temperature from 200 to 400 degrees Fahrenheit using the snap-action millivolt thermostat control, which is located behind the front stainless steel door. To maximize heat transfer throughout the oil, it's built with three exchanger tubes. If the unit's heat is out of the set range, the high-temperature limit control shuts off the gas supply to the main burners and standing pilot. A large cold zone beneath the burner tubes provides a place for sediment to settle without burning, which could affect the oil's taste.

To withstand high-volume back-of-house use, the Vulcan 1VEG35M commercial gas fryer's fry tank and door are made of stainless steel, while the sides and back are coated with a high-grade G90 galvanized finish that resists corrosion. The front door provides access to the cabinet, and to ensure it's closed during use, it's built with an Earth magnet. Its 34⁵⁄₈-inch working height promotes user comfort, while its four nickel-plated legs can be raised or lowered to stabilize the unit on uneven surfaces to reduce rocking and wobbling. Overall, this fryer measures 15¹⁄₂ inches wide by 29³⁄₄ inches deep by 46⁵⁄₈ inches tall and requires a 6-inch clearance on the sides and back—great for kitchens with limited space.

Product Details

• Part of the VEG series
• Frypot capacity: 40 lbs. of oil

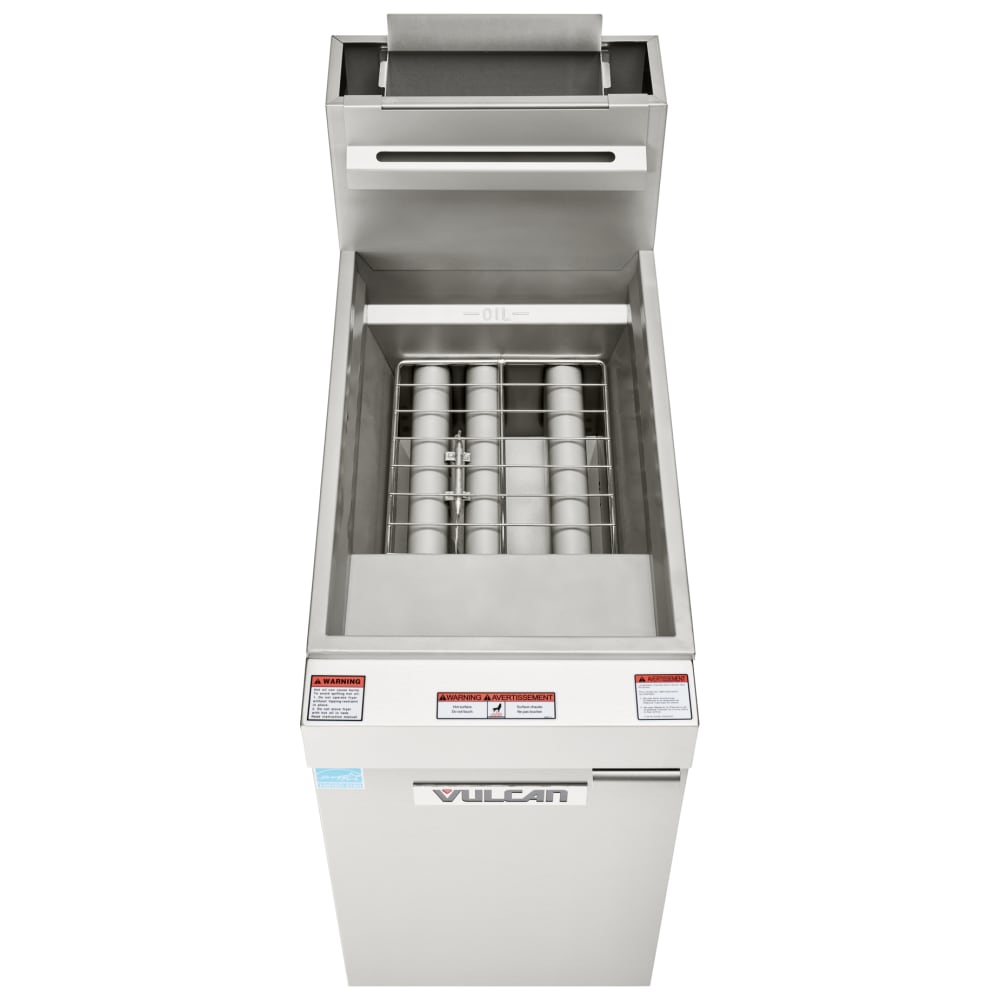

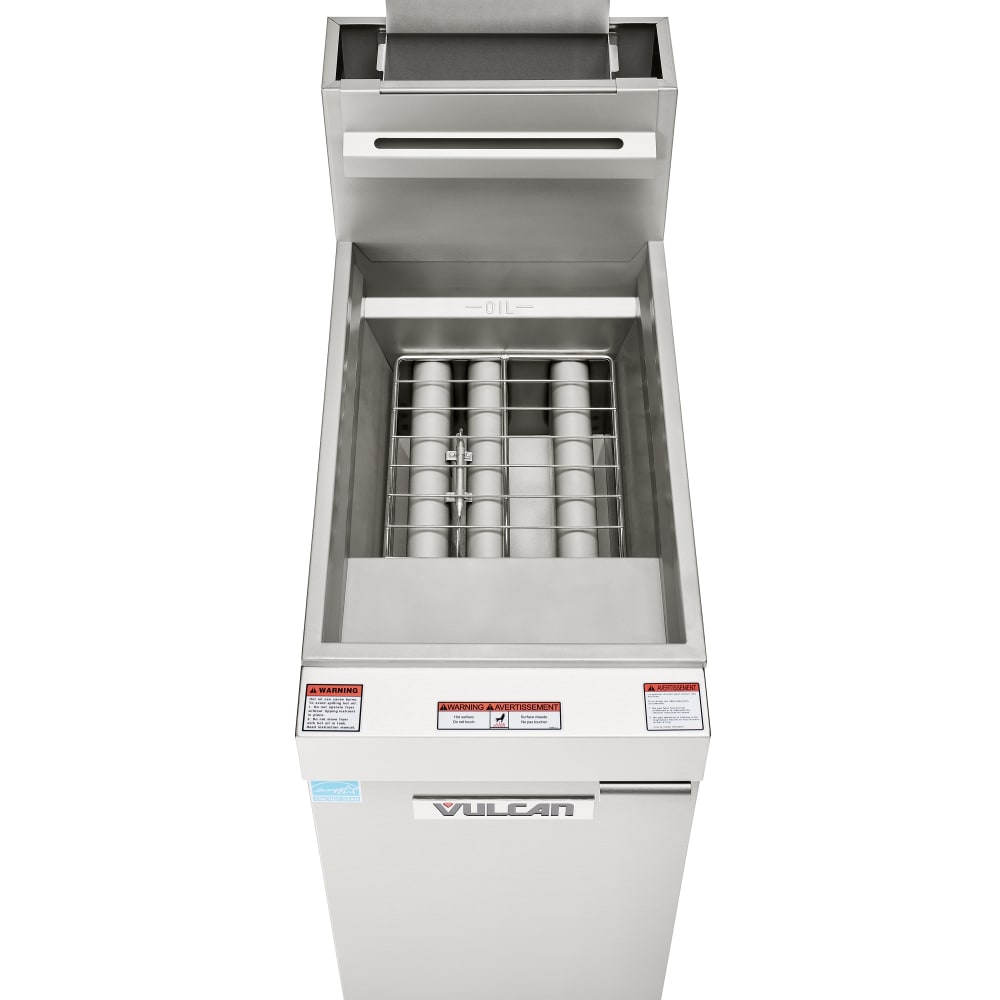

• Stainless steel fry tank with 3 exchanger tubes
• Large cold zone beneath burners
• Stainless steel reinforced door with Earth magnet to ensure secure closure
• Corrosion-resistant, high-grade G90 galvanized finish on sides and back
• 4 adjustable nickel-plated legs
• Twin fry baskets with plastic-coated handles
• Stainless steel basket hanger can be removed for cleaning

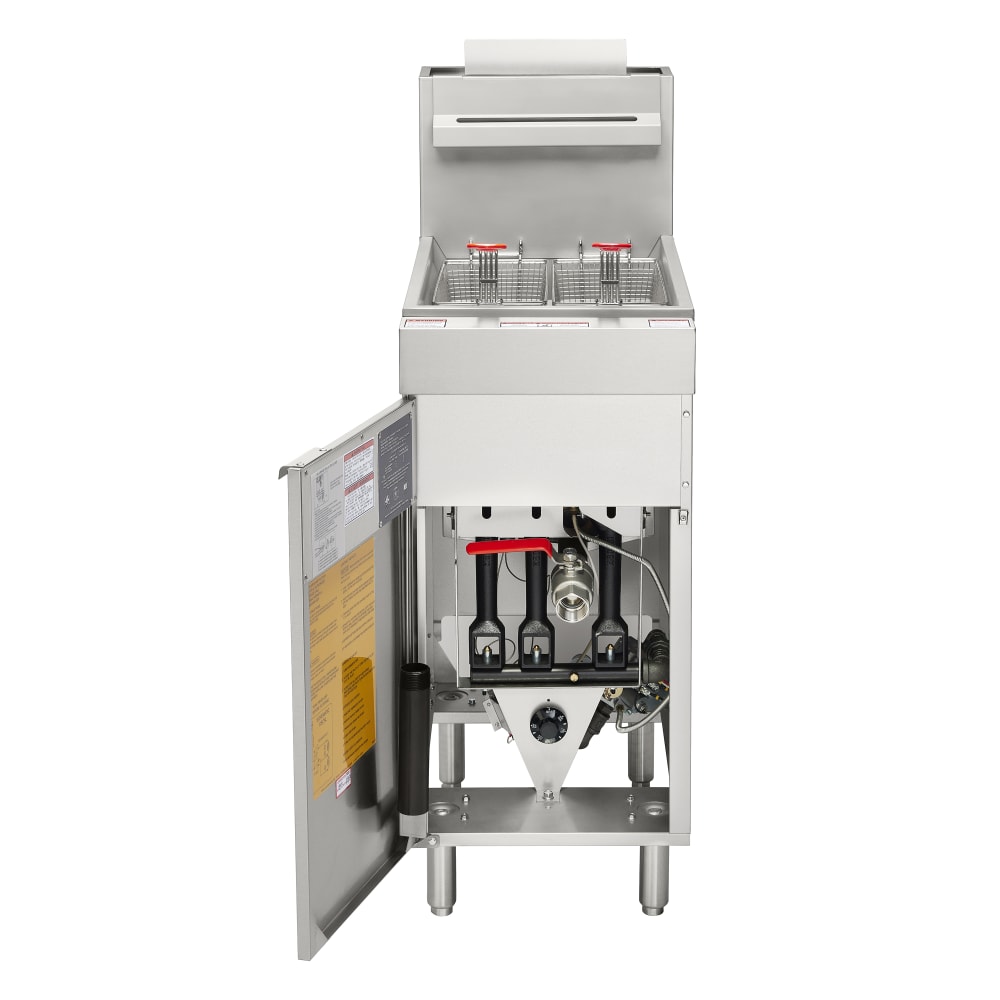

• Snap-action millivolt thermostatic control located behind front door
• Operating temperature range: 200-400 degrees F
• Standing pilot doesn't require electric hook up
• High-temperature-limit control
• Built-in flue deflector
• Nickel-plated tube rack
• 1¹⁄₄-in. full-port ball-type drain valve
• 6-in. clearance required at sides and rear when placed near combustible construction
• 16-in. minimum clearance to adjacent open-top burner units
• 70,000 BTU

Dimensions & Utilities

• Tank: 14 in. W x 14 in. D
• Overall: 15¹⁄₂ in. W x 29³⁄₄ in. D x 46⁵⁄₈ in. H
• Powered by natural gas
• ³⁄₄-in. OD rear gas connection
• ¹⁄₂-in. ID service connection

Product Features

*Free shipping on Vulcan 1VEG35M within the 48 contiguous states.

From The Manufacturer

Fryer, Natural gas, floor model, 15-1/2" W, single tank, 35-40 lbs. oil capacity, millivolt thermostat control with hi-limit shut-off, built-in flue deflector, includes: twin fry baskets, drain extension & nickel plated tube rack, stainless steel fry tank & front, galvanized sides & back, (4) nickel-plated adjustable legs, 70,000 BTU, NSF, CSA Star, CSA Flame, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VEG35M Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
