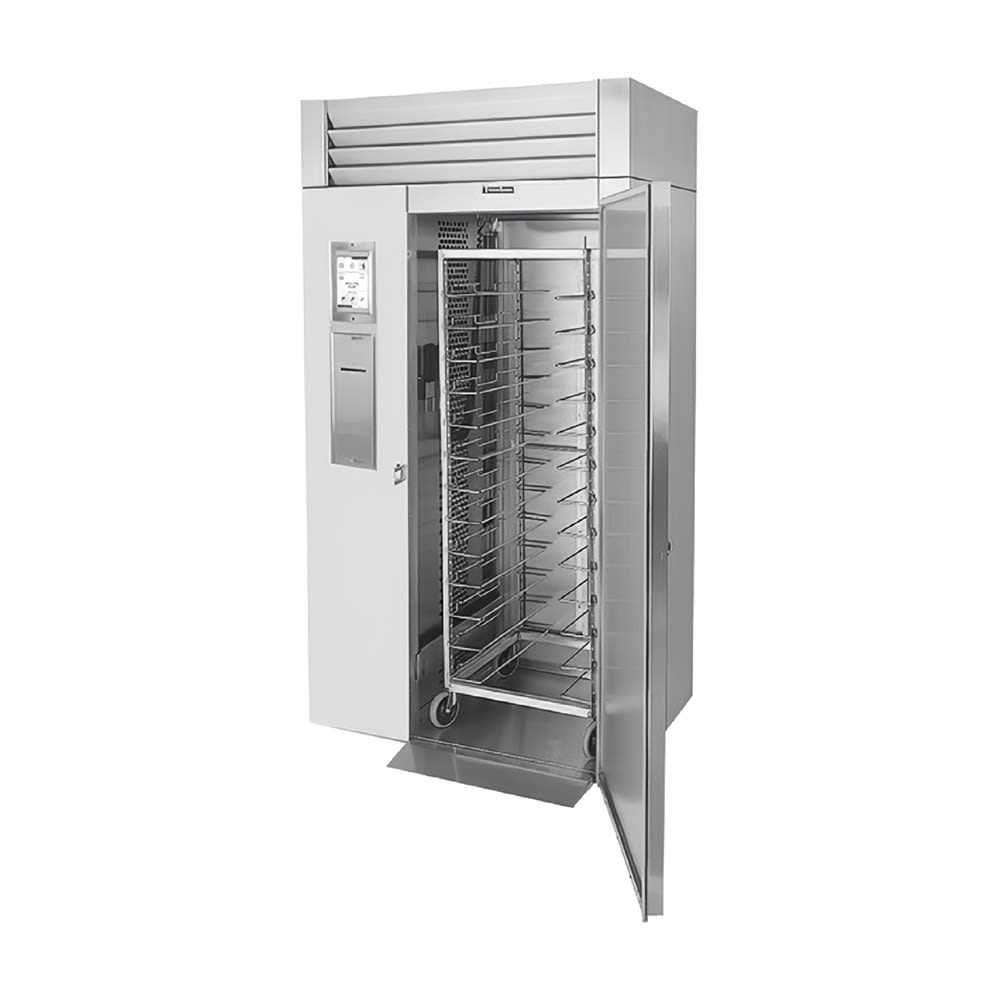

Traulsen TBC1H-24 48" Floor Model Roll In Blast Chiller - (26) Pan Capacity, 115v/1ph

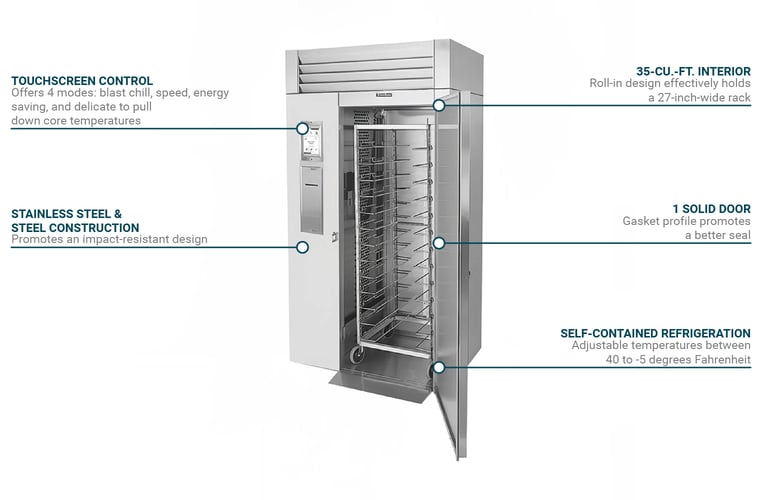

The Traulsen TBC1H-24 blast chiller is a roll-in model that can fit a 27-inch-wide rack. It has a capacity of 35 cubic feet and holds a maximum of 300 pounds of product. This 48¹/₂-inch-wide by 37⁵/₈-inch-deep by 90³/₈-inch-high unit has one solid, right-hinged door with a gasket profile that fits close to the body. An anti-condensate heater behind the door reduces excessive humidity. The body is constructed of stainless steel, and the stainless steel floor is insulated with a ³/₄-inch-thick cork.

The Refrigeration system of the Traulsen TBC1H-24 floor model roll-in blast chiller is mounted at the top and includes an evaporator and air-cooled compressor. R448A refrigerant is circulated through the body using all these components and coils, and to evenly spread cooling inside the cavity, the body features high-speed evaporator fans. This unit’s EPICON touchscreen has four total modes—blast chill, speed, energy saving, and delicate, allowing an operating range between 40 to -5 degrees Fahrenheit. It's operable in manual or automatic via the assistance of three temperature probes. For blast chilling purposes, this unit must be connected to a remote condenser (not included)

Product Details

• 35-cu.-ft. interior space
• Fits 27-in.-wide rack
• 300-lb. capacity
• 1 solid, right-hinged door
• Doors stay open past 120 degrees
• Snug gasket profile
• Anti-condensate heaters behind door opening
• Stainless steel construction
• Stainless steel floor with ³/₄-in. thickness
• 2-in.-thick polyurethane insulation

Refrigeration System

• Top-mounted refrigeration system charged with R448A refrigerant
• Expansion valve
• Evaporator
• Front-facing condenser coil
• Efficient, high-speed evaporator fans
• Air-cooled compressor
• Automatic defrost system
• Temperature holding range: 40 to -5 degrees F
• Remote condensing unit sold separately for blast chilling

Touchscreen Controls

• Blast chill, speed, energy saving, and delicate modes
• Hazard analysis critical control points using 3 probes
• 90-day statistics storage
• Automatic and manual modes
• Input product names, user names, and chill-cycle parameters
• Cycle-completion alarm

Dimensions & Utilities

• 48¹/₂ in. W x 37⁵/₈ in. D x 90³/₈ in. H
• 16 A, ¹/₂ HP
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Traulsen TBC1H-24 within the 48 contiguous states.

From The Manufacturer

Spec-Line Roll-In Blast Chiller with EPICON Control, holds (1) 27"W x 29"D x 72"H rack, self-contained holding refrigeration system, remote chilling refrigeration system not included, chills (300 lbs) 160°F to 40°F /155 minutes, hinged right, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor

Traulsen TBC1H-24 Specifications

Documents

Spec Sheet

Warranty

Manual
