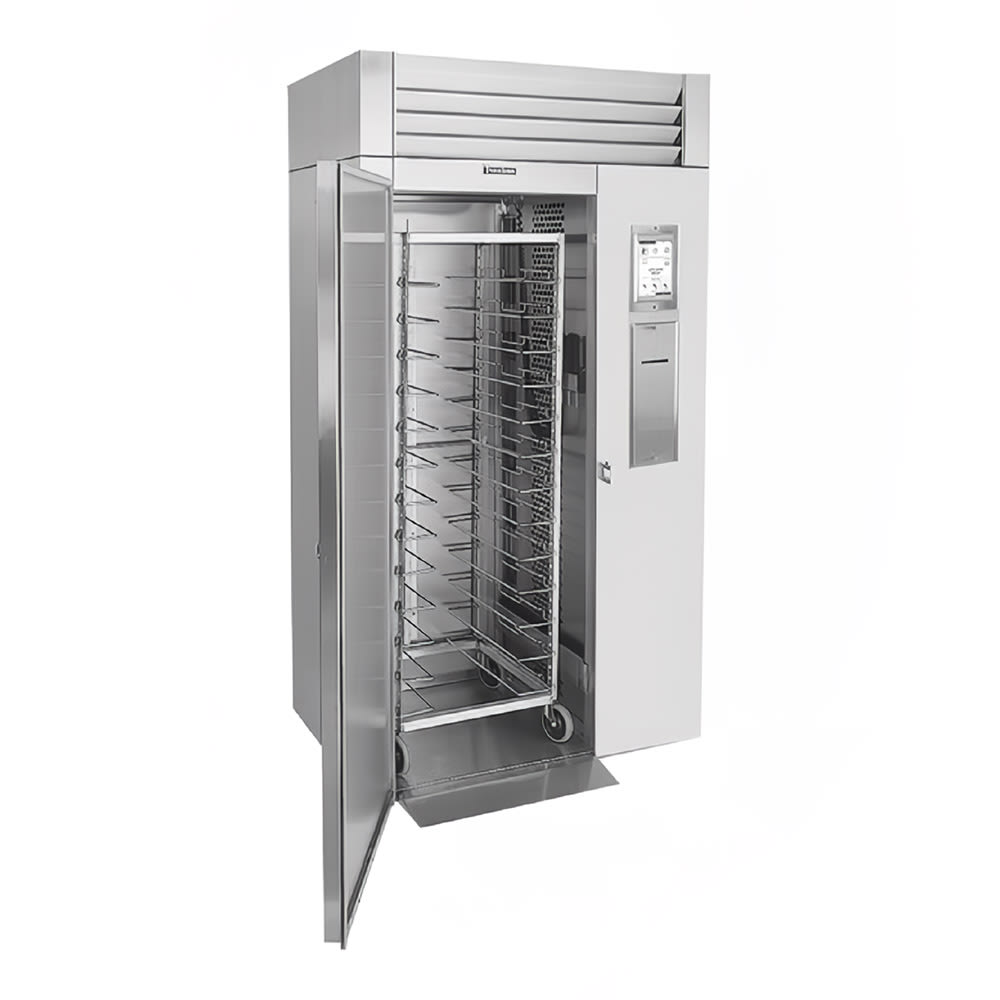

Traulsen TBC1H-20 48" Floor Model Roll In Blast Chiller - (26) Pan Capacity, 115v/1ph

This Traulsen TBC1H-20 floor model blast chiller offers a 35-cubic-foot capacity and can chill 300 pounds at a time. Users can access the interior via a left-hinged door, which features cam-lift hinges that help it remain open past 120 degrees for easier stocking and unloading. The exterior and interior are made of impact- and corrosion-resistant stainless steel; the floor is made of the same material and features a ³/₄-inch-thick cork to help preserve cold temperatures. Inside the body is 2-inch-thick polyurethane insulation to contain cold temperatures. For strength and durability, the top, back, and bottom are made of galvanized steel.

The refrigeration system of the Traulsen TBC1H-20 blast chiller is high capacity and top mounted to limit the amount of dust and debris it takes in. The compressor and evaporator direct R448A refrigerant from the front, back, and sides of the body, as the defrost system heats the coils to prevent them from freezing. This unit, with the assistance of EPICON controls, reaches temperatures between 40 to -5 degrees Fahrenheit. Users can choose between four modes—blast chill, speed, energy saving, and delicate—to reduce the temperatures of cooked food. This unit can operate in manual and automatic modes with automatic function taking place with the three included temperature probes. Users should note that this unit is designed to be paired with a remote condenser (sold separately) for blast chilling applications.

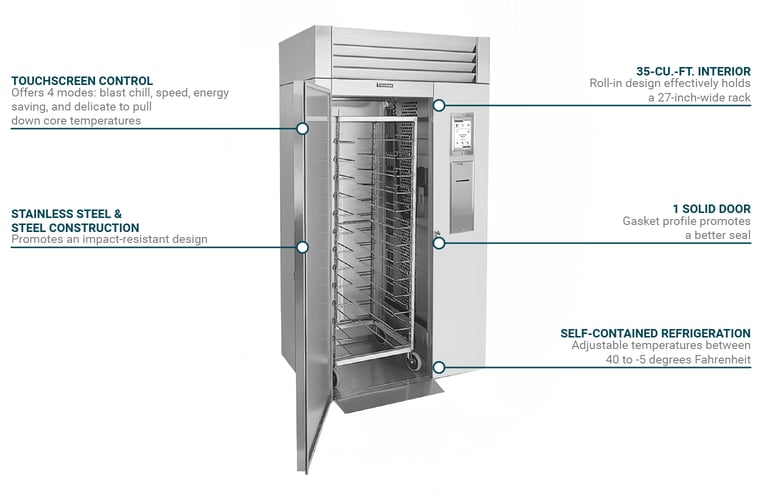

Product Details

• 35-cu.-ft. interior space
• Accommodates 27-in.-wide rack
• Maximum capacity: 300 lbs.
• Gasket profile, left-hinged solid door
• Cam-lift hinges self-close and stay open past 120 degrees
• Stainless steel exterior
• Stainless steel interior and floor
• Floor insulated with ³/₄-in.-thick cork
• Top, back, and bottom made of galvanized steel
• 2-in.-thick, high-density insulation in cabinet and doors

Refrigeration System

• High-capacity refrigeration system uses R448A refrigerant
• System comes with expansion valve, evaporator, high-speed evaporator fans, and compressor
• Automatic defrost system
• Temperature holding range: 40 to -5 degrees F
• Remote condensing unit sold separately for blast chilling

Touchscreen Controls

• 4 modes: blast chill, speed, energy saving, and delicate
• Monitors all hazard analysis critical control points using 3 probes
• 90-day data storage
• Chill cycles usable between auto and manual modes
• Manually input product names, user names, and chill-cycle parameters
• Audible alarm alert after sequence completion

Dimensions & Utilities

• 48¹/₂ in. W x 37⁵/₈ in. D x 90³/₈ in. H
• 16 A, ¹/₂ HP
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Traulsen TBC1H-20 within the 48 contiguous states.

From The Manufacturer

Spec-Line Roll-In Blast Chiller with EPICON Control, holds (1) 27"W x 29"D x 72"H rack, self-contained holding refrigeration system, remote chilling refrigeration system not included, chills (300 lbs) 160°F to 40°F /155 minutes, hinged left, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor
