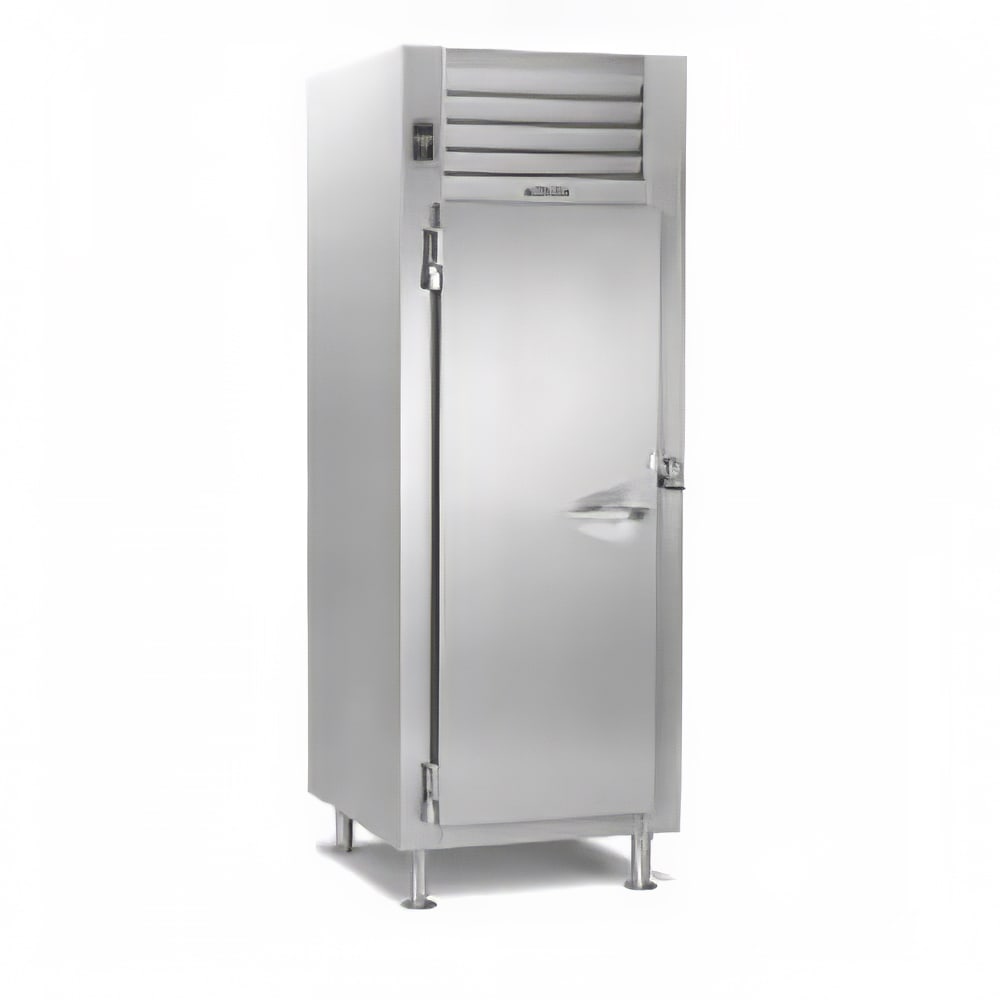

Traulsen RW232W-COR01 Full Height Insulated Reach In Heated Cabinet w/ (24) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$29,217.87 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Traulsen ENERGY STAR® Heated Cabinet below
Traulsen RW232W-COR01 Description
To ensure precooked foods are held at safe temperatures, the Traulsen RW232W-COR01 reach-in heated cabinet uses a serpentine-style heater to generate temperatures between 135 and 180 degrees Fahrenheit; the ducted fan air-distribution system circulates warm air evenly throughout the cabinet. The doors and cabinet are lined with foamed-in-place polyurethane insulation, which helps preserve temperatures, and operators can adjust temperatures as needed using the microprocessor controls. If temperatures rise or drop unexpectedly, a visual alarm will notify the operator.
Designed for use in correctional facilities, the Traulsen RW232W-COR01 heated cabinet's protective features—such as its polycarbonate microprocessor control cover, locking hasps, flanged, legs, and welded tray slides—help prevent vandalism and tampering. With the unit's two-section reach-in configuration, users have direct access to product. When pushed past 120 degrees, the doors stay secured in an open position so operators can load and remove product without holding the doors. The 12 universal tray slides are welded in place, preventing unwanted removal; each accommodates an 18-inch by 26-inch pan, two 14-inch by 18-inch pans, or two 12-inch by 20-inch pans. Its durable stainless steel interior and exterior withstand heavy use and resist corrosion over time.
Product Details
- Part of the R series
- Reach-in design with correctional package
- 2 sections
- 46-cu.-ft. interior capacity
- Temperature range: 135-180 degrees F
- Serpentine-style heater
- Ducted fan air-distribution mechanism
- 2-in.-thick, foamed-in-place polyurethane insulation
- Top vent for managing humidity
- Microprocessor controls covered by high-impact polycarbonate resin
- Durable, corrosion-resistant stainless steel exterior and interior
- 2 full-length, left-hinged doors with locking hasps and Santoprene® EZ-Clean gaskets
- Doors stay open when pushed past 120 degrees
- 12 universal wire slides welded in place
- 6-in. flanged legs
Dimensions & Utilities
- 58 in. W x 35 in. D x 831⁄4 in. H
- 15.5 A
- 208 V/60 Hz/1 ph
*Free shipping on Traulsen RW232W-COR01 within the 48 contiguous states.
From The Manufacturer
RW232W-COR01 with Correctional Features, Heated Cabinet, reach-in, hinged left-right, two-section, 46.0 cu. ft., stainless steel exterior and interior, standard depth cabinet, full-height door or doors with EZ-Clean Gaskets, includes cabinet lighting, locking hasp, flanged legs, mesh screen, lexan control cover, (12) pairs of universal tray slides welded to steel frame per section, microprocessor controls, 1/2 Hp, cETLus, ETL-Sanitation
*Image may not depict product color, inclusions or accessories.

Traulsen RW232W-COR01 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Traulsen |
Application | Heat Only |
Construction | Stainless Steel |
Control Location | Top |
Controls | Digital |
Cubic Feet | 46 |
Depth (in) | 35 |
Door Design | Full |
Door Type | Solid |
Heat | Electric |
Height (in) | 83.25 |
Hertz | 60 |
Hinge Configuration | Left |
kW | 3 |
Load Type | Reach In |
No. of Doors | 2 |
Pan Capacity | 24 |
Phase | 1 |
Product | Heated Cabinets |
Product Type | Food Warming Equipment |
Sections | 2 |
Size | Full Height |
Slide Type | Universal |
Special Features | Correctional |
Type | Insulated |
Voltage | 208 |
Warranty | 6-year Parts & Labor; 7-year Compressor |
Width (in) | 58 |
Weight | 530.00 |
