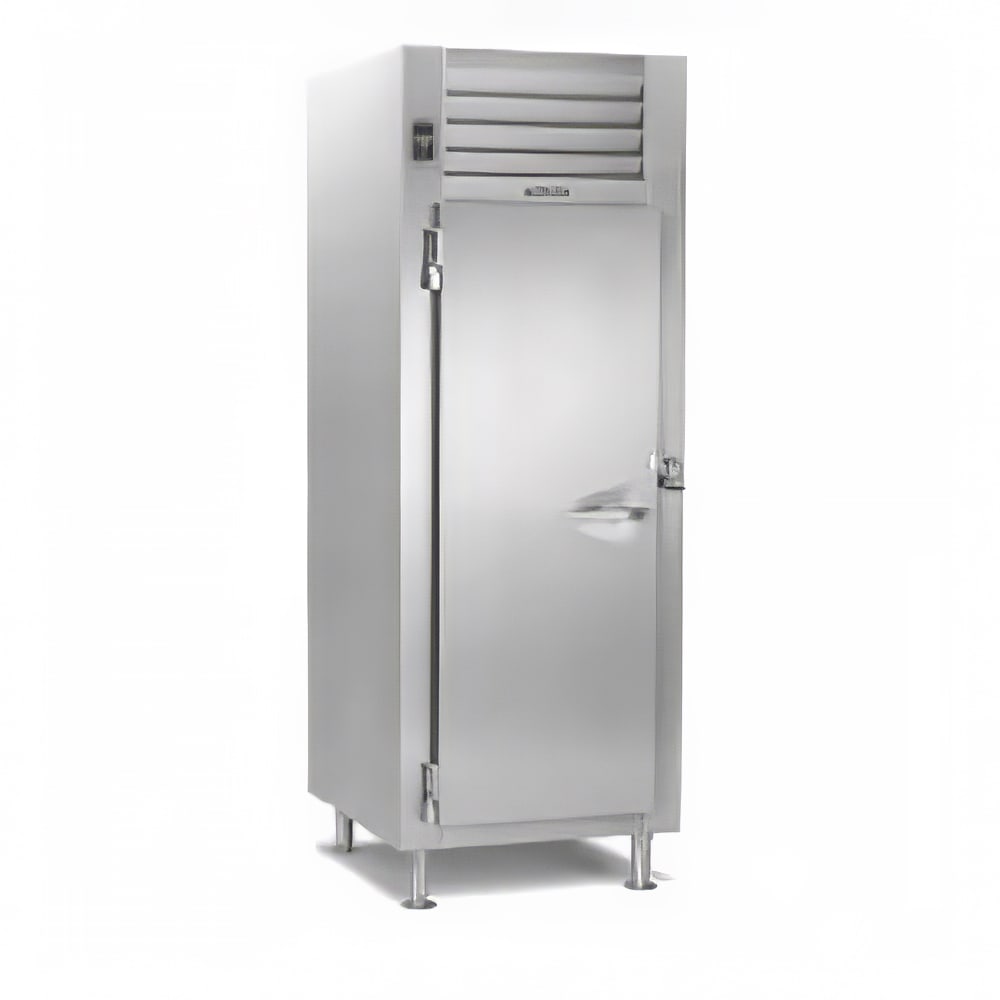

Traulsen RW132W-COR02 Full Height Insulated Reach In Heated Cabinet w/ (12) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$18,509.04 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Traulsen ENERGY STAR® Heated Cabinet below
Traulsen RW132W-COR02 Description
Designed for use in correctional facilities, the Traulsen RW132W-COR02 reach-in heated cabinet features a locking hasp to prevent theft. A polycarbonate control cover protects the unit's microprocessor controls from adjustments, and 6-inch-high stainless steel flanged legs secure the unit to the floor. Inside the cabinet, 12 universal tray slides are welded to a steel frame to reduce the risk of removal; each accommodates an 18-inch by 26-inch pan, two 14-inch by 18-inch pans, or two 12-inch by 20-inch pans. The interior and exterior are made of durable, corrosion-resistant stainless steel to withstand high-volume use and prevent vandalism.
The Traulsen RW132W-COR02 heated cabinet generates and maintains temperatures between 135 and 180 degrees Fahrenheit, which is a safe holding range for prepared food. Its ducted fan air-distribution system circulates warm air uniformly, removing cold spots that could impact food quality. Because the cabinet and door are lined with 2-inch-thick, foamed-in-place polyurethane, temperatures are preserved even when the door is opened for short periods of time or the unit is stored in cool or warm environments. To manage temperatures and operational statuses, the microprocessor control has an LED display with alarms that ensure users are aware of unexpected changes.
Product Details
- Part of the R series
- Reach-in unit with 1 section
- 24.2-cu.-ft. interior capacity
- Includes correctional package
- Stainless steel exterior and interior
- 1 full-length, left-hinged door with locking hasp
- Door locks in place when opened past 120 degrees
- 12 welded universal wire slides
- Temperature range: 135-180 degrees F
- Serpentine-style heater
- Ducted fan air-distribution system
- 2-in.-thick, foamed-in-place polyurethane insulation built into door and cabinet
- Top vent controls humidity
- Microprocessor system with impact-resistant polycarbonate cover
- 6-in. flanged legs
Dimensions & Utilities
- 297⁄8 in. W x 35 in. D x 831⁄4 in. H
- 7.8 A
- 208 V/60 Hz/1 ph, 9-ft. cord with a NEMA L14-20P plug
*Free shipping on Traulsen RW132W-COR02 within the 48 contiguous states.
From The Manufacturer
RHF132W-FHS with Correctional Features, Heated Cabinet, reach-in, hinged right, one-section, 24.2 cu. ft., stainless steel exterior and interior, standard depth cabinet, full-height door or doors with EZ-Clean Gaskets, includes cabinet lighting, locking hasp, flanged legs, mesh screen, lexan control cover, (12) pairs of universal tray slides welded to steel frame per section, microprocessor controls, cETLus, ETL-Sanitation
*Image may not depict product color, inclusions or accessories.
Traulsen RW132W-COR02 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Cubic Feet | 24.2 |
| Depth (in) | 35 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left |
| kW | 1.5 |
| Load Type | Reach In |
| NEMA | L14-20P |
| No. of Doors | 1 |
| Pan Capacity | 12 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Special Features | Correctional |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 29.88 |
| Weight | 320.00 |
