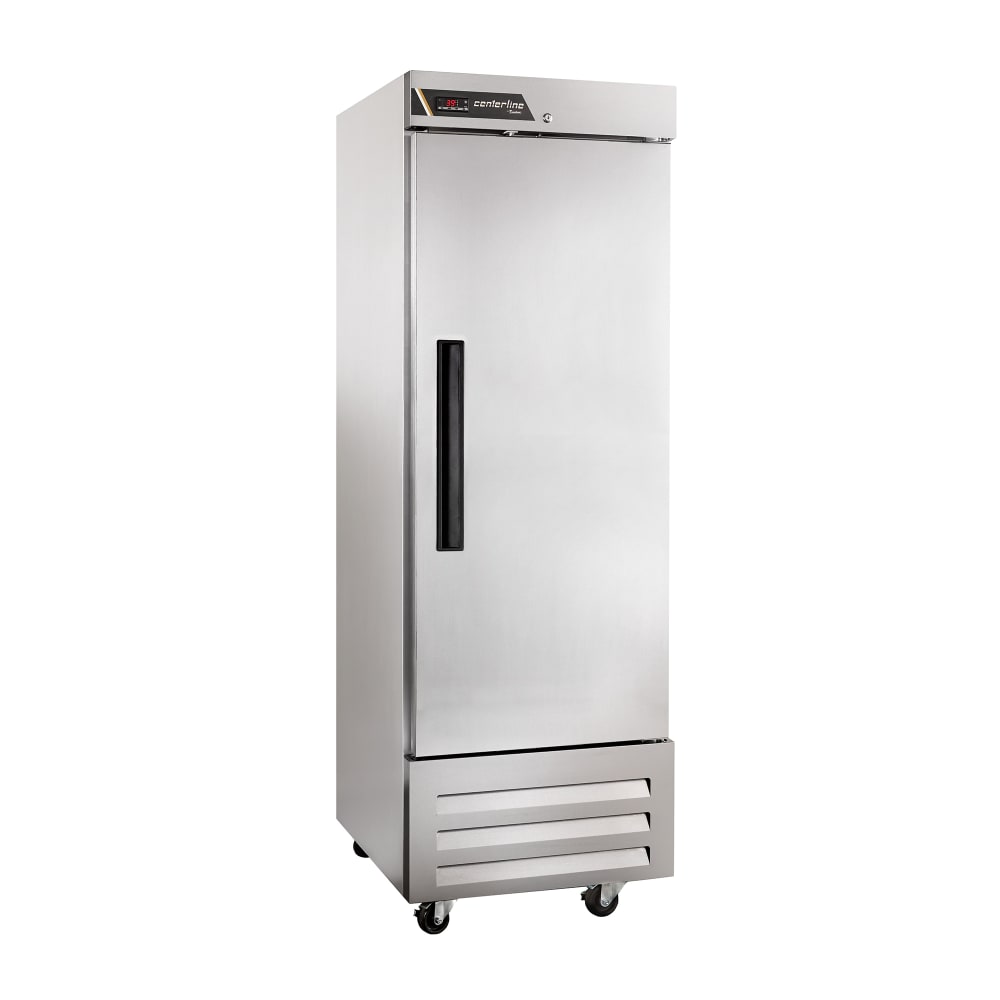

Centerline by Traulsen CLBM-23F-FS-R 27" Centerline™ One Section Reach In Freezer, (1) Right Hinge Solid Door, 115v

To extend its service life in high-volume settings, the Centerline by Traulsen CLBM-23F-FS-R reach-in freezer's front and louver are constructed of durable stainless steel; its sides and interior are made of corrosion-resistant anodized aluminum. Its three shelves are coated with epoxy for additional corrosion resistance. Mounted on four 4-inch-high casters, this unit enables users to wheel it away for cleaning or service. Overall, it measures 27 inches wide by 33 inches deep by 78 inches high.

The Centerline by Traulsen CLBM-23F-FS-R one-section freezer is insulated with foamed-in-place polyurethane to retain cold air and preserve product temperatures. To streamline installation, its refrigeration system is self-contained. It also features an accessible condenser coil for additional convenience. With R448A refrigerant, this unit maintains temperatures between -1 and 2 degrees Fahrenheit. Operators can adjust these levels using precise electronic controls.

Product Details

• 1 section
• 19.89-cu.-ft. interior space
• 1 full-height, right-hinged solid door is field reversible
• Door is self-closing with 110-degree stay-open feature
• 3 shelves coated with corrosion-resistant epoxy
• Stainless steel front and louver
• Insulated by high-density, foamed-in-place polyurethane
• Interior and sides constructed of corrosion-resistant anodized aluminum
• Condenser coil is accessible for service and cleaning
• Temperature holding range: -1 to 2 degrees F
• Electronic controls with LED display
• Self-contained, bottom-mounted refrigeration system
• (4) 4-in.-high casters with locks on front set
• Uses R448A refrigerant

Dimensions & Utilities

• 27 in. W x 33 in. D x 78 in. H
• 6.5 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug

Product Features

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Free shipping on Centerline by Traulsen CLBM-23F-FS-R within the 48 contiguous states.

From The Manufacturer

Centerline™ Freezer, reach-in, one-section, 19.89 cu. ft., self-contained bottom mount refrigeration, (1) right hinged full-height solid door (field reversible), electronic control with LED display, (3) epoxy coated shelves per section, stainless steel front & sides, anodized aluminum interior, (4) casters, R448A refrigerant, 1/4 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Centerline by Traulsen CLBM-23F-FS-R Specifications

Spec Attribute	Spec Value
Manufacturer	Centerline by Traulsen
Compressor Location	Bottom
Cubic Feet	19.89
Depth (in)	33.5
Door Design	Full
Door Type	Solid
Height (in)	82
Hertz	60
Interior Material	Aluminum
Sections	1
Type	Reach In
Voltage	115
Warranty	6-year Parts & Labor; 7-year Compressor
Width (in)	27
Series	Centerline™
Refrigerant	R448A
Phase	1
Rating	Spec
Product	Reach-In Freezers
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Right
Weight	350.00
