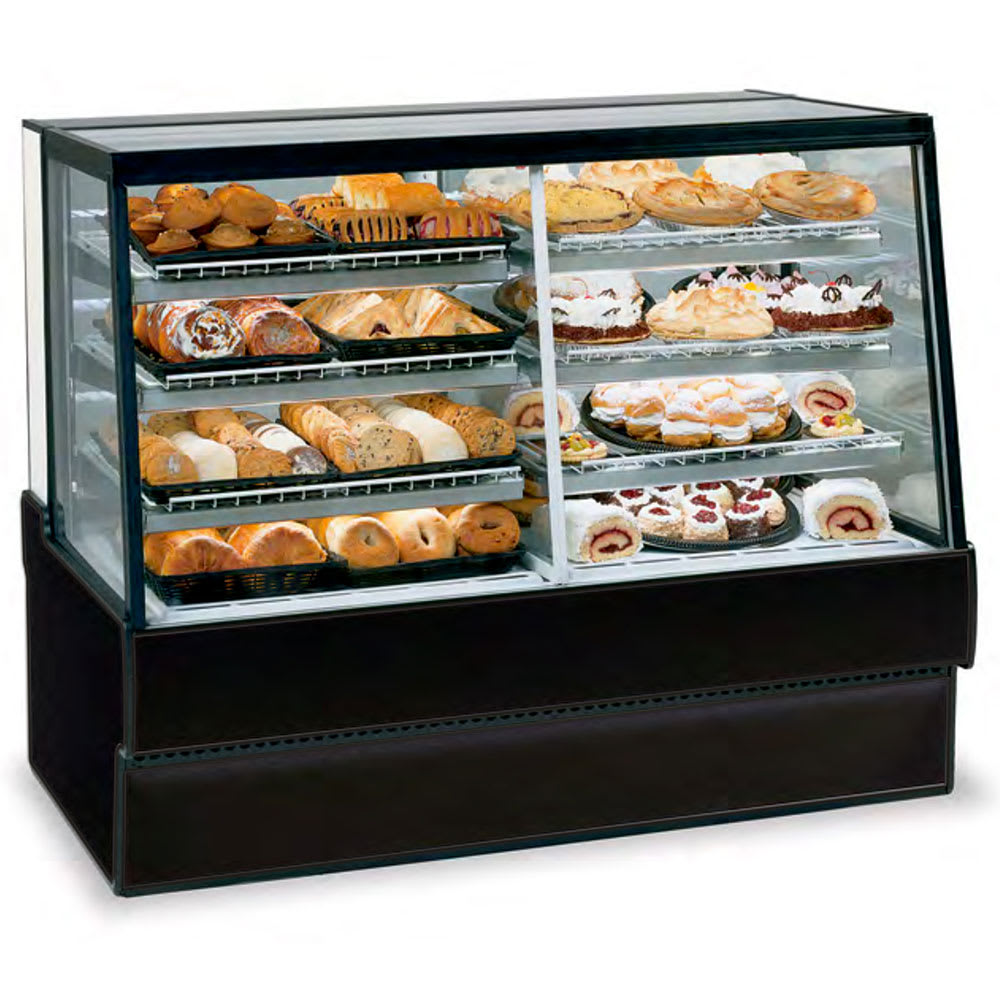

Federal SGR7748DZ 77" Full Service Bakery Case w/ Straight Glass - (4) Levels, 120v

KaTom #: 204-SGR7748DZBLK • MPN: SGR7748DZ BLK
  • 204-SGR7748DZBLK Primary Thumbnail Image

Typically ships in 3 - 4 weeks

$16,750.00 /Each

Contact us for details!

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove
Sarah Holland User Image
Ask a Foodservice Equipment Specialist

Federal SGR7748DZ Description

Great for conserving floorspace while displaying baked goods and desserts, the Federal SGR7748DZ High Volume bakery case is divided into a refrigerated left section and non-refrigerated right section. Cheesecakes, pies, and mousse can be merchandised on the left side, while the right is suited to breads, donuts, and dry pastries. To maintain a safe storage environment, the refrigerated section maintains temperatures from 38 to 40 degrees Fahrenheit. Its oversized coil and low-velocity fan system create a high-humidity environment that reduces the risk of foods drying out. As inventory changes, operators can adjust temperatures with the thermal controls. This self-contained refrigeration system operates with R513a refrigerant and includes a condenser air filter, condensate evaporator, and a rust-resistant, insulated evaporator coil compartment.

This dual-zone bakery case features four display levels on each side. The white display deck resists scratches to preserve its original condition over time, while the three white wire shelves can be tilted, raised, or lowered. The tempered thermopane glass front, top, and sides ensure customers have a view of displayed items, and for enhanced presentation, the case's top and shelves are brightened with LED lights. To create a setup that establishes a clear line of communication between staff and customers, this full-service unit features two rear sliding glass doors.

The Federal SGR7748DZ dessert case measures 77 13⁄100 inches wide by 35 31⁄100 inches deep by 48 inches high and is positioned on adjustable leg levelers to maintain stability on uneven flooring. To complement common themes in bakeries, cafes, or grocery stores as well as existing pieces of equipment, its steel base features a black laminate and trim. For optimal results, this unit should be installed in an area that doesn't exceed 75 degrees Fahrenheit or 55 percent relative humidity.

  • Part of the High Volume collection
  • Dual-zone design (refrigerated left side and non-refrigerated right side)
  • Full-service model
  • Suitable for continuous case lineups
  • 4 display levels
  • White, scratch-resistant display deck
  • 3 tiers of adjustable white wire shelves
  • LED illumination
  • Tempered thermopane glass front, top, ends, and doors
  • Tilt-out, sloped front glass
  • 2 rear sliding doors
  • Steel base with black laminate and trim
  • Accessible light switch
  • Adjustable leg levelers
  • Removable display deck, rear doors, shelves, shelf supports, and shelf lights

  • Self-contained unit
  • R513a refrigerant
  • Average operating temperature: 38-40 degrees F
  • Oversized coil and low-velocity fan generate high humidity
  • Thermometer and adjustable temperature controls
  • Insulated, rust-resistant evaporator coil compartment
  • Condenser air filter
  • Condensate evaporator included
  • Refrigeration system accessible from back

  • 77 13⁄100 in. W x 35 31⁄100 in. D x 48 in. H
  • 9 A, 1⁄3 HP
  • 120 V/60 Hz/1 ph, NEMA 5-15P plug included

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Additional Product Information

From The Manufacturer

High Volume Vertical Dual Zone Bakery Case Refrigerated Left Non-Refrigerated Right, 77-1/8"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (3) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, black laminate with black trim, designed for continuous lineups, 1/3 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

Warranty Icon
1-year Parts & Labor; 5-year Compressor
