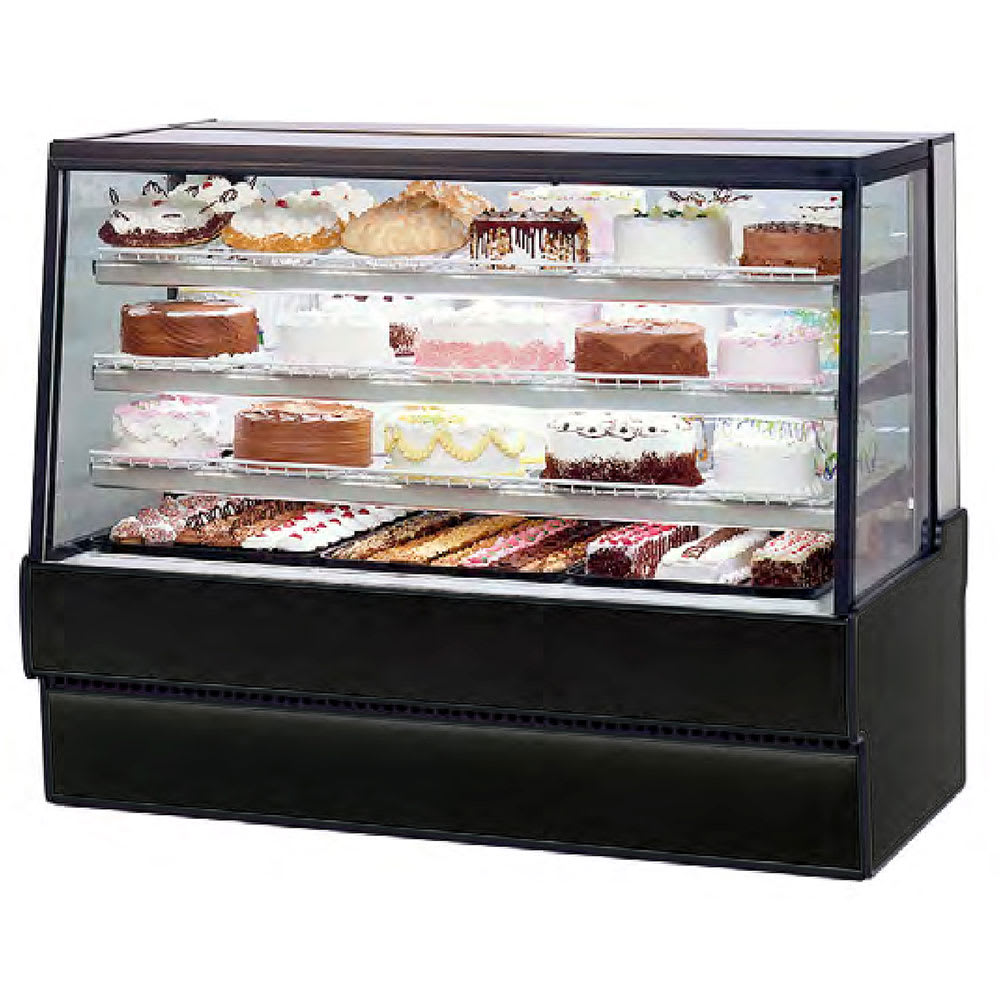

Federal SGR7748 77" Full Service Bakery Case w/ Straight Glass - (4) Levels, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 204-SGR7748BLK • MPN: SGR7748 BLK

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $10,327.16
Call Us For Pricing

Image may not depict product color, inclusions or accessories.

Federal SGR7748 Description


The Federal SGR7748 BLK refrigerated bakery case has a condensate evaporator that provides a self-contained refrigeration system, and since it has this, the unit also has a condenser air filter. The refrigeration system is easy to access for quick servicing. The evaporator coil compartment is corrosion resistant, and the oversized coil and low-velocity fan system keeps the humidity high and products fresh. An adjustable temperature control keeps the range from 38 to 40 degrees Fahrenheit.

The front, thermopane glass is tempered and tilts out so cleaning it is easy, and the top, ends, and doors are also made from tempered thermopane glass. The white display deck is resistant to corrosion and removable for cleaning. Three-tiered, white, wire shelves are adjustable in three positions to hold products in a visually pleasing way. The top and shelf lights are shielded to protect products from broken bulbs and enhance the appearance of food. The Federal SGR7748 BLK refrigerated bakery case is designed to be in a room that will not exceed 75 degrees Fahrenheit in ambient temperature or 55 percent relative humidity.

Product Details

  • White, 3 tiered, wire shelves are adjustable in 3 positions
  • Thermopane, tempered, tilt-out front glass makes cleaning easy
  • Tempered, thermopane glass top, ends, and doors
  • Shielded top and shelf lights protect products and enhance their appearance
  • White display deck is removable and corrosion resistant
  • Holds 16 standard 18 in. x 26 in. pans
  • Designed for multiple cabinets to be lined up together
  • Designed to operate in an environment that does not exceed 75 degrees F or 55 percent relative humidity
  • 120 V/60 Hz/1 ph, 34 HP, 14.2 A
  • Overall Dimensions: 77.13 in. W x 35.31 in. D x 48 in. H
  • UL and UL-EPH listed

Refrigeration System

  • Refrigeration system is accessible from the rear for fast servicing
  • Condensate evaporator provides a self-contained system
  • Low-velocity fan system and oversized coil maintains high humidity and keeps products fresh
  • Evaporator coil compartment is corrosion resistant
  • 38-40 degrees F temperature range is maintained with the adjustable temperature control
  • Condenser air filter ensures the system runs properly
  • R-134A refrigerant maintains cold temperatures

High Volume Refrigerated Bakery Case, 77"W x 35"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, top light & lighted shelves, (3) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, choice of laminate with black trim, designed for continuous lineups, 3/4 HP, UL safety & UL sanitation approved, 120v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Federal SGR7748 Specifications

PDF Spec Sheet
Manufacturer Federal
Access Full Service
Door Type Sliding
Finish Black
Height (in) 48
Length (in) 77
Number of Levels 4
Shelving Type Wire
Style Straight Glass
Refrigeration Type Refrigerated
Warranty 1 year parts & labor/5 years compressor
Hertz 60
Voltage 120
Phase 1
Product Bakery Display Case
Product Type Commercial Refrigeration
Weight 930.00
Federal SGR7748 Certifications
