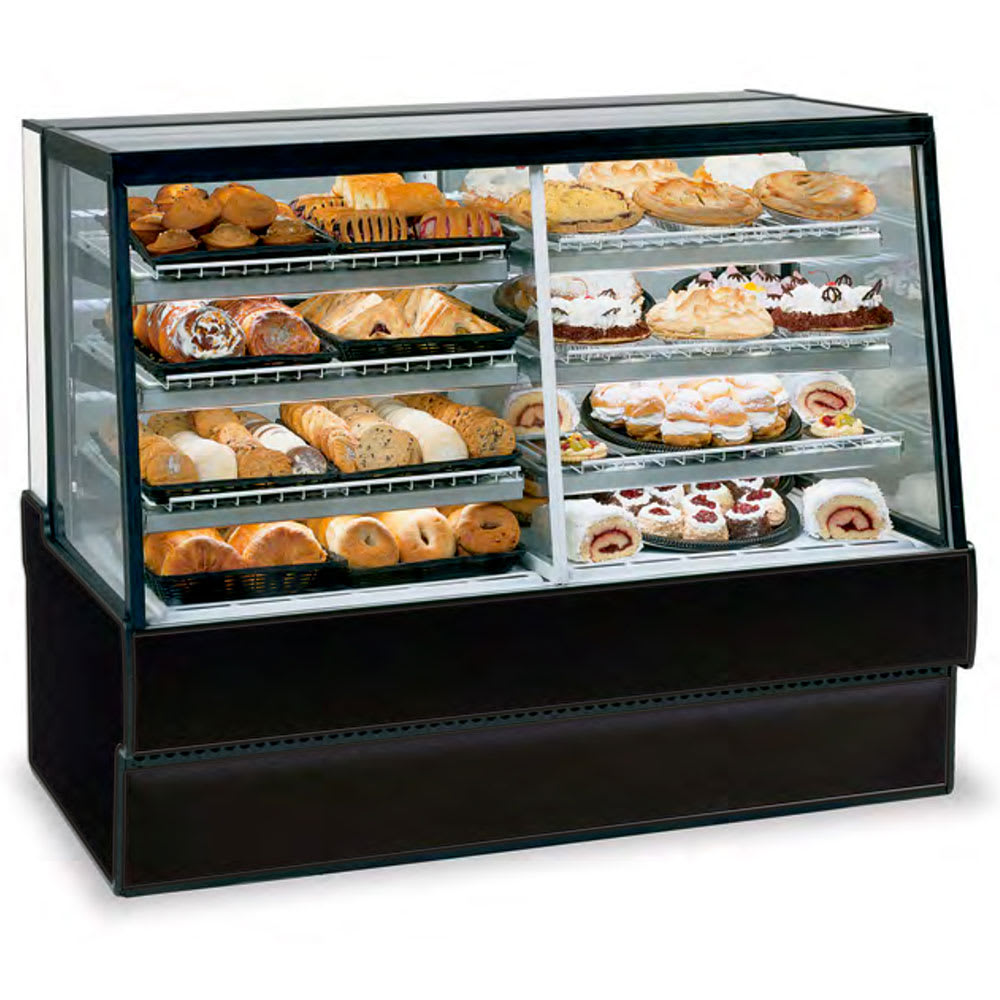

Federal SGR5048DZ 50" Full Service Bakery Case w/ Straight Glass - (4) Levels, 120v

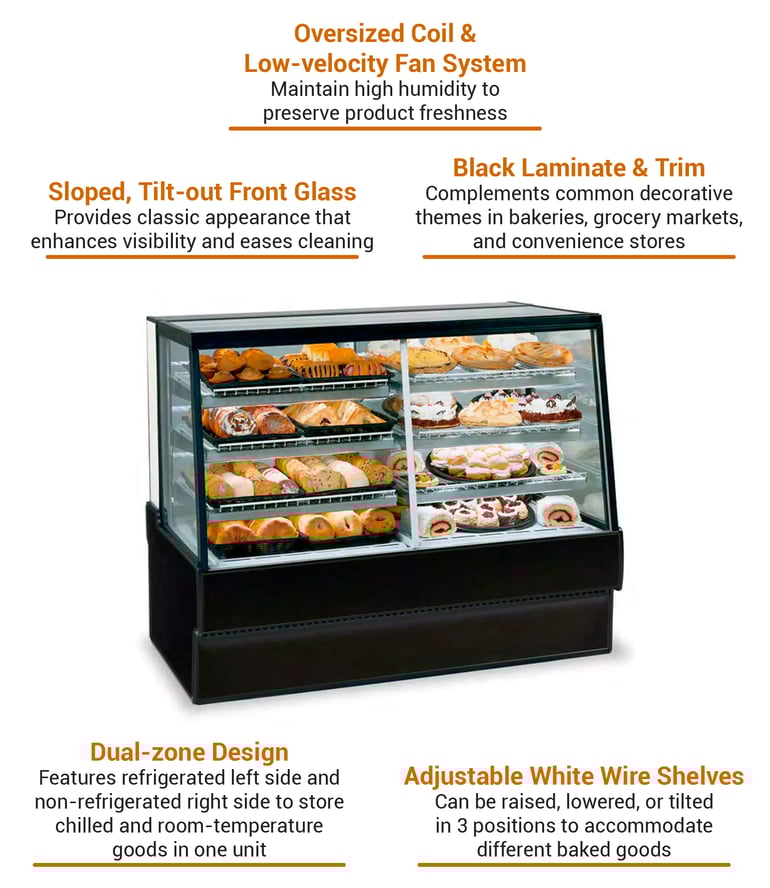

To display baked goods with opposing storage requirements in a single footprint, the Federal SGR5048DZ High Volume bakery case features a dual-zone design with a refrigerated left side and non-refrigerated right. The refrigeration system operates with R513a refrigerant to maintain average internal temperatures between 38 and 40 degrees Fahrenheit. To preserve product moisture, the oversized coil and low-velocity fan system generate humidity. Operators can monitor case temperatures with the thermometer and make adjustments with the temperature controls. This self-contained system includes a condenser air filter, condensate evaporator, and an insulated, rust-resistant evaporator coil compartment. To simplify maintenance, all refrigeration components are accessible from the back of the unit.

To enhance product displays, this dessert case features four tempered thermopane glass sides, interior LED merchandise lights, and a sloped front. Each section features four display levels comprised of a white, scratch-resistant display deck and three white wire shelves that can be raised, lowered, or tilted to accommodate changes in inventory. Because it's a full-service model, staff must retrieve customer purchases through the two rear sliding glass doors. This employee-facing design can also reduce shoplifting and product contamination risks.

The Federal SGR5048DZ bakery display case measures 50³⁄₁₀ inches wide by 35³¹⁄₁₀₀ inches deep by 48 inches high and can be arranged alongside similar merchandisers for continuity. Its resilient steel base sports a black laminate finish and trim to match other pieces of equipment, and for stabilization on irregular flooring, its leg levelers can be adjusted. To simplify cleaning, the front glass can be tilted out, and the rear doors, shelf lights, shelf supports, and shelves can be removed.

Case Details

• Part of the High Volume series
• Full-service unit
• Vertical dual-zone design
• Refrigerated left section and non-refrigerated right
• 4 display levels
• 3 adjustable white wire shelves
• White, scratch-resistant display deck
• LED top light and shelf lights
• Sloped front with tilt-out design
• Tempered thermopane glass top, ends, and doors
• 2 rear sliding doors
• Steel base with black laminate and black trim
• Accessible light switch
• Adjustable leg levelers
• Removable sliding rear doors, shelves, shelf supports, and shelf lights

Refrigeration System

• Self-contained configuration
• R513a refrigerant
• Average operating temperature: 38-40 degrees F
• Adjustable temperature control
• Thermometer
• Oversized coil and low-velocity fan generate high humidity for product preservation
• Insulated, rust-resistant evaporator coil compartment
• Condenser air filter
• Condensate evaporator included
• Refrigeration components accessible from rear

Dimensions & Utilities

• 50³⁄₁₀ in. W x 35³¹⁄₁₀₀ in. D x 48 in. H
• 8 A, ¹⁄₃ HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug included

Product Features

*Free shipping on Federal SGR5048DZ within the 48 contiguous states.

From The Manufacturer

High Volume Vertical Dual Zone Bakery Case Refrigerated Left Non-Refrigerated Right, 50-5/16"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (3) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, black laminate with black trim, designed for continuous lineups, 1/3 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor

Federal SGR5048DZ Specifications

Documents

Spec Sheet

Warranty

Manual
