Federal SGR3648CD 36-1/8" Full Service Deli Case w/ Straight Glass - (2) Levels, 120v

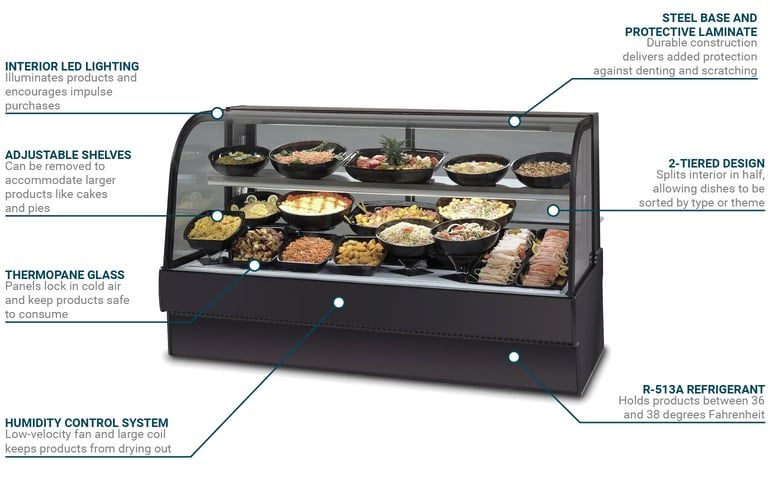

Meant to hold sandwiches, pasta, and sushi at an ideal temperature between 36 and 38 degrees Fahrenheit, the Federal SGR3648CD full service deli case is powered with a R-513A refrigeration system and utilizes an isolated condensate evaporator to reduce liquid build-up on the inside. Because poor humidity can ruin food, it comes with an oversized coil and low-velocity fan to keep products safe and consumable. This is held within a corrosion resilient, rear accessible compartment to reduce the risk of mechanical failure from rust and allow easy access for service. To ensure operators keep the cooler at the ideal temperature range, it comes with a built in thermometer and easy-to-adjust temperature controls.

Made of steel coated in a durable laminate, the Federal SGR3648CD refrigerated deli case is designed to resist denting and scratching because of its sturdy construction. Meant for establishments with moderate traffic, it measures 36¹³/₁₀₀ inches wide by 35³¹/₁₀₀ inches deep by 48 inches high. Its thermopane glass panels lock in cold air, while its LED interior lighting system keeps products in view and encourages impulse purchases. Constructed with utility in mind, its two levels are separated with an adjustable shelf, and it utilizes a rear accessible door for operators to quickly reach in and remove products. The edges of its body use a neutral black trim, and it rests on a series of legs designed for stabilization on uneven surfaces.

Product Details

• Laminate-coated steel base and display deck
• 2-tiered design separated by 1 adjustable shelf
• Removable, scratch- and rust- resistant white display plate
• 3500K LED lighting
• Accessible light switch and temperature control
• Black body features matching trimming along edges
• Thermopane panels along front, sides, and removable sliding doors
• Tilt-out front panel
• Supported by adjustable legs

Refrigeration Details

• Self-contained R-513A refrigerant with durable condensate evaporator
• Includes condenser air filter
• Low-velocity fan and oversized coil maintain high humidity
• Evaporator coil department uses corrosion-resistant steel
• Temperature holding range: 36-38 degrees F

Dimensions & Utilities

• 36¹³/₁₀₀ in. W x 35³¹/₁₀₀ in. D x 48 in. H
• 120 V/60 Hz/1 ph
• 9 A, ¹/₃ HP

Product Features

*Free shipping on Federal SGR3648CD within the 48 contiguous states.

From The Manufacturer

High Volume Refrigerated Deli Case, 36-1/8"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelf, adjustable stainless steel mezzanine shelf, glass sliding rear doors, white interior, tempered glass ends, removable rear wrapping board, black laminate, black trim, designed for continuous lineups, 1/3 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor
