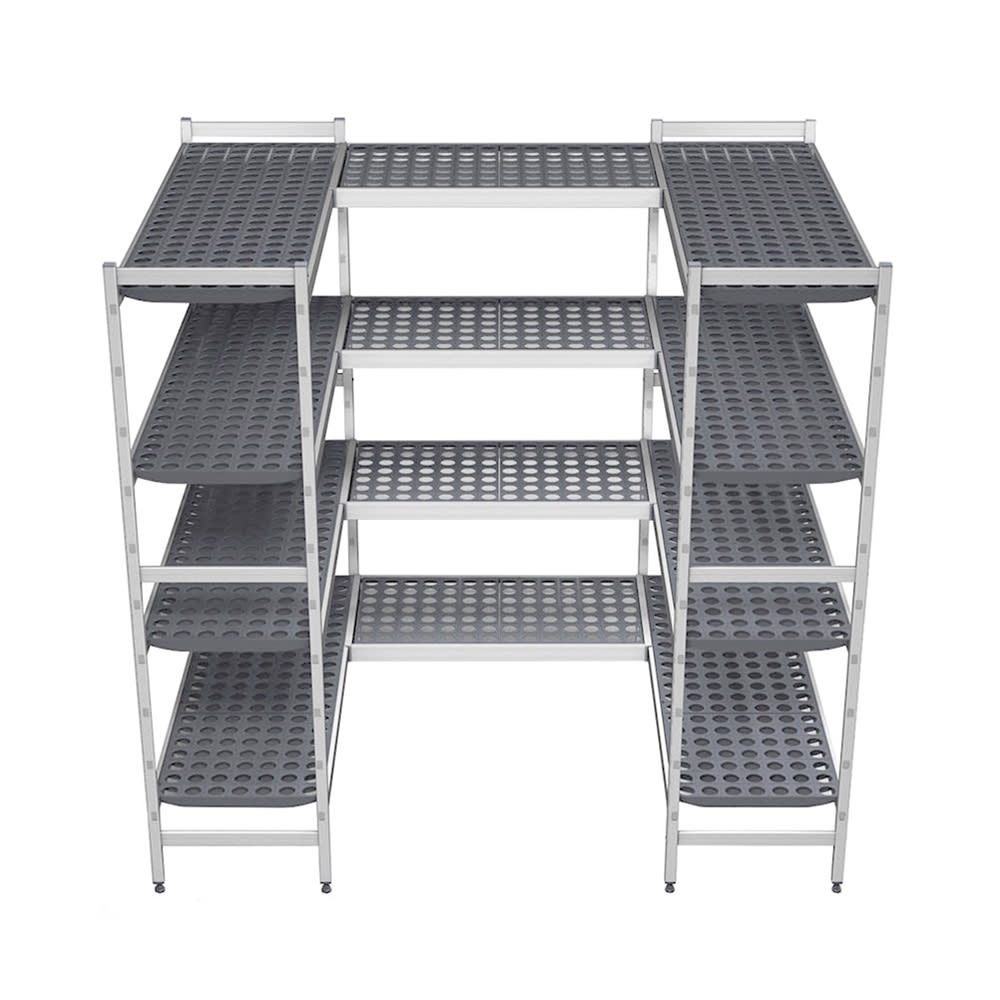

Fermod KAT-8X14-N Heavy-Duty Shelving Unit for 8' x 14' Walk-In Coolers/Freezers - (4) Levels, Aluminum/Polymer, Gray
$3,985.20 /Each
Fermod KAT-8X14-N Description
The Fermod KAT-8X14-N shelving kit is designed for Norlake and Master-Bilt 8-foot by 14-foot walk-in coolers, providing a durable and adaptable shelving solution. Constructed of 20-micron deep anodized aluminum, this shelving system provides strength and corrosion resistance. Built for tool-free assembly, the system features vented polymer inserts, removable horizontal shelf rails, and adjustable composite feet. With posts offering 11 standard positions, each shelf supports up to 800 pounds, while two uprights hold up to 2,000 pounds. This configuration includes two shelving start units and four extension kits, along with four shelves and eight corner connectors.
Product Details
- Compatible with Norlake and Master-Bilt 8-ft. x 14-ft. walk-in coolers
- 800-lb. capacity per shelf
- 2,000-lb. capacity between 2 uprights
- 20-micron deep anodized aluminum construction
- Tool-free assembly with removable shelf rails
- Posts with 11 standard positions
- Adjustable composite feet
- (2) 42-in. L x 22-in. D x 71-in. H shelving start units
- (4) 59-in. L x 22-in. D x 71-in. H extension kits
- (4) 42-in. x 22-in. shelves with vented polymer inserts
- (8) 22-in. corner connectors
- Gray
- Overall dimensions: 158 in. L x 85 in. W x 71 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Fermod Customized Layout for Norlake & Master-Bilt 8'x14' Walk-In Cooler, includes (2) 22" deep x 42" length x 71" high shelving start units, (4) 22" deep x 59" length x 71" high extension kits, four 22" deep x 42" shelves, (8) 22" corner connectors, tool-free assembly, full unit including (4) sets of (2) horizontal shelf rails and removable vented polymer inserts with pre-installed adjustable composite feet, posts are pre-drilled with 11 standard positions, 800 lb. weight capacity per shelf with a 2000 lb. weight capacity between two uprights, 20 micron deep anodized aluminum, NSF certified
Fermod KAT-8X14-N Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Fermod |
| Color | Gray |
| Component | Full Unit |
| For Use With | Norlake & Master-Bilt 8' x 14' Walk-In Coolers |
| Length (ft) | 13.17 |
| Number of Shelves | 4 |
| Product | Shelving Units |
| Product Type | Storage & Transport |
| Shelving Type | Polymer |
| Size | 168" x 96" |
| Unit Height (in) | 71 |
| Unit Length (in) | 158 |
| Unit Width (in) | 85 |
| Warranty | Lifetime Warranty Against Rust & Corrosion |
| Width (ft) | 7.08 |
| Weight | 357.60 |
