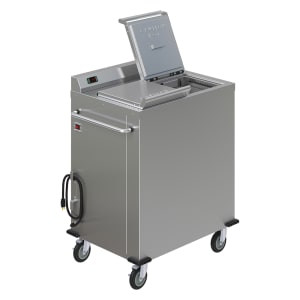

Dinex DXPSBH2P 35 1/4" Mobile Heated Plate Dispenser w/ (2) Columns - Stainless, 240v/1ph

The Dinex DXPSBH2P heated plate dispenser measures 35³/₁₀ inches wide with two self-leveling adjustable cylinders that fit in the silo tubes; each tube can hold 75 china plates—a total of 150 plates for all-day service. This mobile unit rolls on four 5-inch swivel casters, and through movement, the two soft-close hinged lids protect wares from debris. The push handle eases steering when needed, which is a useful design for packed service floors. It’s made of stainless steel to establish a durable, dent-resistant design, and corner bumpers further add protection.

Simple operation is granted with the Dinex DXPSBH2P mobile heated plate dispenser’s thermostatic control system, which have an adjustable range from 180 to 300 degrees Fahrenheit and clear temperature readouts. This unit is ideal for both low- and high-heat applications via an accurate forced-air heating system. Complete heat-up is achieved in 75 to 90 minutes, and initial heat up when the unit is fully loaded is—at most—two hours.

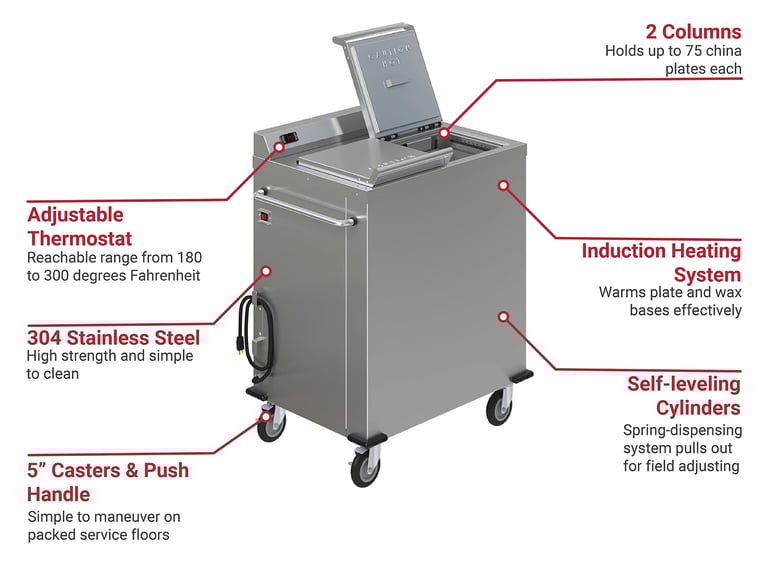

Product Details

• 2 self-leveling adjustable cylinders
• Accommodates 75 china plates per silo
• 2 soft-close hinged lids
• Enclosed base
• Fully insulated top and sides
• Stainless steel dispenser mechanisms have adjustable spring
• Push handle
• 304 stainless steel exterior
• Corner bumpers
• (4) 5-in. swivel plate casters

Thermostatic Controls

• Ideal for low- and high-heat applications
• Adjustable thermostat
• Forced-air heating
• Temperature range: 180-300 degrees F
• Complete heatup in 75 to 90 minutes
• Clear temperature readouts

Dimensions & Utilities

• 35¹/₄ in. W x 24³/₄ in. D x 43 in. H
• 13.3 A, 3,200 W
• 240 V/60 Hz/1 ph, NEMA 6-20P plug

Product Features

*Free shipping on Dinex DXPSBH2P within the 48 contiguous states.

From The Manufacturer

Colossus Heated Plate Dispenser, mobile, convection, (2) self-leveling adjustable cylinders, accommodates (75) 10-1/4" dia. china plates per silo, adjustable digital thermostat, thermostatic controls maintain plates at 180°F, 75 - 90 minute heating time, (2) soft-close hinged lids, fully insulated top & sides, stainless steel dispenser mechanisms with adjustable springs, push handle, heavy duty 304 stainless steel exterior, enclosed base, corner bumpers, (4) 5" swivel plate casters (2 with brakes), 3200 watts, 13.3 amps, 240v/60/1-ph, cord, NEMA 6-20P

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Dinex DXPSBH2P Specifications

Documents

Spec Sheet
