Pitco SSH75-3FD Gas Fryer - (3) 75 lb Vats, Floor Model, LP

The high-temperature safety limit switch in the Pitco SSH75-3FD gas fryer ensures safe operation by automatically shutting off the heat when temperatures exceed safe levels. This Solstice Supreme™ series fryer features (3) 75-pound full tanks, offering a total oil capacity of 225 pounds for high-volume frying. The Solstice™ Filter Drawer System simplifies oil management by capturing debris and extending oil life, reducing manual maintenance while maintaining food quality. Its solid-state controls include a melt cycle and boil-out mode to assist with cleaning, and the under-fryer drawer filtration system allows operators to drain and refill oil efficiently. A matchless ignition system automatically lights the pilot when powered on, eliminating the need for manual relighting.

Built with 3-inch curved drain lines, the Pitco SSH75-3FD gas fryer minimizes splashing during oil disposal and gas a swiveling drain spout for precise draining. Its self-cleaning burner system prevents carbon buildup, extending the unit’s lifespan and maintaining consistent heat distribution. A DVI drain valve interlock shuts off the heat when the drain is open, preventing oil from scorching. The stainless steel tank, front, and sides enhance durability and resist corrosion, making the fryer suitable for demanding kitchen environments. A tube rack directs crumbs and debris into a cool zone to maintain oil quality, while a removable basket hanger allows for tool-free maintenance. The unit stands on adjustable 10-inch legs for stability and elevated cleaning access.

Product Details

• Solstice Supreme series
• Floor model
• Prepackaged fryer system with Solstice Filter Drawer System
• 3 frypots: 75-lb. oil capacity per tank
• Total oil capacity: 225 lb.
• Stainless steel tank, front, and sides
• High-temperature safety limit switch

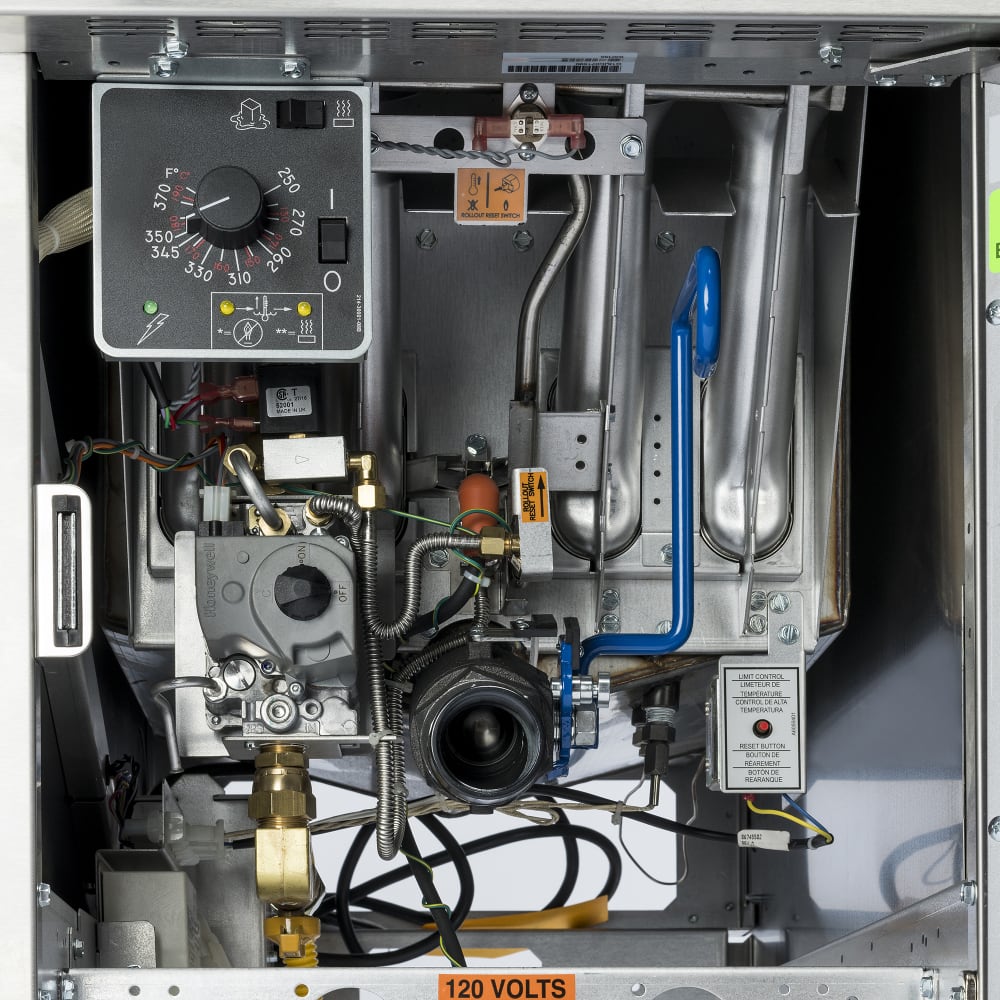

• Solid-state controls with melt cycle and boil-out mode
• Patented Solstice Burner Technology without blower or ceramics
• Self-cleaning burner with downdraft protection
• Matchless ignition with DVI drain valve interlock
• Extra-large 3-in. curved drain spout
• 1-¹/₄-in. full port drain valve
• Integrated flue deflector
• Tube rack
• Removable basket hanger
• 10-in. adjustable legs

Filtration System

• Under-fryer drawer filtration system
• Easy two-step filtering process
• 8-gpm filter pump
• Self-aligning filter connection
• Rear oil return
• Stainless steel filter pan with rear wheels
• Self-storing filter pan lid

Dimensions & Utilities

• Frying area: 18-in. W x 18-in. D per frypot
• Cook depth: 3¹⁄₄ - 5-in.
• Powered by liquid propane
• 105,000 BTU per frypot (total 315,000 BTU)
• 36.6 kW

*Free shipping on Pitco SSH75-3FD within the 48 contiguous states.

From The Manufacturer

Solstice Supreme™ High Efficiency Prepackaged Fryer System with Solstice™ Filter Drawer System, LP gas, (3) 75 lb. oil capacity full tanks, solid state controls, boil out & melt cycle, drain valve interlock, matchless ignition, self-clean burner, downdraft protection, stainless steel tank, front & sides, under-fryer drawer filtration, total 315,000 BTU (-FFF), ENERGY STAR®, CSA Flame, CSA Star, NSF, CE

*Image may not depict product color, inclusions or accessories.

Pitco SSH75-3FD Specifications

Spec Attribute	Spec Value
Manufacturer	Pitco
BTU per Fryer	105000
Capacity (lbs)	225
Frypot Style	Tube Type
Gas Type	LP
Heat	Gas
Number of Fry Pots	3
Oil Capacity (lb)	225
Oil Capacity/Fryer (lb)	75
Rating	Better
Series	Solstice Supreme™
Product Type	Cooking Equipment
Product	Gas Fryers
Type	Floor Model
Warranty	1-year Limited Parts & Labor
Weight	843.00
