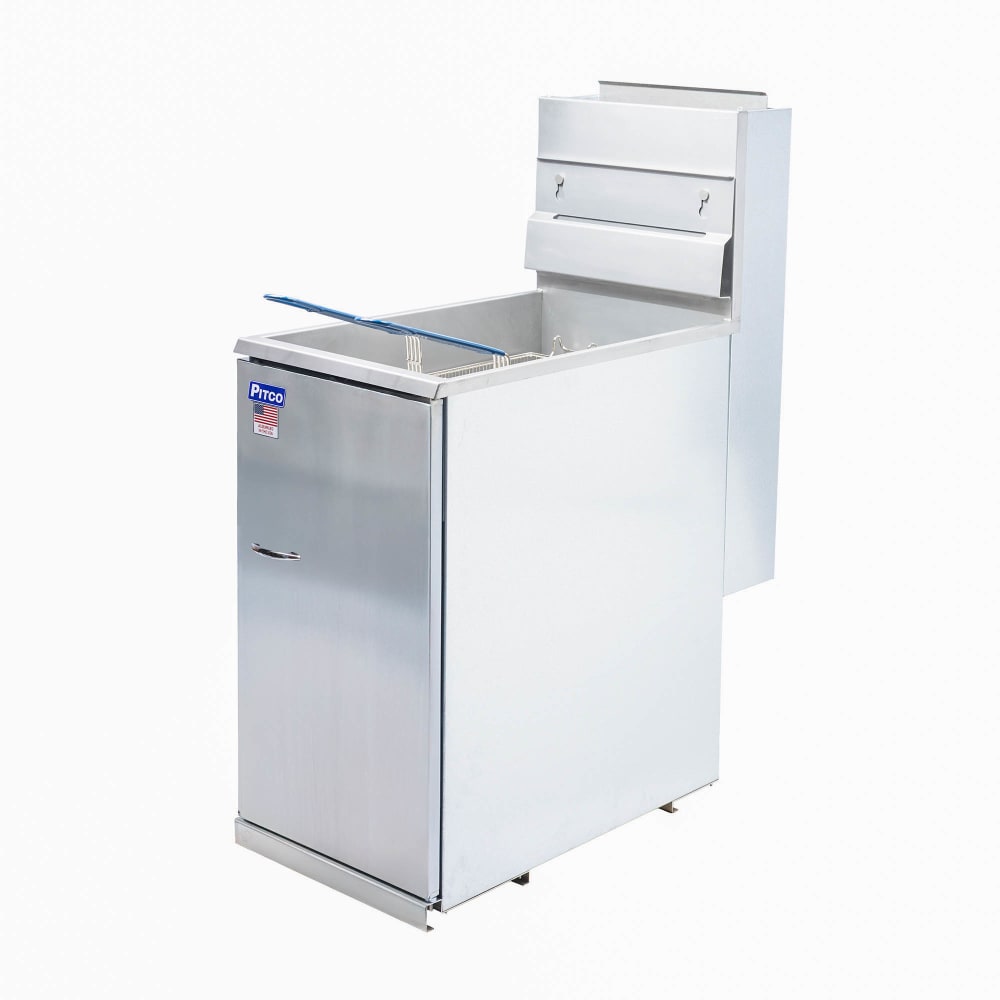

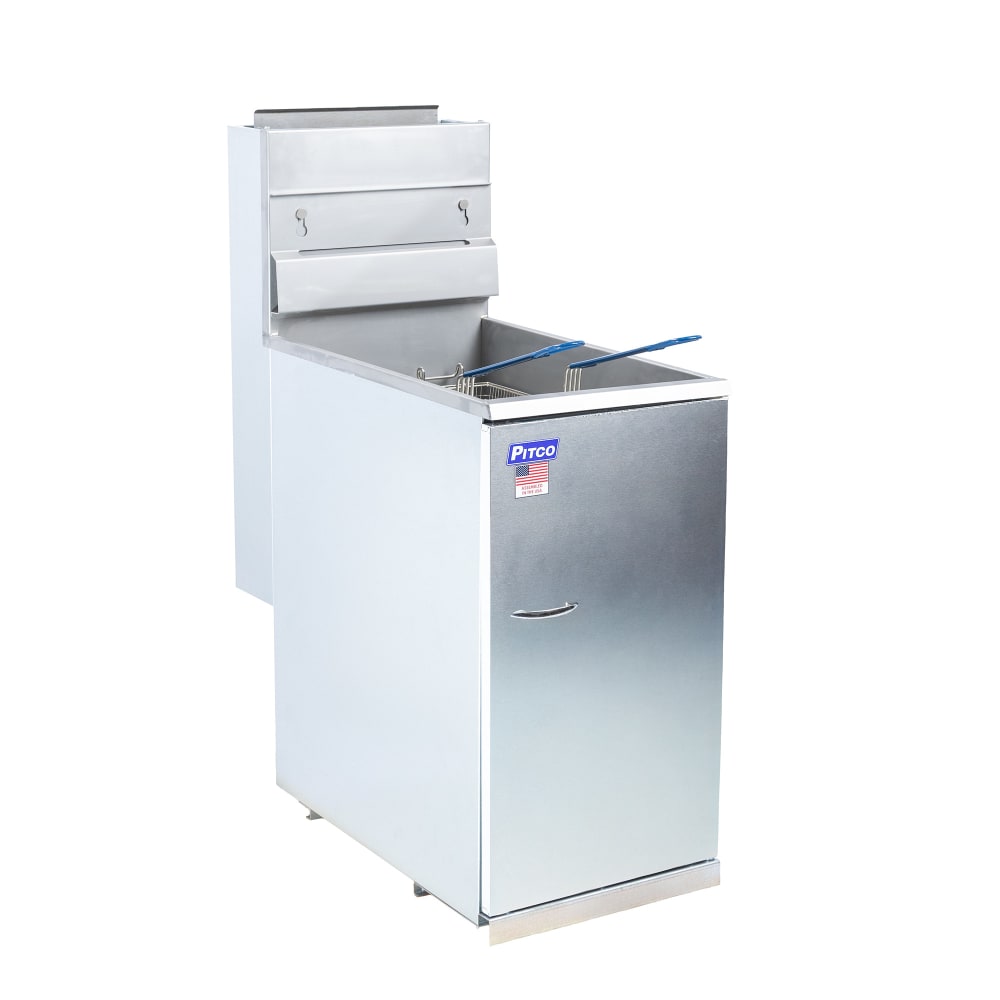

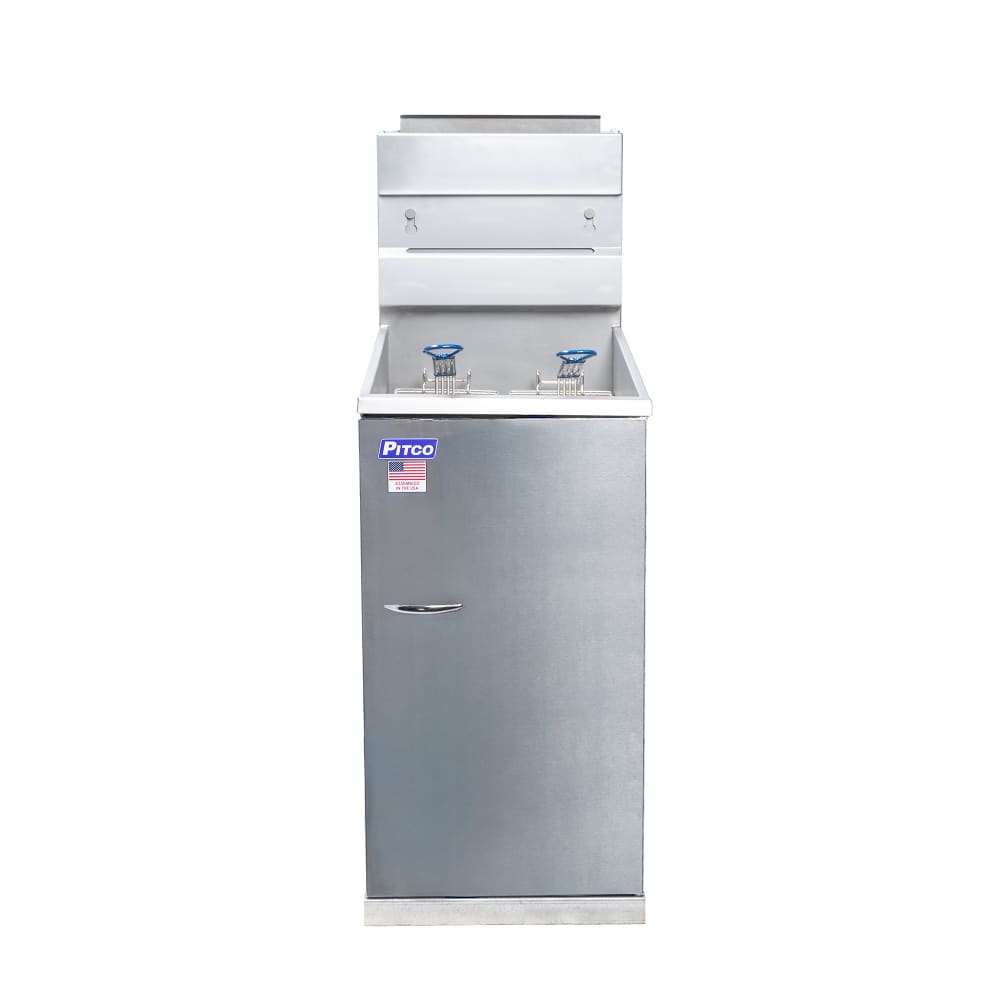

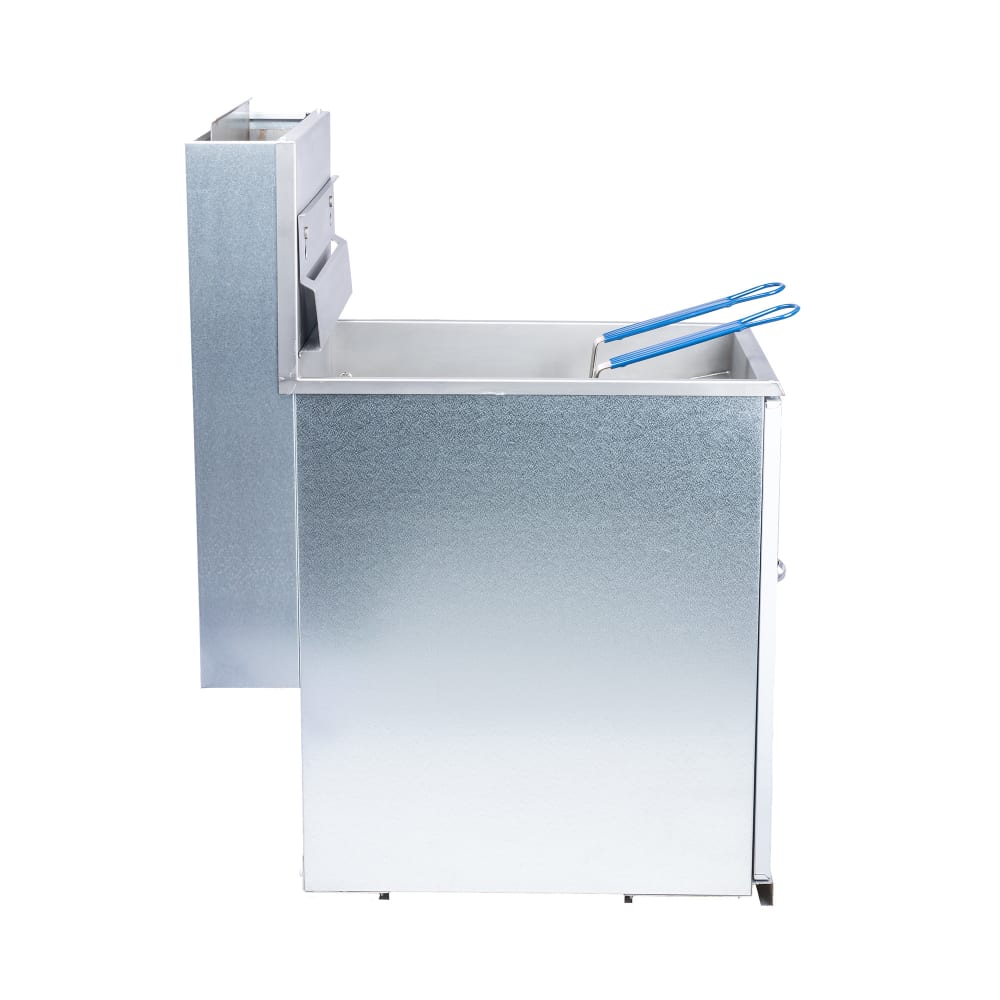

Pitco 40D Gas Fryer - (1) 45 lb Vat, Floor Model, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 169-40DNG • MPN: 40D NG
Ships Free

IN STOCK: Ships in 1 Business Day

(1 review)Write a Review
Retail Price: $960.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Pitco 40D Description


The Pitco 40D fryer, designed with a rear-located 34-inch NPT valve for use with natural gas, has a width of 1518 inches that allows it to fit into kitchen layouts with a small available footprint. This model has the capacity to hold between 40 and 45 pounds of oil and provides a frying area that measures 14 inches by 14 inches with a 4-inch depth, making this fryer ideal for foodservice operations with a medium-volume demand for fried foods. The deep cool zone, which contains at least 20 percent of the total oil, catches crumbs and sediments to prevent them from burning, allowing you to fry heavily-breaded favorites like mozzarella sticks, chicken tenders, and onion rings.

This Pitco fryer is equipped with an atmospheric burner system and four tubes with mounted baffles to produce heat and combustion efficiently. This tube-fired fryer has a temperature range of 200 to 400 degrees Fahrenheit and an upper limit switch that shuts off the gas flow if the fryer begins to exceed safe temperatures. The comprehensive gas control valve will also shut off the gas flow if the pilot flame goes out. The Pitco 40D comes standard with a stainless steel tank, which is welded and given a super-smooth finish that makes it easy to clean, as well as a cabinet with a stainless steel front and door and a galvanized back and sides.

Product Details

  • Commercial floor model gas fryer
  • For use with natural gas
  • Ideal for medium-volume production
  • Holds up to 45 lbs. of oil

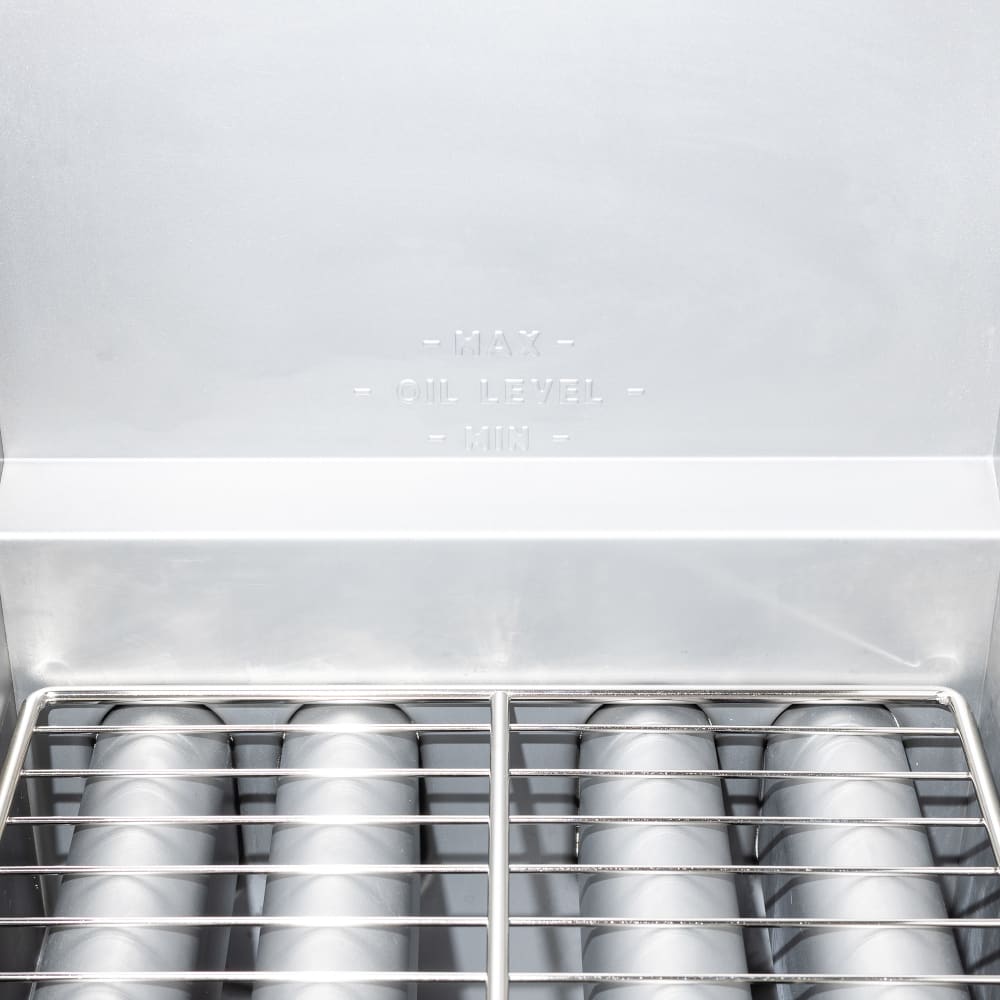

  • Deep cool zone catches sediment from breaded foods
  • Offers a temperature range of 200-400 degrees F

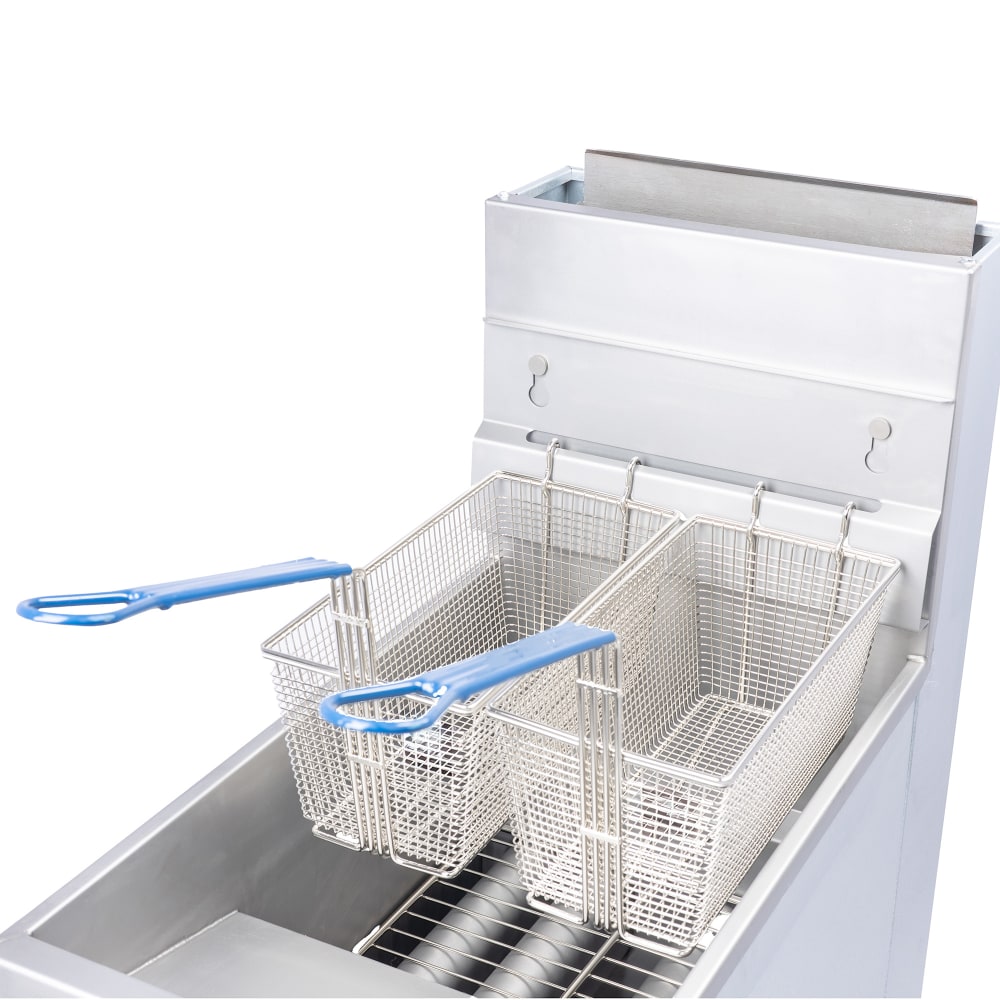

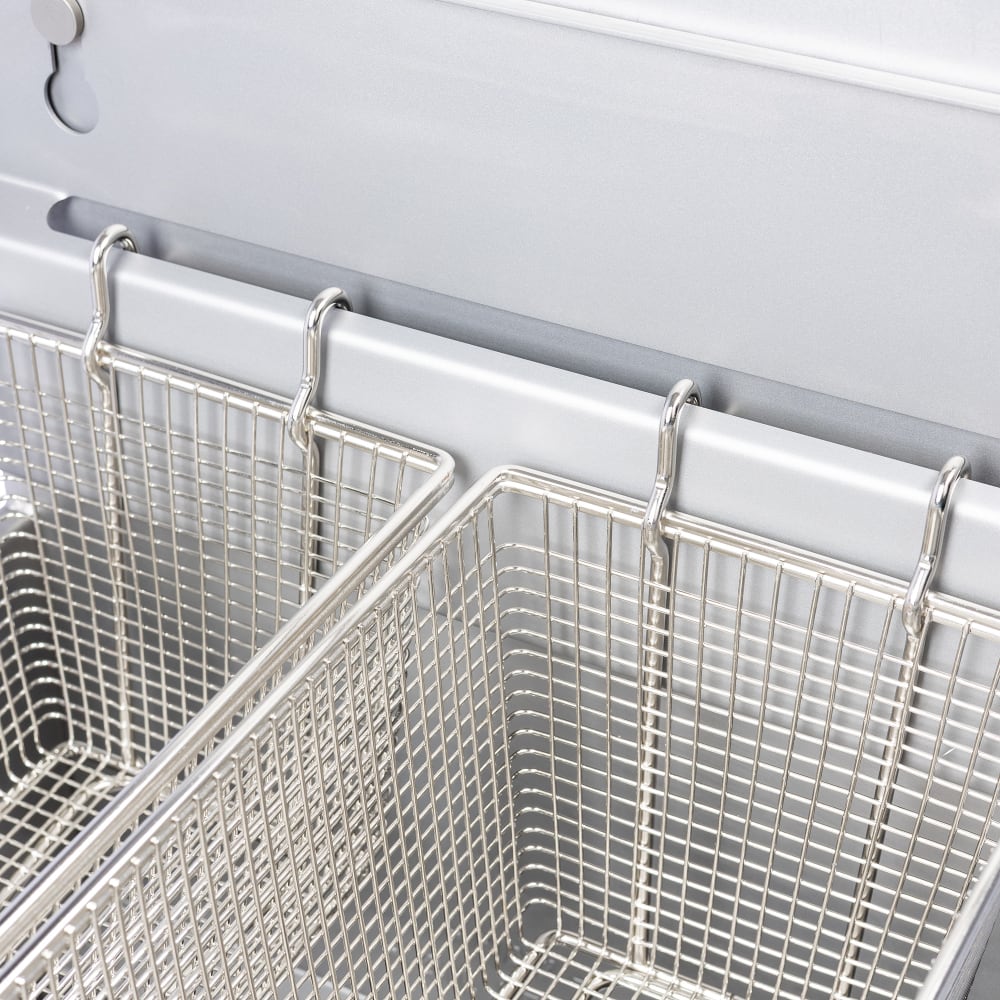

  • Basket hanger is removable for hassle-free cleaning
  • Frying area measures 14 in. W x 4 in. D x 14 in. H

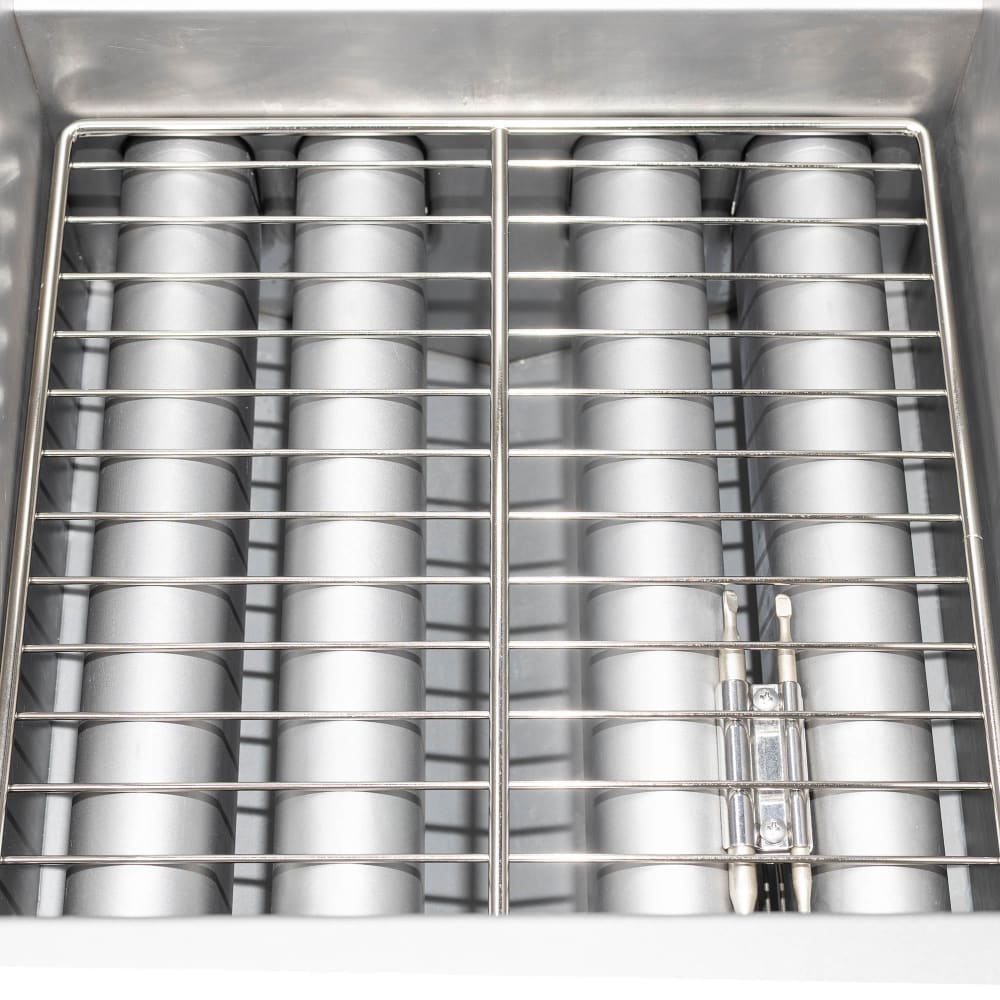

  • Tube rack provides a level basket surface for consistent frying

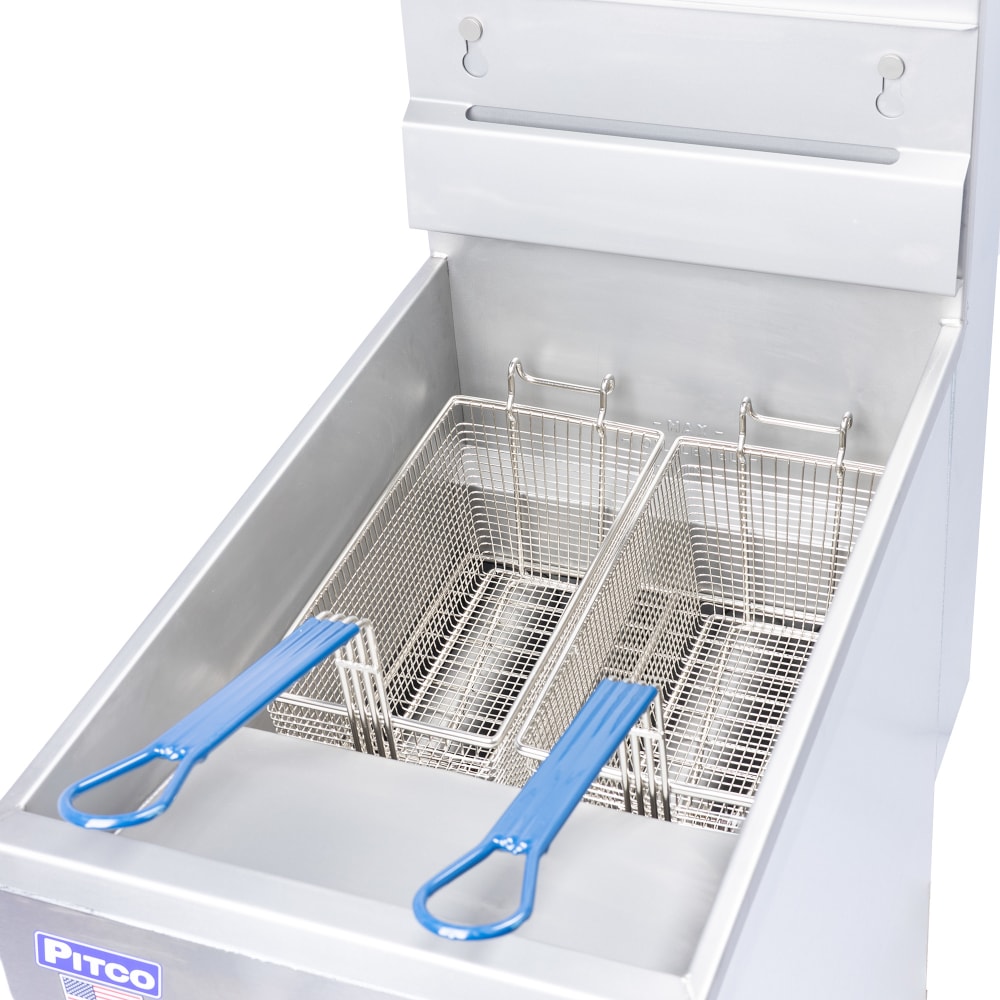

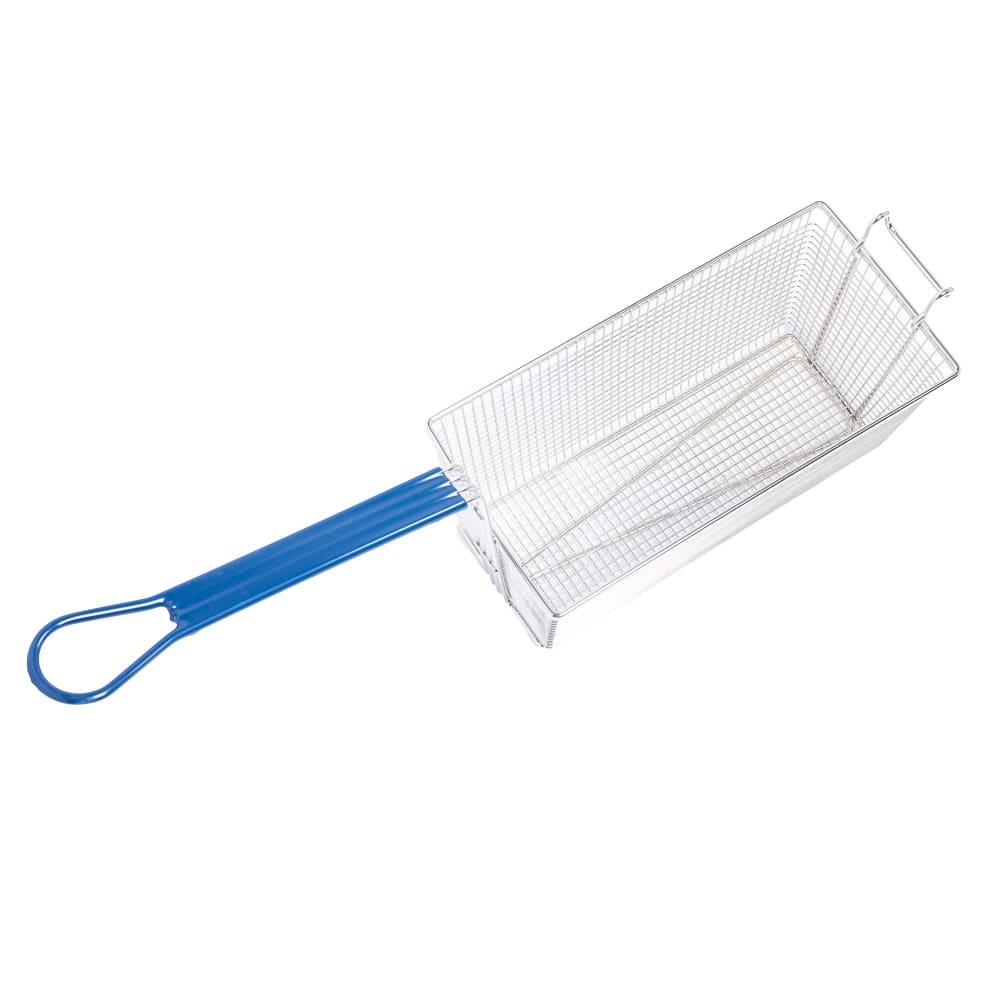

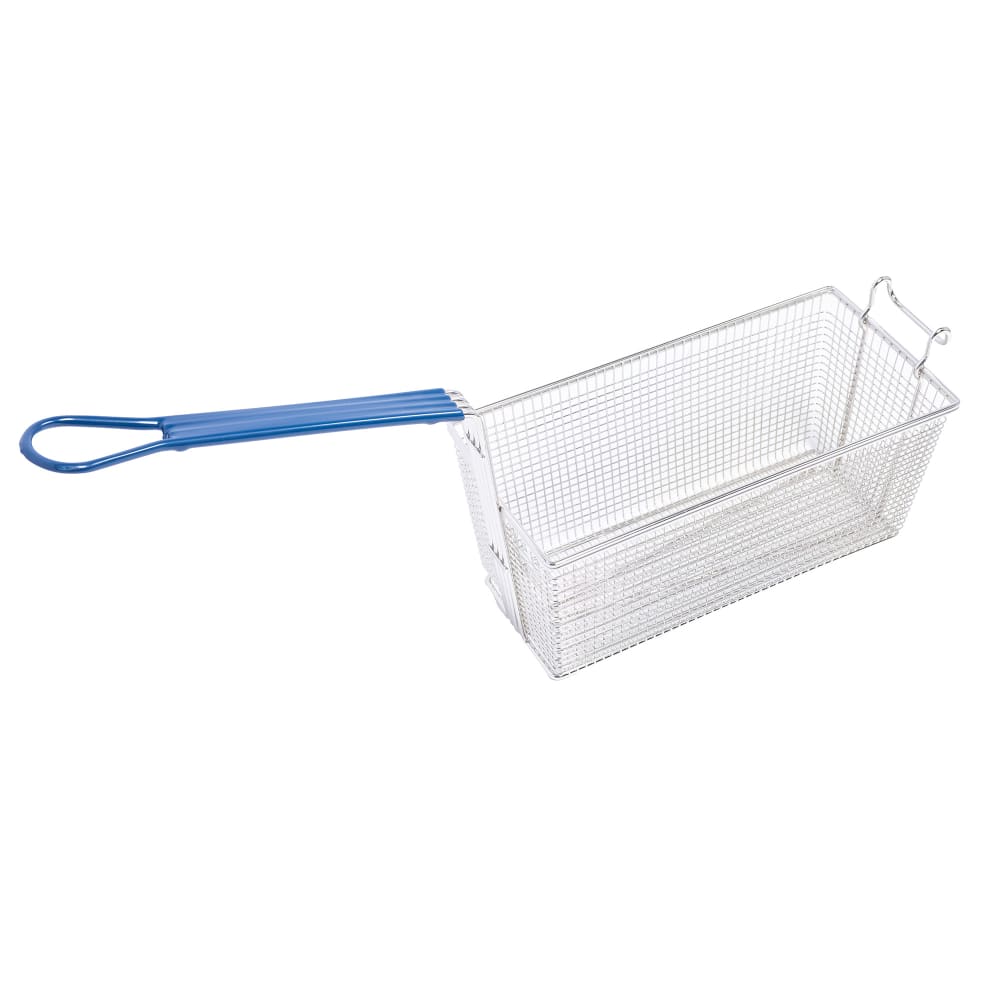

  • Comes standard with twin fry baskets, one drain extension, and a clean-out rod
  • 6-in. legs are adjustable, providing level installation and floor clearance
  • Stainless steel tank is welded and given a smooth finish

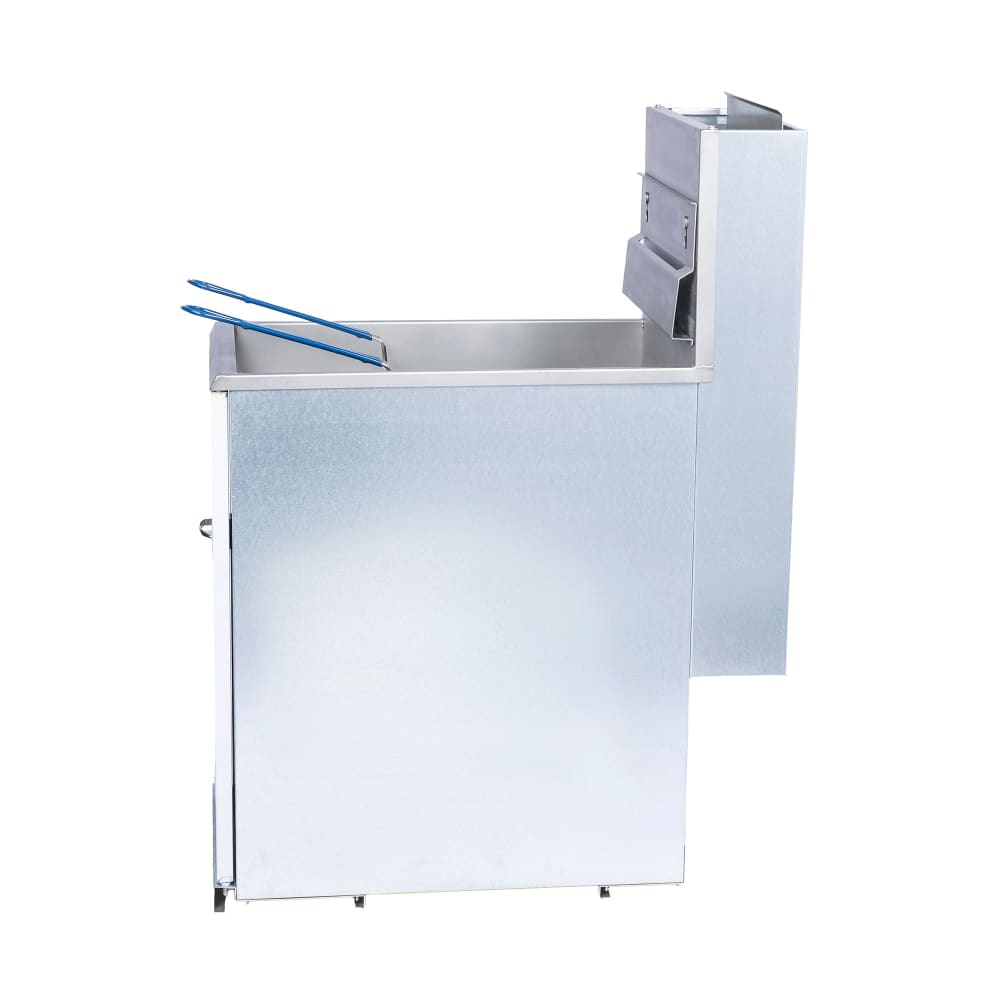

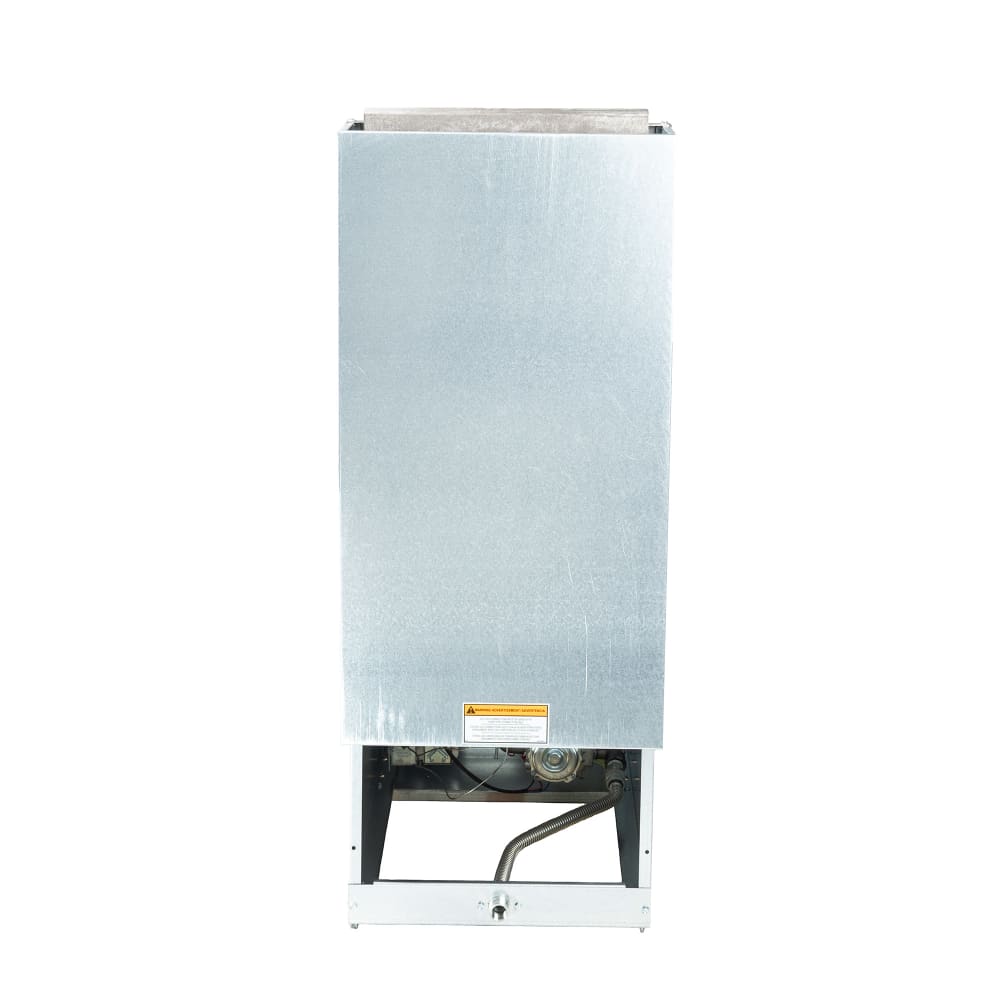

  • Cabinet construction includes stainless steel front and door, galvanized sides and back
  • Overall Dimensions: 1518 in. W x 30932 in. D x 47932 in. H
  • CSA Listed and NSF Certified

Product Features

Pitco 40dng Features

Operation and Controls

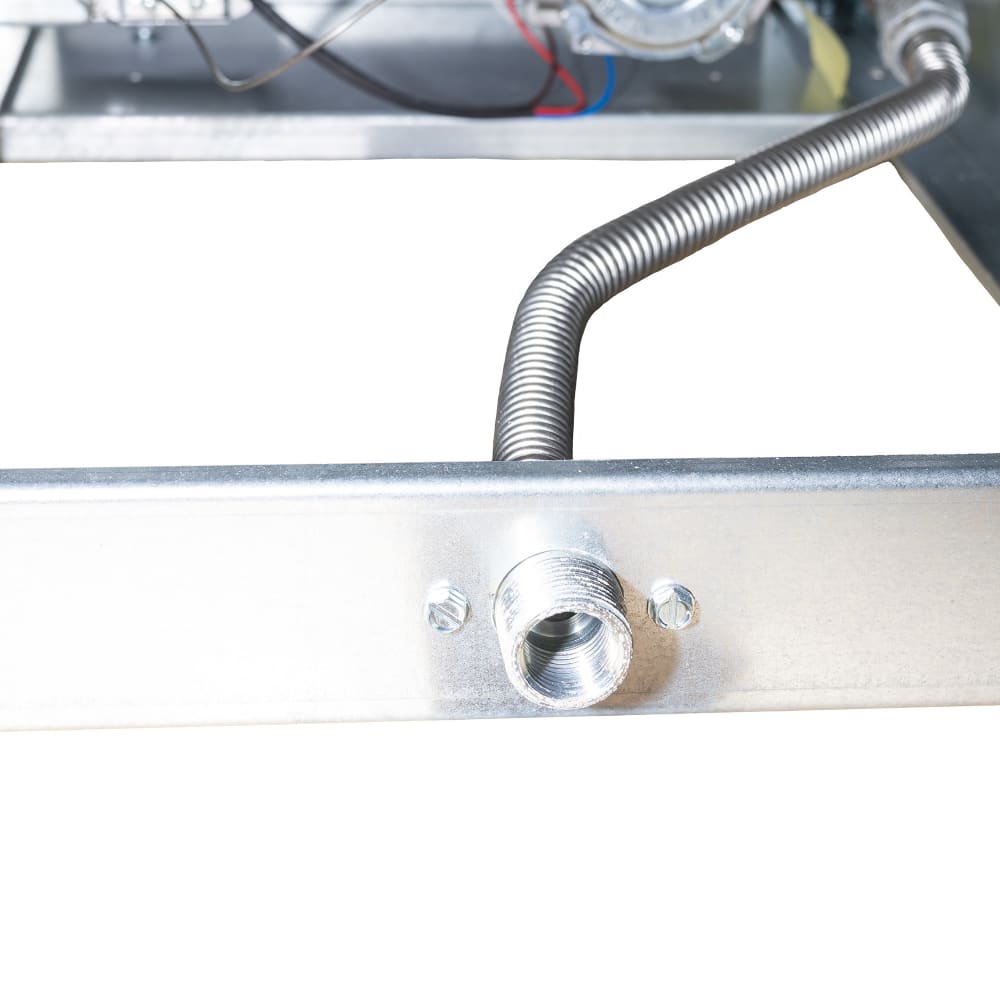

  • 34-in. NPT gas supply valve is rear-located

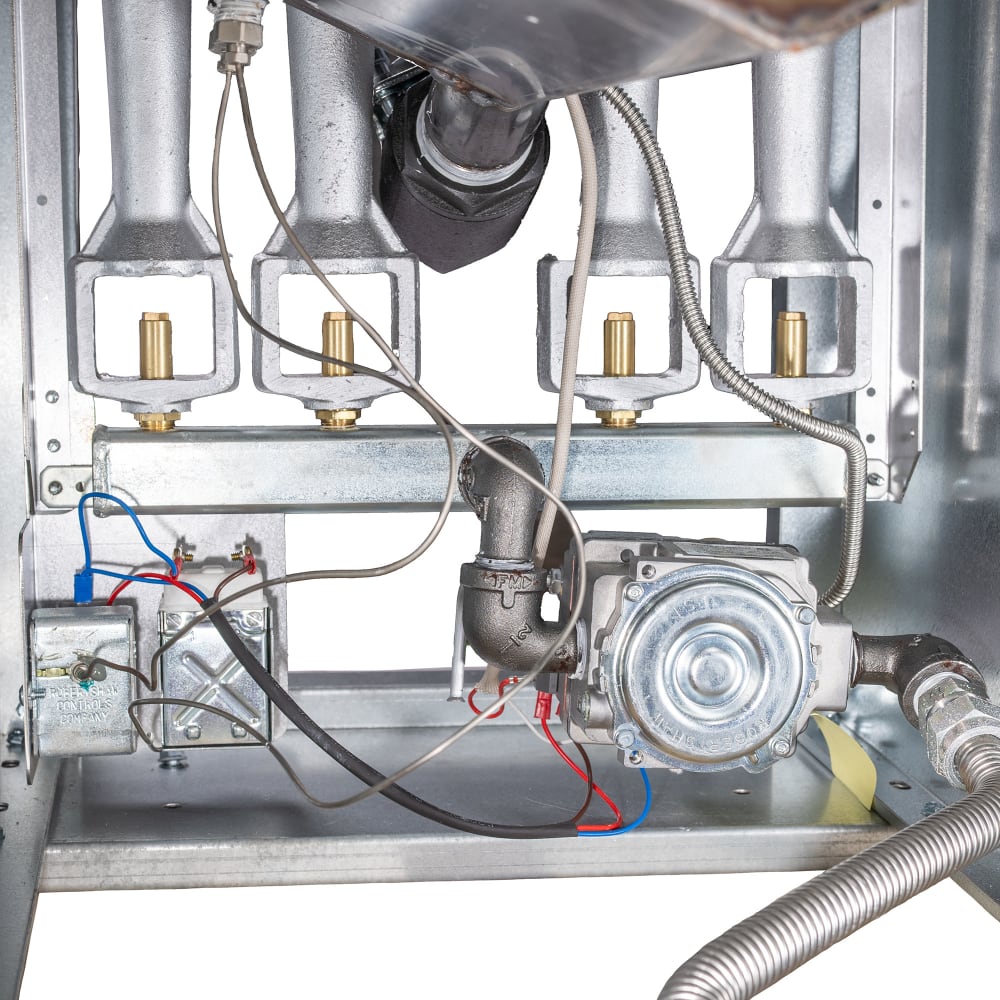

  • Tube-fired fryer uses an atmospheric burner system
  • 4 stainless steel tubes are mounted with alloy stainless steel baffles
  • Designed to provide efficient heat and combustion
  • Flue deflected is integrated and directs heat to hood vent
  • Flame is instantly provided by a standing pilot

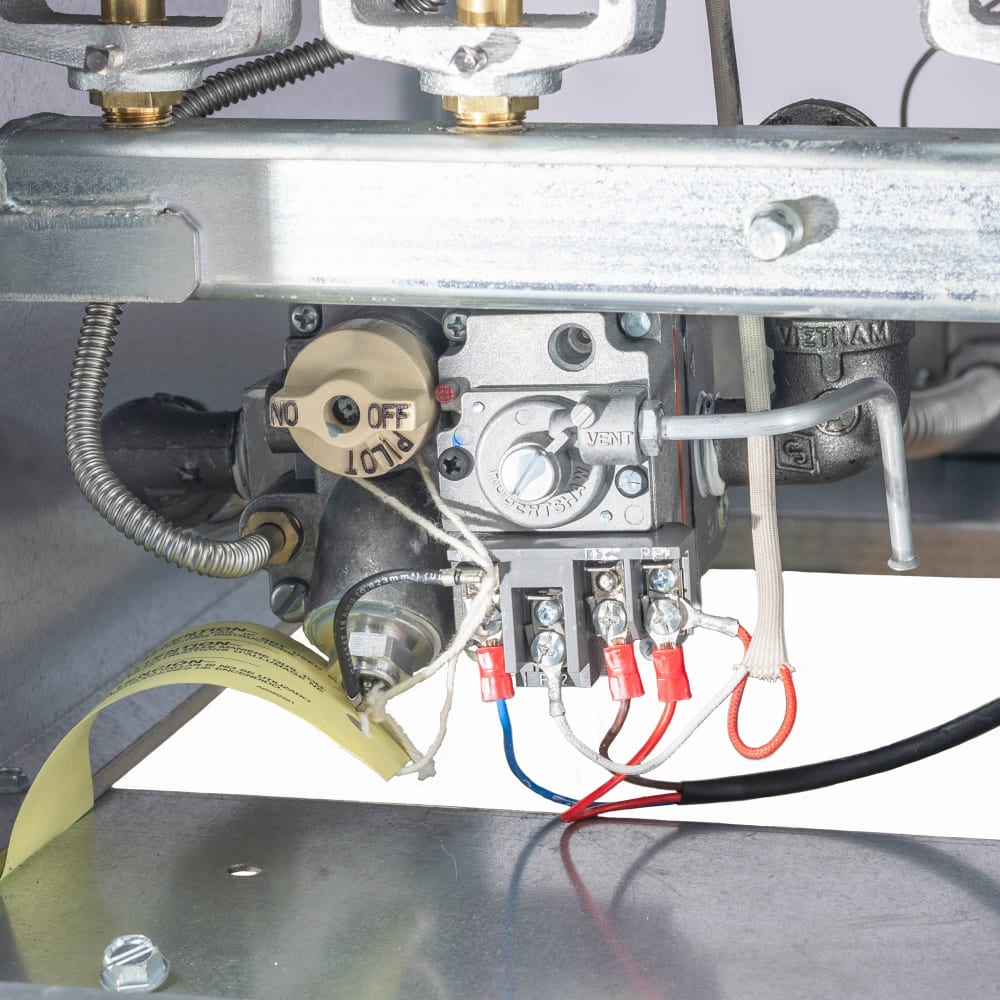

  • Gas control valve offers comprehensive operation
  • Gas flow shuts off if pilot flame goes out
  • Upper limit shuts gas off if fryer exceeds safe temperatures

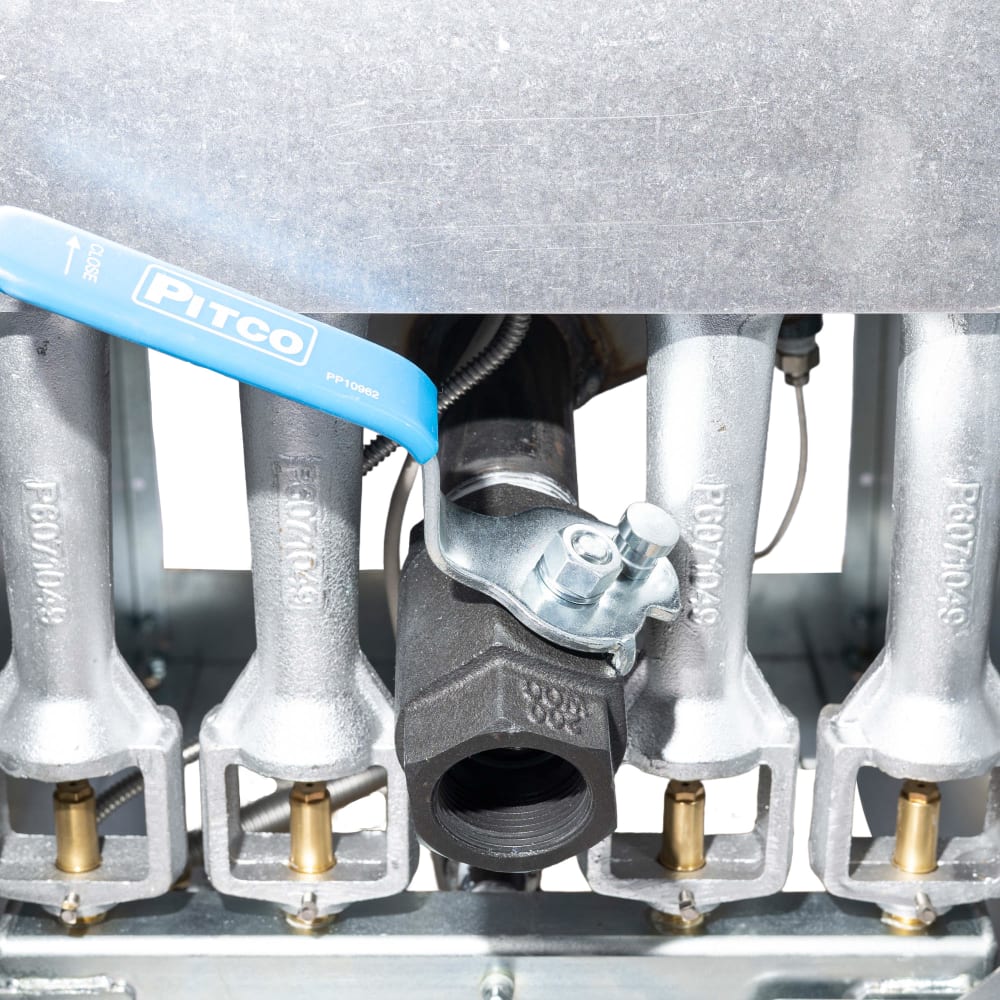

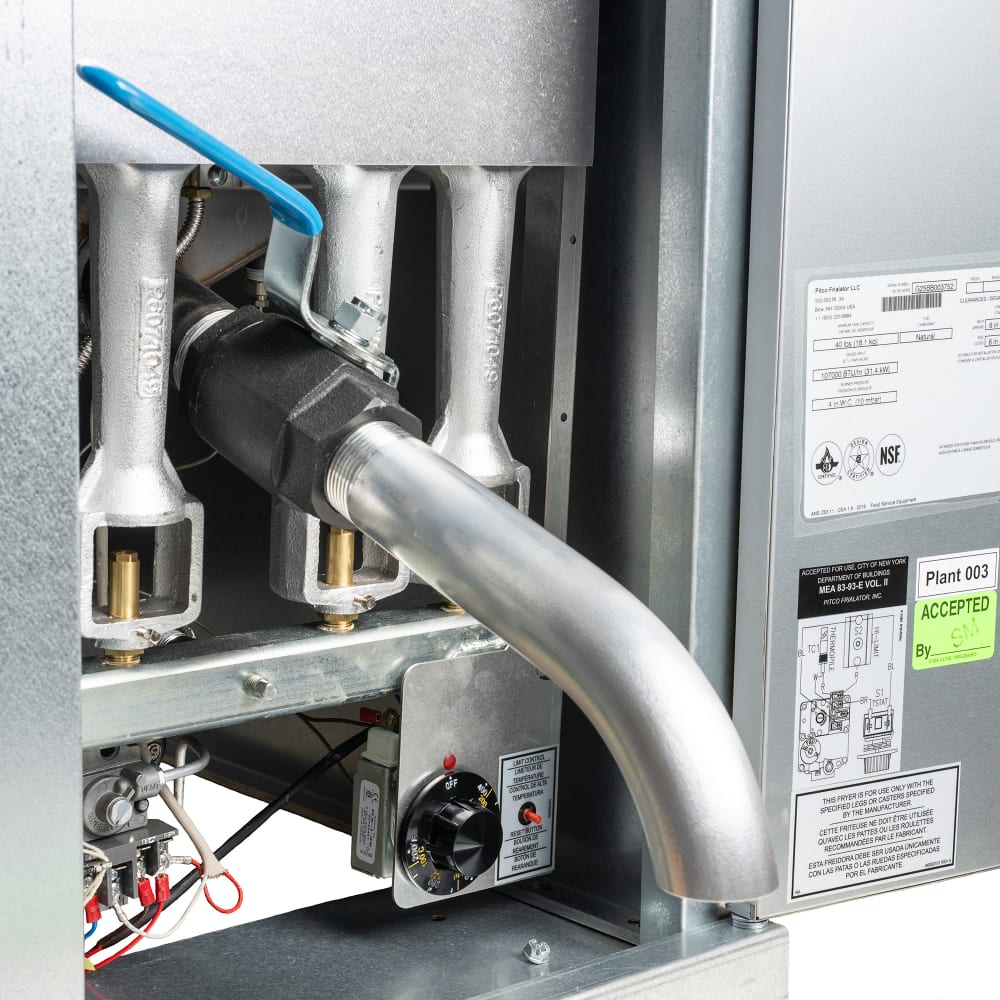

  • 114-in. NPT drain valve is front-located

Tube Fired NG Gas Fryer, welded tank, 40-45 lb oil capacity, stainless tank, stainless steel front, door and galvanized steel sides and back, thermostat maintains selected temperature automatically between 200 F and 400 F, safety temperature switch. Included: 2 twin size baskets, drain extension, flue deflector, drain clean out rod, removable basket hanger, 6" adjustable legs.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Pitco 40D Specifications

PDF Spec Sheet
Manufacturer Pitco
Number of Fry Pots 1
Gas Type NG
BTU per Fryer 115,000
Oil Capacity/Fryer (lbs) 45
Frypot Style Tube Type
Food Type Breaded
Width (in) 15
Warranty 1 year parts & labor
Baskets 2
Product Gas Fryer
Product Type Cooking Equipment
Weight 170.00
Pitco 40D Certifications
  • NSF

Pitco 40D Customer Reviews

  • 5 out of 5
  • 1 review
  • 5 Stars: (1)
  • 4 Stars: (0)
  • 3 Stars: (0)
  • 2 Stars: (0)
  • 1 Stars: (0)
See all 1 customer reviews
Write A Review

Sunshine said...
"Great product! Fast ship!"

See All Pitco 40D Customer Reviews
  • 5 out of 5
  • 1 review
  • 5 Stars: (1)
  • 4 Stars: (0)
  • 3 Stars: (0)
  • 2 Stars: (0)
  • 1 Stars: (0)
  • I would buy it again.

    By on April 18, 2017

    "Great product! Fast ship!"
Write A Review
